Seite 1/4

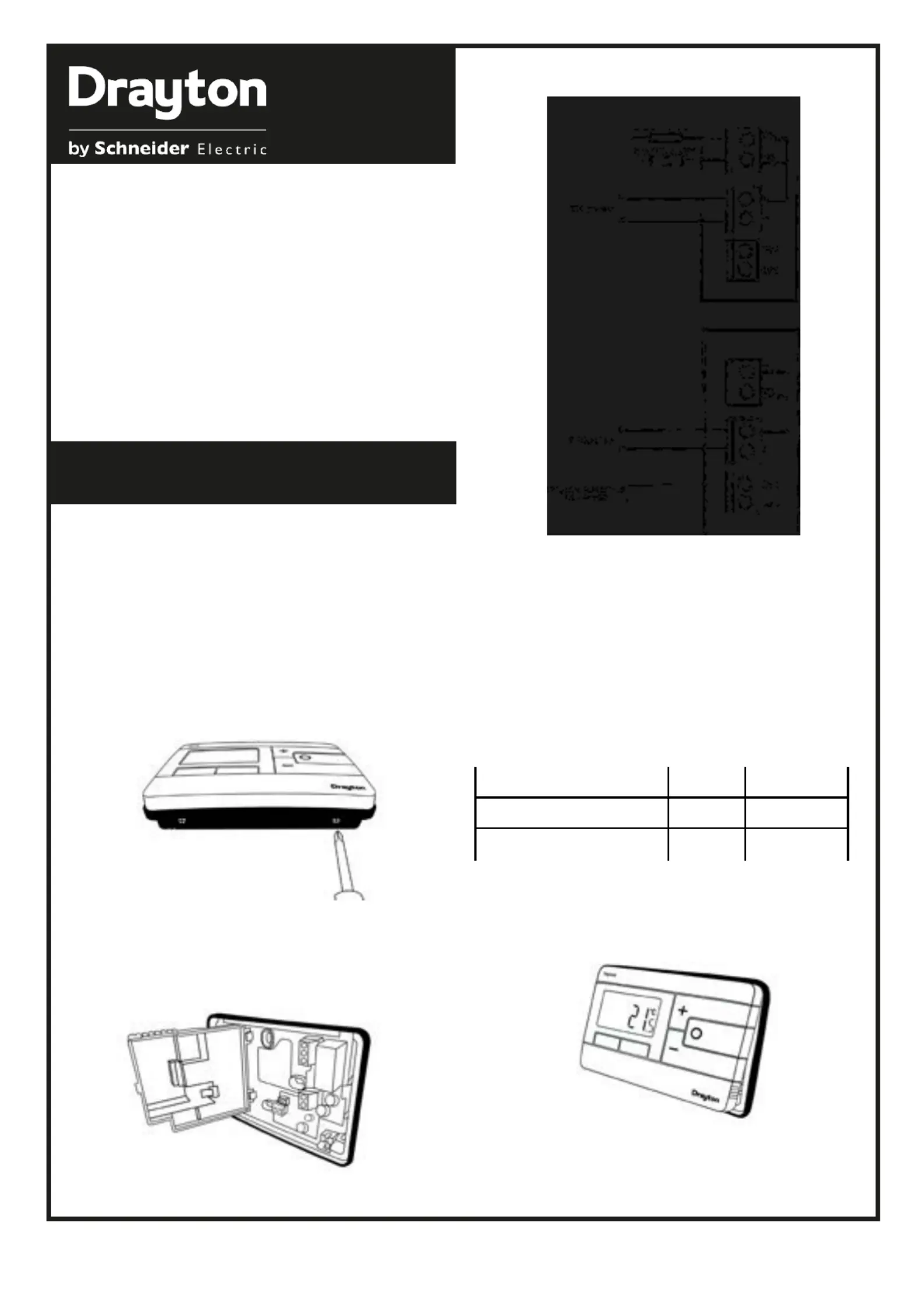

Programmable 2-Channel

Room Thermostat

Model: 22902

Technical Helpline Tel: 0333 6000 622

Website: www.draytoncontrols.co.uk

Email: customer.care@draytoncontrols.co.uk

User and Installation Guide 06490346001 Iss B

User and Installation Guide 06490346001 Iss BUser and Installation Guide 06490346001 Iss B

Installation guide

Before Installation

Before InstallationBefore Installation

If you do not have the knowledge to install the thermostat

safely then you must arrange for a competent electrician

to install it for you. Wiring must conform to the current IEE

regulations.

Prior to commencing the installation you must ensure the

mains supply is switched off.

1.1. Remove the front cover by releasing the 2 screws at the

bottom. Mounting holes and electrical connections are found

underneath the hinged black cover (Fig 1).

3a. Complete the wiring according to the connections

shown in Fig 3.

4. Close the black hinged terminal cover and replace the

front cover by locating the two latches at the top then fasten

the 2 screws at the bottom (Fig 4).

(Fig. 4)

5. The Digistat is now installed and will automatically start to

control the room temperature.

10 Upper CH water set point 30-80°C Default 70°C

11 Lower CH water set point 10-25°C Default 10°C

12 Set HW temp 45-65°C Default 60°C

Digistat

3rd Generation

(Fig. 1)

2.2. Fix back plate directly onto the wall using suitable wall plugs

and screws or mount over existing wall box (Fig 2).

(Fig. 2)

(Fig. 3)

3b. If your boiler supports OpenTherm please follow these

3b. If your boiler supports OpenTherm please follow these 3b. If your boiler supports OpenTherm please follow these

instructions:

instructions:instructions:

Remove the OpenTherm cables from the existing controller

or thermostat. Connect the cables to the OpenTherm termi-

nals OT1 and OT2 on the Digistat. Polarity is not important.

Wire L and N from a separate supply with a 3A fuse.

Note that when connected to an OpenTherm boiler, Installer

Options 06 Valve Protection and 08 Application Type are not

available. The following options will appear in the Installer

Options list:

To make changes to the default Installer Options shown

below, enter the Installer Options menu by pressing the

settings button for 3 seconds. This allows access to the

User Menu 01, the Advanced User Settings Menu 02, the

Installer Settings 03, and Service Interval Settings 04. Use the

+ and - buttons to scroll to Installer Options and press O to

select. You can exit the menu by pressing until you have

returned to the home screen. In the Installer Options menu

(Fig 8), scroll through the options using the + and - buttons

and press O to select. Scroll through the different settings

using the + and - buttons and press O to select and save. (Fig

9 shows Option 02 OFF).

(Option 01) Partial Sight Assistant

(Option 01) Partial Sight Assistant(Option 01) Partial Sight Assistant

When enabled, audible tones indicate when the setpoint is

more than, less than or equal to the current room temper-

ature when a user manually adjusts the setpoint using the +

button: Setpoint > room temperature - single high tone per

0.5°C increase

Setpoint = room temperature - double tone

Setpoint < room temperature - single low tone per 0.5°C

decrease

(Option 02) Frost Protection

(Option 02) Frost Protection (Option 02) Frost Protection

The Digistat will switch on the heating if the temperature

falls to 5°C and maintains a temperature of 7°C even when in

OFF mode.

(Option 03) Minimum Setpoint Limit

(Option 03) Minimum Setpoint Limit (Option 03) Minimum Setpoint Limit

Change minimum setpoint temperature. After any changes to

setpoint limits, all setpoints in AUTO, MANUAL, BOOST and

HOLIDAY modes will be modified to conform accordingly.

(Option 04) Maximum Setpoint Limit

(Option 04) Maximum Setpoint Limit (Option 04) Maximum Setpoint Limit

Change maximum setpoint temperature. After any changes to

setpoint limits, all setpoints in AUTO, MANUAL, BOOST and

HOLIDAY modes will be modified to conform accordingly.

(Option 05) Optimum Start

(Option 05) Optimum Start (Option 05) Optimum Start

When enabled, this uses current ambient temperature, the

next scheduled setpoint and heat gain data captured by the

device to adjust the thermostat setpoint early, so the ambient

temperature is at the required level when the next event

starts.

Delayed Start

Delayed Start Delayed Start

When enabled, this uses current ambient temperature, cur-

rent event setpoint and heating characteristics environ-of the

ment to delay implementation of the setpoint if the ambient

temperature is already close to it, therefore saving energy.

(Option 06) Valve Protection Time

(Option 06) Valve Protection Time (Option 06) Valve Protection Time

In some hydronic heating systems it may be required to pro-

tect the valve by operating it for a given time. When enabled,

this maintenance feature ensures that each relay output is

operated for at least one (1) minute each week.

(Option 07) Sensor Fault Function

(Option 07) Sensor Fault Function (Option 07) Sensor Fault Function

In the event of a sensor fault, central heating output is re-

duced to 30% by turning heating ON for 3 minutes, then OFF

for 7 minutes.

(Option 08) Application Type

(Option 08) Application Type(Option 08) Application Type

Select the central heating system energy type.

(Option 09) System Capability

(Option 09) System Capability (Option 09) System Capability

Select the flow capability of the heating system.

(Option 13) Installer Settings Lock

(Option 13) Installer Settings Lock (Option 13) Installer Settings Lock

When enabled, you can lock the installer settings until a 3

digit code is entered.

(Option 20) Reset

(Option 20) Reset(Option 20) Reset (Service Interval settings are NOT reset)

Reset the Digistat to its original factory settings.

Service Interval Options continued on reverse.

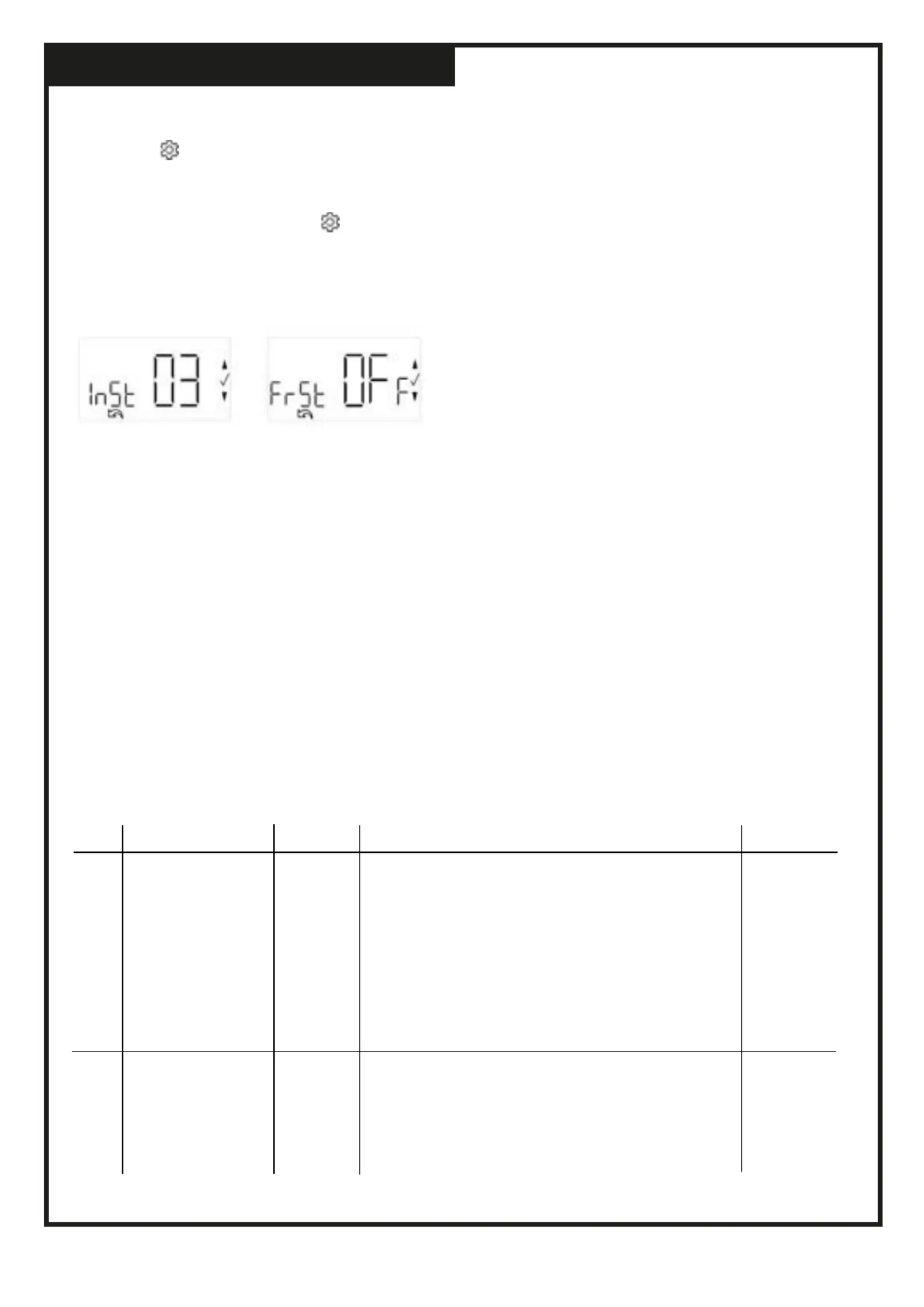

INSTALLER OPTIONS

(Fig. 8) (Fig. 9)

What is it Select etween b Default

Installer ptions O

01 OFF ON

Partial Sight Assistant

Frost Protection ON OFF ON

03 5 High mit Li 5

04 Low imit L 30 30

Low Set Point C

High Set Point C

Optimum Start OFF Delayed tart S Optimum tart S OFF

06 OFF 5 4 3 2 1 OFF

07 OFF ON OFF

08 Gas Electric Oil Heat Pump Gas

09 Fast low F Normal/Slow Flow Fast low F

13 OFF ON OFF

Valve ection ime Prot T

(Mins) Sensor ault unction F F

Application ype T

System apability C

Installer ettings S

Lock Reset NO YES NO

Service Internal Options

01 Si Status OFF ON OFF

02 Si pe Ty Reduced omfort C Heating OFF No Effect Reduced omfort C

03 Si Due Date YY/MM/DD

04 Si arning W 0 99 30

05 Si Due Alarm OFF ON OFF

06 Si Boost OFF ON OFF

07 Si Password Reset Select -digit IN 4 P 0000

bEEP

FrSt

LoSP

HiSP

OPSt

vPrt

SEnS

APPL

SySt

LOC

rSEt

StAt

tYPE

dUE

WArn

ALAr

bSt

COdE

EXit

Screen

ScreenScreen

Abbreviations

AbbreviationsAbbreviations

INSTALLER OPTIONS - continued User Guide

(Si Option 01) Si Status

(Si Option 01) Si Status(Si Option 01) Si Status

Enable or disable Service Interval Mode.

(Si Option 02) Si Type

(Si Option 02) Si Type(Si Option 02) Si Type

Select effect imposed on the heating when service is due.

(Si Option 03) Service Due Date

(Si Option 03) Service Due Date(Si Option 03) Service Due Date

Set date when next service is due.

(Si Option 04) Warning

(Si Option 04) Warning(Si Option 04) Warning

Select no. of days before service due date.

(Si Option 05) Service Due Alarm

(Si Option 05) Service Due Alarm(Si Option 05) Service Due Alarm

Enable or disable the audible service due alarm.

(Si Option 06) Si Boost

(Si Option 06) Si Boost(Si Option 06) Si Boost

Enable or disable the Service Boost feature (5 boosts).

(Si Option 07) Password Reset

(Si Option 07) Password Reset(Si Option 07) Password Reset

Change the 4 digit PIN. If you forget your Si password, please call

the Technical Helpline.

Technical Data

Power supply 230VAC +/-10%, 50Hz

Switch type & rating 3(1)A at 230V / 50Hz

Min. recommended

current SPDT (voltage free contacts)

10mA@24VAC (inductive)

Ambient temperature Operating: 0°C to +40°C

Storage: -20°C to 65°C

Ambient humidity

(non condensing) 20% to 80%, 90% non-condensing

Temperature range 5°C to 30°C

Rated impulse voltage 4KV

Ball pressure test 75°C

Disconnection means 1B

Automatic action 100,000 cycles

Operating Frequency 2402-2480 MHz

Max RF Power

transmitted +10dBm

Pollution situation Degree 2

Protection level IP30

Wiring Designed for fixed wiring only, to

com-ply with IEE wiring regulations

Energy Class V = 3% using OpenTherm connection

Relevant EC Directives: 2014/53/EU (RED)

2011/65/EU (RoHS)

2012/19/EU (WEEE)

Standards: EN 60730-1

EN 60730-2-7

EN 60730-2-9

ESTI EN 300 328

ESTI EN 301 489

EN IEC 63000

The Drayton Digistat thermostat is a universal thermostat with 24

hour,

5-2day or 7day program types and up to 8 time/temperature events

per day and can also be used as a simple room thermostat.

Clock Setting

•Press and hold the cog button until User 01 appears,

•Press the plus button to Advanced 02, then press O to enter,

•Press O to enter Time settings,

•Using the + and - you can adjust the time, then pess O to save,

•Press the cog button twice to bring you back to the home

screen.

General Operation

Programmable thermostats do not have “On” and “Off” times like

traditional timers. They offer temperature control both day and night

and you simply select which temperatures you require at each point in

the day.

With the unit in “Auto Mode” (the calendar icon is visible at the

bottom of the screen) the temperature can be changed for a short

time by using the + and – buttons. Changing the temperature in this

way will keep the Digistat set to your new temperature until the next

pre-programmed event (at which time it will revert to programmed

temperature). The temperature you are setting will flash on the screen.

Once temperature is set, the unit will revert to showing the room

temperature again. The indicator will show on the screen if the unit

is calling for heat.

Programming the Digistat

Your Digistat comes with the following settings

pre-programmed for your convenience and is suitable for those

working out of the house during a typical 9-5 pattern. When the

5-2day program type is selected the pre-set temperatures will be

different Mon-Fri and Sat-Sun, as per the tables below:

Pre-set Program 1 (24h, 5-2day weekdays, or 7day):

Event 12 3 4 (5)* (6) (7) (8)

Time

Temperature

06:30

20°C

08:30

16°C

16:30

21°C

22:30

OFF

Pre-set Program 1 (5-2day weekend):

Event 1 2 3 4 (5)* (6) (7) (8)

Time

Temperature

07:00

20°C

09:00

18°C

16:00

21°C

23:00

OFF

*To add these additional time periods manually (max. 8 per day)

please refer to the steps to the right.

The Bluetooth® word mark and logos are registered trademarks

owned by Bluetooth SIG, Inc. and any use of such marks by Schneider

Electric is under license. Other trademarks and trade names are those

of their respective owners.

Hereby, Schneider Electric Controls UK Ltd, declares that Digistat

2290 is in compliance with Directive 2014/53/EU. 2

The declaration of conformity may be consulted at

www.draytoncontrols.co.uk

Produktspezifikationen

Marke:	Drayton
Kategorie:	Thermostaat
Modell:	Digistat 22902

Brauchst du Hilfe?

Wenn Sie Hilfe mit Drayton Digistat 22902 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Thermostaat Drayton

Drayton RTS2 Bedienungsanleitung

16 September 2024

Drayton Digistat RF902 Bedienungsanleitung

6 September 2024

Drayton Digistat RF901 Bedienungsanleitung

6 September 2024

Drayton PTS1 Bedienungsanleitung

6 September 2024

Drayton LP20RF & Digistat+ RF Bedienungsanleitung

6 September 2024

Drayton Easy 2 Bedienungsanleitung

6 September 2024

Drayton Digistat+1RF Bedienungsanleitung

6 September 2024

Drayton Digistat+C RF Bedienungsanleitung

6 September 2024

Drayton HTS3 Bedienungsanleitung

6 September 2024

Drayton Digistat 2290B Bedienungsanleitung

6 September 2024

Bedienungsanleitung Thermostaat

Neueste Bedienungsanleitung für -Kategorien-

Theben RAM 801 top Bedienungsanleitung

18 September 2024

Weishaupt Modul Control WCM-FS 2.0 Bedienungsanleitung

18 September 2024

AWB ExaControl VM-1 Bedienungsanleitung

17 September 2024

Vemer TAMB cap Bedienungsanleitung

17 September 2024

Theben RAM 797 HF set 4 Bedienungsanleitung

16 September 2024

Theben RAMSES 725 Thermostaat Bedienungsanleitung

16 September 2024

Theben RAMSES 798 Thermostaat Bedienungsanleitung

16 September 2024

Theben RAMSES 707 Thermostaat Bedienungsanleitung

16 September 2024

Theben RAMSES 746 Thermostaat Bedienungsanleitung

16 September 2024

Honeywell SMHOM8610KIT Bedienungsanleitung

15 September 2024
