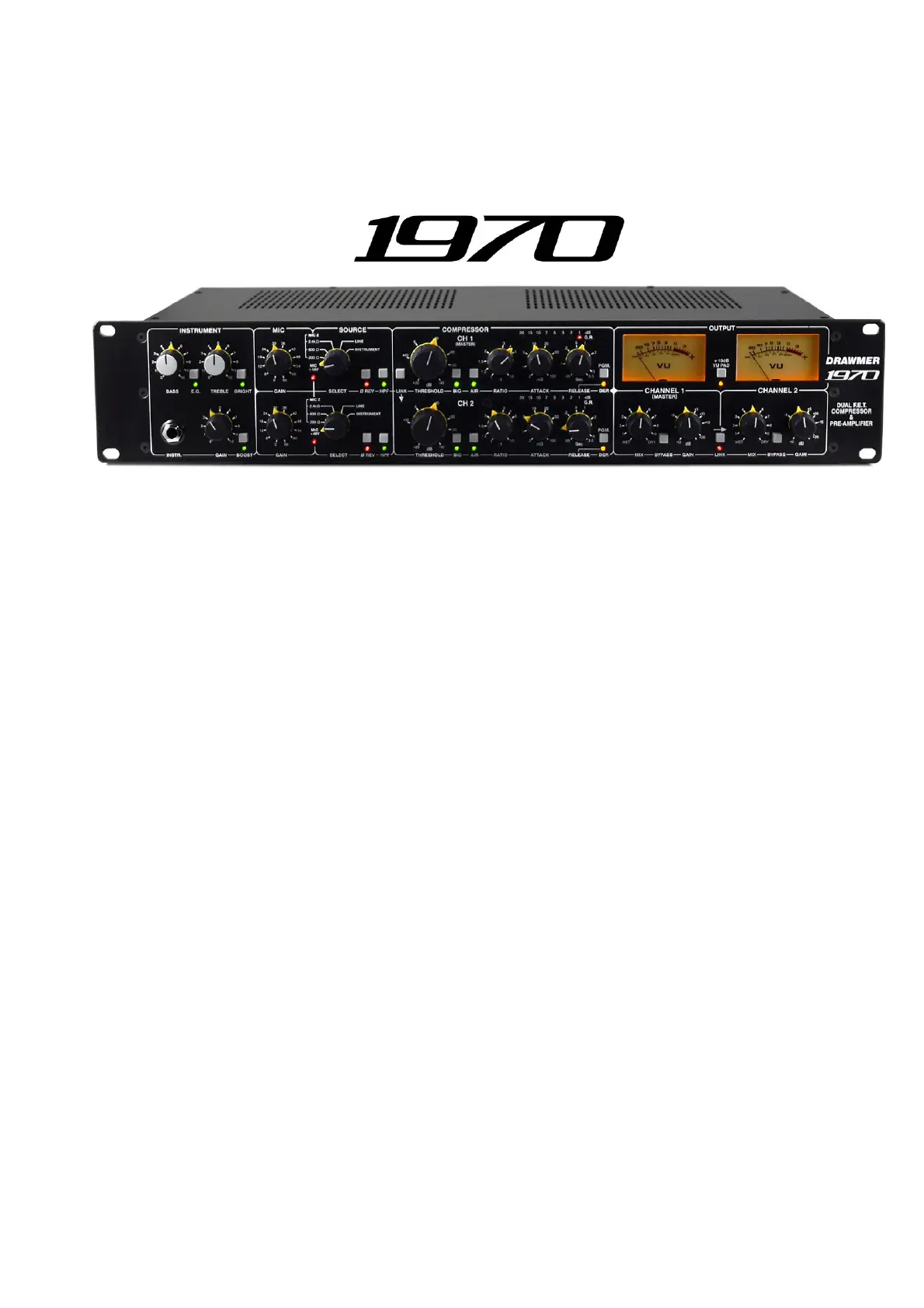

DRAWMER
Dual FET Compressor
& Pre-Amplifier
OPERATOR’S MANUAL
CONTENTS
Warranty
Safety Consideration
Chapter 1 - Introduction
Introduction
Installation
Power Connection
Audio Connections
Chapter 2 - Control Description
Control Description
Hints and Tips
Chapter 3 - General Information
If a fault develops
Contacting Drawmer
Specification Data
Block Diagram
Recall Sheet
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2DRAWMER 1970 OPERATOR’S MANUAL
Drawmer Electronics Ltd., warrants the Drawmer 1970 Dual
FET Compressor & Pre-Amplifier to conform substantially
to the specifications of this manual for a period of one year
from the original date of purchase when used in accordance
with the specifications detailed in this manual. In the case
of a valid warranty claim, your sole and exclusive remedy
and Drawmer’s entire liability under any theory of liability
will be to, at Drawmer’s discretion, repair or replace the
product without charge, or, if not possible, to refund the
purchase price to you. This warranty is not transferable. It
applies only to the original purchaser of the product.
For warranty service please call your local Drawmer dealer.
Alternatively call Drawmer Electronics Ltd. at +44 (0)1709
527574. Then ship the defective product, with transportation
and insurance charges prepaid, to Drawmer Electronics
Ltd., Coleman Street, Parkgate, Rotherham, S62 6EL UK.
Write the RA number in large letters in a prominent position
on the shipping box. Enclose your name, address,
telephone number, copy of the original sales invoice and a
detailed description of the problem. Drawmer will not accept
responsibility for loss or damage during transit.
This warranty is void if the product has been damaged by
misuse, modification or unauthorised repair.
THIS WARRANTY IS IN LIEU OF ALL WARRANTIES,
WHETHER ORAL OR WRITTEN, EXPRESSED, IMPLIED
OR STATUTORY. DRAWMER MAKES NO OTHER
WARRANTY EITHER EXPRESS OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR
A PARTICULAR PURPOSE, OR NON-INFRINGEMENT.
PURCHASER’S SOLE AND EXCLUSIVE REMEDY
UNDER THIS WARRANTY SHALL BE REPAIR OR
REPLACEMENT AS SPECIFIED HEREIN.
IN NO EVENT WILL DRAWMER ELECTRONICS LTD. BE
LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL,
INCI DENTAL O R CONSEQ UENTI AL DAM AGES
RESULTING FROM ANY DEFECT IN THE PRODUCT,
INCLUDING LOST PROFITS, DAMAGE TO PROPERTY,
AND, TO THE EXTENT PERMITTED BY LAW, DAMAGE
FOR PERSONAL INJURY, EVEN IF DRAWMER HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Some states and specific countries do not allow the
exclusion of implied warranties or limitations on how long
an implied warranty may last, so the above limitations may
not apply to you. This warranty gives you specific legal
rights. You may have additional rights that vary from state
to state, and country to country.
In the interests of product development, Drawmer reserve the right to modify or
improve specifications of this product at any time, without prior notice.
ONE YEAR LIMITED WARRANTY
COPYRIGHT
This manual is copyrighted © 2019 by Drawmer Electronics Ltd. With all rights reserved. Under copyright
laws, no part of this publication may be reproduced, transmitted, stored in a retrieval system or translated
into any language in any form by any means, mechanical, optical, electronic, recording, or otherwise, with-
out the written permission of Drawmer Electronics Ltd.
DRAWMER
1970
Dual FET Compressor
& Pre-Amplifier
SAFETY CONSIDERATIONS
CAUTION - MAINS FUSE
TO REDUCE THE RISK OF FIRE
REPLACE THE MAINS FUSE ONLY WITH
A FUSE THAT CONFORMS TO IEC127-2.
250 VOLT WORKING, TIME DELAY TYPE
AND BODY SIZE OF 20mm x 5mm.
THE MAINS INPUT FUSE MUST BE
RATED AT 230V=T250mA and 115V=T500mA.
CAUTION - MAINS CABLE
DO NOT ATTEMPT TO CHANGE
OR TAMPER WITH THE
SUPPLIED MAINS CABLE.
CAUTION - SERVICING
DO NOT PERFORM ANY SERVICING.
REFER ALL SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE.
3
DRAWMER 1970 OPERATOR’S MANUAL
DRAWMER
DUAL FET COMPRESSOR & PRE-AMPLIFIER
The 1970 Dual F.E.T. Compressor and Pre-Amplifier builds
on a heritage inspired by the first pro audio "tool box"
compressor, the illustrious Drawmer 1960, but with a
greatly expanded feature set, making it one of the most
adaptable mic preamplifier/compressors on the market
today. Bringing vintage audio characteristics at an
affordable price.
Whilst the feature set of the 1970 is similar to the Drawmer
1960, and the layout of the controls will add to the
comparisons, the 1970 has been greatly improved and
the DI EQ has been fine tuned to be more accurate than
its stable-mate, with various enhancements.
The 1970 use the latest THAT Corporation technology in
the 2 mic preamps to provide ultra clean, transparent and
precise recordings that can be processed at a later stage
using your favourite warming method, be it saturation, valve,
transformer or tape. In addition each channel is capable
of 66dB of gain, with switchable mic impedance for
accurate mic matching to bring out the best from any
microphone used. Phase reverse is also included.
From tracking instruments via the dedicated D.I. input, to
recording vocals via the ultra clean mic pre's, recording a
guitar cabinet with two microphones, or a singer playing
guitar, or even stereo buss compression using the
comprehensive linking and mix facilities, the 1970 is the
perfect versatile tool for any studio or live event.
CHAPTER 1
INTRODUCTION
Two THAT Corporation ultra clean mic pre's with 66dB
of gain with phantom power and switchable mic
impedance for accurate mic matching
Separate Line & Mic input XLR's
1 pro quality instrument DI input with low and high EQ.
Can be used as 2 mono tracking compressors or 1
stereo buss compressor (avoiding image shifting) via
the class leading comprehensive linking facilities.
FETs can be bypassed altogether to provide ultra clean
outputs.
Standard controls such as Threshold, Ratio, Attack &
Release, with 8 LED GR Metering on each band.
Rear panel Side-chain insert points provide even further
control.
‘Big’ and 'Air' Modes Help to preserve the very deep
lows and Enhance the sparkling highs.
Variable Wet/Dry Mix plus Output Gain knobs on both
channels give a 'Parallel Compression' function without
the need for external mixing devices, providing complete
and effortless control over the amount of compression
used and output levels.
Two backlit Analogue V.U. Meters with Switchable
+10dB Rescale Mode. Time delay relays on outputs
for clean power up/down.
Internal Low Hum Toroidal Linear Power Supply with
Voltage Selector Switch.
Classic Drawmer build quality with rugged steel
chassis and aluminium front panel.
Designed and Handmade by Drawmer in the UK.
•
•
•
•
•
•
•
•
•
•
•
•
•
