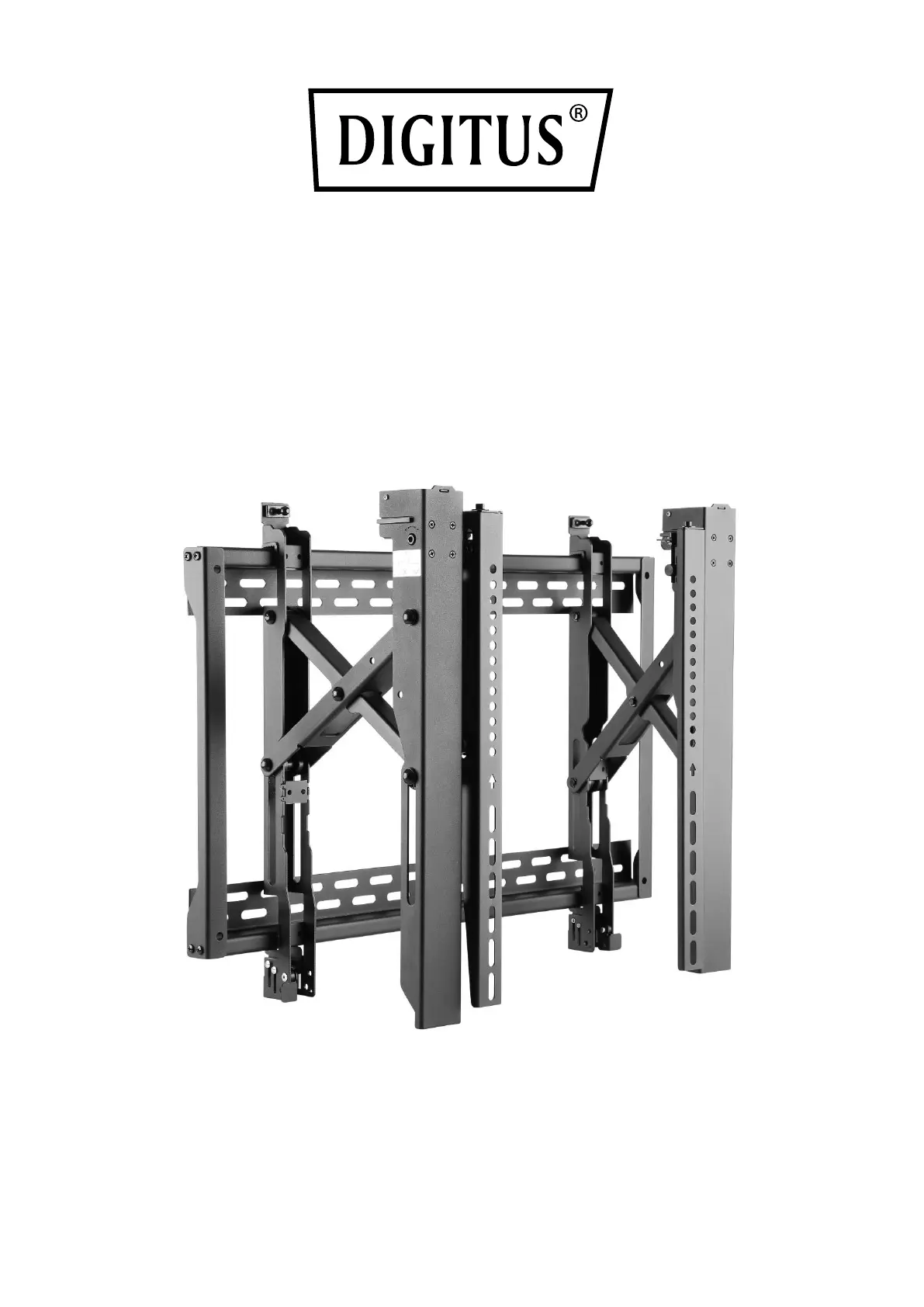

Pop-Out Video Monitor
Wall Mount, 45-70"
Assembly Instrucīons
DA- 69044
2
1. INTRODUCTION
"DA-90446 provides a professional video wall soluīon while being
universally compaīble with a maximum load capacity of 70 kg / 154 lbs
and max. VESA 600x400 hole paīern. Mulī-dimensional micro-
adjustment allows precise alignment of the video wall conī
¬guration
including depth, height and īlt. This video wall mount features a quick-
lock mechanism for easy installaīon and maintenance. The quick-lock
mechanism holds the screens in place, thanks to a locking and unlocking
system. It is the perfect soluīon for public and commercial displays with
an anī-theī design (padlock required).
2. FEATURES
1. Pop-out funcīon - Quick access for installaīon and maintenance
2. Supported screen sizes: 45" - 70"
3. Maximum load capacity: 70 kg
4. Fine adjustment: Depth 20 mm / height 25 mm
5. Tilt range: +4Ā° to -2Ā°
6. Screen level: +3Ā° to -3Ā°
7. VESA compaībility: 200x200, 300x200, 400x200, 300x300, 400x300,
400x400, 600x400
8. Precise display alignment: Height/depth adjustment
9. Quick lock: Locks/unlocks the display
10. Pop-out lock system: Ensures safety by prevenīng the possibility of
accidental pop-out
3. PACKAGE CONTENT
1. 1 x Pop-Out Video Monitor Wall Mount
2. 1 x Mounīng material
3. 1 x Installaīon instrucīons
4. Speciī
„caīons
Anī-theī lock hole:
For added security against unintenīonal
removal (addiīonal padlock required)
Mounīng:
Wall installaīon
Material:
Steel
3
Color:
Black
Surface:
Powder coaī„ng
Dimensions (folded):
W 67 x D 52.4 x H 9.5 cm
Weight:
10.55 kg
5. Installaīon Instrucīons
wall plate
A
connecī„ng plate
B
M5x8
C
leī pop-out adapter bracket
C
right pop-out adapter bracket
D
plasī„c locking piece
F
Package M
M5x14
M-A
M6x14
M-B
M8x20
M-C
M6x30
M-D
M8x30
M-E
washer
M-F
small spacer
M-G
big spacer
M-H
