Warranty Information..
DCM products purchased in the United States from an authorized DCM dealer, is guaranteed against de-
fects in material and workmanship for a period of TEN YEARS from the date purchased by the end user,
and limited to the original retail purchaser of the product. Product found to be defective during that period
will be repaired or replaced by DCM at no charge. This warranty is void if it is determined that unauthorized
parties have attempted repairs or alterations of any nature. Warranty does not extend to cosmetics or ïŹn-
ish. Before presuming a defect is present in the product, be certain tht all related equipment and wiring is
functioning properly. DCM disclaims any liabilty for other incurred damages resulting from product defects.
Any expenses incurred in the removal and reinstallation of product is not covered by this warranty. DCM’s
total liability will not exceed the purchase price of the product. If a defect is present, your authorized DCM
dealer may be able effect repairs.
Proof of purchase is required when requesting service, so please retain your sales receipt and take a mo-
ment to register your product on line at
dcmspeakers.com. Also, a Return Authorization number (RA) is
required before shipping product back to DCM, call 800-556-2888 or 608-328-5560.
1 Mitek Plaza
Winslow, IL 61089
Phone (877)DCM-LOUD
www.dcmspeakers.com
DCM is a registered trademark of Mitek Corporation.
Due to our policy of continuous improvement, specifications are subject to change without notice.

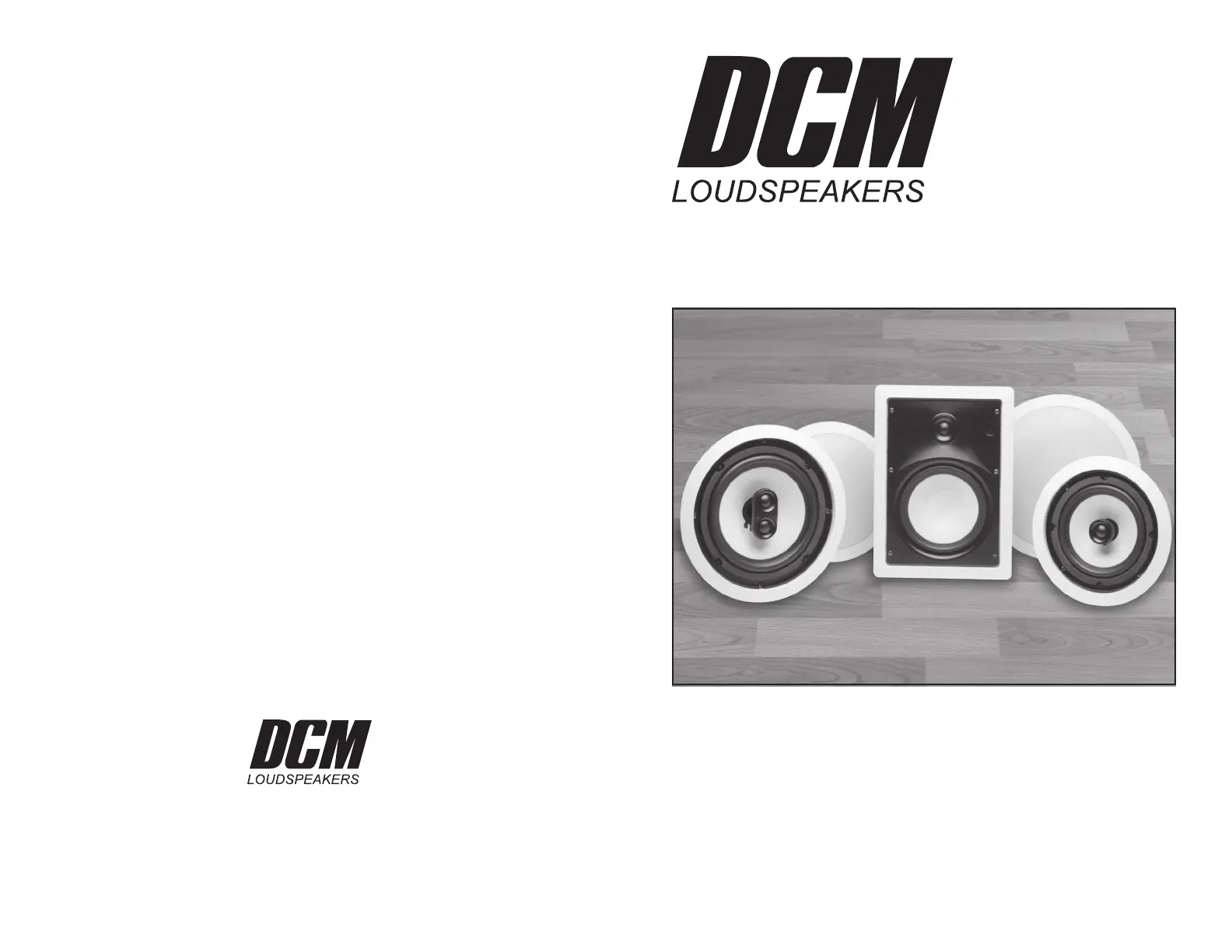

DCM Time Domain Series
In-Walls and In-Ceilings
21A8824
Congratulations..
We appreciate your choice of DCM Time Domain In-Wall and In-Ceiling Series speakers. Properly in-
stalled and operated, they should provide years of worry-free listening pleasure. It’s important that you
follow each step in the mounting directions on the mounting template and the recommendations in this
guide carefully to insure proper installation.
Features..
‱ 12dB/octave highpass crossover
‱ 6dB/octave lowpass crossover
‱ Laminated steel core inductors prevent distortion
‱ Neodymium tweeter magnet material
‱ Teteron dome tweeter material
‱ Kevlar woofer cone material with rubber surround
‱ Debris resistant woofer basket
‱ Aimable swivel tweeter (except TD622C and TD822C)
‱ Aluminum grille
‱ Air core highpass inductors
‱ Input binding posts accept up to 8 gauge wire
Painting Your Loudspeakers..
DCM Time Domain In-Wall and In-Ceiling Series speakers are designed to accept all types of interior
and exterior paints. Spray or roller application should provide excellent results. A paint shield is included
with all DCM speakers to protect the drivers during the painting process. The cloth inserts in the grilles
should be removed before the speakers are painted. They should be placed back in the grilles after the
paint is dry.
Loudspeaker Placement..
DCM Time Domain In-Wall and In-Ceiling Series speakers are designed to work within any interior deco-
rating scheme. They can be installed in virtually any location where ïŹ‚ush mounting is possible. To maxi-
mize their acoustical performance, however, certain guidelines should be followed. For the best stereo
reproduction the two loudspeakers should be placed an equal distance from your listening position and
separated so that the angle between them, at the listening position, is between 40 and 60 degrees. See
Figure 1 and Figure 2.
Figure 1 Figure 2
NOTES
For best music and home theater imaging, we recommend that the units be placed so that the tweeters
are as close as possible to the ear level of a seated listener. As this is not always possible in keeping with
aesthetic design of a particular room, all Time Domain speakers (except TD622C and TD822C) were
designed with a pivoting tweeter to allow you to “aim” the high frequencies toward the listening position.
See Figure 3.
Normal Dispersion
Dispersion After Tweeter Adjustment
Figure 4 shows an example of speaker placement a listening room when using a complete set of DCM
Time Domain In-Wall and In-Ceiling Series in a home theater system. In this example, in-wall models are
used for the Front Left and Right and Center channels, and in-ceiling models are used for the Left and
Right Rear surround channels. The surround speakers should be placed to the side of the listening posi-
tion and slightly behind it.
Stereo Input Models..
Models TD622C and TD822C are designed for use in small rooms such as bathrooms or hallways or
anywhere that both channels of a stereo signal need to be reproduced while taking up a minimum amount
of ceiling space. Both models utilize a dual voice coil woofer design that allows both channels of a stereo
system to drive one cone. This feature, coupled with a dual tweeter system, allows these models to oper-
ate as two speakers in one.
Figure 3
Figure 4
ConsidĂ©rations d’épaisseur du mur et du plafond
Épaisseur maximale du matĂ©riau
Tous les modĂšles DCM Time Domain d’enceintes encastrables au plafond et au mur mentionnĂ©s dans
ce livret peuvent ĂȘtre installĂ©s au plafond ou au mur sur une Ă©paisseur maximale de 25 mm Ă  l’aide des
ailettes de montage installĂ©es dans la position normale de sortie d’usine. Si l’épaisseur du mur ou du
plafond est supĂ©rieure Ă  25 mm, les ailettes doivent ĂȘtre retournĂ©es dans les rails pour permettre leur
utilisation avec un matĂ©riau Ă©pais. En retournant les ailettes, on permet l’installation de l’enceinte au mur
ou au plafond sur une épaisseur pouvant atteindre 38 mm. Pour retourner les ailettes, dévisser complÚte-
ment les vis de montage pour les sortir des ailettes. Puis, faire soigneusement sortir les ailettes des rails
en les soulevant Ă  l’aide d’un levier. Retourner les ailettes, les remettre en place dans les rails et rĂ©installer
les vis de montage.
Épaisseur minimale du matĂ©riau
Les modĂšles suivants peuvent ĂȘtre installĂ©s au mur et au plafond sur des matĂ©riaux d’au moins 9.525 mm
d’épaisseur : TD620W.
Les modĂšles suivants peuvent ĂȘtre installĂ©s au mur et au plafond sur des matĂ©riaux d’au moins 9.525 mm
d’épaisseur : TD620C, TD622C, TD820C, TD822C et TD620W.
