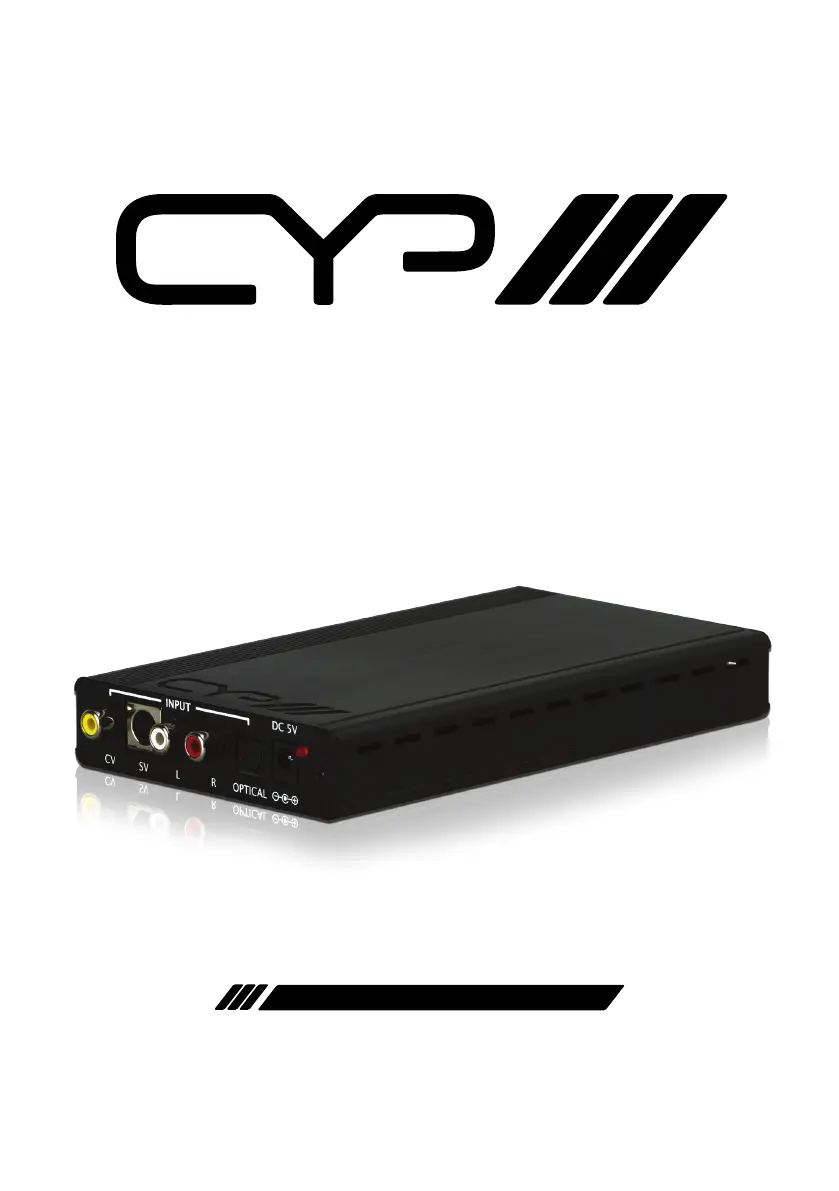

SY-P295N CV/SV
to HDMI 1080p
Scaler Box
Operation Manual
SY-P295N
1. Introduction................................................................................
2. Features......................................................................................
3. Package Contents.....................................................................
4. Operation Controls and Functions..........................................
4.1 Front Panel...........................................................................
4.2 Rear Panel............................................................................
4.3 OSD Operation.....................................................................
5. Reset Functionality.....................................................................
6. Specifications.............................................................................
6.1 General Specification..........................................................
6.2 Support Resolution................................................................
7. Connection and Installation.....................................................
TABLE OF CONTENTS
1
1
1
2
2
3
4
4
5
5
5
5
1. Introduction
This Scaler Box is designed to upscale analog video signal from CV/SV
input source to digital HDMI output of wide-range HDTV and PC
resolutions; up to 1080p. Besides video upscaling, the scaler box also
converts digital/analog audio signal to digital/analog format, then output
to HDMI combining with the video, TOSLink (Optical fiber), and phone jack
(L/R audio) simultaneously. This unit has a comprehensive OSD menu that
allows user to select a variety of output resolutions and adjust for best
picture quality.
2. Features
HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.
Scales any video resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p)
resolutions.
Automatically detect the factory setting of the connected display and
output the corresponding resolution and refresh rate, when the NATIVE
output is selected.
Supports 50/60 Hz frame rate conversion.
Supports 3-D motion video adaptive, 3-D de-interlacing and 3:2/2:2 pull
down detection and recovery.
Provides output picture adjustment on contrast, brightness, hue,
saturation, sharpness, RGB (color tone) level and aspect ratio size.
Supports high resolution output (See section “7. Support Resolution” for
reference.):
PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.
SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
Supports stereo LPCM analog/digital audio input and stereo LPCM
analog/digital output. Simply select among the audio input sources in the
OSD menu, then output the audio to HDMI, TOSLink and phone jack
simultaneously.
3. Package Contents
SY-P295N CV/SV to HDMI 1080p Scaler Box
5VDC Power Supply Adaptor
Operation Manual
Stereo audio cable (2RCA) x 1
Composite video Cable X 1
1
