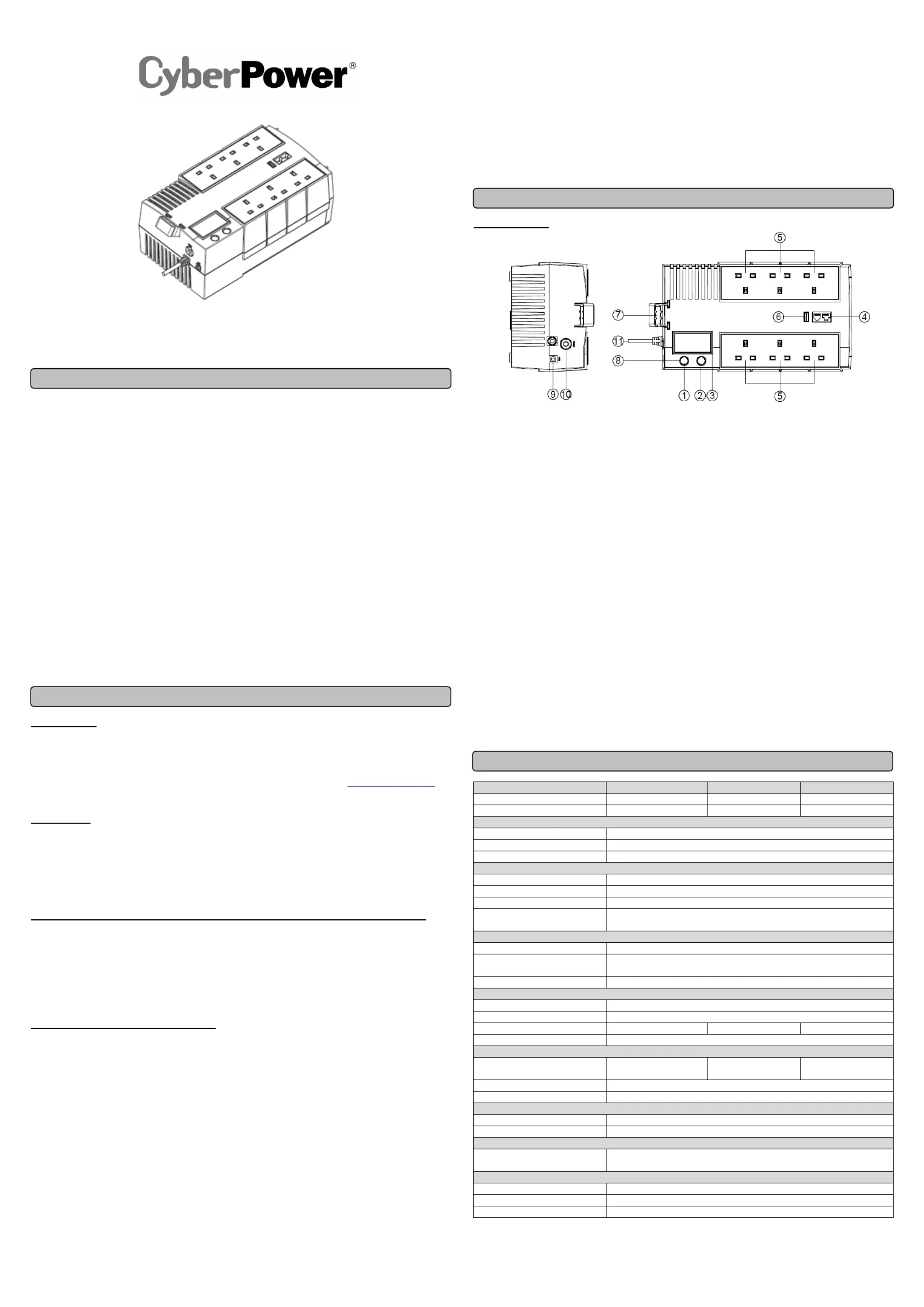

BR700ELCD / BR1000ELCD / BR1200ELCD
User’s Manual
K01-C000108-03
This manual contains important instructions that should be followed during installation and maintenance of
the UPS and batteries. Please read and follow all instructions carefully during installation and operation of
the unit. Read this manual thoroughly before attempting to unpack, install, or operate.
CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker
protection. DO NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this
equipment, turn off and unplug the UPS.
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems does
not sell products for life support or medical applications. use in any circumstance that would affect DO NOT
the operation or safety of any life support equipment, with any medical applications, or patient care.
CAUTION! Hazardous live parts inside can be energized by the battery even when the AC input power is
disconnected.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor
area, free of conductive contaminants. (Please see specifications for acceptable temperature and humidity
range).
CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the battery. There
are no user serviceable parts inside, except for the battery.
CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before
servicing the battery or installing a computer component.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or near
aquariums. Condensation from the aquarium can come in contact with metal electrical contacts and cause
the machine to short out.
CAUTION! DO NOT USE WITH LASER PRINTERS! The power demands of laser printers are too large for
a UPS.
UNPACKING
The box should contain the following:
(1) UPS Unit x 1; (2) Phone Line x 1; (3) USB Cable x 1; (4) User Manual x 1; (5) Cable Collector x 1;
(6) Warranty Card x 1;
*PowerPanel® Personal Edition software is available on our website. Please visit www.cyberpower.com and
go to the Software Section for free download.
OVERVIEW
The BR700ELCD/ BR1000ELCD/ BR1200ELCD provides automatic voltage regulation for inconsistent utility
power. The BR700ELCD/ BR1000ELCD/ BR1200ELCD features 125 Joules of surge protection, and
provides battery backup during power outages. The BR700ELCD/ BR1000ELCD/ BR1200ELCD ensures
consistent power to your computer system and its included software will automatically save your open files
and shutdown your computer system during a utility power loss.
HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT
1. Make sure that the total Volt-Amp (VA) requirements of your computer, monitor, and peripheral
equipment does not exceed 700VA/1000VA/1200VA.
2. Ensure that the equipment plugged into the battery power-supplied/surge outlets does not exceed the
UPS unit's rated capacity (700VA/420W forBR700ELCD,1000VA/600W for BR1000ELCD,
1200VA/720W for BR1200ELCD). If the rated unit capacities are exceeded, an overload condition may
occur and cause the UPS unit to shut down and the circuit breaker to trip.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8
hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss
may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC
outlet. The unit will charge in both the on and off position.
2. If you will use the software, connect the USB cable to the USB port on the UPS.
3. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data
storage device (Zip drive, Jazz drive, Tape drive, etc. into the battery power supplied outlets. DO NOT
plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device
into the UPS. The power demands of these devices will overload and possibly damage the unit.
4. To protect a fax, telephone, modem line or network cable, connect a telephone cable or network cable
from the wall jack outlet to the IN jack of the UPS. Then connect a telephone cable or network cable from
the OUT jack on the UPS to the modem, computer, telephone, fax machine, or network device.
5. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is
protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g.
air conditioner, refrigerator, copier, etc.) Avoid using extension cords.
6. Depress the power switch to turn the unit on. The power on indicator light will illuminate and the unit will
"beep".
7. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this,
turn the UPS off and unplug at least one piece of equipment from the battery power supplied outlets. Wait
10 seconds. Make sure the circuit breaker is depressed and then turn the UPS on.
8. Your UPS is equipped with an auto-charge feature. When the UPS is plugged into an AC outlet, the
battery will automatically recharge.
9. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
10. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the
battery every three months to ensure battery life.
DESCRIPTION
1. Power Switch
Press the switch for two seconds to turn the UPS ON or OFF.
2. LCD Display Selected Switch
The switch can be used to select the LCD display contents including Input Voltage, Output Voltage and
Estimated Run Time. The toggle frequency is set to one time per second. Holding the switch for more than
two seconds while running on battery will silence the buzzer.
3. LCD Display
High resolution and intelligent LCD display shows all the UPS information with icons and messages. For
more information please review the “Definitions for Illuminated LCD Indicators” section.
4. Communication Protection Ports RJ11/RJ45
Communication protection ports will protect any standard modem, fax, telephone line, or network cable from
surge and spikes.
5. AC Outlets
The UPS provides 4 outlets for connected equipment to insure temporary uninterrupted operation during a
power failure and against surges and spikes and another 4 outlets against surges and spikes only.
6. USB Charger Port
The UPS provides charging for external equipment via this port.
7. Cable Collector
Collect the cables connected from the AC outlets in the cable collector.
8. Led Indicators
The power on LED lights up when the UPS is ON.
9. USB Port To PC
This port allows connection and communication from the USB port on the computer to the UPS unit. The
UPS communicates its status to the PowerPanel® Personal Edition software.
10. Input Circuit Breaker
The Circuit Breaker provides optimal overload protection.
11. Input Power Cord
Connect to utility power
Model BR700ELCD-UK BR1000ELCD-UK BR1200ELCD-UK
Capacity (VA) 700VA 1000VA 1200VA
Capacity (Watts) 420W 600W 720W
Input
Input Voltage Range 165-290Vac
Frequency Range 47~63Hz (Auto Sensing)
AVR Function Boost @ 200+/-10V
Output
On Battery Output Voltage Simulated Sine Wave at 230Vac +/-10%
On Battery Output Frequency 50/60Hz +/-1%
Transfer Time 4ms Typical
Overload Protection On Utility: Circuit Breaker and Internal Current Limiting
On Battery: Internal Current Limiting
Surge Protection
Lightning / Surge Protection Yes
Network/ Phone/ Fax/ Modem
Protection RJ11/RJ45 (One In/ One Out)
Operating Temperature +32ď‚°F to 104ď‚°F ( 0ď‚°C to 40ď‚°C )
Physical
Total # of UPS outlets 6 (3 for battery backup and surge, 3 for surge only)
Dimensions (WxHxD) (mm) 166x 118x288
Weight (kg) 5.3 6.5 8.2
Wall-mounted Distance(mm) 163
Battery
Sealed Maintenance Free
Lead Acid Battery RBP0083 RBP0006 RBP0063 x 1 x 1 x 2
Typical Recharge Time 8 hours
User Replaceable Yes
Status Indicators
Indicators Power On, LCD Display
Audible Alarms On Battery, Low Battery, Overload
Communication
PowerPanel
®
Personal Edition
Software Windows 8/7/Vista/XP/2000,Server 2012/2008/2003, Linux
Management
Auto-Charger Yes
Auto-Restart Yes
USB interface Yes
TECHNICAL SPECIFICATIONS
BASIC OPERATION
INSTALLING YOUR UPS SYSTEM
IMPORTANT SAFETY INSTRUCTIONS
CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery.
Service the battery under the supervision of personnel knowledgeable of batteries and their
precautions.
CAUTION! Use only the specified type of battery. See your dealer for replacement batteries.
CAUTION! The battery may present the risk of electrical shock. Do not dispose of batteries in a fire, as they
may explode. Follow all local ordinances regarding proper disposal of batteries.
CAUTION! Do not open or mutilate the batteries. Released electrolyte is harmful to the skin and eyes and
may be toxic.
CAUTION! A battery can present a high risk of short circuit current and electrical shock. Take the following
precautions before replacing the battery:
1. Remove all watches, rings or other metal objects.
2. Only use tools with insulated handles.
3. DO NOT lay tools or other metal parts on top of battery or any battery terminals.
4. Wear rubber gloves and boots.
5. Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source of ground.
CONTACT WITH A GROUNDED BATTERY CAN RESULT IN ELECTRICAL SHOCK! The likelihood of
such shock will be reduced if such grounds are removed during installation and maintenance (applicable to a
UPS and a remote battery supply not having a grounded circuit)
BATTERY REPLACEMENT PROCEDURE
1. Turn off and unplug all connected equipment.
2. Turn the UPS off and unplug it from the AC power source.
3. Turn the UPS on its side.
4. Remove the retaining screw located on the bottom of the UPS.
5. Slide the battery compartment cover completely off of the unit.
6. Remove the batteries from the compartment.
7. Disconnect the battery wires from the batteries.
8. Install the replacement batteries by connecting the red wire (+) and black wire (-) to the same color
connectors from the battery pack.
9. Put the batteries back into the compartment.
10. Slide back the battery compartment cover and tighten the retaining screw.
11. Recharge the UPS for 8-16 hours to fully charge the battery.
BR700ELCD/ BR1000ELCD
BR1200ELCD
LCD Indication
Line Mode
Display SW
Press
UPS Status Display Capacity Display Digital Value Display
Load
Cap.
Battery
Cap.
Input
Voltage
Output
Voltage
Run
Time
%
of
Load
%
of Batt.
Initial V X -- X V X V
1st V X -- X V X V
2nd V X -- X V X V
3rd V X -- X X V V
4th V X -- X V X V
5th(Return) V X -- X V X V
Press >3sec
(Sound Disable) V X V X -- -- -- -- -- -- --
Press >3sec
again
(Sound Enable) V X X X -- -- -- -- -- -- --
(Overload) V X -- V -- -- -- -- -- -- --
“V” : Illuminated, “X” : Not Illuminated, “--“ : Either
Battery Mode
Display SW
Press
UPS Status Display Capacity Display Digital Value Display
Load
Cap.
Battery
Cap.
Input
Voltage
Output
Voltage
Run
Time
%
of
Load
%
of Batt.
Initial X V -- X X V V
1st X V -- X X V V
2nd X V -- X V X V
3rd X V -- X X V V
4th X V -- X X V V
5th(Return) X V -- X X V V
Press >3sec
(Sound Disable) X V V X -- -- -- -- -- -- --
Press >3sec
again
(Sound Enable)
X V X X -- -- -- -- -- -- --
(Overload) X V -- V -- -- -- -- -- -- --
“V” : Illuminated, “X” : Not Illuminated, “--“ : Either
CyberPower’s Green Commitment
CyberPower is dedicated to the development of green products, and has adopted
Green practices throughout its business, including: membership in Climate Savers
Computing Initiative (CSCI), accordance with the Restriction on Hazardous
Substances (RoHS), Waste Electrical and Electronic Equipment (WEEE) protocols,
as well as ISO 14001 and IECQ QC080000. CyberPower pledges to provide the
advanced energy solution for the environment and become a leading eco-friendly
organization in the UPS industry.
Reduce Energy Cost with GreenPower UPSTM Technology
CyberPower’s goal is not only to provide eco-friendly products but also to bring the best value for consumers.
The advanced energy-saving design improves the operating efficiency and eliminates waste energy
consumption. As a result, consumers will enjoy significant energy cost savings with the adoption of
GreenPower UPSTM technology.
Problem Possible Cause Solution
Full-time surge protection
outlets stop providing power
to equipment. Circuit
breaker button is projecting
from the side of the unit.
Circuit breaker has
tripped due to an
overload.
Turn the UPS off and unplug at least one
piece of equipment. Wait 10 seconds, reset
the circuit breaker by depressing the button,
and then turn the UPS on.
The UPS does not perform
expected runtime.
Battery not fully
charged.
Recharge the battery by leaving the UPS
plugged in.
Battery is slightly worn
out.
Contact CyberPower Systems about
replacement batteries.
The UPS will not turn on.
The on/off switch is
designed to prevent
damage by rapidly
turnin
g
it off and on.
Turn the UPS off. Wait 10 seconds and then
turn the UPS on.
The battery is worn out. Contact CyberPower Systems about
replacement batteries
Mechanical problem. Contact CyberPower Systems at
www.cyberpower.com
PowerPanel® Personal
Edition is inactive.
The USB cable is not
connected.
Connect the USB cable to the UPS unit and
an open serial port on the back of the
computer. You must use the cable that came
with the unit.
The unit is not providing
battery power.
Shutdown your computer and turn the
UPS off. Wait 10 seconds and turn the
UPS back on. This should reset the unit.
Additional troubleshooting information can be found at www.cyberpower.com
For more information, Visit www.cyberpower.com or contact CyberPower Systems B.V.
All rights reserved. Reproduction without permission is prohibited.
6F, No. 32, Sec. 1, Chenggong Rd., Nangang District, Taipei 115, Taiwan
TROUBLESHOOTING
DEFINITIONS FOR ILLUMINATED LCD INDICATORS
CYBERPOWER GREENPOWER UPS™ TECHNOLOGY
BATTERY REPLACEMENT
Produktspezifikationen
| Marke: | CyberPower |
| Kategorie: | UPS |
| Modell: | BR1200ELCD |
Brauchst du Hilfe?
Wenn Sie Hilfe mit CyberPower BR1200ELCD benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung UPS CyberPower
3 Oktober 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
Bedienungsanleitung UPS
- UPS Approx
- UPS Gembird
- UPS HP
- UPS Voltcraft
- UPS AEG
- UPS Siemens
- UPS IKEA
- UPS Dell
- UPS LC-Power
- UPS Tripp Lite
- UPS GYS
- UPS Adj
- UPS Block
- UPS Digitus
- UPS APC
- UPS Eaton
- UPS EnerGenie
- UPS Emerson
- UPS Furman
- UPS Riello
- UPS Puls Dimension
- UPS Avocent
- UPS Atlantis Land
- UPS Vanson
- UPS Phoenix Contact
- UPS Minuteman
- UPS V7
- UPS Equip
- UPS Salicru
- UPS SurgeX
- UPS Bxterra
- UPS Altronix
- UPS FSP
- UPS Ditek
- UPS PowerWalker
- UPS FSP/Fortron
- UPS East
- UPS Liebert
- UPS Murr Elektronik
- UPS Online USV
Neueste Bedienungsanleitung fĂĽr -Kategorien-
13 Oktober 2024
13 Oktober 2024
13 Oktober 2024
13 Oktober 2024
13 Oktober 2024
13 Oktober 2024
13 Oktober 2024
13 Oktober 2024
11 Oktober 2024
9 Oktober 2024
