Obtaining Other Language Versions: To obtain information in another language about the use of this product, please contact your local

Crown Distributor. If you need assistance locating your local distributor, please contact Crown at 574-294-8000.

This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situa tion

which may arise during installation, operation or maintenance.

The information provided in this manual was deemed accurate as of the publication date. However, updates to this information may have

occurred. To obtain the latest version of this manual, please visit the Crown website at www.crownaudio.com.

Trademark Notice: Com-Tech, BCA, Crown, Crown Audio, Amcron and Multi-Mode are registered trademarks of Crown International. IQwic,

PIP and PIP2 are trademarks of Crown International. Other trademarks are the property of their respective owners.

Some models may be exported under the name Amcron ®.

6/11

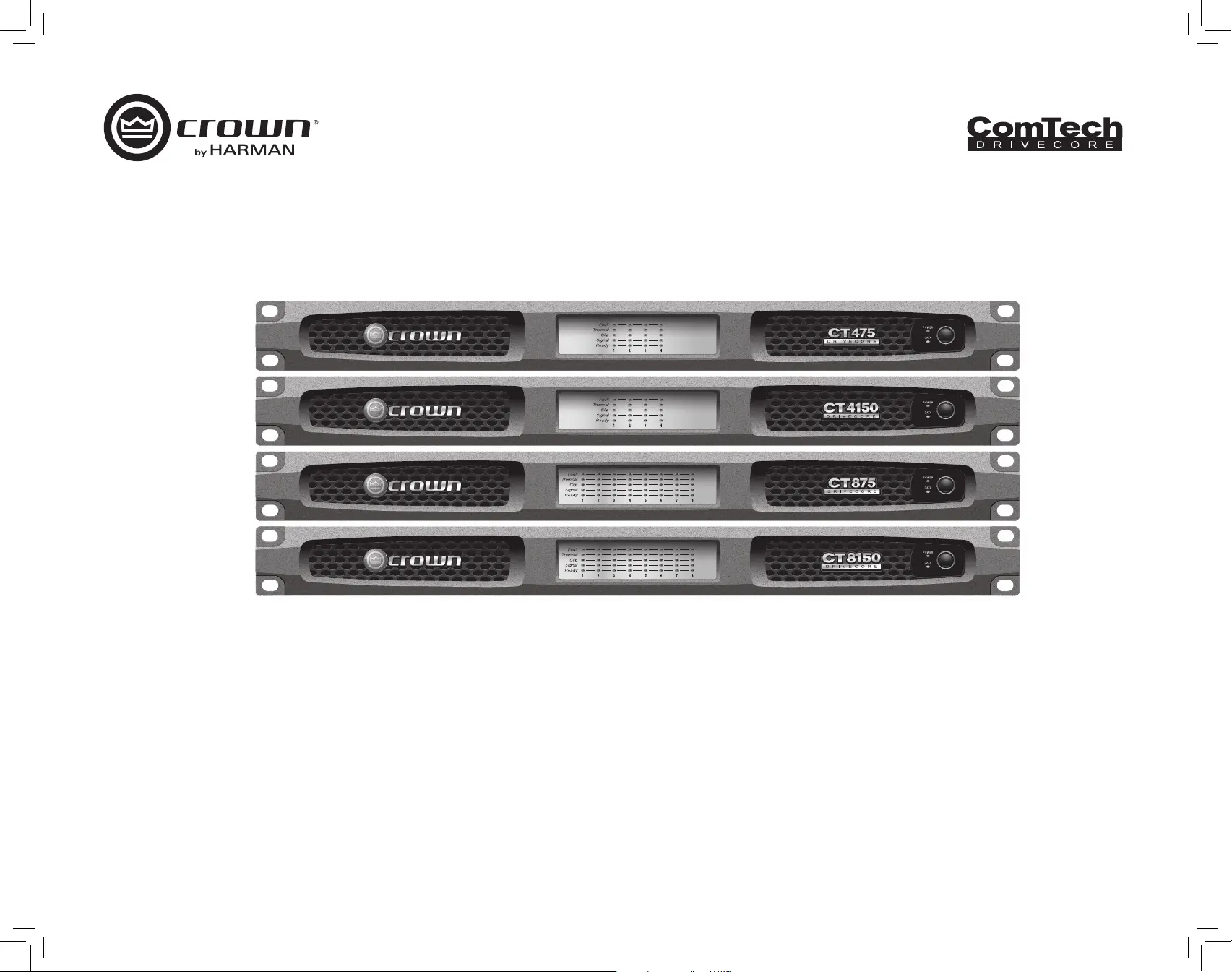

ComTech DriveCore Operation Manual

CT 475

CT 4150

CT 875

CT 8150

Operation Manual

CT Power Ampliﬁers

page 2

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat

reg isters, stoves, or other apparatus (including ampliﬁers)

that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding-type plug has two

blades and a third grounding prong. The wide blade or

the third prong is provided for your safety. If the provided

plug does not ﬁt into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched,

par ticularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufac-

turer.

12. Use only with a cart, stand, tripod, bracket, or table

speciﬁed by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does

not operate nor mally, or has been dropped.

15. Use the mains plug to disconnect the apparatus from the

mains.

16. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR

MOISTURE.

17. DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR

SPASHING AND ENSURE THAT NO OBJECTS FILLED

WITH LIQUIDS, SUCH AS VASES, ARE PLACED ON THE

EQUIPMENT.

18. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL

REMAIN READILY OPERABLE.

Important Safety Instructions

MAGNETIC FIELD

CAUTION! Do not locate sensitive high-gain equipment such as pre-

ampliﬁers directly above or below the unit. Because this ampliﬁer has a

high power density, it has a strong magnetic ﬁeld which can induce hum

into unshielded devices that are located nearby. The ﬁeld is strongest

just above and below the unit.

If an equipment rack is used, we recommend locating the ampliﬁer(s)

in the bottom of the rack and the preampliﬁer or other sensitive equip-

ment at the top.

The lightning bolt triangle is used to alert the user to the risk of

electric shock.

The exclamation point triangle is used to alert the user to

important operating or maintenance instructions.

REGARDEZ CES SYMBOLES:

La triangle avec le sigle ‘’foudre’’ est employée pour alerter

l’utilisateur au risque de décharge électrique. Le triangle avec

un point d’exclamation est employée pour alerter l’utilisateur

d’instruction importantes pour lors opérations de mainte nance.

ATENCION CON ESTOS SÍMBOLOS:

El triángulo con el símbolo de rayo eléctrico es usado para

alertar al usuario de el riesgo de un choque eléctrico.

El triángulo con el signo de admiración es usado para alertar

al usuario de instrucciones importantes de operación o man-

tenimiento.

WATCH FOR THESE SYMBOLS:

IMPORTANT

CT Series ampliﬁers require Class 2 output wiring.

Les ampliﬁcateurs de série de CT exigent des câbles de sortie de

classe 2.

CT-Reihe-Verstärker verlangen Klasse die 2 Produktionsverdrah tung.

Los ampliﬁcadores de la Serie CT requieren de un cableado de sal ida

Clase 2.

TO PREVENT ELECTRIC SHOCK DO NOT REMOVE TOP OR

BOTTOM COVERS. NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

À PRÉVENIR LE CHOC ÉLECTRIQUE N’ENLEVEZ PAS LES

COUVERCLES. IL N’Y A PAS DES PARTIES SERVICEABLE

À L’INTÉRIEUR. TOUS REPARATIONS DOIT ETRE FAIRE PAR

PERSONNEL QUALIFIÉ SEULMENT.

PARA PREVENIR UN CHOQUE ELÉCTRICO, NO RETIRE LAS

CUBIERTAS SUPERIOR O INFERIOR. NO EXISTEN PARTES QUE

PUEDAN SER REPARADAS POR EL USUARIO AL INTE RIOR.

REMITA EL SERVICICO AL PERSONAL TÉCHNICAL CALIFI-

CADO.

TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE

AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG

FROM THE AC RECEPTACLE. THE MAINS PLUG OF THE POWER

SUPPLY CORD SHALL REMAIN READILY OPERABLE.

POUR DÉMONTER COMPLÈTEMENT L’ÉQUIPEMENT DE

L’ALIMENTATION GÉNÉRALE, DÉMONTER LE CÂBLE D’ALI-

MENTATION DE SON RÉCEPTACLE. LA PRISE D’ALIMEN TATION

RESTERA AISÉMENT FONCTIONNELLE.

PARA DESCONECTAR COMPLETAMENTE EL EQUIPO DEL

SUMINSTRO ELECTRICO, DESCONECTE EL CABLE DE ALI-

MENTACION DE LA TOMA DE CA. LAS PATAS DEL CONEC TOR

DEL CABLE DE ALIMENTACIÓN DEBERAN MANTENERSE EN

BUEN ESTADO.

FCC COMPLIANCE NOTICE

This device complies with part 15 of the FCC rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

CAUTION: Changes or modiﬁcations not expressly approved by the party responsible for

complicance could void the user’s authority to operate the euqipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equip-

ment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Importantes Instructions de Sécurité

Wichtige Sicherheitsinstruktionen

Instrucciones de Seguridad Importantes

page 3

CT Power Ampliﬁers

Operation Manual

DECLARATION of CONFORMITY

European Representative’s Name and Address:

David Budge

10 Harvest Close

Yateley GU46 6YS

United Kingdom

Equipment Type: Power Ampliﬁers

Family Name: CT series

Model Names: CT8150, CT875, CT4150, CT475

EMC Standards:

EN 55103-1:1997 Electromagnetic Compatibility – Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions

EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 1 M

EN 61000-3-2:2006 & Amd 1: 2008 & AMd 2 : 2009 Limits for Harmonic Current Emissions (equipment input current 16A per phase)≤

EN 61000-3-3:1998 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems Rated Current ≤16A

EN 55022:2006 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits; Conducted, Class B

EN 55103-2:1997 Electromagnetic Compatibility – Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity

EN 61000-4-2:2009 Electrostatic Discharge Immunity (Environment E2-Criteria B, 4k V Contact, 8k V Air Discharge)

EN 61000-4-3:2006 Radiated, Radio-Frequency, Electromagnetic Immunity (Environment E2, Criteria A)

EN 61000-4-4:2007 Electrical Fast Transient/Burst Immunity (Criteria B)

EN 61000-4-5:2006 Surge Immunity (Criteria B)

EN 61000-4-6:2009 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (Criteria A)

EN 61000-4-11:2001 Voltage Dips, Short Interruptions and Voltage Variation

Safety Standard:

IEC 60065: 2001: 7Ed & Amd 1: 2005 Safety Requirements - Audio Video and Similar Electronic Apparatus

I certify that the product identiﬁed above conforms to the requirements of the EMC Council Directive 2004/108/EC and the Low Voltage Directive 2006/95/EC.

Signed

Date of Issue: March 16, 2011

ISSUED BY: Harman International
