Quick Start
The Crestron® UC-M130-T Tabletop UC Video Conference System for Microsoft Teams® delivers
a powerful, professional solution for knowledge workers who want the Microsoft Teams
software experience in small to midsize meeting and conference rooms.
To use the UC-M130-T system you must have the following:
• A Microsoft Teams or Skype® for Business software account
• An environment running Microsoft Exchange Server® software (2013 SP1 or later for on-
premises installation or Microsoft 365™ software for cloud) for scheduling and/or Skype
for Business 2015 (on-premises installation or Microsoft 365 software for cloud)
Display
UC-BRKT-100-SD
CAT5e
UCENGINESD HDMI
USB 2.0
CCSCAMUSBF100
Check the Box
Item Qty
UC-M130-T 1
CBL-CAT5E-7, 7 ft (2.1 m) CAT5e Cable (P/N 6509924) 1
CBL-USB-A-EXT-15, 15 ft (4.57 m) USB Extension Cable, Type A Male-to-Female,
(P/N 6508260)
1
CCS-CAM-USB-F-100 Logitech® Webcam C930e (P/N 6506442) 1
CCS-UC-1-T-V, Crestron Mercury® Tabletop UC Conference Console for Microsoft
Teams (P/N 6510716)
1
PW-2420RU, Desktop Power Pack, 24VDC, 2.5A (P/N 6500187) 1
UC-BRKT-100-SD ASSY Wall Bracket Assembly (includes HD-CONV-USB-200,
UC-CONN-HD, and UC-ENGINE-SD, Power Cord, Connector Cover Screws with Tools,
and Mounting Hardware) (P/N 6511033)
1
Additional Requirements
The following items (not included) are required to build the system.
• A video display device, connected to the UC-ENGINE-SD
• USB keyboard and mouse to configure the system
• HDMI® cable to connect a display device
• USB to HDMI adapter to connect the UC-ENGINE-SD USB port to the display device via
HDMI
• HDMI cable to connect an HDMI source
• #1 Phillips screwdriver
• Drill with a 5/16 in. bit (required for use with mounting anchors)
NOTE: Crestron recommends using Crestron cables only. For optimum performance, Crestron
offers the UC-M-ACCY KIT which includes all of the required hookup cables and a wireless
keyboard with integrated touchpad.
Optional Items
The following can be added to a Flex system.
• CCS-UCA-SMK Swivel Mount Kit
• CCS-UCA-MIC Microphone Pods

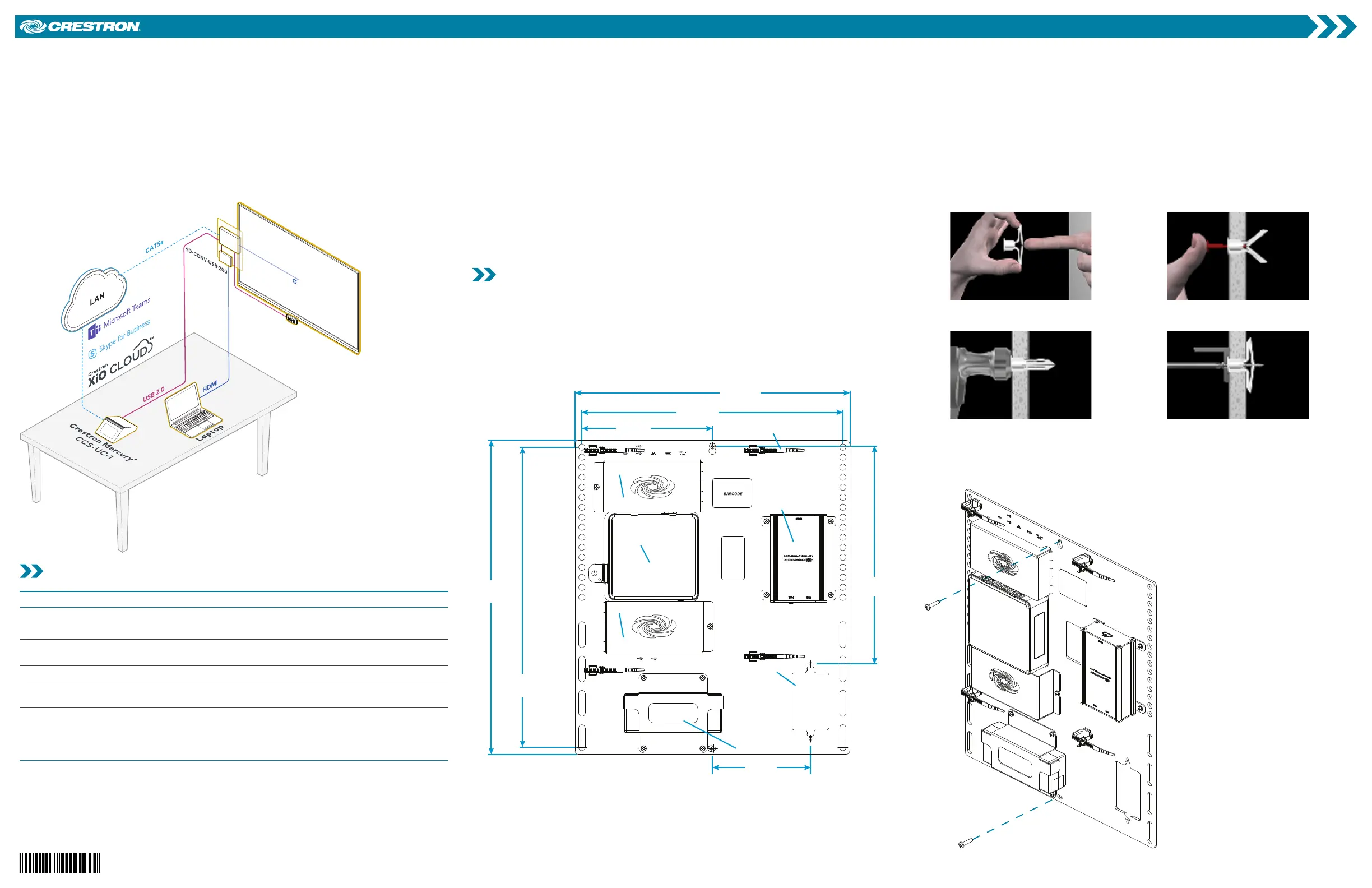

Install the Wall Bracket Assembly
The wall bracket assembly can be installed on a wall behind a display device, or attached to
the rear of the display device. The wall bracket assembly includes mounting slots on both side
edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the
display mounting plate. Additional mounting holes are provided on each side for other mounting
locations. Centerline mounting holes are also provided for attachment to the building structure.
Integrated, reusable cable tie wraps manage cable runs between the wall bracket and peripheral
devices.
Dimensions and Callouts
14.00 in.
(356 mm)
7.00 in.
(178 mm)
16.00 in.
(406 mm)
15.30 in.
(389 mm)
5.00 in.
(127 mm)
11.11 in.
(282 mm)
13.30 in.
(338 mm)
Connector Cover
Connector Cover
Wall Plate Opening
Power Pack
Reusable Cable Tie Wrap (x4)
UC-ENGINE-SD
HD-CONV-USB-200
NOTES:
• The integrated cable tie wraps are reusable. Take care to avoid damage to the cable tie
wraps.
• The wall bracket assembly has an opening and pass through screw holes for placement
over a US electrical wall box that can be covered by a decorative wall plate. If the wall
plate opening will be positioned over an electrical wall box, longer screws will be needed
to secure the decorative wall plate to the electrical box. Do not secure the wall bracket
assembly with the wall plate opening screws.
When mounting on a wall, the wall bracket assembly should be anchored to the wall. The screws
and anchors included with the assembly are best suited for surfaces with 3/8 in. to 3/4 in.
thickness. To use the included anchors, perform the following procedure.
1. Drill a 5/16 in. pilot hole.
2. Fold the anchor in the middle and pinch
the ends together.
3. Insert the anchor in the hole and tap flush
with the wall.
4. Insert the included anchor key to pop the
anchor open and lock it.
WARNING: Do not force or hammer key.
5. Drive the screw partially into the anchor,
leaving 1/4 in. of the screw exposed.
6. Repeat steps 1 - 5 for the other anchor.
7. Place the wall bracket assembly on the
screws and hand tighten the screws until
the wall bracket is secured to the wall.
Install the Wall Bracket Assembly On a Wall
UC-M130-T
Crestron Flex M130 Tabletop UC Video Conference System for Microsoft Teams® Rooms
Prepare for Hardware Hookup
On the wall bracket assembly, open the connector covers located above and below the
UC-ENGINE-SD to reveal the UC-ENGINE-SD’s connectors.
NOTE: Each connector cover is secured to the wall bracket with a 6-32 Phillips screw. Use a #1
Phillips screwdriver to remove or install the screws. For additional security, replace the screws
with the spanner screws included with the UC-BRKT-100-SD-ASSY. A 1/4 in. driver bit is supplied
to install the spanner screws.
Connect the System
UC-ENGINE-SD
Connect the CCS-UCA-KB-USB (sold separately), CCS-UC-1-T-V, display, camera, and LAN to the
UC-ENGINE-SD. Connections are made to the top and bottom of the UC-ENGINE-SD.
UC-ENGINE-SD, Bottom (as mounted)
UC-ENGINE-SD
CCS-UCA-KB-USB
(sold separately) HD-CONV-USB-200
• Keyboard: Connect the USB dongle (supplied with CCS-UCA-KB-USB) to a port on the
UC-ENGINE-SD for local keyboard and mouse control.
• HD-CONV-USB-200: The HD-CONV-USB-200 is already installed on the wall bracket
assembly and connected to the UC-ENGINE-SD.
UC-ENGINE-SD, Top (as mounted)
Display
UC-ENGINE-SD
LAN
CCS-CAM-USB-F-100
UC-CONN-HD
(Do not remove)
• LAN: Connect the CBL-CAT5E-7 cable to the port on the UC-ENGINE-SD and to the
corporate LAN.
NOTE: The UC-ENGINE-SD and CCS-UC-1-T-V must be on the same network switch.
• CCS-UC-1-T-V: For connection details, refer to “CCS-UC-1-T-V.”
• CCS-CAM-USB-F-100: Connect the CCS-CAM-USB-F-100 camera to the port on the
UC-ENGINE-SD with the cable that is attached to the camera.
• Display: Connect a USBC to HDMI cable (CBL-USBC-HD-9 sold as part of UC-M-ACCY
KIT) to the USB-C port on the UC-ENGINE-SD and to the display.
• UC-CONN-HD: The UC-CONN-HD is already connected to the HDMI port on the
UC-ENGINE-SD. Do not remove the UC-CONN-HD.
CCS-UC-1-T-V
LANLAN
Ground
UC-ENGINE-SD
PW-2420-RU
CCS-UC-1-T-V Rear Panel
• USB B: Connect the CBL-USB-A-BMICRO-6 cable (supplied with CCS-UC-1-T-V) to the USB
B port on the CCS-UC-1-T-V and a USB port on the UC-ENGINE-SD. If additional cable is
required, use the CBL-USB-A-EXT-15 to extend the length of the CBL-USB-A-BMICRO-6.
NOTE: Make this connection only when the CCS-UC-1-T-V is to be used as an audio device.
• LAN: Connect a 12 ft (3.6 m) CAT5e cable (included with the CCS-UC-1-T-V) to the LAN
port on the CCS-UC-1-T-V and to the corporate LAN.
NOTE: The CCS-UC-1-T-V and UC-ENGINE-SD must be on the same network switch.
• Ground: Connect the CCS-UC-1-T-V to earth ground.
• Power: Connect the PW-2420RU power pack to an AC receptacle and to the 24V 2.5A port
on the CCS-UC-1-T-V.
NOTE: The CCS-UC-1-T-V can also be powered by PoE+. However, if the CCS-UCA-MIC is to be
used, the CCS-UC-1-T-V must be powered by the PW-2420-RU.
HD-CONV-USB-200
HDMI Source
HD-CONV-USB-200
The HD-CONV-USB-200 is already installed on the wall bracket assembly and connected to the
UC-ENGINE-SD. Connect an HDMI source to the HDMI port on the HD-CONV-USB-200 with an
HDMI cable (sold separately).
Complete the Installation
1. Bundle the cables with the integrated cable tie wraps. The cable tie wraps are reusable.
2. Secure the connector covers with the spanner screws or the Phillips screws removed earlier
from the wall bracket assembly.
3. Connect the wall bracket assembly’s power pack cord to a wall outlet.
Apply Power
When all connections are made, press the power button on the bottom of the UC-ENGINE-SD
and apply power to all of the other devices in the system. The CCS-UC-1-T-V will start and the
display will show its IP address.
Configure the System
Configure the CCS-UC-1-T-V
1. On a computer, open a web browser to the IP address of the CCS-UC-1-T-V (displayed when
power was applied) to configure the device to operate in Teams Video mode.
NOTES:
• The CCS-UC-1-T-V and computer must be on the same network switch.
• A login with administrative rights for the CCS-UC-1-TV is required.
2. Log in to the CCS-UC-1-T-V and navigate to DEVICE > .Applications
3. Select Teams Video from the Application Mode drop-down menu.
4. Reboot the device. The Microsoft Teams user interface is displayed on the device following
the reboot.
5. On a computer, open a web browser to the IP address of the CCS-UC-1-T-V. Log in and
navigate to > .DEVICE Applications
6. Enter the following information in the appropriate fields:
• Teams Video PC Address: Enter the IP address or hostname of the UC-ENGINE-SD.
NOTE: The hostname is printed on a label affixed to the UC-ENGINE-SD (mounted on
the UC-BRKT-100-SD-ASSY).
• Teams Video PC Port: By default, port number 49500 is used. If a different port number
has been configured on the UC-ENGINE-SD, enter that port number instead.
• Teams Video Username: Enter the login username for the UC-ENGINE-SD. (The default
username is “admin”.)
• Teams Video Password: Enter the login password for the UC-ENGINE-SD. (The default
password is “sfb”.)
7. Click Save Changes.
Refer to the CCS-UC-1 Supplemental Guide (Doc. 7844) at for www.crestron.com/manuals
details.
Configure the UC-ENGINE-SD
Use the CCS-UCA-KB-USB keyboard (sold separately) and your Microsoft Teams or Skype
account credentials to configure the UC-ENGINE-SD. Refer to the UC Video Conference Systems
for Microsoft Teams Supplemental Guide (Doc. 8360) at www.crestron.com/manuals.
For Additional Information
Scan or click the QR code for detailed product information.
UC-M130-T
Compliance and Legal
Original Instructions: The U.S. English version of this document is the original instructions. All other languages are a translation
of the original instructions.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, please visit www.crestron.com/opensource.
Crestron, the Crestron logo, Crestron Mercury, and Crestron XiO Cloud are either trademarks or registered trademarks of
Crestron Electronics, Inc. in the United States and/or other countries. HDMI and the HDMI logo are either trademarks or
registered trademarks of HDMI Licensing LLC in the United States and/or other countries. Logitech is either a trademark or
registered trademark of Logitech, Inc. in the United States and/or other countries. Microsoft 365, Microsoft Exchange Server,
Microsoft Teams, and Skype are either trademarks or registered trademarks of Microsoft Corporation in the United States
and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to
either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and
names of others. Crestron is not responsible for errors in typography or photography.
©2019 Crestron Electronics, Inc.
Crestron Electronics, Inc.
15 Volvo Drive, Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
Quick Start - Doc. 8464C
(2053759)
06/17/19
Specifications subject to
change without notice.
Produktspezifikationen
| Marke: | Crestron |
| Kategorie: | Videokonferenzsystem |
| Modell: | UC-M130-T |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Crestron UC-M130-T benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Videokonferenzsystem Crestron
21 August 2024
21 August 2024
21 August 2024
21 August 2024
21 August 2024
21 August 2024
20 August 2024
20 August 2024
20 August 2024
20 August 2024
Bedienungsanleitung Videokonferenzsystem
- Videokonferenzsystem Da-Lite
- Videokonferenzsystem Asus
- Videokonferenzsystem HP
- Videokonferenzsystem Logitech
- Videokonferenzsystem Philips
- Videokonferenzsystem Sony
- Videokonferenzsystem Panasonic
- Videokonferenzsystem Yamaha
- Videokonferenzsystem Yealink
- Videokonferenzsystem Bose
- Videokonferenzsystem Jabra
- Videokonferenzsystem Sennheiser
- Videokonferenzsystem Tork
- Videokonferenzsystem Plantronics
- Videokonferenzsystem TOA
- Videokonferenzsystem Marshall Electronics
- Videokonferenzsystem AVerMedia
- Videokonferenzsystem Vtech
- Videokonferenzsystem Black Box
- Videokonferenzsystem InFocus
- Videokonferenzsystem Marantz
- Videokonferenzsystem Monoprice
- Videokonferenzsystem Iiyama
- Videokonferenzsystem Konftel
- Videokonferenzsystem Polycom
- Videokonferenzsystem Totolink
- Videokonferenzsystem Celexon
- Videokonferenzsystem IPEVO
- Videokonferenzsystem Lumens
- Videokonferenzsystem B-Tech
- Videokonferenzsystem DataVideo
- Videokonferenzsystem JPL
- Videokonferenzsystem Cisco
- Videokonferenzsystem Grandstream
- Videokonferenzsystem Kramer
- Videokonferenzsystem Vaddio
- Videokonferenzsystem Newline
- Videokonferenzsystem Anchor Audio
- Videokonferenzsystem AT&T
- Videokonferenzsystem Legamaster
- Videokonferenzsystem AMX
- Videokonferenzsystem Chief
- Videokonferenzsystem AVer
- Videokonferenzsystem ClearOne
- Videokonferenzsystem Gefen
- Videokonferenzsystem Aluratek
- Videokonferenzsystem Legrand
- Videokonferenzsystem PanaCast
- Videokonferenzsystem BZBGear
- Videokonferenzsystem Extron
- Videokonferenzsystem Atlona
- Videokonferenzsystem WyreStorm
- Videokonferenzsystem Alfatron
- Videokonferenzsystem LifeSize
- Videokonferenzsystem MuxLab
- Videokonferenzsystem VFI
- Videokonferenzsystem VDO360
- Videokonferenzsystem Owl Labs
- Videokonferenzsystem Huddly
- Videokonferenzsystem Angekis
- Videokonferenzsystem PulseAudio
- Videokonferenzsystem HuddleCamHD
- Videokonferenzsystem Heckler
Neueste Bedienungsanleitung für -Kategorien-
27 September 2024
21 September 2024
21 September 2024
21 September 2024
21 September 2024
21 September 2024
21 September 2024
14 September 2024
12 September 2024
10 September 2024
