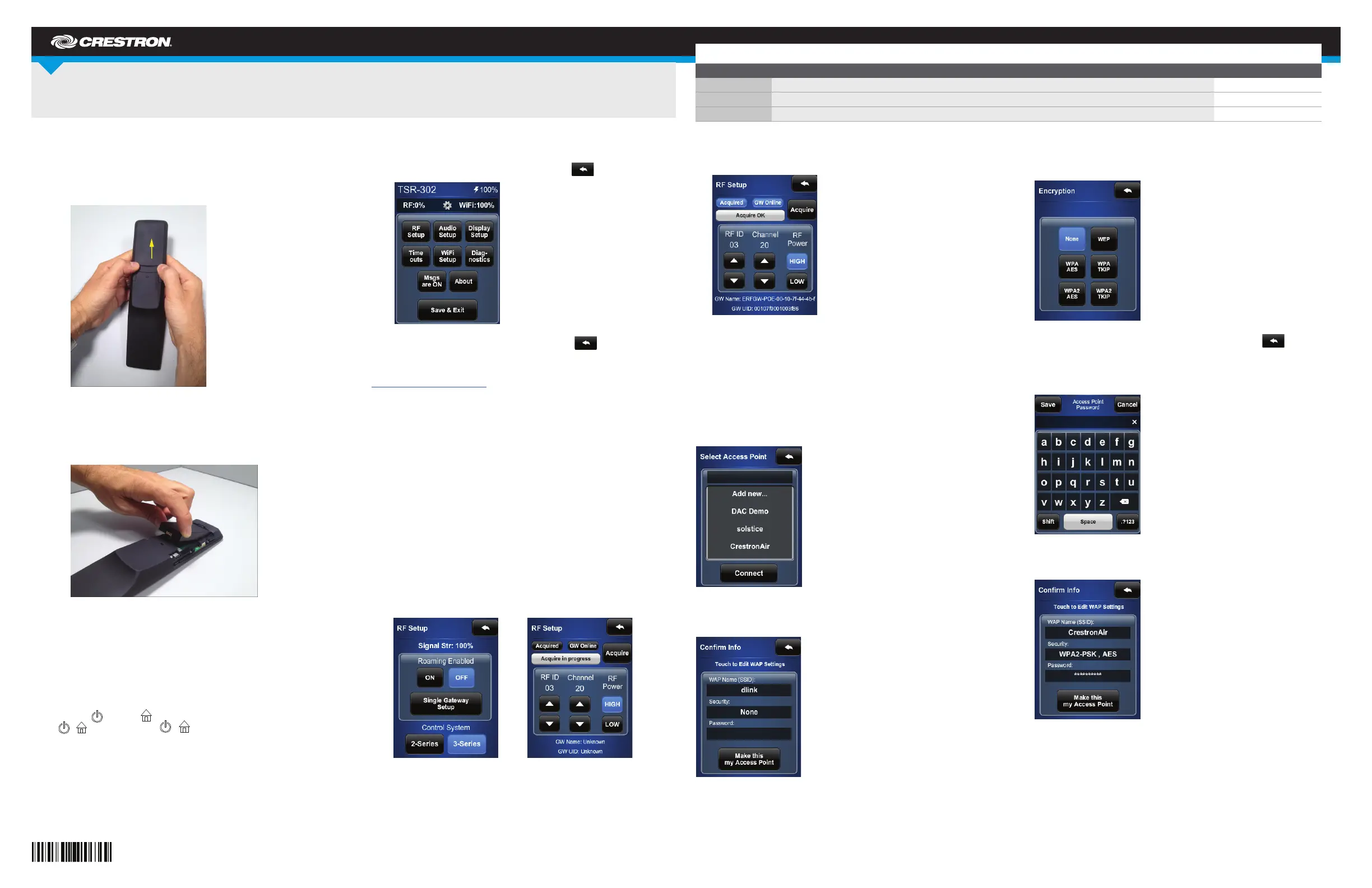

DO GUIDE

TSR-302

Handheld Touch Screen Remote

DO Install the Battery

To install the TSR-302-BTP, perform the following procedure:

1. Remove the battery compartment cover on the rear of the TSR-302

by using two thumbs and gently pressing in the direction of the arrow

shown.

2. Place the touch screen remote, with the screen side down, on a clean,

soft surface.

3. Place the TSR-302-BTP in the battery compartment, oriented as

shown.

4. Reattach the battery compartment cover by pressing down lightly on

the locking tab while sliding the cover into place.

DO Congure the Device

The main setup screen is the starting point for conguring the Crestron

TSR-302. If no project is loaded, tap the screen to access the main setup

screen. If a project is running, the main setup screen can be accessed by

pressing (Power), (Home), MENU, and in sequence twice GUIDE

( , , MENU, , , , GUIDE MENU, ) within a 5-second GUIDE

period.

The main setup screen can also be accessed via Crestron Toolbox™

software.

1. Establish communication with the TSR-302.

2. Right-click on the device and select .Functions > Setup Mode

3. to display the main setup screen.Select Enter Setup Mode

NOTE: Select to exit the setup screens.Exit Setup Mode

NOTE: From any of the setup screens, tap to go back to the

previous screen.

For details on conguring the TSR-302, refer to Doc. 7663 at

www.crestron.com/manuals.

DO Set Up Basic Wireless

Before a TSR-302 can be used with a Crestron control system, it must rst

be acquired by a Crestron Extended Range (ER) Wireless Gateway (sold

separately).

To acquire a TSR-302, perform the following procedure:

1. Use a stylus or other thin-tipped object to press ACQUIRE on the

gateway to enter Acquire mode. The accompanying LED illuminates,

indicating the unit is ready to link with the touch screen. (The gateway

can also be put into Acquire mode via Crestron Toolbox.)

2. From the main setup screen on the TSR-302, tap to display RF Setup

the screen. At the bottom of the RF Setup RF Setup screen, select

2-Series or , depending on whether a 2-Series or 3-Series3-Series ®

control system is being used. Then place the TSR-302 in Acquire

mode by tapping Acquire on the RF Setup screen. The screen

displays an “Acquire in progress” message, and the TSR-302 is

automatically acquired by the gateway within 2 minutes.

3. When the process is complete, the screen displays an “Acquire OK”

message. Press on the gateway to exit Acquire mode. The ACQUIRE

LED turns off.

For information on wireless setup with roaming, refer to “Gateway Roaming

Setup” in Doc. 7663.

DO Set Up Wi-Fi

To set up a Wi-Fi® connection, on the main setup screen tap , WiFi Setup

and then tap Add Access Point Select Access Point to display the

screen.

If the desired wireless access point is already on the list, tap .Connect

Otherwise, perform the following procedure to add a new access point:

1. Tap Add New to display the Conrm Info screen.

2. Tap the WAP Name (SSID) eld to open an on-screen keyboard,

which can be used to enter the name.

3. Tap the eld to display the Security Encryption screen.

4. Select the appropriate type of encryption, and then tap to return

to the Conrm Info screen.

5. Tap the Password eld to open an on-screen keyboard, which can be

used to enter the password.

6. to save the password and return to the Tap Save Conrm Info

screen.

DO Check the Box

QUANTITY PRODUCT COLOR PART NUMBER

1 Battery Pack, Rechargeable, TSR-302-BTP 2039523

1 Dock, Table, TSR-302-DS 4520465

1 Power Pack, 19 Vdc, 0.9 A, 100-240 Vac 2045868

DO GUIDE DOC. 7661C (2040912) 02.16

Specicat ions subject to change without not ice.

7. Tap Make this my Access Point to conrm the entries and display

the WAP Connect screen.

8. to accept the connection to the wireless access point and Tap Done

to display the WiFi Setup screen.

9. Tap IP Settings to display the WiFi IP Settings screen.

10. To use DHCP, tap repeatedly to return to the main setup screen.

11. To enter static IP settings, tap Off under DHCP Enabled. The

TSR-302 ships with DHCP enabled by default.

12. Tap Set Static IP Address Settings to display the Static IPs screen.

13. Tap the Static IP address eld to open an on-screen, numeric

keypad.

14. Enter the address and tap to return to the Save Static IPs screen.

15. Tap each of the rest of the elds in turn and enter its address, and then

tap Save.

16. Tap to return to the WiFi IP Settings screen.

17. Tap Reboot Required to Apply IP Changes.

As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.
