DO GUIDE
DO Connect the Devices
Make connections to the top and bottom panels of the devices as required for the application.
NOTE: Only one 24 Vdc power pack (included) is required to power both the transmitter and
the receiver; therefore, connect the power pack to the 24 Vdc power connector of either the
transmitter or receiver. Power is transmitted over the cable that connects the TO RX link output
port of the transmitter to the FROM TX link input port of the receiver.

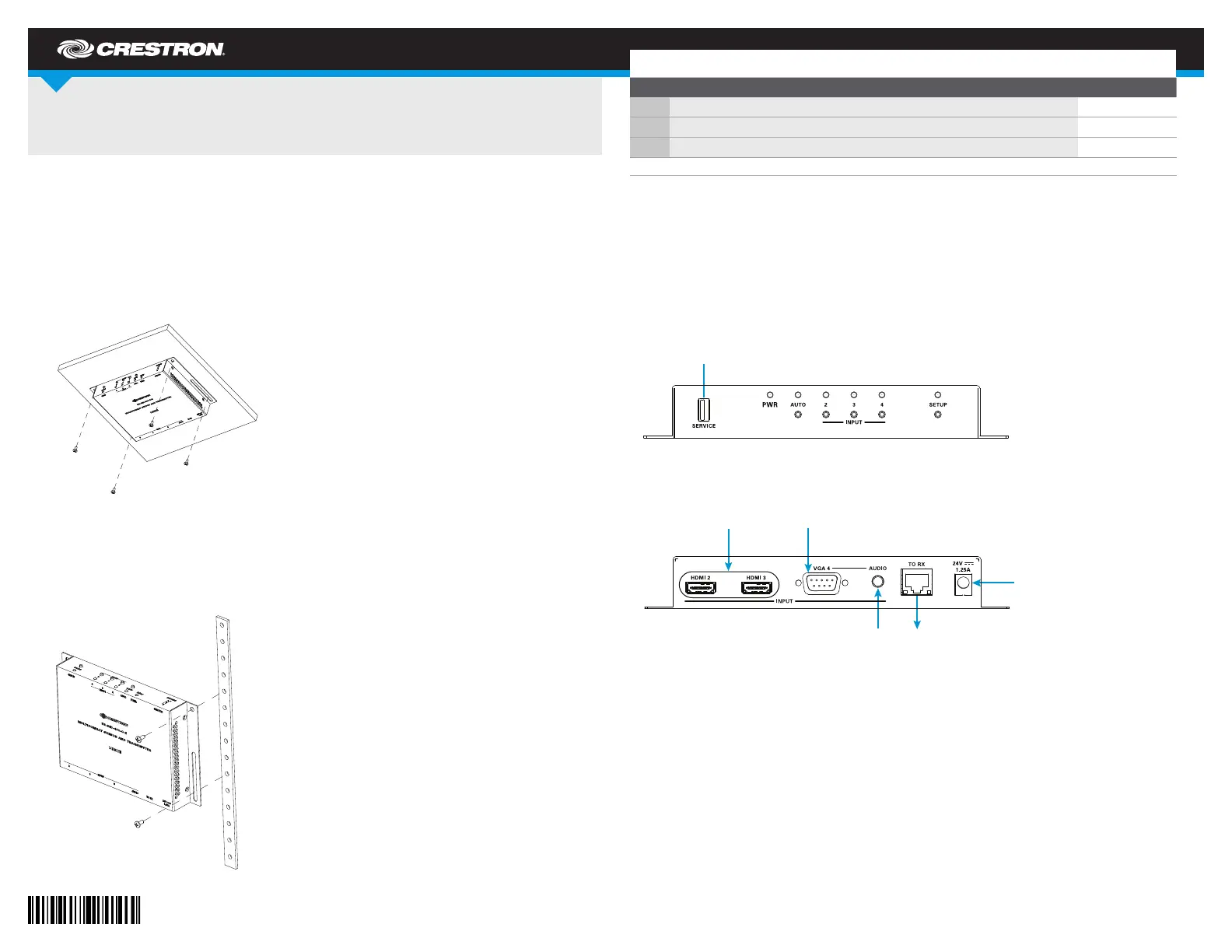

Top and Bottom Panel Connections of the HD-MD-400-C-E Transmitter
HD-MD-400-C-E
HD Scaling Auto-Switcher and Extender 400
DO Install the Devices
The HD-MD-400-C-E is a multiformat switcher that consists of a transmitter and a receiver.
The transmitter and receiver can be mounted onto a at surface or onto a rack rail.
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the transmitter and receiver onto a at
surface such as the underside of a table or onto a wall as appropriate for the installation.
Mounting to the Underside of a Table
Mounting onto a Rack Rail
The transmitter and receiver can be mounted onto the front or rear rail of a rack. Position either
the left or right mounting ange of the device so that the holes align with the holes in the rack.
Then, secure the device to the rack using two mounting screws (not included).
Mounting onto a Rack Rail
DO Check the Box
QTY PRODUCT COLOR PART NUM.
1 Connector, 2-Pin 2003574
2 Connector, 5-Pin 2003577
1 Power Pack, 24 Vdc 1.25 A, 100-240 Vac 2045870
Not included: Cables, Mounting Screws
From HDMI®
Audio/Video
Sources
From RGB (VGA)
or Component
Video Source
Unbalanced
Stereo Line Level
Audio Input
To FROM TX
Link Input of
HD-MD-400-C-E
Receiver
From 24 VDC
Power Pack
(Included for
Connection to
Transmitter or
Receiver)
Bottom
Panel
For Factory
Use Only
Top
Panel
DO GUIDE DOC. 7836B (2045103) 04.16
Specications subject t o change without not ice.
Top and Bottom Panel Connections of the HD-MD-400-C-E Receiver DO Congure the HD-MD-400-C-E
Using the web interface, congure the HD-MD-400-C-E. To access the web interface, open a
web browser and then go to the IP address of the HD-MD-400-C-E.
NOTE: By default, DHCP is enabled. To display the IP address on the connected HDMI®
display, press the button on the top panel of the receiver. Although conguration of the SETUP
HD-MD-400-C-E is hosted by the receiver, pressing the button on the top panel of the SETUP
transmitter will also display the IP address.
To log in to the user interface, enter the user name and password. The default user name is
admin, and the default password is . For additional information, refer to the a d m in
HD-MD-400-C-E Supplemental Guide (Doc. 7797) at www.crestron.com/manuals.
DO Learn More
Visit the website for additional information and the latest rmware updates. To learn
more about this product, use a QR reader application on your mobile device to scan the
QR image.
Crestron Electronics
15 Volvo Drive, Rockleigh, NJ 07647
888.CRESTRON | www.crestron.com
As of the date of manufacture, the product has been tested and found to comply with specications for CE marking.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the manufacturer responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Compliance Statement
CAN ICES-3(B)/NMB-3(B)
The specic patents t hat cover Crestron products are listed at . The product warrant y can be found at .www.crestron.com/legal/patents/ www.crestron.com/warranty
Cert ain Crestron products cont ain open source sof t ware. For specic information, please visit . www.crestron.com/opensource
Crest ron and the Crestron logo are either trademarks or regist ered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDMI and t he HDMI logo are eit her
trademarks or registered t rademarks of HDMI Licensing LLC in t he United States and/or other count ries. Other t rademarks, registered trademarks, and trade names may be used in this
document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any propriet ary int erest in the marks and names of ot hers. Crest ron is not responsible
for errors in t ypography or photography.
This document was written by the Technical Publications department at Crest ron.
©2016 Crestron Electronics, Inc.
Top
Panel
For Factory
Use Only
Bottom
Panel
From HDMI
Audio/Video
Source
From TO RX
Link Output of
HD-MD-400-C-E
Transmitter
To HDMI
Display
Balanced/Unbalanced
Stereo Line Level
Audio Output
Reserved for
Future Use
To/From
RS-232
Device
Ethernet to
Local Area
Network
From 24 VDC
Power Pack
(Included for
Connection to
Transmitter or
Receiver)
