quickstart guide
CBLR Series
www.crestron.com
Specifications subject to
change without notice.
CBLR Series
QUICKSTART DOC. 7245C (2032356, Sheet 1 of 2) 02.14
Cable Retractors for FlipTops™
For regulatory compliance information, refer to Doc. 7475.
NOTE: For preparation of FlipTop 600 Series models, refer to “Modify the FlipTop
(FlipTop 600 Series)” in the third column on this page.
CrestronÂŽ cable retractors provide a
convenient cable management solution
for use with most Crestron FlipTops™.
This solution allows a user to simply
reach into the FlipTop™ compartment
and pull out any cable to the desired
length. Each cable can be pulled out up
to 3 feet (0.9 meter). A simple press of
the easy-access lever retracts the cable
back into the compartment.
Each Crestron cable retractor features a patent-pending mechanism that dampens the rate of retrac-
tion to prevent the cable from whipping as it is pulled back into the FlipTop storage compartment. The
retraction speed is installer adjustable to ensure full and effortless retraction without excessive force.
Up to three or four cable retractors can be installed depending on the FlipTop model. Blank inserts
(CBLRA-INSERT-BLANK*) are required to fill any unused positions. As an alternative to a blank insert,
a 2-wire insert (CBLRA-INSERT-2WIRE* or FTA-CBLRA-INSERT-2WIRE-102*) is also offered to
accommodate additional non-retracting cables if needed.
Preparation
Preparation consists of:
• Modifying the FlipTop assembly to accommodate the cable retractors.
• Determining the desired mounting orientation. (Retractors are shipped configured for
horizontal orientation, but are easily reconfigured for vertical orientation.)
Modify the FlipTop (Non-FlipTop 600 Series)
1. Remove four screws A to detach
the lower bar assembly. Also remove
two screws B. Retain screws A and B
to attach the FlipTop mounting bracket
assembly. Refer to the FlipTop mounting
brackets table provided in section ➍ to
ensure that the mounting bracket received is
appropriate for the FlipTop being modified.
2. Remove four screws C to remove the
cable guide. Retain the screws to
attach the two side filler plates*.
3. Move the mounting bracket assembly
up into position and secure using four
screws A and two screws B.
4. Place the side filler plates in position
and secure using four screws C.
Mounting
Bracket
Assembly
Screws A
Screw B
Screw B
Screws C
Attachment of Mounting Bracket
Assembly and Side Filler Plates
Side Filler
Plates

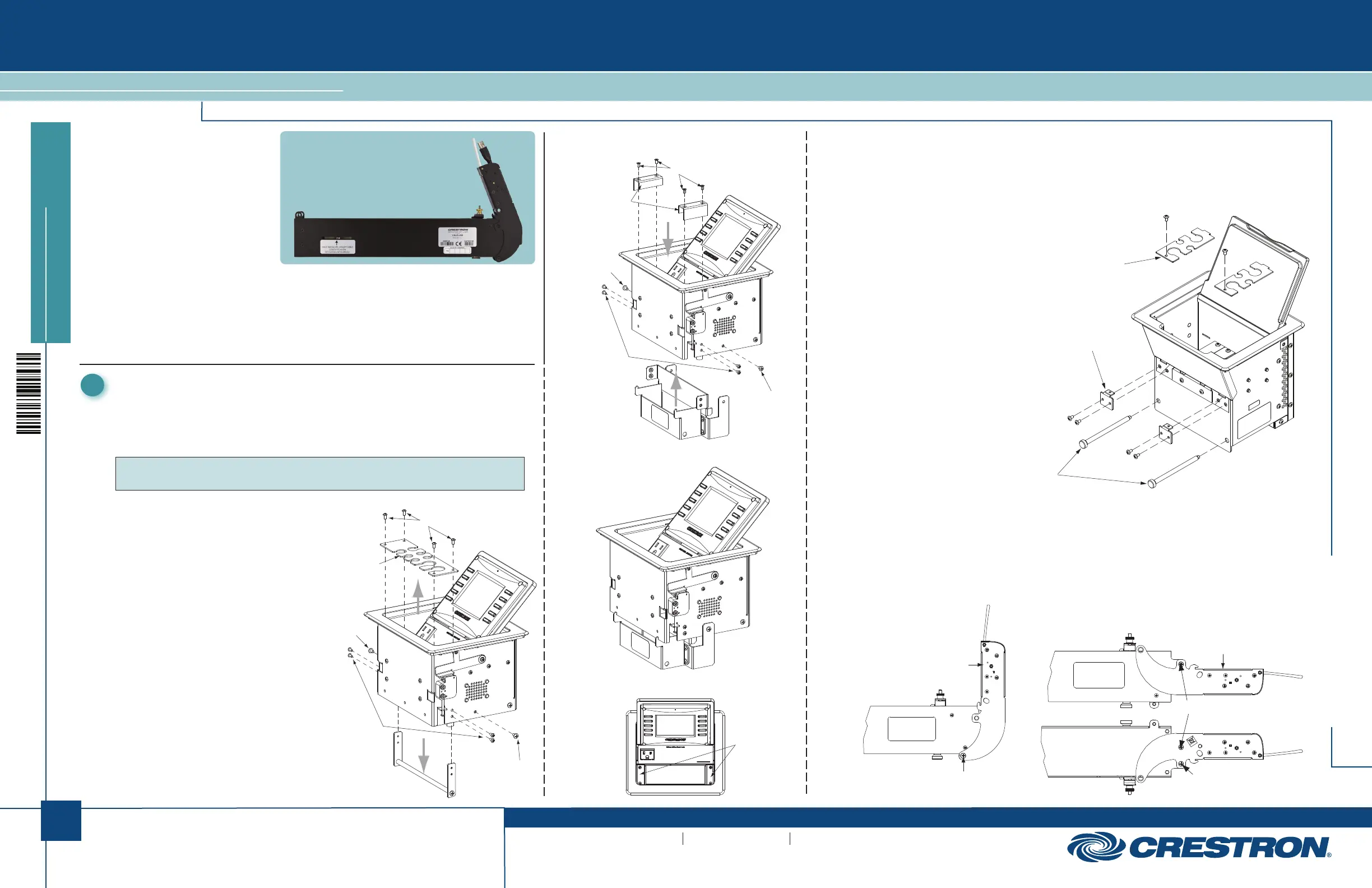

1
Removing Cable Guide and Lower Bar Assembly
Lower Bar
Assembly
Cable
Guide
Screws A
Screw B
Screw B
Screws C
Mounting Bracket Assembly Installed
Mounting
Bracket
Assembly
Side Filler Plates Installed
Side Filler
Plates
Modify the FlipTop (FlipTop 600 Series)
Retractors can be installed in both the left and right sides of the FlipTop 600 Series models.
1. Remove the screw holding the cable guide in place, then remove the cable guide.
2. Remove the screws holding the cable pass-through bracket in place, then remove the cable
pass-through bracket.
3. Remove the shoulder screws from the front of the unit.
Save these as they are used in retractor installation.
* Item(s) sold separately.
Reconfigure Retractors for Vertical Operation
To reconfigure the retractors for vertical orientation, refer to the illustration below and do the following:
1. Remove the two screws D, one from each side of the retractor, attaching the neck in the horizontal
orientation.
2. Reposition the neck as shown in the vertical orientation view and attach using the two screws D
plus a third screw E (1/4 in, 6-32, flathead, supplied) to secure the neck in that position.
(2) Screws D
(One on Each Side)
Horizontal Orientation Vertical Orientation
(2) Screws D
(1) Supplied Screw
Side View
Side View
Reverse Side
Retractor
Neck
Retractor
Neck
Cable Guide
Cable Pass-Through Bracket
Shoulder Screws
2
quickstart guide
CBLR Series
www.crestron.com
Specifications subject to
change without notice.
CBLR Series
QUICKSTART DOC. 7245C (2032356, Sheet 1 of 2) 02.14
Cable Retractors for FlipTops™
For regulatory compliance information, refer to Doc. 7475.
NOTE: For assembly of FlipTop 600 Series models, refer to “Attach Cable Retractors to
the FlipTop (FlipTop 600 Series)” in the third column on this page.
Typical Assembly (Horizontal Orientation)
Retractor ‘A’
Retractor ‘B’
2-Wire Spacer
Blank Spacer
Clevis Pin Hairpin
Cotter Pin
Mounting
Bracket
Assembly
Retractor ‘A’
Retractor ‘B’
2-Wire Spacer
Blank Spacer
Clevis Pin Hairpin
Cotter Pin
Mounting Bracket
Assembly
Typical Assembly (Vertical Orientation)
2Adjustments
Once the retractor arm configuration is set, refer to the following illustration and adjust
retractor arm tension and cable retraction speed as follows:
1. Adjust retractor tension by loosening the top thumb screw enough to enable pulling or
pushing the adjacent cable end to align the red screw with the label arrow.
2. Adjust cable retraction speed by first pulling the knob outward and moving it to the VERT
or position to match the configuration of the retractor arms.HORZ
a. Pull the cable (plug end) out so it is fully extended.
b. Press the retraction lever and observe the speed of the cable retraction. If
it is too slow or too fast, reposition the knob to an intermediate position and recheck.
ONCE INSTALLED, USE TOP THUMB
SCREW TO ADJUST CABLE LENGTH UNTIL
RED SCREW IS ALLIGNED WITH ARROW
Thumb Screw
Cable End
SLOW
HORZ
CABLE RETRACTION
SPEED ADJUST
VERT
FAST
Knob
Red Screw Retraction
Lever
Adjusting Retractor Tension and Retraction Speed
3Assembly
Assembly consists of:
• Attaching the cable retractors to the FlipTop box
• Attaching the horizontal mounting bracket and
connecting the retractor arms for horizontal orientation
During the following procedures, refer to the accompanying illustrations.
Attach Cable Retractors to the FlipTop (Non-FlipTop 600 Series)
1. Insert the necks of the retractors and any included spacers up and into the mounting
bracket assembly until they engage the frame of the assembly.
2. Carefully slide the clevis pin through the hole in the side of the mounting bracket
assembly and through each item being mounted until it protrudes through the opposite
side of the assembly.
3. Insert the supplied hairpin cotter pin into the hole in the clevis pin to secure it.
4. Tighten the screws in the neck assemblies so they are just snug against the clevis pin.
(Shown in “Attach the Horizontal Mounting Bracket” on page 3.)
Attach Cable Retractors to the FlipTop (FlipTop 600 Series)
1. Insert the necks of the retractors into the FlipTop until they engage
the frame of the assembly.
2. Insert the shoulder screws in the front of the FlipTop.
3. Tighten each individual set screw on the retractors.
Shoulder Screws
Attach the Cable Retractors (FlipTop 600 Series)
3
quickstart guide
CBLR Series
www.crestron.com
Specifications subject to
change without notice.
CBLR Series
QUICKSTART DOC. 7245C (2032356, Sheet 2 of 2) 02.14
Cable Retractors for FlipTops™
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo, FlipTop, and FlipTops are either trademarks or registered trademarks of Crestron Electronics,
Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used
in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims
proprietary interest in the marks and names of others. Crestron is not reponsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
Š2014 Crestron Electronics, Inc.
Attach the Horizontal Mounting Bracket (Non-FlipTop 600 Series)
CBLRA-BRKT-3-FT CBLRA-BRKT-4-FT CBLRAI-BRKT-4-FT
6506161 6506162 6506188
FT-PWR-D C2N-FTR-TPS4 FTI-PWR-D
QM-FTCC FT-PWR-D-LG QMI-FTCC
QM-FTCC-NB C2N-FT-TPS4-U QMI-FTDC
QM-FTDC QM-FTCC-TPS4 QMI-FTMC
QM-FTDC-NB QMI-FTCSC
QM-FTMC
Applicable
FlipTop
Models
Mounting Bracket
Assemblies
INTERNATIONAL
DOMESTIC MODELS MODEL
(3-POSITION) (4-POSITION) (4-POSITION)
FlipTop Mounting Brackets
Spacer Inserts (Used to fill unpopulated retractor slots)
CBLRA-INSERT-BLANK, Part No. 6506163
CBLRA-INSERT-2 WIRE, Part No. 6506164
Horizontal Mounting Brackets (Used to support retractor arms in horizontal orientation)
CBLRA-BRKT-3H, Part No. 6506159
CBLRA-BRKT-4H, Part No. 6506160
Available Accessories (For Non-FlipTop 600 Series)
4
For regulatory compliance information, refer to Doc. 7475.
Horizontal
Mounting
Bracket
Screws
Clevis Pin
Retractor
Tighten screws in neck
assemblies so they are
just snug against the
clevis pin. Do not over
tighten.
Screw
Attach the Horizontal Mounting Bracket
1. Rotate the retractor arms up to the underside of the table, and
position the horizontal mounting braket so the slots are aligned with
the attachment holes in the retractor arms. Carefully use the
horizontal mounting bracket as a template to mark the position of
the two screw holes.
2. Drill starter holes for the screws, and use the two screws provided to
attach the mounting bracket to the table.
Make certain the provided screws are not longer than NOTE:
the thickness of the table top. If necessary, use shorter screws.
3. Rotate the retractor arms into position and insert the supplied clevis
pin through the horizontal mounting bracket and the holes in the
retractor arms. Insert the supplied hairpin cotter pin into the hole in
the clevis pin to secure it.
Attach the Horizontal Mounting Bracket (FlipTop 600 Series)
Horizontal
Mounting
Bracket
Screws
Clevis Pin
Retractor
Arms
