• Compact passive two-way loudspeaker
• Premium 8” woofer, 2“ voice coil
• 1” Compression driver, 1:3“ voice coil
• Continuous power handling: 200 Watts
• Nominal impedance: 8 Ohms
• Coverage pattern (HxV): 60° x 60°
• Connectors: 2 x 4-pin twist-lock & 4-pin Euroblock
• 2+/2- Loop Through
• Advanced crossover network
• Tweeter protection
• 15 mm Plywood construction
• Textured polyurea paint
• 9 x M8 suspension points (2 top, 2 bottom, 2 each side, 1 rear)
• 4 x M6 suspension points for Peavey® Versamount™ 35
• Available in Black and White
Features
The Crest Audio CPL 8+ is a compact passive two-way
loudspeaker designed for music playback, public
address and live performance reinforcement
applications where space is at a premium.
The CPL 8+ can be utilized for both permanent
installations and portable live sound applications.
Perfect for public address, monitoring and background
audio reinforcement purposes typically required in
houses of worship, clubs, bars/restaurants, retail outlets
plus education and corporate meeting facilities or
anywhere high quality discrete audio distribution is
required.
The CPL 8+ is equipped with a premium 8 inch woofer
having a 2 inch voice coil together with a 1 inch exit
compression driver known for its smooth frequency
response and non-fatiguing mid range. Directivity
pattern of the loudspeaker is measured at 60° horizontal
and 60° vertical providing a wide yet well controlled
audio coverage. An internal advanced crossover
network maintains EQ and driver protection. Impedance
of the loudspeaker is 8 Ohms allowing for easy daisy
chaining. Connectivity is made via either looping 4-pin
twist-lock or 4-pin Euroblock connectors.
The CPL 8+ enclosure is built from prime-grade 15 mm
plywood that offers sturdy mechanical and low resonant
electro-acoustic characteristics together with a
heavy-duty steel grille backed with acoustic foam to
ensure maximum protection of the internal components.
The loudspeaker is equipped with a total of 13 threaded
suspension points offering multiple mounting options for
various applications. Available in durable black and
white finish.
Description

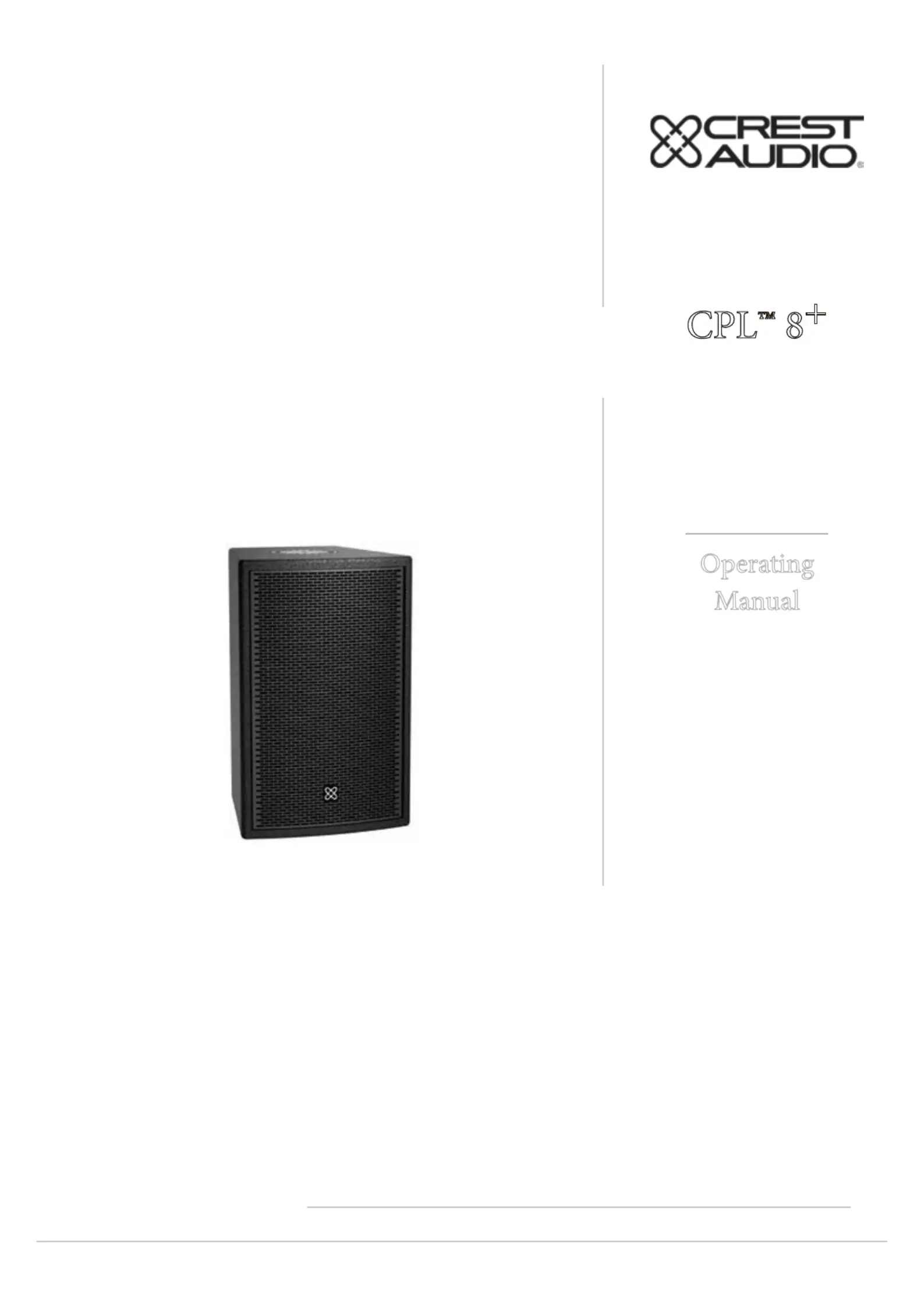

CPL™ 8+ - 2-way Passive Speaker
CPL™+ Series
Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian, MS 39305
Phone: (601) 483-5365 • Fax: (601) 486-1278 • www.peaveycommercialaudio.com
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/crest-audio/cpl-8-plus/html/bg2.png)
Features and specifications subject to change without notice.
Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian, MS 39305
Phone: (601) 483-5365 • Fax: (601) 486-1278 • www.peaveycommercialaudio.com
© 2023 - Rev P3-2023-01-23
The compact loudspeaker shall consist of a 8 inch (200 mm) low frequency transducer with 2 inch (50 mm) voice coil and
a 1 inch (25.4 mm) exit compression driver with a 1.3 inch (34 mm) voice coil and a frequency dividing network installed
within the enclosure.
Performance specifications of a typical production unit shall be: Measured sensitivity SPL at 1 m (3.3ft) with 2.83V input,
shall be 95 dB-SPL. Usable frequency response shall extend from 67 Hz to 20 kHz (10 dB below rated sensitivity, in full
space, with no external equalization). Nominal impedance shall be 8 Ohms. Rated power capacity shall be at least 200
Watts continuous power and 800 Watts peak power, defined as 6 dB above a test signal of filtered random noise.
The system shall be protected against damage from occasional over-powering limiting the power to the network and
transducers. The compression driver shall be capable of even coverage at a nominal 60° horizontal through 60° vertical
distributed pattern.
The enclosure shall be constructed from prime-grade 15 mm plywood. The loudspeaker shall be equipped with a total of
thirteen (13) suspension points. The grille shall be of heavy-duty steel backed with acoustically transparent foam. The
external wiring shall be via either two 4-pin twist-lock or one 4-pin Euroblock connectors. The loudspeaker shall be 16.54
inches (420 mm) high by 10.59 inches (269 mm) wide by 10.83 inches (275 mm) deep weighing 24.6 pounds (11.2 kg). The
finish shall be a paintable lightly textured black or white.
The compact loudspeaker shall be the Crest Audio CPL 8+.
Architect’s & Engineer’s Specifications
Dimensions Accessories
Specifications
CPL™ 8+
Optional Versamount 35
Ceiling & Wall-mount Bracket
Available in Black & White
Optional
U-Bracket
Optional
Pole Mount Adapter
420
269
420
340
198.1
113.510813942
198.5
30
50.8
100
Con gura on: 2-way Passive Speaker Pole Mount: Op onal with special adapter
Power Con nuous (Wa s): 200 U-Bracket: Op onal
Power Peak (Wa s): 800 Enclosure Design: Trapezoidal
Sensi vity (1W/1m): 95 dB Enclosure Material: 0.6" (15 mm) Plywood
Max SPL Peak: 124 dB Black Finish: Textured Polyurea Paint
LF Driver: 1 x 8" (200 mm) - Crest Audio CPL850B RAL #: 9004 Signal Black (Pantone: Black 6)
Woofer Voice Coil: 2" (50 mm) White Finish: Textured Polyurea Paint
HF Driver: 1 x 1" (25.4 mm) - Crest Audio CQ3402 RAL #: 9003 Signal White (Pantone: 705)
HF Driver Voice Coil: 1.3" (34 mm) Tweeter Protec on: Yes
Nominal Coverage (HxV): 60° x 60° Rubber Feet: Yes (not mounted)
Frequency Range (-10 dB): 67 Hz - 20 kHz Handles: Yes (1 x Top Rear)
Frequency Response (±3 dB): 131 Hz - 20 kHz Loop Thru (2+/2-): Yes
Nominal Impedance: 8 Ohms Logo Posi on on Grille: Bo om Center
Input Connectors 1: 2 x 4-pin twist-lock (NL-4 style) Logo Size: 25 x 25 mm
Input Connectors 2: 1 x 4-pin Euroblock Grille Foam Backing: Yes (acous cally transparent)
Suspension Points: 9 x M8 Grille Mesh Size (mm): 3 x 12
Suspension Points Locaon: 2 x Top, 2 x Boom, 2 x Le , 2 x Right, 1 x Rear Monitor Tilt Angle: No
Suspension Points Rear: 4 x M6 (for op onal Versamount 35) Net Weight: 24.6 lbs (11.2 kg)
Moun ng Points for U-Bracket: Yes (2 x M8 - Top & Bo om) Dimensions (HWD): 16.54" x 10.59" x 10.83" (420 x 269 x 275 mm)
