Crest Audio CPL 26+ Bedienungsanleitung


Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für Crest Audio CPL 26+ (18 Seiten) in der Kategorie Lautsprecher. Dieser Bedienungsanleitung war für 23 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet

Seite 1/18

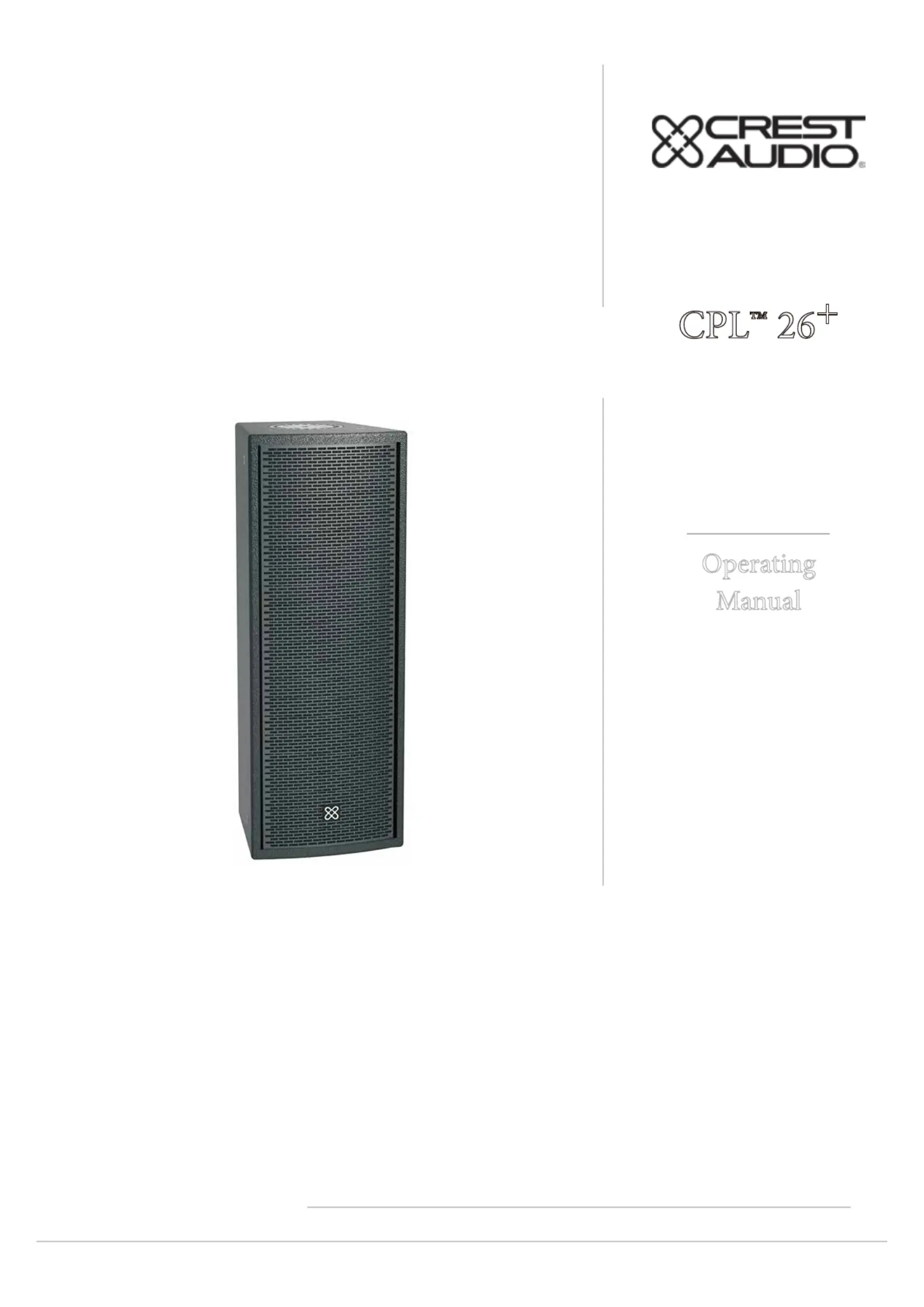

www.crestaudio.com
Passive 2-way Coaxial
Loudspeaker System
Operating
Manual
CPL™ 26+
Dealer Name:
Serial Number:
Date of Purchase:
Model Number or Name:
1
Features
• Compact passive two-way loudspeaker
• Two premium 6.5” woofers, 1.2“ voice coil
• 1” Compression driver, 1.3“ voice coil
• Continuous power handling: 150 Watts
• Nominal impedance: 8 Ohms
• Coverage pattern (HxV): 90° x 40°
• Connectors: 2 x 4-pin twist-lock & 4-pin Euroblock
• 2+/2- Loop rough
• Advanced crossover network
• Tweeter protection
• 15 mm Plywood construction
• Textured polyurea paint
• 9 x M8 suspension points (2 top, 2 bottom, 2 each side, 1 rear)
• 4 x M6 suspension points for Peavey® Versamount™ 35
• Available in Black and White
Crest AudiCPL™ 26+
DESCRIPTION EN
The Crest Audio CPL 26+ is a compact passive two-way loudspeaker designed for music playback, public address
and live performance reinforcement applications where space is at a premium.
The CPL 26+ can be utilized for both permanent installations and portable live sound applications. Perfect for
public address, monitoring and background audio reinforcement purposes typically required in houses of
worship, clubs, bars/restaurants, retail outlets plus education and corporate meeting facilities or anywhere high
quality discrete audio distribution is required.
The CPL 26+ is equipped with two premium 6.5 inch woofers having 1.2 inch voice coils together with a 1 inch
exit compression driver known for its smooth frequency response and non-fatiguing mid range. Directivity
pattern of the loudspeaker is measured at 90° horizontal and 40° vertical providing a wide yet well controlled
audio coverage. An internal advanced crossover network maintains EQ and driver protection. Impedance of the
loudspeaker is 8 Ohms allowing for easy daisy chaining. Connectivity is made via either looping 4-pin twist-lock
or 4-pin Euroblock connectors.
The CPL 26+ enclosure is built from prime-grade 15 mm plywood that offers sturdy mechanical and low resonant
electro-acoustic characteristics together with a heavy-duty steel grille backed with acoustic foam to ensure
maximum protection of the internal components. The loudspeaker is equipped with a total of 13 threaded
suspension points offering multiple mounting options for various applications. Available in durable black and
white finish.


Produktspezifikationen

Marke: Crest Audio
Kategorie: Lautsprecher
Modell: CPL 26+
