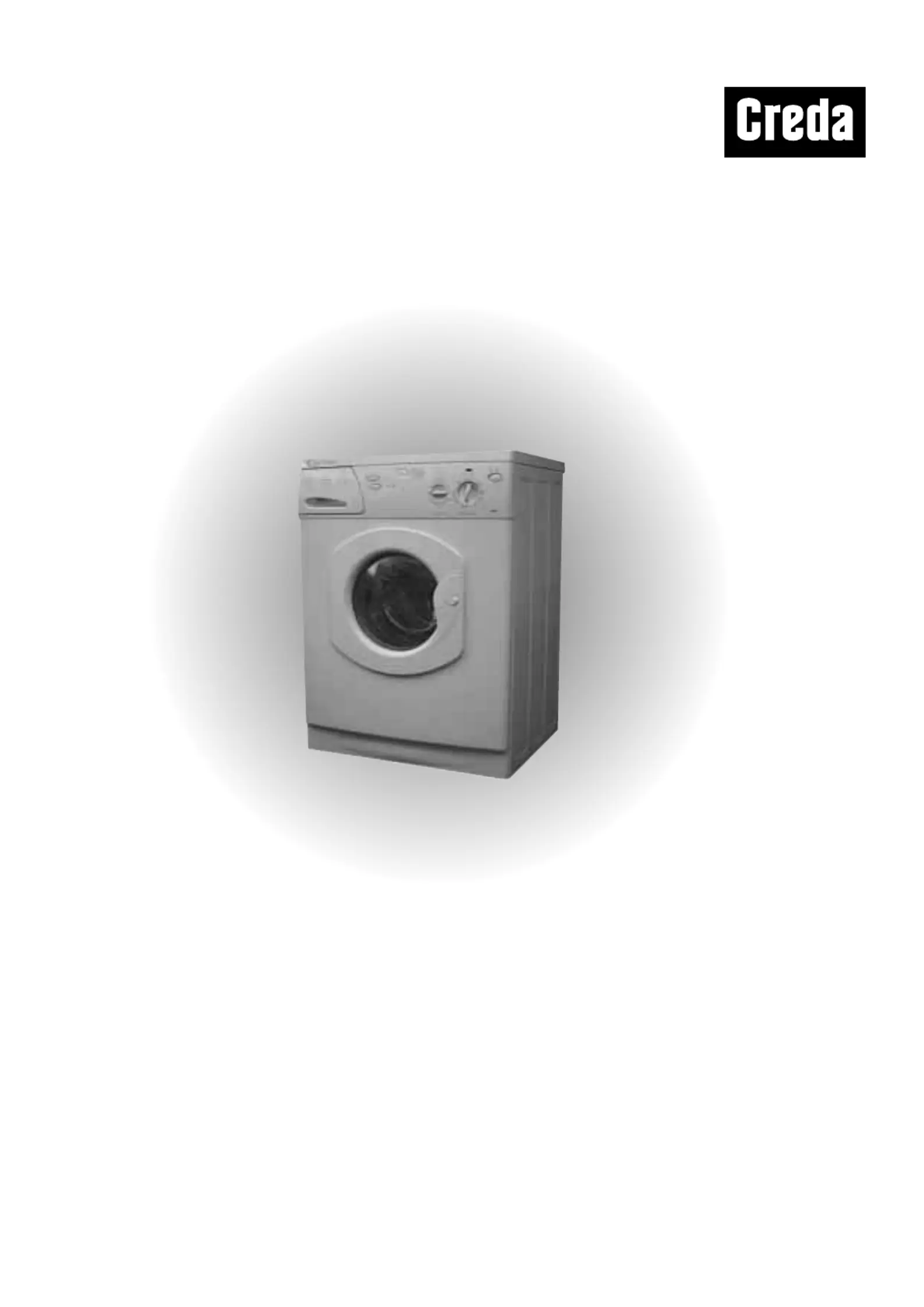

Washing Machine
W100FW / W120FW / W120VW
Retention of this Instruction Book
Keep this book in a handy place for reference. It contains important details on
the safe and proper use of your appliance. If you sell the appliance, pass it on
to someone else, move house and leave it behind, make sure that you provide
this book so that the new owner can become familiar with the appliance and
safety warnings.
Please remember your new appliance is a complex piece of equipment.
DIY repairs or unqualified and untrained service people may put you in
danger, could damage the appliance and might mean you lose cover
under Creda’s Part Guarantee.
Model W120VW is shown
Positioning & Adjusting the feet
Choosing the position of your appliance will influence its performance.
★Position where possible on a solid floor. Some vibration may occur with a wooden floor.
★Take care with vinyl floor coverings.The weight of the appliance may cause indentations in
some vinyl floor coverings.
★For your safety and to comply with IEE regulations, you should not install your appliance in
a bath or shower room. Seek professional advice if you wish to do so.
★Ensure sufficient space is allowed for the appliance. Dimensions should be a minimum of:-
600mm Wide (235/8”), 600mm Deep (235/8”) and 900mm High (351/2”).
★Ensure the electrical socket and water taps are easily accessible and that the water supply
can be isolated if necessary.
Your appliance may become noisy or move about the floor if it is not stabilised.
To adjust your appliance it must be in an upright position, then :-
★Release locking rings on the two front feet.
★Screw feet in or out until the appliance is standing firm and level.
★Ensure all feet are in firm contact with the floor.
★Tighten the locking rings on the front feet.
Dear Customer,
Congratulations on the purchase of your
new ‘Creda’ appliance.
We recommend for your own safety and to
get the best possible results from your
machine that you read through this
handbook thoroughly before using your
appliance for the first time.
★Transit Brackets MUST be removed
before using the appliance.
★DO NOT plug in and switch on at the
mains until installation is complete.
Recycling & Disposal Information
As part of Creda’s continued commitment to helping the environ-
ment, Creda may use quality recycled components to keep down
customer costs and minimise material wastage. Please dispose of
packaging and old appliances carefully. To minimise risk of injury to
children, remove the door, plug and cut mains cable off flush with the
appliance. Dispose of seperately to ensure that the appliance can no
longer be plugged into a mains socket.
2
Electrical Requirements
This appliance should be connected to the mains supply via a suitable switched socket in an
accessible position.
WARNING: This appliance must be earthed.
FUSES
Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the fuse, only
those rated at 13A and ASTA approved to BS1362 should be used.To change fuse, lift holder
to vertical position and lift fuse out. To replace, insert fuse and push fuse holder down into
locked position. Correct replacement is identified by colour coding, or marking on base of
plug.
WARNING: Do not use plug unless fuse holder is in locked position.
CHANGING THE PLUG
Cut off and dispose of the supplied
plug if it does not fit your socket.
WARNING: To avoid a shock haz-
ard do not insert this plug into a
socket anywhere else.
IMPORTANT: WIRES IN THE MAINS
LEAD ARE COLOURED IN
ACCORDANCE WITH THE
FOLLOWING CODE:
Green/Yellow – Earth
Blue – Neutral
Brown – Live
If you change the plug, the colour of wires in the mains lead may not correspond with the
colour of the markings identifying terminals in the plug.You should therefore wire it as
shown (see illustration). If the mains lead needs to be replaced at any time, it should be
replaced by a special lead obtainable from your local authorised Creda Service Centre.
A charge will be made if you have damaged the existing lead or require a longer one.
It is strongly advised that this work is carried out by a qualified electrician.
CE marking certifies that this appliance complies with requirements laid down in EEC
Directive 89:336 (Electromagnetic compatibility) and subsequent modifications and Low
Voltage Directive 73/23/EEC.
Green and yellow
(Earth) wire to the
terminal marked
‘E’or with the
symbol ,
or coloured
green and
yellow.
Brown (Live)
wire to the
terminal
marked ‘L’ or
coloured
red.
Blue (Neutral) wire
to the terminal marked
‘N’or coloured black.
Cord clamp
13A ASTA
approved
fuse to
BS1362.
Contents
Electrical requirements 2
Recycling & Disposal Information
Choosing a Location
Adjusting the Feet
Installation Instructions 3-4
Transit Bracket Removal
Connecting to the Water Supply
Removing the Polystyrene Pyramid
Connecting to a Drainage System
Getting to Know your Machine 5
Wash Load Guides
Interlocking Door System
Washcare tips
A Typical Wash Programme 6
Controls 7
Choosing A Wash Programme 8
Optional Wash Features 9
Dispenser Drawer 10-11
Care and Cleaning 12
Maintenance Wash
Regular Checks and Stain Removal 13
Something wrong with your appliance 14
Service Cover 15
Key Contact Numbers Back page
Hot and Cold Fill Connection
1. Connect the straight end of the supplied RED or GREY hose to
the HOT water supply tap (Fig 1). Connect the straight end of
the supplied BLUE hose to the COLD water supply tap.
2. Hand tighten connectors sufficiently to ensure water does not
leak from the hose connections.
3. Before connecting each of the hoses to the appliance, confirm
the water supply is flowing by holding the free end of each
hose in a bucket, turn the relevant water supply taps on and
then off.
4. Connect the angled end of the RED or GREY hose to the white
plastic inlet valve marked ‘H’ (Fig 2) and the angled end of the
BLUE hose to the white plastic inlet valve marked ‘C’ at the back
of the appliance.
5. Hand tighten connectors sufficiently to ensure water does not
leak from the hose connections.
6. Turn on the water supply taps and check for leaks from the connectors. In the event
of a leak, turn off supply tap, remove connector and check that the sealing washer is
in place. Refit the connector and tighten. Turn on water supply taps.
Cold Fill Only Connection
A Cold Fill Adaptor is available from your local Creda authorised Service
Centre.
1. Connect angled end of supplied hoses to hot and cold inlets
at the back of appliance
2. Connect straight end of hoses to cold fill adaptor.
3. Connect adaptor to cold water supply.
NOTE: Hand tighten sufficiently to ensure water is not leaking from
the tap hose connections.
Fill Hoses
Ensure the supplied hoses are not kinked when connected.
2m long extension fill hoses are available from your local retailer
or Genuine Parts and Accessories UK 08709 077 077.
Water Pressure
Incoming hot and cold water pressure should be between 3 and 150
psi (21 - 1034 Kpa).
The temperature of the incoming household hot water supply should ideally be 60°C and
no higher than 70°C as this could cause damage to both your laundry and appliance.
Methods of Plumbing
The water supply taps must be easily accessible when the appliance is installed. Your
taps should be in good condition or it may leak when turned full on.Mixer taps are
unsuitable, if you have them you will need to use permanent plumbing. Adaptors are
required to connect to sink taps.
Permanent Plumbing
There must be taps or stopcocks so that the water supply can be turned off, isolating
the appliance from the household supply.
Existing Plumbing
If you have an existing installation please check that this includes taps or stopcocks to
isolate the appliance. The appliance must be connected to the water supply using
the new hose set supplied, old hose sets should not be used.
4. Remove 2
screws and
transit
bracket.
Retain for
future use.
3. Remove
1 screw and
clamp.
Retain for
future use.
Transit Bracket
Removal
Connecting to the Water Supply
3
5. Slide and
push work
top lid into
position
ensuring it
is located
on the
console
correctly.
2. From the
rear of
appliance,
grip the
sides of the
work top
lid, lift, slide
and pull
towards
you to
remove.
1. Remove
the 3
screws from
back of
work top
lid.
6. Replace
the 3
screws into
the back of
the work
top lid.
Inlet to machine
Cold
Water
Supply
After removing the packaging from the machine, ensure that the polystyrene pyramid
(shown at the side) has come away from the underside of the machine, with the
polystyrene base.
If it has not come away, remove it by tilting the machine backwards until the pyramid can
be seen and then remove.
Removing the Polystyrene Pyramid
Inlet to machine
Inlet to machine
Cold Water Supply
Fig. 3
Fig 2
Fig 1
Fig. 4
