Seite 1/6

INSTALLATION AND MAINTENANCE MANUAL FORM #PM-124 REV A 12/09

Page 1 of 6

For assembly drawings, parts lists, or specific repair instructions, refer to web site at www.coxreels.com

or consult factory.

Coxreels, Inc., 5865 S. Ash Ave., Tempe, Arizona, USA, 85283 Tel: 1-800-269-7335

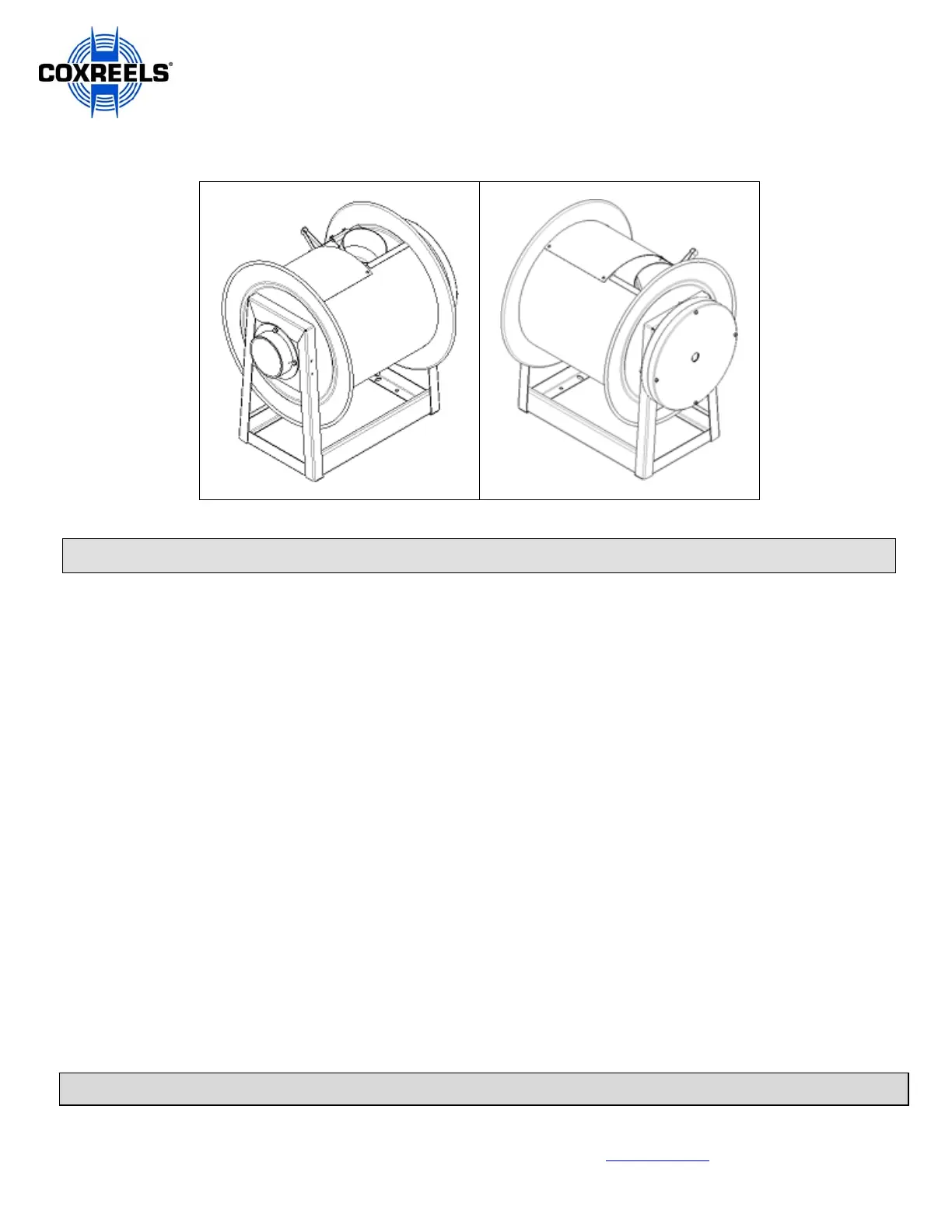

EXHAUST VENTILATION REEL:

SERIES 300

COXREELS

The technical data and images which appear in this manual are for informational purposes only. NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE CREATED BY THE DESCRIPTIONS AND DEPICTIONS OF THE PRODUCTS SHOWN IN

THIS MANUAL. COXREELS makes no warranty (and assumes no liability) as to function of equipment or operation of systems built according to customer design or of the

ability of any of its products to interface, operate or function with any portions of customer systems not provided by COXREELS.

COXREELS agrees to repair or exchange the goods sold hereunder necessitated by reason of defective workmanship and material discovered and reported to COXREELS

within two years after original invoice date.

Except where the nature of the defect is such that it is appropriate, in COXREELS’ judgment, to effect repairs on site, COXREELS’ obligation hereunder to remedy defects

shall be limited to repairing or replacing (at COXREELS’ option) FOB COXREELS Factory, any part returned to COXREELS at the risk and cost of Buyer. Defective parts

replaced shall become the property of COXREELS.

COXREELS shall only be obligated to make such repair or replacement if the goods have been used by Buyer only in service recommended. COXREELS is not responsible

for defects which arise from improper installation, neglect, improper use of or from normal wear and tear.

COXREELS obligation shall be limited by the manufacturer’s warranty (and is not further warranted by COXREELS) for all parts procured from others according to published

data, specifications or performance information not designed by COXREELS.

COXREELS further agrees to replace or at COXREELS’ option to provide a refund of the sales price of any goods that do not conform to applicable specifications or which

differ from that agreed to be supplied which non-conformity is discovered and forthwith reported to COXREELS within 30 days after shipment to the Buyer. COXREELS’

obligation to replace or refund the purchase price for non-conforming goods shall arise once the Buyer returns such goods FOB COXREELS Factory at the risk and cost of

Buyer. Goods replaced by COXREELS shall become property of COXREELS.

COXREELS liability on any claim, whether in contract, tort (including negligence), or otherwise, for any loss or damage arising out of, connected with, or resulting from the

manufacture, sale, delivery, resale, repair, replacement or use of any products or services shall in no case exceed the price paid for the product or services or any part

thereof which give rise to the claim. In no event shall COXREELS be liable for consequential, special, incidental or other damages, nor shall COXREELS be liable in respect

of personal injury or damage to property not the subject matter hereof unless attributable to gross misconduct of COXREELS, which shall mean an act or omission by

COXREELS demonstrating reckless disregard of the foreseeable consequences thereof.

COXREELS is not responsible for incorrect choice of models or where products are used in excess of their rated and recommended capacities and design functions or under

abnormal conditions. COXREELS assumes no liability for loss of time, damage or injuries to property or persons resulting from the use of COXREELS products. Buyer shall

hold COXREELS harmless from all liability, claims, suits and expenses in connection with loss or damage resulting from operation of products or utilization of services,

respectively, of COXREELS and shall defend any suit or action which might arise there from in Buyer’s name – provided that COXREELS shall have the right to elect to

defend any such suit or action for the account of Buyer. The foregoing shall be the exclusive remedies of the Buyer and all persons and entitles claiming through the Buyer.

NOTE: All designs, specifications, and dimensional data contained in this publication are subject to change without notice.

INSTALLATION AND MAINTENANCE MANUAL FORM #PM-124 REV A 12/09

Page 2 of 6

For assembly drawings, parts lists, or specific repair instructions, refer to web site at www.coxreels.com

or consult factory.

Coxreels, Inc., 5865 S. Ash Ave., Tempe, Arizona, USA, 85283 Tel: 1-800-269-7335

WARNING – APPLICATION

 THE PRODUCTS IN THIS INSTALLATION AND MAINTENANCE MANUAL HAVE BEEN TESTED UNDER CONTROLLED LABORATORY CONDITIONS TO

MEET SPECIFIC TEST CRITERIA. THESE TESTS ARE NOT INTENDED TO REFLECT THE PERFORMANCE OF THE PRODUCTS OR ANY OTHER

MATERIAL IN ANY SPECIFIC APPLICATION, BUT ARE INTENDED TO PROVIDE THE USER WITH APPLICATION GUIDELINES. THE PRODUCTS ARE

INTENDED FOR USE BY KNOWLEDGEABLE PERSONS HAVING THE TECHNICAL SKILL NECESSARY TO EVALUATE THEIR SUITABILITY FOR

SPECIFIC APPLICATIONS.

WARNING – USER RESPONSIBILITY

 THE USER, THROUGH ITS OWN ANALYSIS AND TESTING, IS SOLELY RESPONSIBLE FOR MAKING THE FINAL SELECTION OF THE SYSTEM AND

COMPONENTS AND ASSURING THAT ALL PERFORMANCE, ENDURANCE, MAINTENANCE, SAFETY AND WARNING REQUIREMENTS OF THE

APPLICATION ARE MET.

 TO THE EXTENT THAT COXREELS PROVIDE COMPONENT OR SYSTEM OPTIONS BASED UPON DATA OR SPECIFICATIONS PROVIDED BY THE

USER, THE USER IS RESPONSIBLE FOR DETERMINING THAT SUCH DATA AND SPECIFICATIONS ARE SUITABLE AND SUFFICIENT FOR ALL

APPLICATIONS AND REASONABLY FORESEEABLE USES OF THE COMPONENTS OR SYSTEM.

WARNING – SAFETY

 READ ALL SAFETY INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE, OR MAINTAIN THIS PRODUCT. ONLY QUALIFIED

PERSONNEL SHOULD UNDERTAKE THE INSTALLATION AND COMMISSIONING OF THIS PRODUCT. FAILURE TO COMPLY WITH INSTRUCTIONS

COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE.

 FAILURE TO FOLLOW RECOMMENDED APPLICATION INFORMATION AND RECOMMENDED PROCEDURES FOR SELECTION, INSTALLATION, CARE,

MAINTENANCE AND STORAGE OF REEL ASSEMBLY, SWIVEL, HOSE, COUPLINGS OR HOSE ASSEMBLIES MAY RESULT IN FAILURE TO PERFORM

PROPERLY AND MAY RESULT IN DAMAGE TO PROPERTY AND SERIOUS BODILY INJURY.

 FOLLOW GOOD MAINTENANCE PRACTICES – ESTABLISH A PROGRAM OF INSPECTION, TESTING AND REPLACEMENT OF REEL COMPONENTS,

ACCESSORIES AND OR BRACKETS FROM FACTORS INCLUDING:

o SEVERITY OF APPLICATION

o FREQUENCY OF EQUIPMENT USE

o PAST PERFORMANCE OF REEL COMPONENTS

 ONLY PROPERLY TRAINED PERSONS SHOULD INSPECT, TEST OR SERVICE REEL AND HOSE/CABLE ASSEMBLIES. PERIODIC UPDATING OF

TRAINING IS RECOMMENDED.

 DOCUMENT MAINTENANCE, INSPECTIONS AND TESTING.

PRESSURE WARNINGS

• This equipment should be properly installed before use in accordance with local codes and ordinances.

• The pressure to and from the hose reel should be released and disconnected from the hose reel before any service functions are performed.

• This hose reel must not be used for pressure greater that the rating listed in the COXREELS catalog / website www.coxreels.com.

OPERATIONAL WARNINGS

• Exercise care when handling the hose reel during normal operation. Some hose reels have a rotating drum powered by a spring under tension or chain, sprocket

and gears.

• Do not use hose different from that for which the reel is intended. Changes in diameter, weight per foot, length of hose or flexibility (Minimum Bend Radius) will

affect the operation of the reel.

• Mounting hardware and fasteners should be installed to maintain tightness under vibration and checked periodically to ensure tightness.

• Overhead installation mountings should be such that the reel is not supported solely by bolts in tension. A safety chain, cable, enclosure or netting is strongly

recommended to minimize damage and/or possible injury in the event of a mounting failure.

MAINTENANCE WARNINGS

• Modification of the equipment may cause excessive wear and will void the warranty. Contact COXREELS regarding changes or modifications of equipment

which could affect reliability or safety.

• DO NOT DISASSEMBLE A SPRING MOTOR FOR ANY REASON! Serious personal injury could result. Some hose reels are equipped with a spring under

tension. Contact COXREELS for assistance.

800-COX-REEL

Tool Free Fax: 800-229-REEL

Email: info@coxreels.com

SAFETY

INSTALLATION AND MAINTENANCE MANUAL FORM #PM-124 REV A 12/09

Page 3 of 6

For assembly drawings, parts lists, or specific repair instructions, refer to web site at www.coxreels.com

or consult factory.

Coxreels, Inc., 5865 S. Ash Ave., Tempe, Arizona, USA, 85283 Tel: 1-800-269-7335

SPECIFICATIONS & LISTINGS

• The identified Series of Hose Reel products within this manual are not certified or listed by any independent certifying or regulatory body.

• This series of hose reels is intended for industrial use and are provided with permanent mounting means, with the exception of the portable reel models.

PRESSURE & TEMPERATURE RATING

• All reels covered in this manual with or without hose have specific ratings. (Please refer to the COXREELS catalog, website or contact Customer Service for reel

specific data). Reels should not be used at pressures greater that overall reel rating.

• Operational temperature ranges vary across the wide range of hose options. (Please refer to the COXREELS catalog, website or contact Customer Service for

hose specific data). Hose reels should not be used at temperatures below or above the rating of the hose.

• The operational rating of a reel not equipped with hose is determined by the capacity of the installed hose. The pressure rating of the reel without hose must not

be greater than the than the operational capacity of a reel. (Please refer to the COXREELS catalog, website or contact Customer Service for reel/hose specific

data). Variations in the OD of higher rated hose will affect the operational capacity of the reel.

LABELS & MARKINGS

Hose Reels with and without hose

• The marking of the hose reel provide with or without hose includes the following

o The label on the frame includes the COXREELS name and Logo, the product catalog number, the individual product serial number, rating and what

type and length of hose intended for use on the reel.

o The maximum pressure rating for every hose reel supplied without hose is marked on the COXREELS Identification Label. Actual rating is

determined by the installed hose and is not to exceed the indicated maximum operational rating. The pressure rating of the hose installed on reels

provided without hose must be marked on the label upon installation.

NOTE: If for any reason the information is not included or the label has become illegible, please refer to the COXREELS catalog, website or contact Customer

Service for reel specific data.

PERSONAL SAFETY

• Ensure reel has been properly installed before connecting supply line.

• Before connecting to reel, be certain supply line does not exceed rated pressure of the hose reel.

• Thoroughly review the “Hose Installation” instructions to properly install hose.

• Perform “Operational Check” per instructions to ensure reel is operating properly.

• If a leak should occur after applying pressure to the reel, immediately turn off pressure source and discontinue supply line pressure.

WARNING: Prevent static sparking. When working around flammables, ensure that the hose reel, hose, and equipment are properly grounded.

INSTALLATION

WARNING: READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE, OR MAINTAIN THIS PRODUCT. ONLY QUALIFIED

PERSONNEL SHOULD UNDERTAKE THE INSTALLATION AND COMMISSIONING OF THIS PRODUCT. FAILURE TO COMPLY WITH INSTRUCTIONS

COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE.

WARNING: REEL SHOULD NOT BE INSTALLED ABOVE 15 FEET MAXIMUM FROM THE FLOOR.

MOUNTING OF REEL

• Mount reel to a solid structure using six 7/16” or M12 bolts, washers, and nuts. Four masonry bolts may be used depending on mounting application. Mounting

hardware is NOT provided. The mounting base of the reel has two ½” holes and four ½” x 1” slots.

• Fit reel. Install hardware in reel base. Securely fasten all bolts and nuts.
