installation guide
chef canopy rangehoods
models: CS601S, CS901S, RCD690S, RCD990S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMCANRH
222mm
165mm
470mm (max.)*
1240mm (max.)
540mm
230mm
500mm
600/900mm
20mm
page 1 of 3

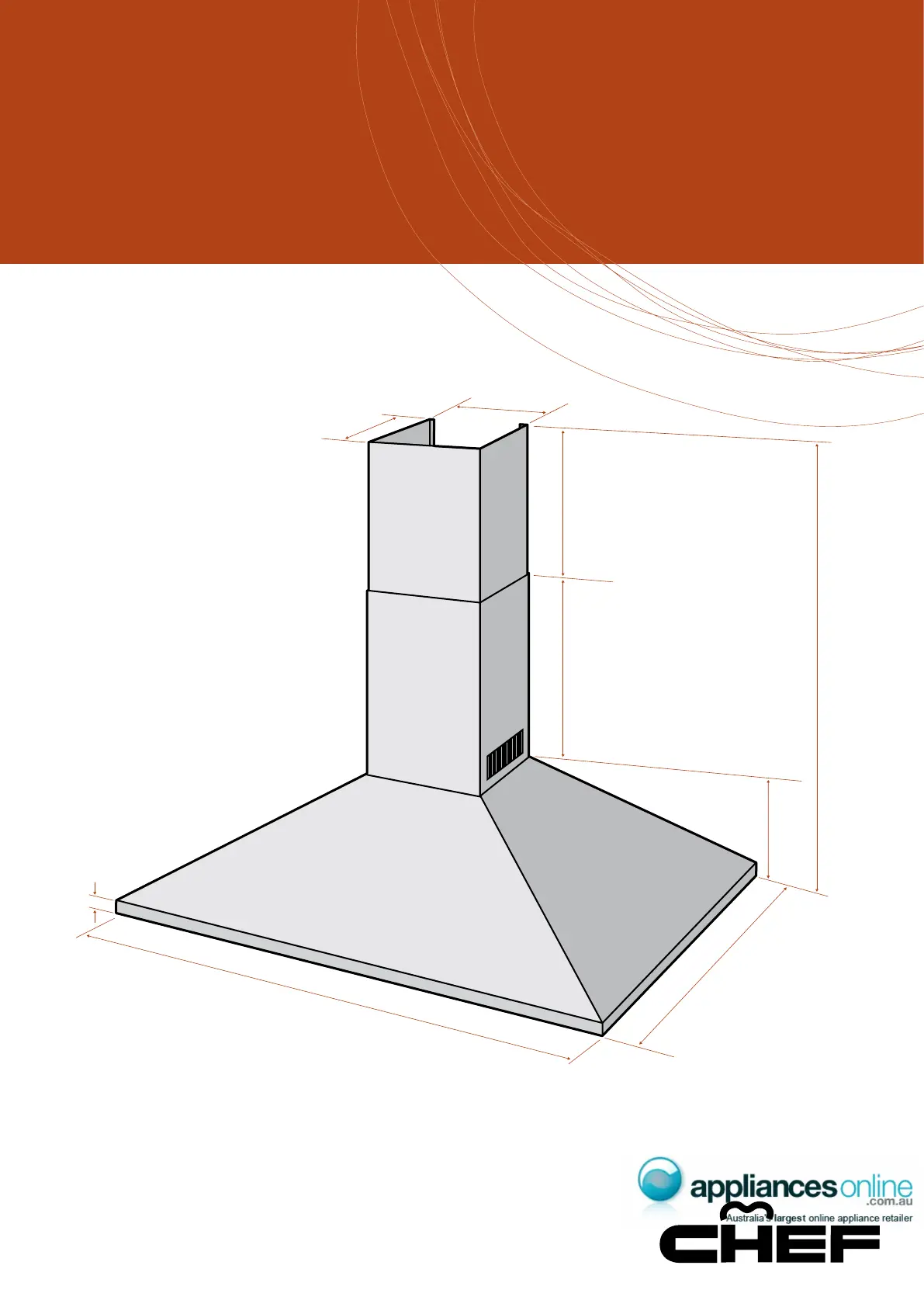

canopy rangehood dimensions
*1100mm extension flue cover is available if required where high ceilings are present (model no. ARF500FS).
installation guide
chef canopy rangehoods
models: CS601S, CS901S, RCD690S, RCD990S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMCANRH page 2 of 3
245mm
490mm
Minimum:
Electric
600mm
Gas 650mm
Maximum:
800mm
Hood base
Flue cover mounting brackets
Note: Some installations may require
telescopic flue cover to be cut to length. Cut
with tin snips or fine tooth hack saw blade,
taking care not to distort or dent flue cover.
Top of hob
38mm
65mm65mm
75mm75mm
303mm
(or 203 mm on
600mm wide canopy)
303mm
(or 203 mm on
600mm wide canopy)
Rear Exhaust
to atmosphere Top Exhaust
to atmosphere Side Exhaust
to atmosphere Recirculating
Exhaust*
canopy rangehood fixing dimensions
canopy rangehood exhaust options
*In recirculating mode you must use a recirculating kit which includes carbon filters to eliminate cooking smells (model no. AR500RK).
ducting accessories
chef canopy rangehoods
models: CS601S, CS901S, RCD690S, RCD990S
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMCANRH page 3 of 3
canopy rangehood ducting accessories
AR125FD
Alternative flue connection
AR500RK
AR500CF
AR500FS
AR125RC
AR125F
Flashing
not supplied
AR125B
AR125WV
AR125FJ/AR125FJD
part numbers description
AR125RC roof cowl
AR125B 90° bend
AR125F flue 1200mm long
AR125FD flexible duct – 1 metre long when expanded
AR125WV wall vent kit
AR500FS extra length flue cover 1100mm length brushed stainless steel
AR500RK recirculating kit (includes AR500CF x 2)
AR500CF replacement carbon filters
AR125FJ flue joiner without damper
AR125FJD flue joiner with damper
