Seite 1/12

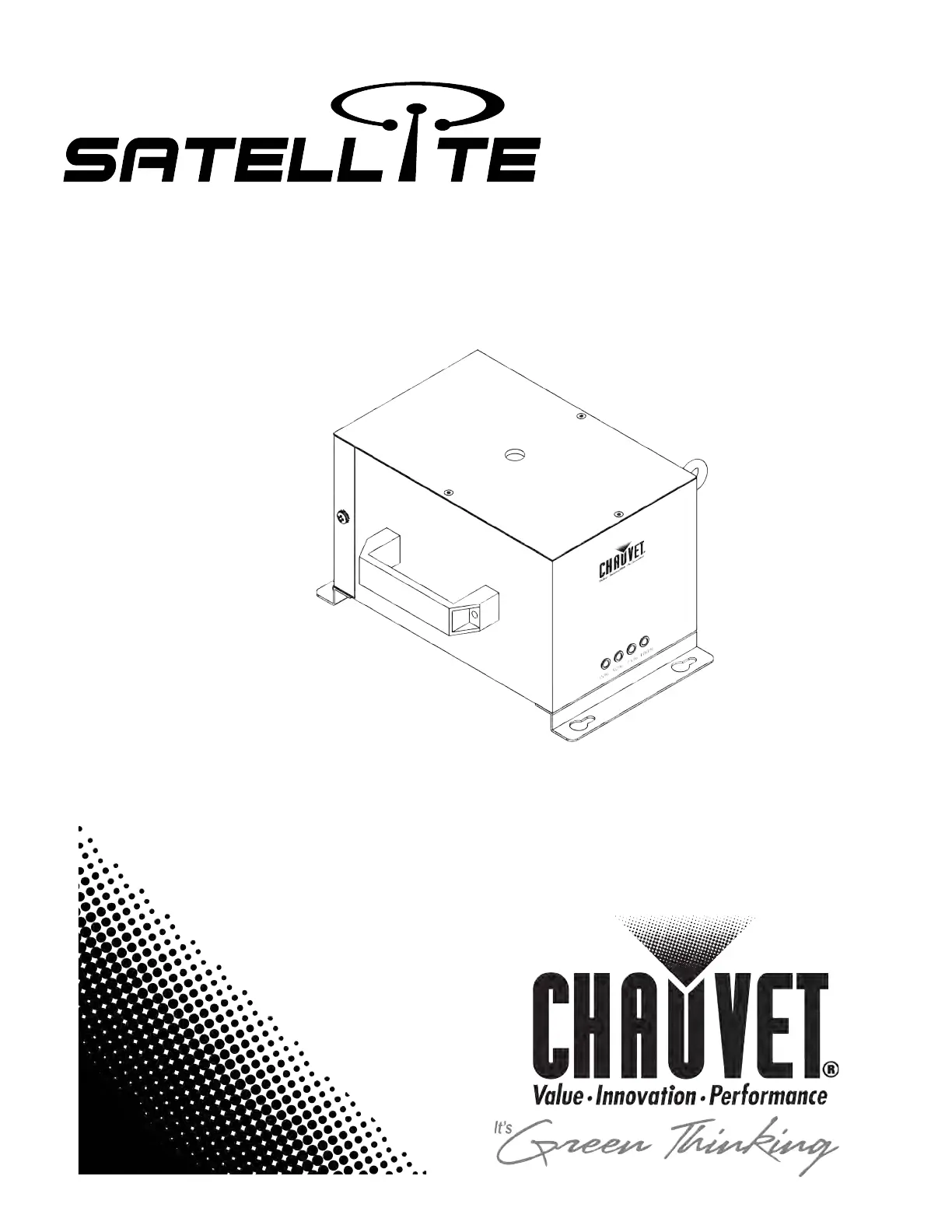

User Manual
Page 2 S of 12 atellite™ User Manual (Rev. 02b)
T
ABLE OF
C
ONTENTS
1. Before you Begin ............................................................................ 3
What is Included ........................................................................................ 3
Unpacking Instructions .............................................................................. 3
Text Conventions ...................................................................................... 3
Icons ......................................................................................................... 3
Safety Notes ............................................................................................. 4
2. Introduction..................................................................................... 5
Product Dimensions .................................................................................. 5
Product Overview ...................................................................................... 6
3. Setup ............................................................................................... 7
AC Power .................................................................................................. 7
Mounting ................................................................................................... 9
4. Technical Information .................................................................. 10
General Maintenance .............................................................................. 10
General Troubleshooting ......................................................................... 10
Returns Procedure .................................................................................. 11
Claims ..................................................................................................... 11
Contact Information ................................................................................. 11
5. Technical Specifications .............................................................. 12
Document Information
The information and specifications are subject to change without contained documentin this
notice. CHAUVET® assumes no responsibility or liability for any errors or omissions that may
appear in this manual.
© Copyright 2011 CHAUVET®. All rights reserved
Printed in P.R.C.
Electronically published by CHAUVET® in the United States of America
Author Editor Manager PD Manager
A. Chiappone D. Gallagher A. Reiss F. Sellers
Satellite™ User Manual (Rev. 02b) 3 Page of 12
1.
B
EFORE YOU
B
EGIN
What is Included
· 1 x Satellite™
· b c 1 x attery harger
· 4- 1 x pin DIN cable (1 m length)
· 1 x Warranty Card
· 1 x User Manual
Unpacking Instructions
Immediately upon recei
ving this product, carefully unpack it and check the container in
which you received it. Make sure that you have received all the parts indicated above
and that they are all in good condition. If the material inside the container (this product
and any othe
r accessory included with it) appears damaged from shipping, or if the
container shows signs of mishandling, notify the shipper immediately. In addition,
retain the container and all the packing material for inspection.
See the Claims section in the “Technical Information” chapter.
Text Conventions
Convention Meaning
[10] A DIP switch to be configured
<Menu> A key to be pressed on the fixture’s control panel
1~512 A range of values
50/60 A set of values of which only one can be chosen
Sett ings A menu option not to be modified (for example, showing the operating
mode/current status)
Menu > Settings A sequence of menu options to be followed
ON A value to be entered or selected
Icons
Icon Meaning
This paragraph contains critical installation, configuration, or operation
information. Failure to comply with this information may render the
fixture partially or completely inoperative, cause damage to the fixture,
or cause harm to the user.
This paragraph contains important installation or configuration
information. Failure to comply with this information may prevent the
fixture from functioning correctly.
This paragraph reminds you of useful, although not critical, information.
Product at a Glance
Use on Dimmer
x
x
x
xx
Auto Programs
x
x
x
xx
Outdoor Use
x
x
x
xx
Auto-ranging Power Supply
P
P
P
PP
Sound Activated
x
x
x
xx
Replaceable Fuse
x
x
x
xx
DMX
x
x
x
xx
User Serviceable
x
x
x
xx
Master/Slave
x
x
x
xx
Duty Cycle
x
x
x
xx
