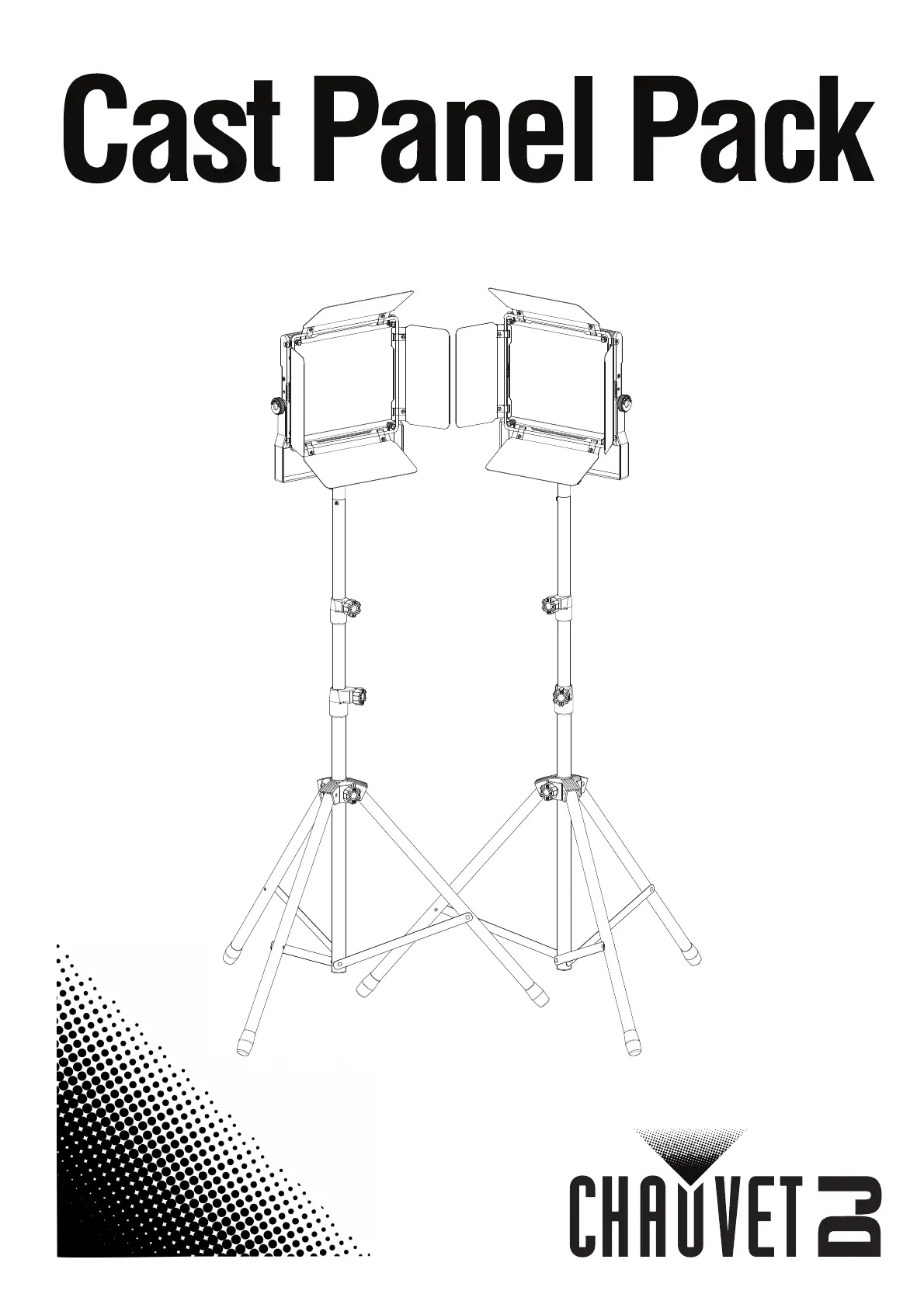

Quick Reference Guide
1
EN
QUICK REFERENCE GUIDE
Cast Panel Pack QRG Rev. 3
About This Guide
The Cast Panel Pack Quick Reference Guide (QRG) has basic product information such as operation, mounting, and
technical specifications.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the
period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This
warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this
warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows
the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This
warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to
country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands,
Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or
return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included
To Begin
Unpack your Cast Panel Pack and make sure you have received all parts in good condition. If the box or contents appear
damaged, notify the carrier immediately, not Chauvet.
AC Power
This pack comes with 2 external auto-ranging power supplies which work with an input voltage range of 100 to 240 VAC,
50/60 Hz and output 15 VDC, 3 A.
• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• DO NOT touch the product’s housing when it is on because it will be hot.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the
decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain
or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent
surfaces.
• Be sure that no ventilation slots on the unit’s housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect
the product from power via breaker or by unplugging it.
• 2 light fixtures (w/ barn doors)
• 2 external power supplies
• 2 tripods
• 2 carry bags
• Quick Reference Guide
To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the
product from power via breaker or by unplugging it.
EN
2
Cast Panel Pack QRG Rev. 3
QUICK REFERENCE GUIDE
DC Power
This product is compatible with Sony NP-F series batteries.
Product Overview
Control Panel Description
IRC-6 Control
The Cast Panel is compatible with the IRC-6 remote from Chauvet:
Switch/Knob Function
Mode switch Left: custom mix mode (use knobs 1 and 2), Right: preset color temperature mode (use knob 3)
Knob 1 Warm white (custom mix mode only)
Knob 2 Cool white (custom mix mode only)
Knob 3 Preset color temperature, low to high (preset color temperature mode only)
Power switch Left: power supplied by battery, Middle: off, Right: power supplied by mains
Turns LEDs off/on Decreases strobe rate, dimmer, or color
value
Disables IRC function, enables control
knobs on product 2700K white
Activates/deactivates strobe (Use <+>
and <-> to set speed) 3200K white
Selects dimmer control (Use <+> and <->
to set value) 4000K white
Enables manual color control (<A> and
<W>)5600K white
Selects warm white LED control (Use
<+> and <-> to set value) 6000K white
Selects cool white LED control (Use <+>
and <-> to set value) 7000K white
Increases strobe rate, dimmer, or color
value 8000K white
: No function with the Cast Panel
Battery slot (x2)
Barn door
LED indicator
Mode switch
Knob 1
Knob 2
Knob 3
Power switch
DC power in
BLACK
OUT AUTO SOUND
SENSI-
TIVITY
SPEEDSTROBE
%MANUAL FADE
R G B
WUVA
+0-
1 2 3
654
789
