Urbane Cleanflush™
Revision: 2
Date: July 2018
Supersedes all previous issues
Caroma Industries Limited ABN 35 000 189 499 Sales Offices in all States.
Urbane
Cleanflush™

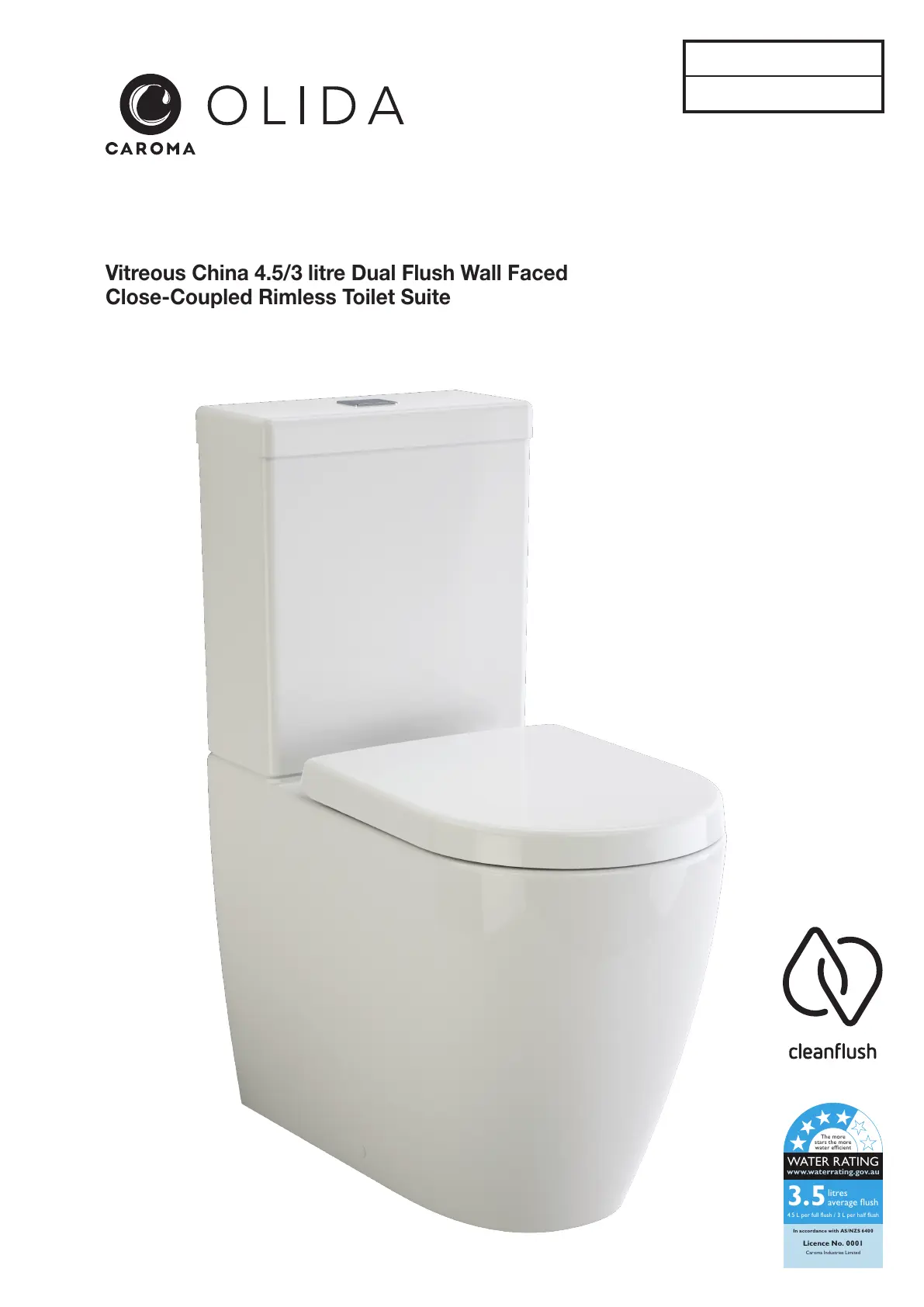

Vitreous China 4.5/3 litre Dual Flush Wall Faced
Close-Coupled Rimless Toilet Suite
440
793
centre of back inlet connection
125
655
355
350
150
415
185
pan outlet
860 approx.
185
D82 Concealed Fixing
Bracket (supplied)
185
440
Pan foot
level
Uni-Orbital® Connector Setout
Range 60mm to 200mm
(up to 50mm sideways
adjustment)
140 recommended
(range 60 – 200mm with
Uni-Orbital®
connector supplied)
Note: All height dimensions to underside
of pan, make allowance for bedding when
installing.
Bedding: The pan should be fixed to the floor
with a sand cement mixture of 3:1 to a depth of
60mm. Do not use lime or fast drying cement
in the bedding mixture. When bedded the back
of the foot of the pan should be approximately
10mm above the finished floor.
Bracket fixing: The pan should be bedded
with an acetic cured silicone sealant and fixed
with the D82 Fixing Brackets supplied.
Combining universal design with rimless pan technology, the Urbane Cleanflush™ is a superior
flushing system suitable for domestic and commercial applications. Incorporating several patented
technologies: Caroma Flow Splitter™, Caroma Flow Balancer™ and Caroma Uni-Orbital® Connector,
the Cleanflush pan is innovative and the next evolution in toilets. The Flow Splitter evenly flows water
around the top of the bowl to meet at the Flow Balancer which directs the water powerfully into the
sump, reducing the need for brush cleaning. The rimless pan is easy to clean and unlike traditional pan
profiles, provides full visibility of any grime build up. Caroma Cleanflush™ provides a cleaner clean for
peace of mind.
Pan: Urbane Cleanflush™ wall faced close coupled 4.5 litre full flush rimless pan.
Traps: Universal trap for S or P-trap installations.
Cisterns: Urbane close coupled cistern – has a free fitting lid and is suitable for domestic
and light commercial applications. Available with internal overflow. Available in either
back entry or bottom inlet options.
Cistern inlet stop valve and inlet connection is concealed within the cistern and is
included (back entry version only). Vandal Resistant Conversion Kit – A simple
to install conversion is available for the standard mechanism to lock lid onto the
cistern, recommended for use in heavy use commercial areas. Code No.750109.
Important: Working pressure minimum 30kPa to maximum 1000kPa flow
pressure. Rain water tank compliant. Accurate wall setout for B.S.P. 1/ " 2
Nipple water inlet connection is essential.
Fixing: The cistern is fixed directly to the pan with a robust concealed base fixing system
without the need for wall fixing.
Seats: The soft close quick release thermoset toilet seat or standard close Arc Arc
thermoset toilet seat is provided as standard with the Urbane Cleanflush™ suite. See
chapter 5.01 SEATS of the Caroma Technical Manual for further details.
Colours: White only.
Installation: The installation of the toilet suite shall be in accordance with the normal minimum
drainline grade requirements in AS/NZS 3500.2.
Dimensions: All dimensions are in millimetres and are subject to normal manufacturing variations.
Caroma pursues a policy of continuing improvement in design and performance of
its products. The right is therefore reserved to vary specifications without notice.
Back entry version of pan pictured
Bottom inlet version of pan pictured
Urbane Cleanflush™
Wall Faced Close Coupled
Toilet Suite with Seat Code No.
4.5/3 litre Back Entry
Internal Overflow with Arc Soft
Close Quick Release Seat 746300
4.5/3 litre Back Entry
Internal Overflow with Arc
Standard Close Seat 746310
4.5/3 litre RH Bottom Inlet
Internal Overflow with Arc Soft
Close Quick Release Seat 746200
4.5/3 litre RH Bottom Inlet
Internal Overflow with Arc
Standard Close Seat 746210
