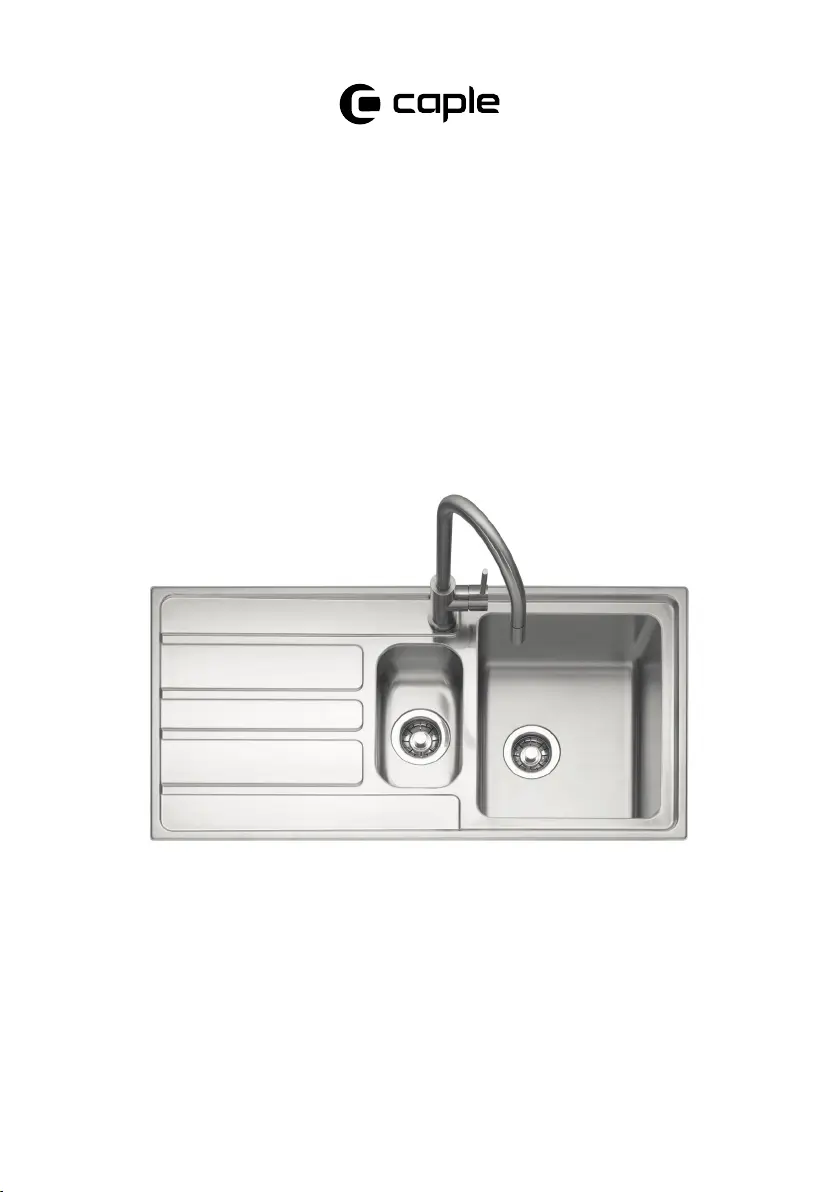

Seite 1/4
I n s t a l l a t i o n a n d
C a r e G u i d e
V E R 1 5 0
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
2 Installation Guide VER150 Please keep this instruction manual for future reference
[01]
[02]
[03]
1
5
2
6
Place the sink upside down in the position where
it is to be installed, and trace the outline of the
sink on the worktop with a pencil.
Apply the seal tape around the under side
of the edge of the sink, being careful to lay
it smoothly.
Draw another line 9mm inside the first line,
to mark the cut out area.
Place the sink into the worktop.
I N STA L L AT I O N G U I D E
Thank you for purchasing your Caple sink.
This sink have been manufactured with the finest quality stainless steel and inspected to exacting
standards and is guaranteed to give years of trouble free operation providing our care and installation
guidelines have been followed.
NOTE : Please see back page for care and maintenance instructions
Installation Guide VER150 3Please keep this instruction manual for future reference
20-25mm
25-40mm
3
7
4
Using the fixing clips provided, secure the sink to the worktop by clipping these into the brackets
under the sink, and screwing until the clip is tight against the worktop as shown.
The corners radius are to be 10mm. Cut a hole in the worktop following this
second inner line. Alternatively use the
template provided with the sink.
[02] [03] x 2 x 12
[01] x 1
CAUTION : SINK EDGES MAY BE SHARP, HANDLE WITH CARE
