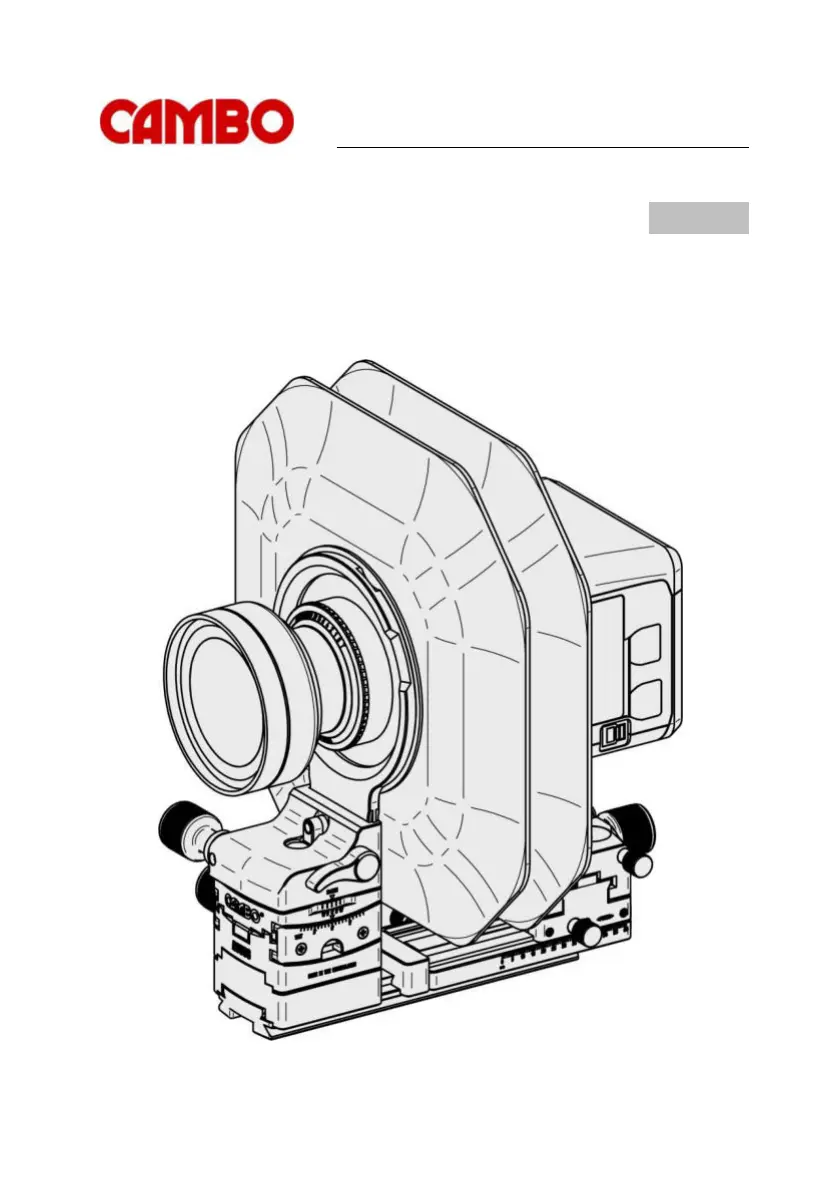

Actus DB2
Compact View Camera
INSTRUCTION MANUAL
EN
Please read
this manual
carefully before
using the Cambo
Actus
DB
2
!
Version 5.0
2
Index:
1. Key Features Actus .................................................................................. 3
2. Warnings ................................................................................................. 4
3. Installation Cambo SLW interface plate ................................................... 7
4. Mounting the lens-panel ......................................................................... 8
5. Mounting the bellows ............................................................................. 9
6. Using the Actus ....................................................................................... 9
7. Setting the infinity hard-stop................................................................... 9
8. Collision safety stop/ infinity setting ..................................................... 10
9. Conversion Actus DB2 ........................................................................... 13
10. Actus accessories ................................................................................... 15
3
Thank you for purchasing a Cambo product
The (Digital Back) is a compact view camera system featuring lateral Actus DB2
and vertical shift of the rear standard as well as a swing and tilt movement of
the front standard. The Cambo SLW adapter plate is used as an interface
between the Actus and the digital back. These interface plates are the same as
used in the Cambo WRS and Ultima 23 series.
The precision gearing enables a fine rear shift/rise and fall control which is
ideal for perspective control, image displacement and high quality panoramic
stitching. The precision gearing tilt and swing movement of the lens enables
the photographer to optimize spatial sharpness.
For the conversion of a standard Actus to an Actus DB2 please refer to page 12.
1. Key Features Actus
• Small size
1
153 x 114 x 203mm (L x W x H)
• Lightweight, only 1.2 kg (excl. lens and digital back)
• High grade CNC milled aluminum camera body
• Horizontal shift 40mm (20mm left/20mm right)
• Vertical shift 27mm (15mm / 12mm)
• Stitching possibilities (2-way / 4-way)
• Tilt 19 degrees (9°/10°)
• Swing 30 degrees (15°/15°)
• Compatible with the Cambo SLW interface plates
• Interchangeable interface plate, lenspanel, rails and bellows
• Millimetre/degree movement indicator
• Precision geared movements (tilt, swing, shift and rise/fall)
• Zero position click indication
• Wide fine focus range (0-60mm)
• Telescopic rail system, standard extension 115mm
• Ability to set the infinity position stop
• Adjustable safety stop to prevent collision of the rear lens element
• Durable genuine leather bellows
• 3/8” and 1/4” tripod mounting option
• Integrated Arca® dovetail
1
With the bellows detached
