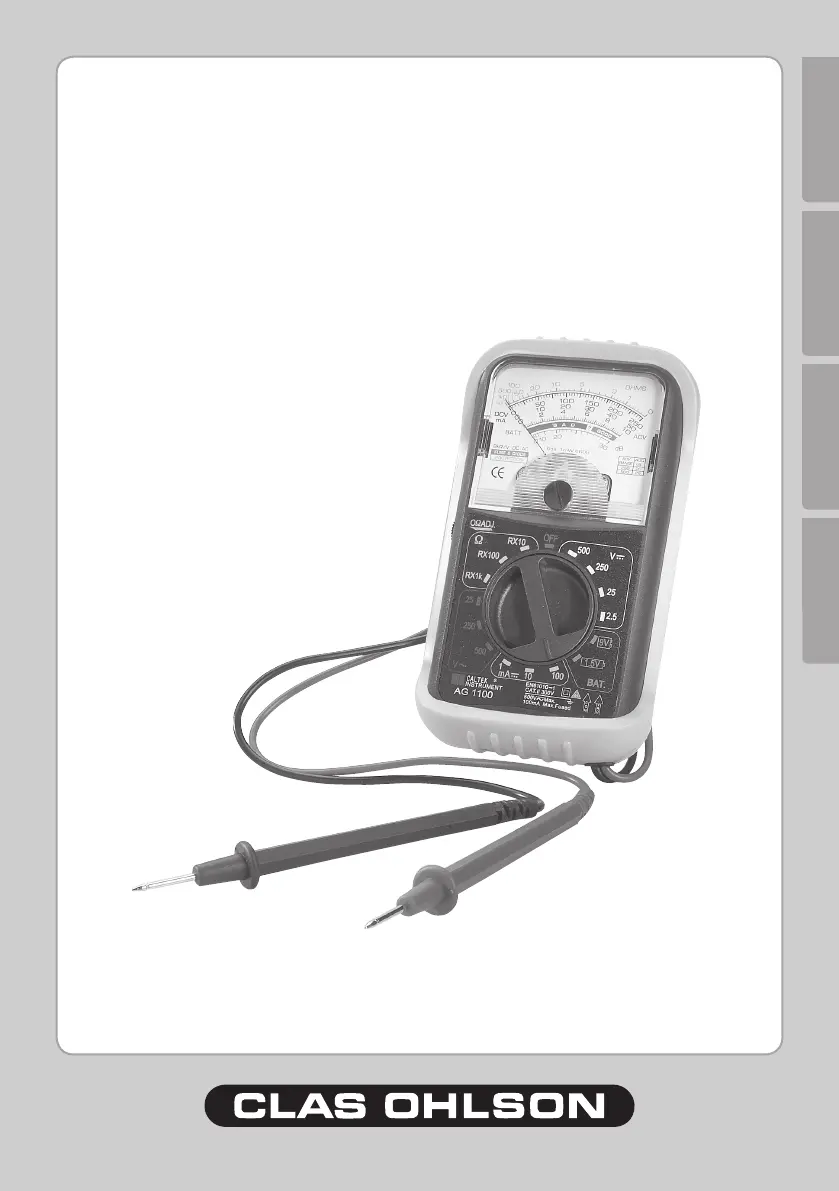

Seite 1/28
E N G L I S H S V E N S K A N O R S K S U O M I
32-3179
Analogue Multimeter
Analog multimeter
Multimeter, analogt
Analoginen yleismittari
Modell/Malli: AG1100
Ver. 2007-09
www.clasohlson.com
2
E N G L I S H
2
Analogue multimeter 32-3179
1. Safety
• The multimeter is produced and tested in accordance with the requirements
of IEC document1010, environment class II and approved in accordance with
installation category II (overvoltage category).
• The meter is intended for indoor use, in temperatures ranging from +5 to +40°
C at heights up to 2000 m A.M.S.L..
• For your safety; please follow all safety directions and regulations in the man-
ual. Failure to follow all of the instructions may result in damage to the instru-
ment or physical injury.
2. International symbols
High Voltage
AC (alternating current)
Earth
DC (direct current)
Double insulation
3. Speciî›™cations
3.1 General Data
Display: Analogue display
Range Selector: Manual
Operating Temperature: +5 - +40° C, up to 75 % relative humidity
Power: 1 x 1.5 V battery, type R6 (= AA)
Fuses: 5 x 20 mm, 500 mA / 250 V, quick
Size, including pouch: 80 x 145 x 45
Weight: Approx. 250 g including manual and cover
3
E N G L I S H
3.2 Electrical Data
Note! Accuracy is ±(% of read value) at +23°C ±5°C, max. 75% rel. humidity.
DC Voltage (DCV):
Ranges: 2.5 / 25 / 250 V
Accuracy: ± (5% of full scale deection)
Sensitivity: 2 kOhm / V
AC Voltage (ACV):
Ranges: 25 / 250 / 500 V
Accuracy: ± (5% of full scale deection)
Sensitivity: 2 kOhm / V
DC Current (DCC):
Ranges: 1 / 10 / 100 mA
Accuracy: ± (5% of full scale deection)
Resistance (Ohms):
Ranges: R x 10, R x 100, R x 1 K
Accuracy: ± (5% of full scale deection)
Decibel:
Range: 0 - 56 ( 0 dB ) 1 mW 600 Ohm
Battery Test:
1.5 V: 100 mA
Accuracy: ± (10 % of full scale deection)
9.0 V: 10 mA
Accuracy: ± (10 % of full scale deection)
Resistance of the Meter:
2 kOhm / V
