Seite 1/13

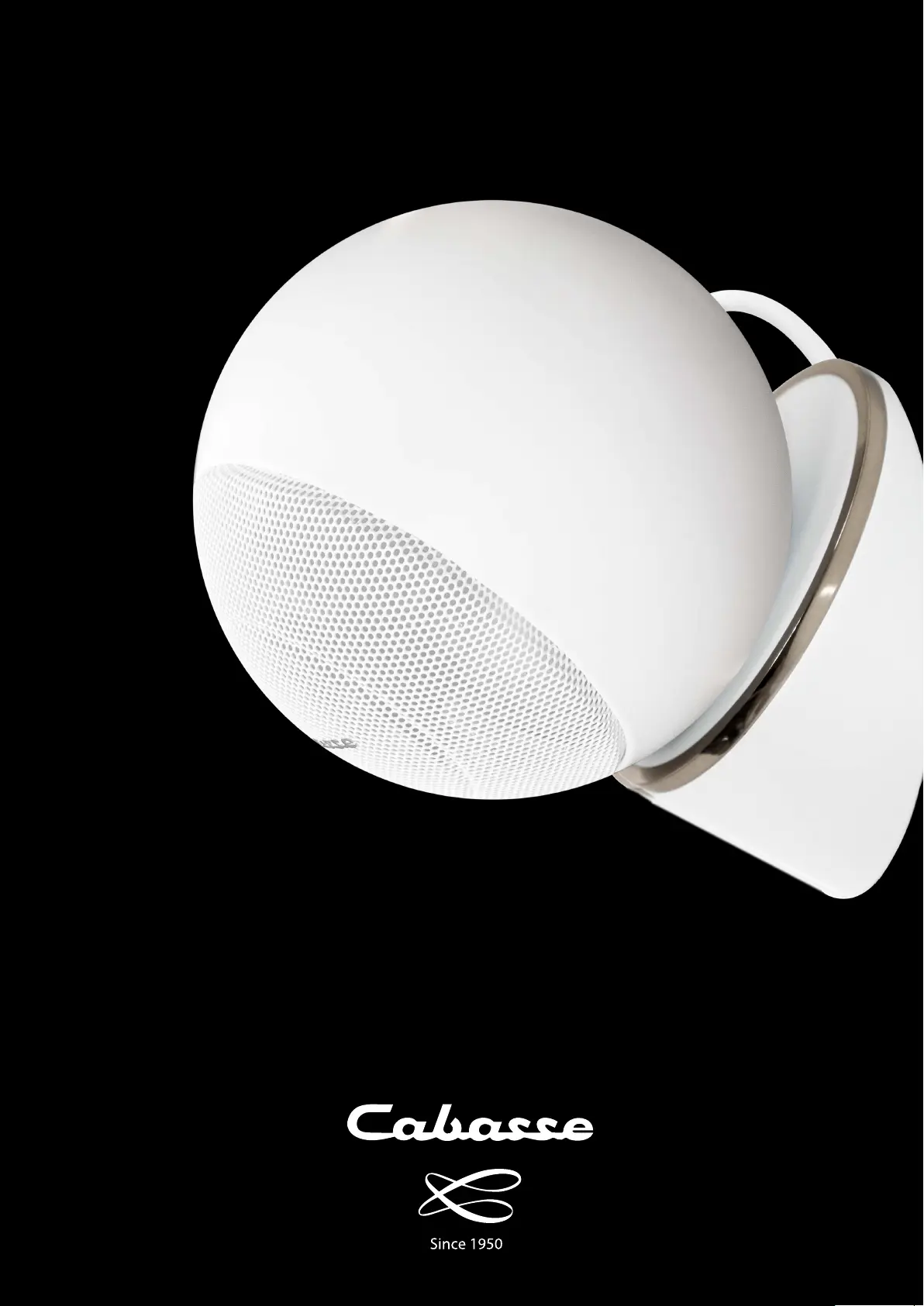

iO3
lifestyle HiFi Speaker
NOTICE D’INSTALLATION DES ENCEINTES ACOUSTIQUES
LOUDSPEAKERS OWNER’S MANUAL
f r a n ç a i s e n g l i s h
MONTAGE MURAL
DU SOCLE iO3
Wall mounting
of the iO3 base
1
iO3
sur pied | design
on stand | design
iO3
sur socle
on base
Santorin 25
caisson de graves
subwoofer
iO3
sur pied | tradition
on stand | traditionnal
En mode mural, toujours bloquer
le câble allant au satellite dans le
frein placé entre les 2 bornes dorées.
Ce câble doit passer par la sortie supérieure
comme indiqué sur le dessin.
On wall use requires to always squeeze the
cable leading to the satellite in the device
placed between the gold platted terminals This .
cable must go through the upper exit as shown
on the drawing.
ATTENTION! : Pour le montage mural du socle, bien respecter le posi-
tionnement du premier dessin ci-contre. Le système nest pas ’
conçu pour les 2 montages barrés d’une croix: socle inversé et socle
au pla-fond.
ATTENTION! : For wall mount always follow the first upper drawing
regarding the set up of the base. The system is not designed for the
here-under crossed-out layouts: reversed base and ceiling mounting.
POSITIONS SATELLITE DU iO3 SUR SOCLE
iO3 speaker positions on its base
position horizontale
horizontal position
position verticale
vertical position
2
L A VERSION SATELLITE IN DU CEILING iO3
The Celling version of In the iO3 speaker
Profondeur/depth :
95 mm - 3.74 ”
Ø : 214mm - 8.45 ”
A B
x 4 x 4
C D E F
Allen #3
> Amplifier
