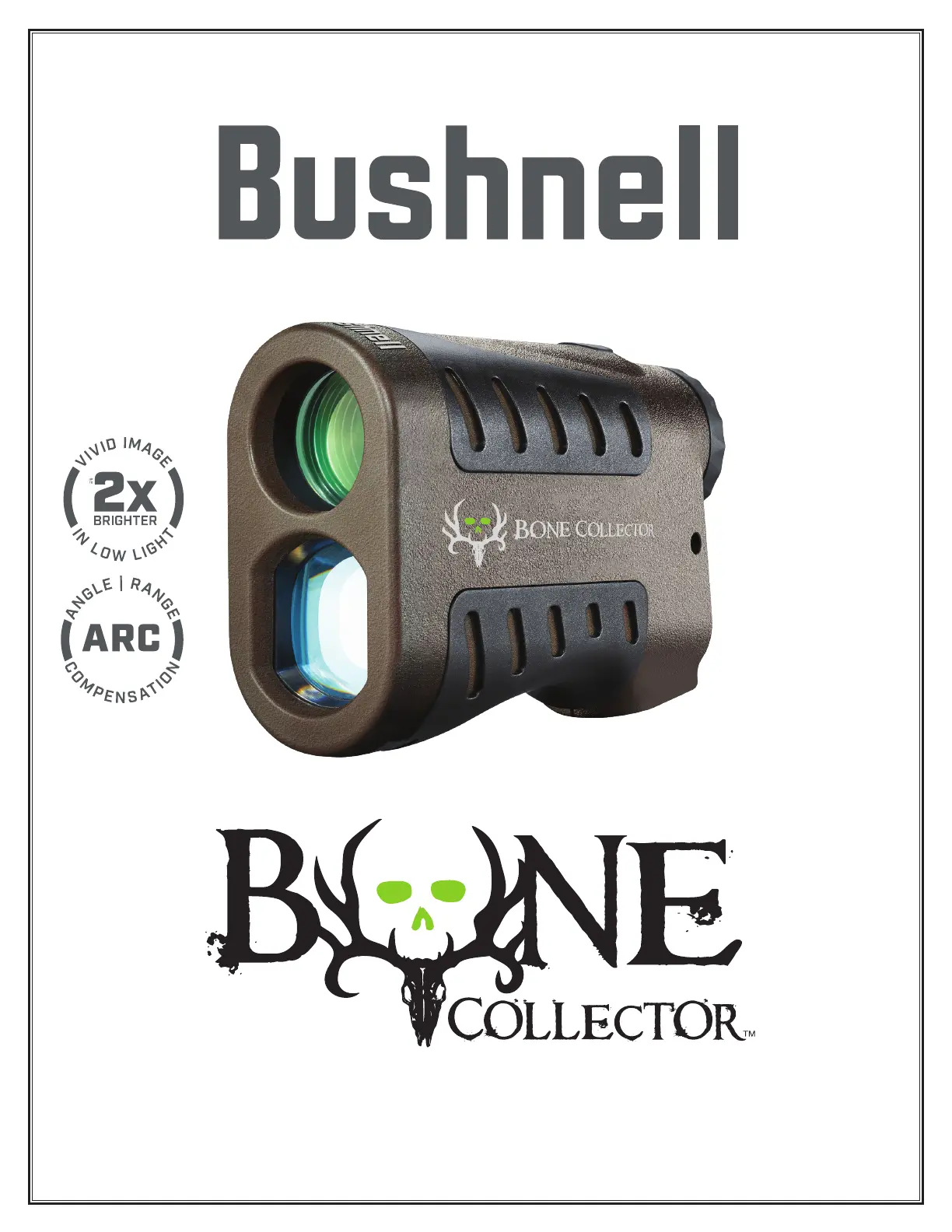

Model #: 202209 /LB850SBL 2-21
LASER RANGEFINDER OWNER’S GUIDE
2
Thank you for purchasing your new Bushnell® Bone Collector 850 Laser Rangefinder.
This manual will help you optimize your viewing experience by explaining how to utilize the rangefinder’s features and how to
care for it. Read the instructions carefully before using your rangefinder.
WARNING: As with any laser device, it is not recommended to directly view the emissions for long
periods of time with magnified lenses.
INTRODUCTION
Your Bushnell® Bone Collector 850 is an ultra compact, premium laser rangefinder with the latest Digital Technology, providing
precise range readings from 5-850 yards/5-777 meters. Measuring 1.3 x 4.2 x 2.9 inches, the 6-ounce Bone Collector 850
delivers extremely fast target acquisition, with +/- 1 yard accuracy to the maximum range. The Bone Collector 850 laser
rangefinder features Bushnell’s patented ARC™ (Angle Range Compensation with Ballistics Intelligence), a new Ranging Engine
for faster, more consistent response and readings, a Vivid LCD display with higher light transmission and water resistant (IPX4)
construction.
*Note: You will get both longer and shorter maximum distances depending on the reflective properties of the particular target and
the environmental conditions at the time the distance of an object is being measured. The color, surface finish, size and shape of
the target all aect reflectivity and range. The brighter the color, the longer the range. White is highly reflective, for example, and
allows longer ranges than the color black, which is the least reflective color. A shiny finish provides more range than a dull one. A
small target is more diicult to range than a larger target. The angle to the target also has an eect. Shooting to a target at a 70
degree angle (where the target surface is perpendicular to the flight path of the emitted energy pulses) provides good range while
a steep angle on the other hand, provides limited ranging. In addition, lighting conditions (e.g. the amount of sunlight) will aect
the ranging capabilities of the unit. The less light (e.g. overcast skies) the farther the unit’s maximum range will be. Conversely,
very sunny days will decrease the unit’s maximum range.
HOW OUR DIGITAL TECHNOLOGY WORKS
The Bone Collector 850 laser rangefinder emits invisible, eye safe, infrared energy pulses. The Bone Collector 850 rangefinder’s
microprocessor results in instantaneous and accurate readings every time. Sophisticated digital technology instantaneously
calculates distances by measuring the time it takes for each pulse to travel from the rangefinder, to the target, and back.
BATTERY ACTIVATION / BATTERY LIFE INDICATOR
Before first use: Remove the battery compartment cover by lifting the battery cover tab and then
rotating the cover counter-clockwise. Remove and discard the “Remove Battery Disk” sticker
covering the positive battery terminal, then replace the battery cover. NOTE: It is recommended
that the CR2 3-volt lithium battery be replaced at least once every 12 months. Insert it into the
compartment negative end first.
PARTS GUIDE
LASER TRANSMIT/RECEIVE
LENS
POWER/FIRE BUTTON
MONOCULAR EYEPIECE
BATTERY COMPARTMENT
MONOCULAR
OBJECTIVE LENS
ENGLISH
3
Battery Level Indicator Icon : (1)
Full charge
3/4 battery level remaining
1/2 battery level remaining
1/4 battery level remaining
Battery icon blinks - battery needs to be replaced and unit will not be operable.
BASIC OPERATION
• While looking through the laser rangefinder, press and release the Power/Fire button to activate the display.
• If the display appears blurry, rotate the rubber eyecup/diopter adjustment in either direction until the display is sharp for
your vision.
• Placing the aiming circle (located in the center of the display) on a target at least 5-6 yards away, depress and hold the Fire
button down until the range reading is displayed below the aiming circle.
• Once a range has been acquired, you can release the Fire button. The four “crosshairs” just outside the aiming circle will go
out, indicating the laser is no longer being transmitted. The display will remain on and display the last distance measurement
for about 15 seconds, until the display automatically switches o to extend battery life.
• You can press the Fire button again at any time to check the range to a new target. To re-fire, press the button again.
• To scan the laser across an area and get continuously updated range readings, simply continue to hold the Fire button
down and sweep the rangefinder over multiple targets. The crosshairs outside the aiming circle will flash to indicate scan
operation.
DISPLAY INDICATORS/ICONS
The Bone Collector 850 rangefinder’s display incorporates the following
illuminated indicators:
• Battery Level Indicator (1)
• Aiming Circle/Dot (2)
• Active/Scan Laser Indicator (3)
• Standard “Line of Sight” Distance (4)
• Distance Units Indicators (5): Y=Yards, M=Meters
• Angle Indicator-incline in degrees (6)
• True Horizontal Distance (angle compensated range) (7a) / FEEt
(Feet) Distance Units Indicator (during setup only) (7b)
SELECTING UNIT OR MEASURE (YARDS/METERS/FEET)
The Bone Collector laser rangefinder can be used to measure distances
in yards (default setting), meters or feet. The unit of measure indicators
for Yards or Meters is located to the right of the Standard “Line of (5)
Sight” Distance (4). If “Y” or “M” lit when ranging, distances (5) are not
are in Feet.
To select a different unit of measure, start with the rangefinder powered off. Press and continue to hold the Fire button.“Y”, “M”
or “FEEt” will begin flashing, with the display slowly cycling through these 3 unit options . Release the Fire button when (5,7b)
your desired display units are flashing. To select a different unit of measure, repeat this process.
AUTOMATIC SCAN
To use the Automatic SCAN feature, simply press and hold the Fire button, then move the rangefinder from object to object
while keeping the Fire button depressed. Automatic SCAN will cause the standard line of sight distance readout (4) to be
continuously updated as multiple objects are targeted. The Active/Scan indicator lines flash while scanning.(3)
ANGLE RANGE COMPENSATION (ARC)
The Bone Collector 850 Laser Rangefinder with ARC™ was especially designed with hunters in mind. Your rangefinder features
a built-in inclinometer that solves a problem hunters have been faced with for years. Bow and rifle hunters have struggled with
extreme uphill and downhill angles because of how these angles alter true horizontal distance to your target. The ARC™ solution:
an integrated inclinometer provides angular data to a processor chip when targeting objects that are either uphill or downhill.
This data is then combined with internal algorithmic formulas.
When the Fire button is released, the Bone Collector 850 laser rangefinder’s display will show you the standard “line of sight”
distance near the center of the display , along with the angle of incline in degrees (-/+ 70(4) o), indicated at the left side of the
display (6). The true horizontal distance (angle compensated range) is also shown, near the bottom of the display The True (7a).
2
1
3
4
5
7a
6
7b
