Seite 1/12
cargo

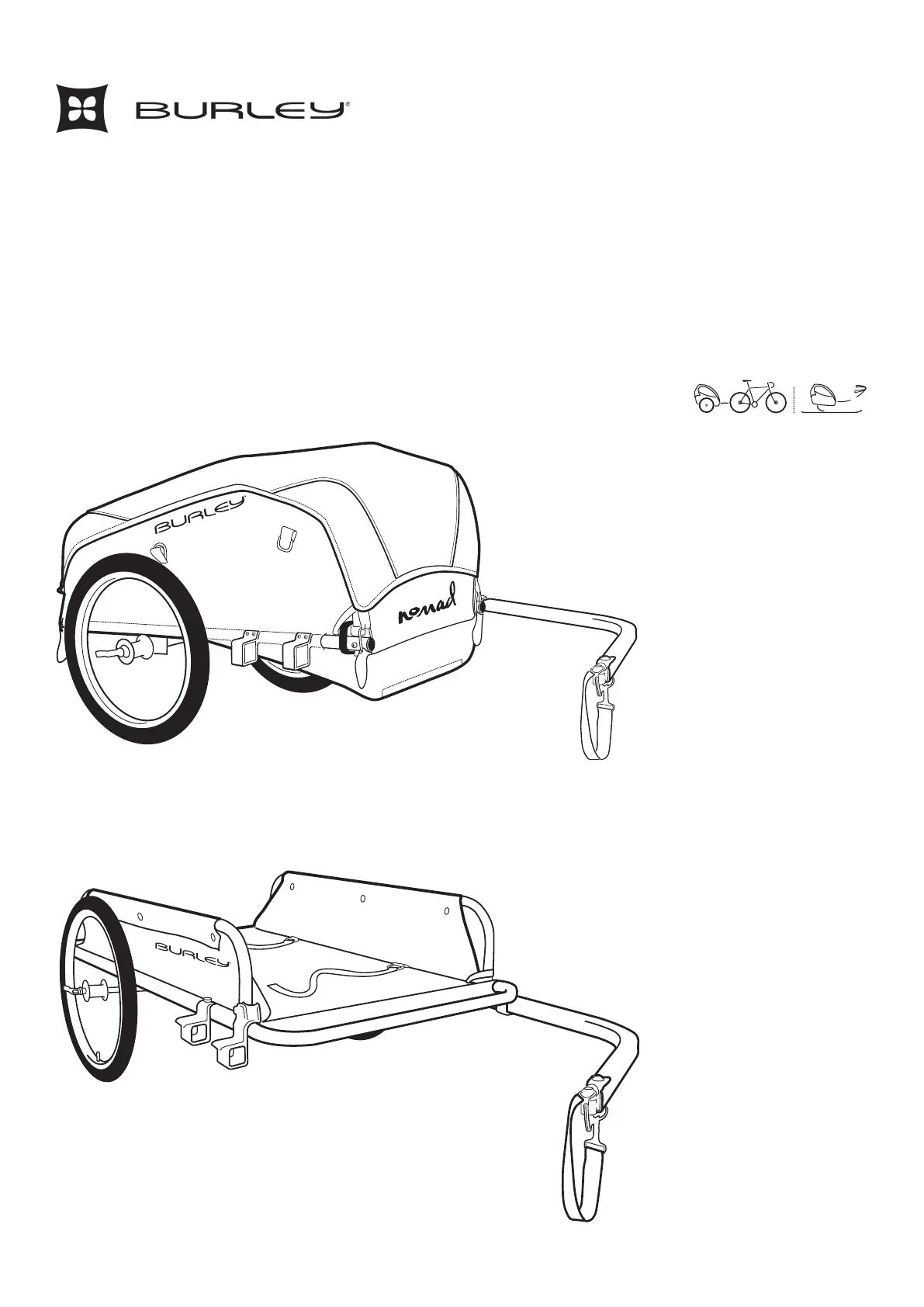

Owner’s Instruction and
Safety Manual
Bike iSk
Nomad and Flatbed™
Contents
3 Introduction
3 Safety Guidelines
3 Tool List
4 Attaching Wheels
4 Installing Side Rails
5 Mounting Reflectors
6 Installing Tailgate and Splash Guard
6 Installing Roll Bar and Cover
6 Installing Tow Bar
7 Installing Safety Flag (Nomad Only)
7 Hitching Trailer to Your Bicycle
8 Safety Checklist
8 Maintenance and Storage
9 Nomad Replacement Parts and Diagram
10 Flatbed Replacement Parts and Diagram
12 Warranty
Owner’s Instruction
and Safety Manual
Burley Nomad
and Flatbed™
B U R L E Y N O M A D A N D F L A T B E D O W N E R ’ S I N S T R U C T I O N A N D S A F E T Y M A N U A L 3
Congratulations!
Your Burley® trailer is the leading choice of refined bicycle
trailer owners worldwide. Every effort has been made to
ensure your purchase is of top quality and proven design,
ready to provide you with many years and miles of happy,
safe trailering.
Please go to www.burley.com or contact us at
burley@burley.com to register your warranty information.
IMPORTANT
IT IS VERY IMPORTANT FOR YOU TO FAMILIARIZE YOURSELF
WITH YOUR BURLEY BY READING THIS ENTIRE MANUAL
BEFORE USE. IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT
YOUR AUTHORIZED BURLEY DEALER.
Introduction
Once you’ve done the initial assembly and read the safety
guidelines, you’re ready to go! Before trailering, be sure you
have the tow bar, trailer wheels and hitch securely attached.
Note: Any reference to left or right is made in direction
of travel, as if you were standing behind the trailer,
looking forward.
Safety Guidelines
WARNING
BICYCLING WITH A TRAILER, AND BICYCLING IN GENERAL, CAN
BE HAZARDOUS. FAILURE TO OBSERVE ANY OF THE SAFETY
GUIDELINES IN THIS MANUAL COULD RESULT IN AN ACCIDENT
AND SERIOUS INJURY OR DEATH.
1. Inspect and maintain your bicycle and trailer regularly.
See “Safety Checklists”.
2. Because of the trailer’s additional weight, a bicycle
pulling a trailer is heavier and less responsive. Avoid
sudden swerving, rocks and curbs. Experiment with the
loaded trailer in an uncongested area until you become
familiar with it.
3. The total weight limit for the trailer and cargo is 100 lbs
(40 kg in Europe). Load cargo securely in the center,
forward of the axle and as low as possible.
4. Observe recommended speed limits: a maximum of
15 mph (24 km/h) on smooth, straight roads and
5 mph (8 km/h) or less when turning or on
uneven roads.
5. Never pull your trailer with a motorized vehicle.
6. The cyclist must wear a helmet.
7. Only use factory-supplied wheels, with the tires inflated
to the pressure recommended on the tire side wall.
Check pressure before each use.
8. Clamp the hitch securely to the bicycle frame, and check
for a tight attachment before each use.
9. Use the safety flag. (Nomad Only)
10. Do not make alterations to the trailer. Contact your
Authorized Burley Dealer or go to www.burley.com for
replacement of any damaged, worn-out or missing parts.
11. Do not use your trailer on icy roads or when inclement
weather makes cycling hazardous.
12. The use of a mirror on your bicycle is recommended.
13. For emergencies, breakdowns or flat tires, pull
completely off the road and move to a safe area before
doing repairs.
Parts Bag Contents:
Nomad: (2) Roll bar knobs
(1) Hitch
(1) Burley Owner’s Instruction and Safety Manual
Flatbed: (4) Retaining pins
(2) Pair tie-down straps
(2) Clear reflectors with brackets/screws
(2) Red reflectors with brackets/screws
(1) Hitch
(1) Burley Owner’s Instruction and Safety Manual
Tools Required: Phillips Screwdriver


Produktspezifikationen

Marke: Burley
Kategorie: Nicht kategorisiert
Modell: Nomad
Breite: 559 mm
Tiefe: 826 mm
Gewicht: 6500 g
Produktfarbe: Black, Yellow
Höhe: 571 mm
Faltbar: Ja
Höchstgewichtskapazität: 45 kg
Gefaltet: 546 x 826 x 254 mm
Betriebsanleitung: Ja
Reifengröße (Imperial): 16 "
Rahmenmaterial: Aluminium
Anzahl der Räder: 2 Rad/Räder
Staufach: Ja
Innere Breite: 470 mm
Innere Tiefe: 810 mm
Innenhöhe: 430 mm
Leicht zu klappen: Ja
Fahrrad Trailer-typ: Gepäck
Anhängerkupplung: Ja
Stauraumvolumen: 105 l
