INSTALLATION & OPERATING GUIDE
Bunn-O-Matic Corporation
Post Office Box 3227, Springfield, Illinois 62708-3227
Phone (217) 529-6601 | Fax (217) 529-6644
www.bunn.com

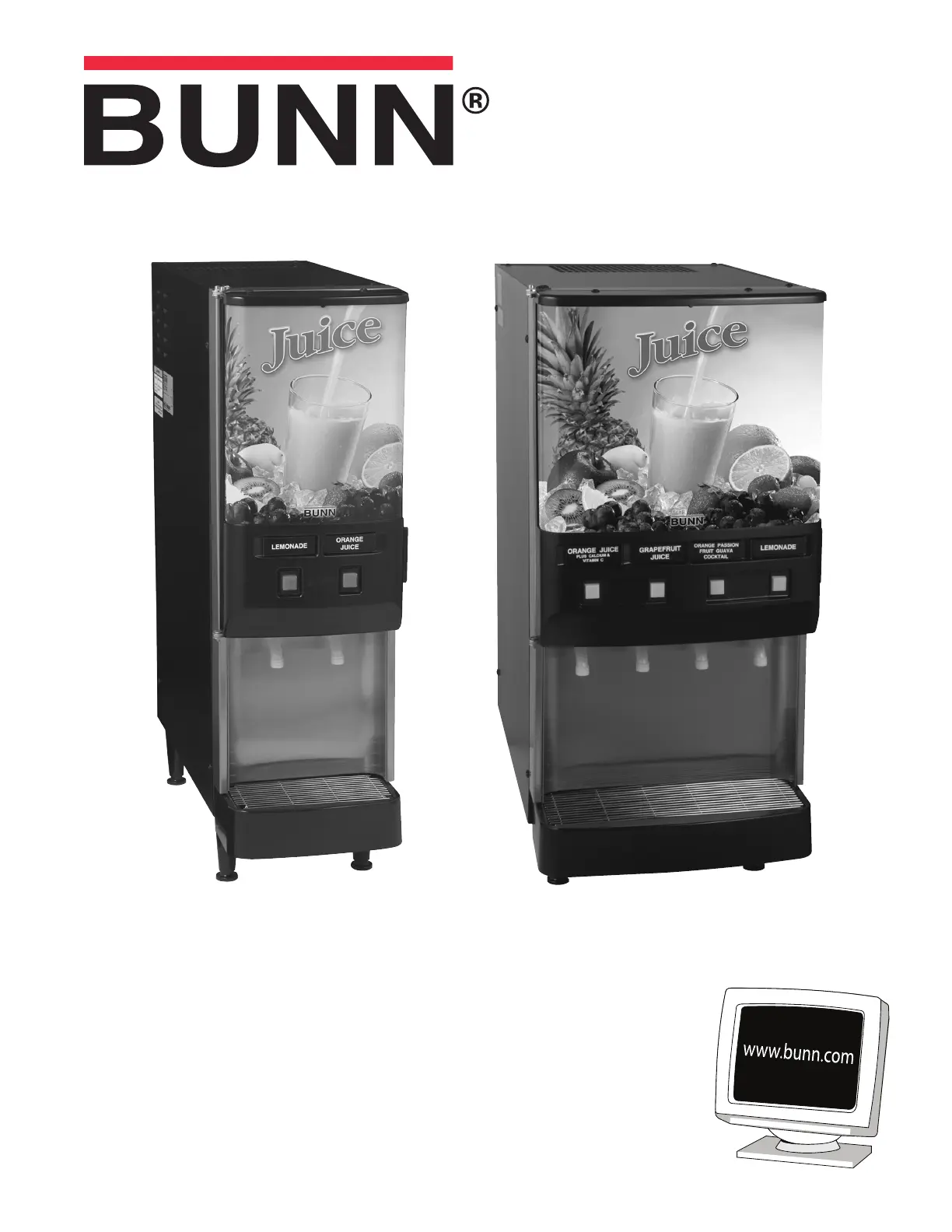

JDF-2S, JDF-4S
Silver Series®
JDF-2S & JDF-4S PH or PC with Non LIT or LIT Graphic Door
JDF-2S & JDF-4S PH or PC with LIT Segment Door
244744.2 031314
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) Airpots, thermal carafes, decanters, GPR servers, iced tea/coffee dispensers, MCR/MCP/MCA single cup brewers, ther-
mal servers and ThermoFresh® servers (mechanical and digital) 1 year parts and 1 year labor.
2) All other equipment - 2 years parts and 1 year labor plus added warranties as specified below:
a) Electronic circuit and/or control boards - parts and labor for 3 years.
b) Compressors on refrigeration equipment - 5 years parts and 1 year labor.
c) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis - parts and
labor for 4 years or 40,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be
commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the
applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured
by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation,
improper maintenance or repair, non periodic cleaning and descaling, equipment failures related to poor water quality,
damage or casualty. In addition, the warranty does not apply to replacement of items subject to normal use including but
not limited to user replaceable parts such as seals and gaskets. This warranty is conditioned on the Buyer 1) giving BUNN
prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office Box
3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized
BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EX-
PRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not authorized to make modi-
fications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such
individuals, whether oral or written, do not constitute warranties and should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive op-
tion while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the
applicable parts and labor warranty periods specified above) to repair the defective components, provided that this repair
is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for
the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS
EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION
AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of
use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities
or services, or any other special, incidental or consequential damages.
392, A Partner You Can Count On, Air Infusion, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, Brew-
WISE, BrewWIZARD, BUNN Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with
the stylized red line, BUNNlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design,
Cool Froth, DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet
Juice, High Intensity, iMIX, Infusion Series, Intellisteam, My Café, Phase Brew, PowerLogic, Quality Beverage Equipment
Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com,
Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality in
Beverage Equipment Worldwide, ThermoFresh, Titan, trifecta, TRIFECTA (sylized logo), Velocity Brew, Air Brew, Beverage
Bar Creator, Beverage Profit Calculator, Brew better, not bitter., Build-A-Drink, BUNNSource, Coffee At Its Best, Cyclonic
Heating System, Daypart, Digital Brewer Control, Element, Milk Texturing Fusion, Nothing Brews Like a BUNN, Picture
Prompted Cleaning, Pouring Profits, Signature Series, Sure Tamp, Tea At Its Best, The Horizontal Red Line, Ultra are either
trademarks or registered trademarks of Bunn-O-Matic Corporation. The commercial trifecta® brewer housing configura-
tion is a trademark of Bunn-O-Matic Corporation.
3
USER NOTICES
Carefully read and follow all notices on the equipment and in this manual. They were written for your protec-
tion. All notices are to be kept in good condition. Replace any unreadable or damaged labels.
27442.7000
00986.7000
CONTENTS
Warranty 2 ........................................................................................................................
User Notices 3 ..................................................................................................................
Initial Set-Up & Electrical Requirements 4 ........................................................................
CE Requirements 4 ...........................................................................................................
Initial Fill 5 ........................................................................................................................
Plumbing Requirements 5 ................................................................................................
Door Cover Installation 6 ..................................................................................................
Plumbing Hookup 7 ..........................................................................................................
Operating Controls 9 .........................................................................................................
Dispenser Use 11 ..............................................................................................................
Portion Control Option 11 .................................................................................................
Cleaning 13 .......................................................................................................................
Adjustments & Optional Settings 15 .................................................................................
Loading 16 ........................................................................................................................
Priming 16 ........................................................................................................................
Function Lists 19 ..............................................................................................................
Troubleshooting 21 ...........................................................................................................
Coolant Diagram 27 ..........................................................................................................
Schematic Wiring Diagram 28 ..........................................................................................
Quick Setup Guide 32 .......................................................................................................
12559.0003
00656.0001
44744.2 092517
CHARGE
Type R134A, Amount 255 g (9 oz)
GWP 1430, CO2 equivalent 0.36t
Design Pressures:
High 255 psi (17.6 bar) (1.76 MPa)
Low 36 psi (2.5 bar) (0.25 MPa)
Contains fluorinated greenhouse gases covered
by the Kyoto Protocol. Hermetically sealed system.
33461.0012 JDF-2S 220-230V 33461.0014 JDF-4S 220-230V
As directed in the International Plumbing Code of the
International Code Council and the Food Code
Manual of the Food and Drug Administration (FDA),
this equipment must be installed with adequate
backflow prevention to comply with federal, state
and local codes. For models installed outside the
U.S.A., you must comply with the applicable Plumb-
ing /Sanitation Code for your area.
HAZARDOUS
VOLTAGE
DISCONNECT FROM
POWER SOURCE
BEFORE REMOVING!
WARNING
Moving Parts.
Risk of Electrical Shock.
WARNING AVERTISSEMENT
Pièces amovibles.
Risk de choc électrique.
Ne pas utiliser l’appareil lorsque
le panneau est enlevé.
Debrancher le cordon
d’alimentation de l’appareil avant
de faire l’entretien.
Do not operate unit with
this panel removed.
Disconnect power
before servicing unit.
WARNING
00986.7000M 10/14 ©1994 Bunn-O-Matic Corporation
Use only on a properly protected
circuit capable of the rated load.
Electrically ground the chassis.
Follow national/local electrical codes.
Do not use near combustibles.
Do not deform plug or cord.
AVERTISSEMENT
FAILURE TO COMPLY RISKS EQUIPMENT
DAMAGE, FIRE OR SHOCK HAZARD.
READ THE ENTIRE OPERATING MANUAL INCLUDING
THE LIMIT OF WARRANTY AND LIABILITY BEFORE
BUYING OR USING THIS PRODUCT.
THIS EQUIPMENT IS ENERGIZED AT ALL TIMES UNLESS
ELECTRICALLY DISCONNECTED.
TOUT MANQUEMENT À SE CONFORMER À CES DIRECTIVES PEUT
ENTRAINER DES DOMMAGES À L'ÉQUIPMENT OU PRODUIRE DES
DANGERS D'INCENDIE OU D'ÉLECTROCUTION.
VEUILLEZ LIRE LE MANUEL DE FONCTIONEMENT
EN ENTIER, Y COMPRIS LES LIMITES DE GARANTIES ET
RESPONSABILITÉS,AVANT D’ACHETER
OU D'UT ILISER LE PRÉSENT PRODUIT.
L' ÉQUIPEMENT EST T OUJOURS SOUS TENSION
LORSQU'IL N'EST PAS DÉBRANCHÉ.
N'utilisez que sur un circuit protégé
adapté à la charge nominale.
Toujours mettre le boitier à la masse.
Se conformer aux codes national ou local
délectricité.
Garder les products combustibles á distance.
Ne pas déformer la fiche ou le cordon.
CHARGE
Type R134A, Amount 283 g (10 oz)
GWP 1430, CO2 equivalent 0.40t
Design Pressures:
High 335 psi (23 bar) (2.31 MPa)
Low 88 psi (6 bar) (0.61 MPa)
Contains fluorinated greenhouse gases covered
by the Kyoto Protocol. Hermetically sealed system.
33461.0001 JDF-2S 120V
CHARGE
Type R134A, Amount oz (283 gm)10
Design Pressures:
High psi (23 bar) (2.31 MPa)335
Low psi (6 bar) (0.61 MPa)88
33461.0000 JDF-4S 120V
CHARGE
Type R134A, Amount oz (255 gm)9
Design Pressures:
High 255 psi (17.6 bar) (1.76 MPa)
Low 36 psi (2.5 bar) (0.25 MPa)
