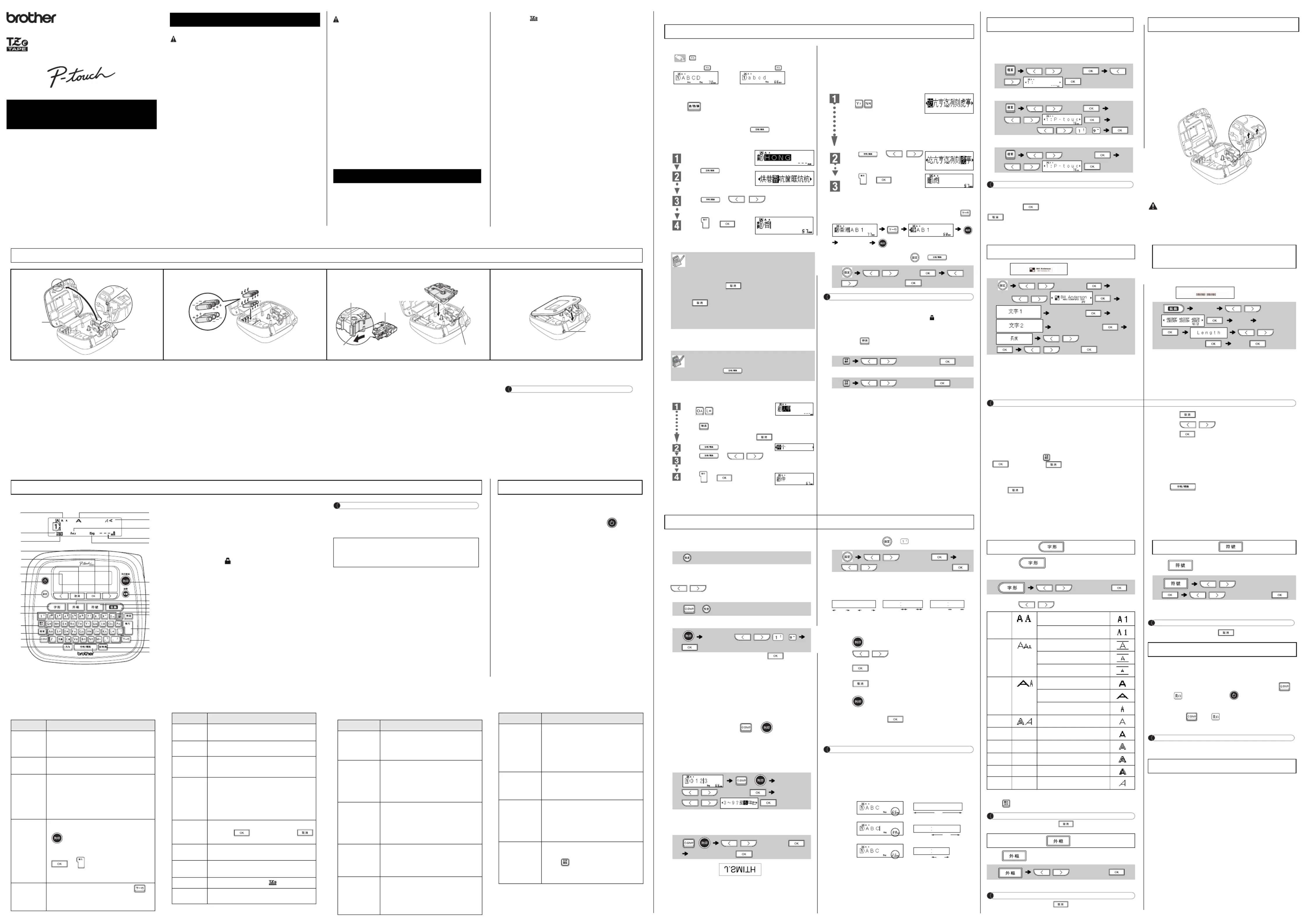

You can save up to 9 labels and recall them for printing at a later

date. A maximum of 80 characters can be saved per file. You

can also edit and overwrite the stored label.

Save

Print

Open

NOTE

If you try to store a label when there is already a label

stored to that number, a message " 要覆蓋嗎？ " will

appear. Press to save your new label. Press

to cancel.

If the cutter blade becomes blunt after repetitive use and the tape

cannot be cut cleanly, replace with new cutter unit (stock no. TC-4).

Replacing the Cutter Unit

1. Pull out the two sections of the cutter unit (green) in the

direction of the arrows shown in the illustration.

2. Install a new cutter unit. Push it in until it snaps into place.

USING TEMPLATES

Example:

*Refer to the Name Label format table (A) on the enclosed

insertion sheet.

This function allows you to create various name labels using

the built-in templates.

Example:

* Refer to the Decorative Mode format table (C) on the enclosed

insertion sheet.

NOTE

• Depending on the format you have selected, the entire

contents of your text may not be printed. For example, if you

selected a fixed Label Length and the text is too long, an error

message " 超過設定長度！ " will appear.

• The templates cannot be edited.

• Only the highlighted symbols on the enclosed insertion sheet

can be used in Decorative Mode.

• To clear all text, press , then "刪除?/Clear?" appears. Press

to clear. Press to cancel.

• When you access Decorative Mode or Name Label function,

your most recently printed Decorative Mode or Name Label

function text and label length will be recalled.

• Press to return to the previous step.

• To exit the Decorative Mode or Name Label function and return

to the text input screen, do one of following:

a) Press .

b) Press / to select [ 結束 /Cancel], and then

press .

• These features are only available when using 12 mm wide

tape cassettes.

• The maximum label length is 200 mm for Decorative Mode

and Name Label function.

• When [自動/Auto] is selected for "長度/Length", the label will

automatically adjust to the correct length for printing the text

one time.

• Press to return to the [ 自動 /Auto] setting for

"長度 /Length" mode.

USEFUL FUNCTION KEYS

1Press to select the settings to enter

the text.

2Press / to select the settings.

Vertical Settings

Press for vertical printing.

NOTE

• To cancel operations, press .

Press to select the frame design.

* Refer to the frame design table (B) on the enclosed insertion sheet.

NOTE

To cancel operations, press .

Press to select various symbols.

*Refer to the table of symbols (D) on the enclosed insertion

sheet for a list of available symbols.

NOTE

To cancel operations, press .

You can reset the P-touch labeler when you want to initialize

the settings, or in the event the P-touch labeler is not working

properly.

1Turn off the P-touch labeler, hold down

and and then press to turn the P-touch

back on.

2Release and .

The P-touch labeler turns on with the internal memory reset.

NOTE

All text, settings and stored files are cleared.

Visit us at http://support.brother.com/

Saving Label Files

• / [ 儲存 ] /

• / [ 列印 ]

[列印份數：] / -

• / [ 開啟舊檔 ]

Accessories

Tape Cassettes:

See the included "TAPE INFORMATION"

AC Adapter: AD-24ES

Cutter Unit: TC-4 (installed in the machine;

replaceable)

Do not touch the cutter blade directly with your fingers.

Name Label

• / [ 姓名標籤 ] [ 選擇

版面 ] /

Bill Anderson

ABC Company, Inc. .

/ [ 自動 /30-200mm]

/ [ 列印 ]

Decorative Mode (Does not support

Traditional Chinese)

• [Layout] /

[Text] ABCDEF

[Auto/30-200mm] [Print]

Font Key

• / Select an item

英字形 HEL

TEN

字大小大

中

小

字寬標準

× 2

× 1/2

字體標準

粗體

中空

陰影

立體

斜體

Frame Key

• / Select a frame

Symbol Key

• / Select category

/ Choose a symbol

Resetting the P-touch

Specifications

Dimensions:

(W × D × H)

Approx. 165 (W) × 155 (D) × 68 (H) mm

Weight: Approx. 490 g

(without batteries and tape cassette)

Power supply: Six AAA alkaline batteries (LR03)

Six AAA Ni-MH batteries (HR03; sold

separately)

AC adapter (AD-24ES)

Tape cassette: Brother TZe tape (width)

3. 5 mm, 6 mm, 9 mm, 12 mm

Follow these guidelines to avoid the risk of fire, burns,

injury, electric shocks, rupture, overheating, abnormal

odors or smoke.

• Always use the specified voltage and the suggested AC adapter

(AD-24ES) for the P-touch labeler to prevent any damage or failure.

• Do not touch the P-touch labeler during a lightning storm.

• Do not use the P-touch labeler/AC adapter in places of high humidity such

as bathrooms.

• Do not overload the power cord.

• Do not place heavy objects on, or damage the power cord or plug. Do not

forcibly bend or pull the power cord. Always hold the AC adapter when

disconnecting from the power outlet.

• Make sure that the plug is fully inserted to the power outlet. Do not use an

outlet that is loose.

• Do not allow the P-touch labeler/AC adapter/power plug/batteries to get

wet, for example, by handling them with wet hands or spilling beverages

on to them.

• Since loss of eyesight may result when leaked fluid from batteries gets into

your eyes, immediately rinse your eyes with a large amount of clean water,

and then seek medical attention.

• Do not disassemble or modify the P-touch labeler/AC adapter/batteries.

• Do not allow a metal object to contact both the plus and minus ends of a battery.

• Do not use sharp objects, such as tweezers or a metallic pen, to change

the batteries.

• Do not throw the batteries into fire or expose to heat.

• Disconnect the AC adapter and remove batteries immediately and stop

using the P-touch labeler if you notice abnormal odor, heat, discoloration,

deformation or anything unusual while using or storing it.

• Do not use a damaged or leaking battery as the fluid may get on your hands.

• Do not use a deformed or leaking battery or one whose label is damaged.

There is a possibility of generating heat.

Follow these guidelines to avoid personal injury, liquid

leakage, burns or heat.

• When the P-touch labeler is not being used, store it out of the reach of

children. In addition, do not allow children to put the P-touch labeler

parts or labels in their mouths. If any object has been swallowed, seek

medical attention.

• Do not touch metal parts around the print head immediately after printing.

• Do not touch the cutter blade.

• If leaked fluid from batteries gets on your skin or clothes, immediately rinse

them with clean water.

• Remove the batteries and disconnect the AC adapter if you do not intend

to use the P-touch labeler.

• Do not use a battery other than that specified. Do not use combinations of

old and new batteries or combinations of different types, different charging

levels, different manufacturers or different models. Do not insert a battery

with its plus and minus ends reversed.

• Do not drop or hit the P-touch labeler/AC adapter.

• Do not press on the LCD display.

• Do not put your finger inside the P-touch labeler when you close the

cassette cover.

• Before using Ni-MH rechargeable batteries, carefully read the instructions

for the batteries and battery charger, and be sure to use them correctly.

• When using Ni-MH rechargeable batteries, charge the batteries with

a specialized battery charger before using the batteries.

• Depending on the location, material, and environmental conditions, the

label may unpeel or become irremovable, the color of the label may

change or be transferred to other objects. Before applying the label, check

the environmental conditions and the material.

• Do not use the P-touch labeler in any way or for any purpose not described

in this guide. Doing so may result in accidents or damage the P-touch

labeler.

• Use only Brother TZe tapes with the P-touch labeler. Do not use tapes that

do not have the mark.

• Only use a soft, dry cloth to clean the labeler; never use alcohol or other

organic solvents.

• Use a soft wipe to clean the print head; never touch the print head.

• Do not put any foreign objects into the tape exit slot or AC adapter

connector or battery compartment, etc.

• Do not place the P-touch labeler/batteries/AC adapter in direct sunlight or

rain, near heaters or other hot appliances, in any location exposed to

extremely high or low temperatures (e. g. , on the dashboard or in the back

of your car) or high humidity, or in dusty locations.

• Do not apply excessive pressure to the cutter lever.

• Do not try to print if the cassette is empty; it will damage the print head.

• Do not pull the tape while printing or feeding; it will damage the tape and

the P-touch labeler

• Any data stored in memory will be lost due to failure or repair of the P-touch

labeler, or if the battery expires.

• The P-touch labeler is not equipped with a charging feature for

rechargeable batteries.

• The printed text may differ from the text that appears in the LCD.

• The length of the printed label may differ from the displayed label length.

• A protective clear plastic sticker it placed over the display during

manufacturing and shipping. This sticker should be removed prior to use.

• When power is disconnected for more than three minutes, all text, format

settings and any text files stored in the memory will be cleared.

Safety Precautions

Indicates a potentially hazardous situation which,

if not avoided, could result in death or serious

injuries.

WARNING

Indicates a potentially hazardous situation

which, if not avoided, may result in minor or

moderate injuries.

General Precautions

CAUTION

Power Supply and Tape Cassette

Open the cassette cover by pressing the

above indicated area at the top end of

the machine.

If a tape cassette is already installed, remove it

by pulling it straight up. Also, if batteries are

already installed, remove them.

• Make sure that the power is turned off when

replacing batteries or tape cassettes.

Insert six new AAA alkaline batteries

(LR03) or fully charged Ni-MH batteries

(HR03), making sure that their poles

point in the correct directions.

Users of alkaline batteries:

Always replace all six batteries at the

same time with brand new ones.

Users of Ni-MH batteries:

Always replace all six batteries at the

same time with fully charged ones.

Insert a tape cassette, making sure that

it snaps into place.

• Make sure that the end of the tape feeds under

the tape guides.

• Use only Brother TZe tapes with this machine.

Securely close the cassette cover,

making sure that it snaps into place.

NOTE

When using optional AC adapter (AD-24ES)

1. Insert the plug on the adapter cord into the AC

adapter jack on the top end of the machine.

2. Insert the plug into the nearest standard electrical

outlet. For memory back up, we recommend

using AAA alkaline batteries (LR03) or Ni-MH

batteries (HR03) together when using the AC

adapter.

1Print head

Tape cutter

lever

Cassette

cover

Toothed

wheel

Cutter’s edge

End of tape

Tape exit slot

Tape guide

AC adapter jack

NOTE

• The LCD shows one row of 7 characters; however, the text

that you enter can be up to 80 characters in length.

• While selecting the settings, press Space key to go back to

the default item.

LCD Display & Keyboard

1. Size

2. Cursor

3. Underline/Frame

4. Width

5. Style/Vertical

6. Caps

7. Label Length

(If a specific label length

has been selected ,

also appears. )

8. English Text Mode

9. Cursor Key: Right (Use

with Shift key to go to

end of the text. )

10. OK Key

11. Escape key

12. Cursor key: Left (Use

with Shift key to go to

top of the text. )

13. Power key

14. Menu key

15. Font key

16. Character key

17. Vertical key

18. File key

19. Shift key

20. Caps key

21. Print key

22. Preview key

23. Frame key

24. Symbol key

25. Decorative Mode key

26. All clear key

27. Backspace key

28. Enter key

29. Line Break key

30. Switch key

31. Space key

• The print preview is a generated image of the label, and

may differ from the actual label when printed.

• Label length shown on LCD may slightly differ from the

actual label length when printed.

1Start your machine.

Supply power by using six AAA batteries or the optional

AC adapter (AD-24ES), and then press .

Initial Settings

Troubleshooting

 Error message What to do when. . .

Message Cause/Remedy

電池電

量低！

The batteries are weak.

If using AAA alkaline batteries: Replace them with

new ones.

If using Ni-MH batteries: Charge them fully.

請更換

電池！ The installed batteries are running low.

錯誤的

數值！

• There is no text above the cursor when you

selected [ 自動跳號 ].

• Invalid character is selected for [ 自動跳號 ].

• Invalid number is selected for [ 長度 ].

• An invalid value was entered as the label length

while using the Decorative Mode or Name Label

function.

資料未

輸入！

• You tried to print a text file when there is no data

stored in the memory.

• is pressed when no text is entered.

• You tried to select [ 自動跳號], [ 鏡像列印], or Text

Preview when no text is entered.

• or was pressed when no text was

entered while using the Decorative Mode or Name

Label function.

超過最大

行數！

• You tried to enter a 3rd line by pressing .

• You tried to print or preview two lines of text while

3.5 mm tape is installed. Install tape of a larger

size.

無安裝

色帶！

You tried to print a label when there is no cassette

installed.

裁刀出錯！ Tape cutter lever is used in the middle of printing

process.

超過最大字

數！

The maximum number of characters (80 characters

and 50 characters for Decorative Mode or Name

Label function) have already been entered.

超過設定長

度！

With the Decorative Mode or Name Label function:

Since the number of entered characters exceeds

the label length, reduce the text.

All other functions:

Since the number of entered characters exceeds

the label length, reduce the text, or select [ 自動 ] as

the label length.

無外框列印 ?

Printing on 3. 5 mm tape with invalid Frame setting

ON. (Select to print with no Frame,

to cancel. )

要送帶嗎 ? Feeding tape after printing when [ 省帶 ] is selected.

Refer to "Setting Margin".

安裝 12mm

色帶

Only 12 mm tape cassette is available for

Decorative Mode or Name Label function.

色帶錯誤！ Use a tape cassette with the mark.

查無此碼！ The Chinese character that has been converted is

not supported. Confirm your entry and reconvert.

Message Cause/Remedy

Problem Solution

The display

stays blank after

you have turned

on the machine.

• Check that the batteries are correctly inserted.

• If the batteries are weak, replace them.

• Check that the AD-24ES adapter is correctly

connected.

When the label

is printed out,

there is too

much margin

(space) on both

sides of the text.

• See "Setting Margin" in this users guide and

select [ 空白中空白小] or [ ] to have smaller

margins for your label.

The machine

does not print,

or the printed

characters are

not formed

properly.

• Check that the tape cassette has been inserted

correctly.

• If the tape cassette is empty, replace it.

• Check the cassette cover is properly closed.

The setting has

cleared on its

own.

• The batteries may be weak. Replace them.

• When power is disconnected for more than

three minutes, all text & formats in the display

will be lost. Language and Unit settings will

also be cleared.

A blank

horizontal line

appears through

the printed label.

• There may be some dust on the print head.

Remove the tape cassette and use a dry cotton

swab to gently wipe the print head with an up-

and-down motion.

• It is easier to clean the print head using a print

head cleaning cassette (TZe-CL3).

The machine

has "locked up"

(i. e. , nothing

happens when a

key is pressed,

even though the

machine is on. )

• Refer to "Resetting the P-touch".

The power turns

off when you try

to print.

• The batteries may be weak. Replace them.

• Check that the batteries are correctly inserted.

• A wrong adapter is used; the recommended

adapter is the AD-24ES.

The tape does

not feed

properly or the

tape gets stuck

inside the

machine.

• Check that the end of the tape feeds under the

tape guides.

• The cutter lever is used while printing. Do not

touch the cutter lever during printing.

All text and

format settings

need to be

cleared to

create a new

label.

• Press and select [ 刪除內容格式 ]

Problem Solution

With your PT-D200, you can create labels for multiple applications.

Select from the many frames, character sizes and styles to design

beautiful custom labels. In addition, the variety of tape cartridges

available allows you to print labels with different widths and

exciting colors.

Read this manual carefully before starting and keep the manual

a handy place for future reference.

English

中文

PT-D200

User's Guide

BASIC USAGE

Switching Upper Case/Lower Case

Upper case ( ON) Lower case ( OFF)

Select The Input Method

[ ]倉頡 / 簡易倉頡 / 廣東拼音

Press to toggle between 倉頡 / 簡易倉頡 / 廣東拼音

imput methods.

Use 廣東拼音 to enter texts

Select 廣東拼音 and then press to enter Chinese

characters. You can convert Chinese characters word by word.

Example " 香"

Use 倉頡 to enter texts.

Input radicals, and convert Chinese characters word by word.

Example " 仲"

Use 簡易倉頡 input Method to enter texts

This method is to input the first and last radicals of 倉頡, and

then convert optional Chinese characters. Follow the steps

below to convert Chinese characters word by word.

Example " 虎"

Making Two Lines of Text

Move the cursor to where the second line starts and press .

Use 6 mm 9 mm or 12 mm wide tape for two line text. ,

[ ] 列印份數

Changing Label Length ( + )

NOTE

• After the label is printed, cut along the printed dots (:) with

scissors so that the label length matches the machine setting.

• If a specific label length has been selected, also appears in

the LCD.

To Clear

By pressing , the letters will be deleted one by one.

To delete all text and settings:

To delete text only:

Preview

You can preview the text before printing.

• The print preview is a generated image of the label, and may

differ from the actual label when printed.

• When the LCD cannot display all the text at a time, press

/ to display the hidden text.

Feeding (Tape Feed)

Printing

• If you need only 1 copy of the label, press without

selecting the number of copies.

• The number of copies can also be specified by pressing a

number key.

• To prevent damage to the tape, do not touch the cutter lever

while the message " 正在列印 " or " 執行中 " is displayed.

• To cut off the label, push in the tape cutter lever on the upper-

right corner of the machine.

• Peel off the backing and apply the label.

• You can print up to 9 copies of each label.

Using Print Options ( + )

[ ]

自動跳號

自動跳號自動跳號

You can print many copies of the same text while increasing

a selected number by 1 after each label is printed.

Example: To print copies of a label containing a serial number

(0123, 0124 and 0125)

• Select the highest number you wish to be printed when

setting the number.

[ ]

鏡像列印

鏡像列印鏡像列印

• Use clear tape in [ 鏡像列印 ], so the labels can be read

correctly from the opposite side when attached on glass,

windows or other transparent surfaces.

Setting Margin ( + )

[ ]空白大空白中/ / 空白小

For leaving equal margins on both sides of the text.

[ ]省帶

For creating a label containing text in various styles.

1. Enter text.

2. Press , then [ 列印份數：] appears.

3. Press / or enter number with number

keys to select the number of copies.

4. Press . Printing will start, and then the message

"要送帶嗎 ?" appears.

5. Press to enter more text.

6. Clear the text, enter the text for the next label, and then

press .

7. When the message " 要送帶嗎 ?" appears after the last

label is printed, press .

8. After the tape is fed, press the cutter lever to cut off the

chain of labels.

NOTE

• When [ 省帶 ] is set, feed the tape before using the cutter

otherwise a part of the text may be cut off. Also, cut along the

printed dots (:) with scissors so the text is centered in the label.

• When [ 空白中 ] or [ 空白小 ] is set, displayed label length is the

length from the printed dots (:) to the end of the label.

• To print more than 1 copy of a label with minimum margin, set

the margin to [ 空白小 ].

• Do not pull the tape since this may damage the tape cassette.

Entering Text

Under 廣東拼音 input

method, type "HONG".

Press

Optional

Chinese characters for "HONG"

will appear on the screen.

Press or / to convert optional

Chinese characters, ant then select " 香".

Press or .

" "香 will be inputted.

• You can convert up to 25 uncertain Chinese

characters at one time.

• Once confirmed, you can't convert them.

• If you want to stop converting Chinese characters,

please press .

• Before converting Chinese characters, if you press

, the inputted character will be cleared

immediately and return to the initial input state.

• This product has learning function, can display

Chinese characters on priority.

• You can input up to 5 Chinese character radicals at

one time. If you want to enter a group of characters,

please press key to convert Chinese

characters, and then enter the next character.

Under 倉頡 input method,

type .

To clear inputted texts word by word,

press .

clean all inputted texts, press .

Press key.

Press or / to convert Chinese

characters, and then press " 仲".

Press or .

"仲" will be inputted.

Under 簡易倉頡 input method,

type .

"卜弓" will be displayed in reverse,

and at the same time the optional

characters will appear on the

screen. If you convert a Chinese

character, it will be confirmed

when you input next character.

Press or /

to convert Chinese characters,

and then press " 虎".

Press or .

"虎" will be inputted.

• / [ 長度 ] /

[ 自動 /30-300mm]

• / [ 刪除內容格式 ]

• / [ 只刪除內容 ]

Printing Labels

•

• +

• [ 列印份數 ] / -

• +

/ [ 自動跳號 ]

• + / [ 鏡像列印 ]

[ ] 要鏡像列印嗎？

• / [ 兩端空白 ]

/ [空白大空白小/ /空白中 /省帶]

LCD display Label image

Full

Half

Narrow

25 mm 4 mm4 mm

ABC ABC

12 mm 12 mm

ABC

25 mm

Full Half Narrow

65mm

ABC

39mm

ABC

23mm

Printed in China

LAB838001A

Produktspezifikationen

Marke:	Brother
Kategorie:	Drucker
Modell:	P-Touch PT-D200SN

Brauchst du Hilfe?

Wenn Sie Hilfe mit Brother P-Touch PT-D200SN benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Drucker Brother

Brother DCP-J152W Bedienungsanleitung

15 Oktober 2024

Brother P-touch PT-9800PCN Bedienungsanleitung

7 Oktober 2024

Brother PT-E110 Bedienungsanleitung

3 Oktober 2024

Brother DCP-115C Bedienungsanleitung

2 Oktober 2024

Brother HL-1650 Bedienungsanleitung

2 Oktober 2024

Brother MFC-J6555DW Bedienungsanleitung

29 September 2024

Brother MW-120 Bedienungsanleitung

29 September 2024

Brother PT-E200 Bedienungsanleitung

16 September 2024

Brother HL-L2320D Bedienungsanleitung

14 September 2024

Brother HL-5170DN Bedienungsanleitung

13 September 2024

Bedienungsanleitung Drucker

Neueste Bedienungsanleitung für -Kategorien-

Epson WorkForce Pro WF-C529R Bedienungsanleitung

16 Oktober 2024

Kodak EasyShare ESP 5250 Bedienungsanleitung

15 Oktober 2024

Fujifilm Instax mini Link 3 Bedienungsanleitung

15 Oktober 2024

Sharp MX-M7570 Bedienungsanleitung

14 Oktober 2024

Ricoh P C300W Bedienungsanleitung

14 Oktober 2024

OKI MC851dn Bedienungsanleitung

14 Oktober 2024

Konica-Minolta bizhub 423 Bedienungsanleitung

13 Oktober 2024

OKI C130n Bedienungsanleitung

13 Oktober 2024

Lexmark X658dfe Bedienungsanleitung

13 Oktober 2024

Epson Mobilink TM-P20II Bedienungsanleitung

13 Oktober 2024
