1

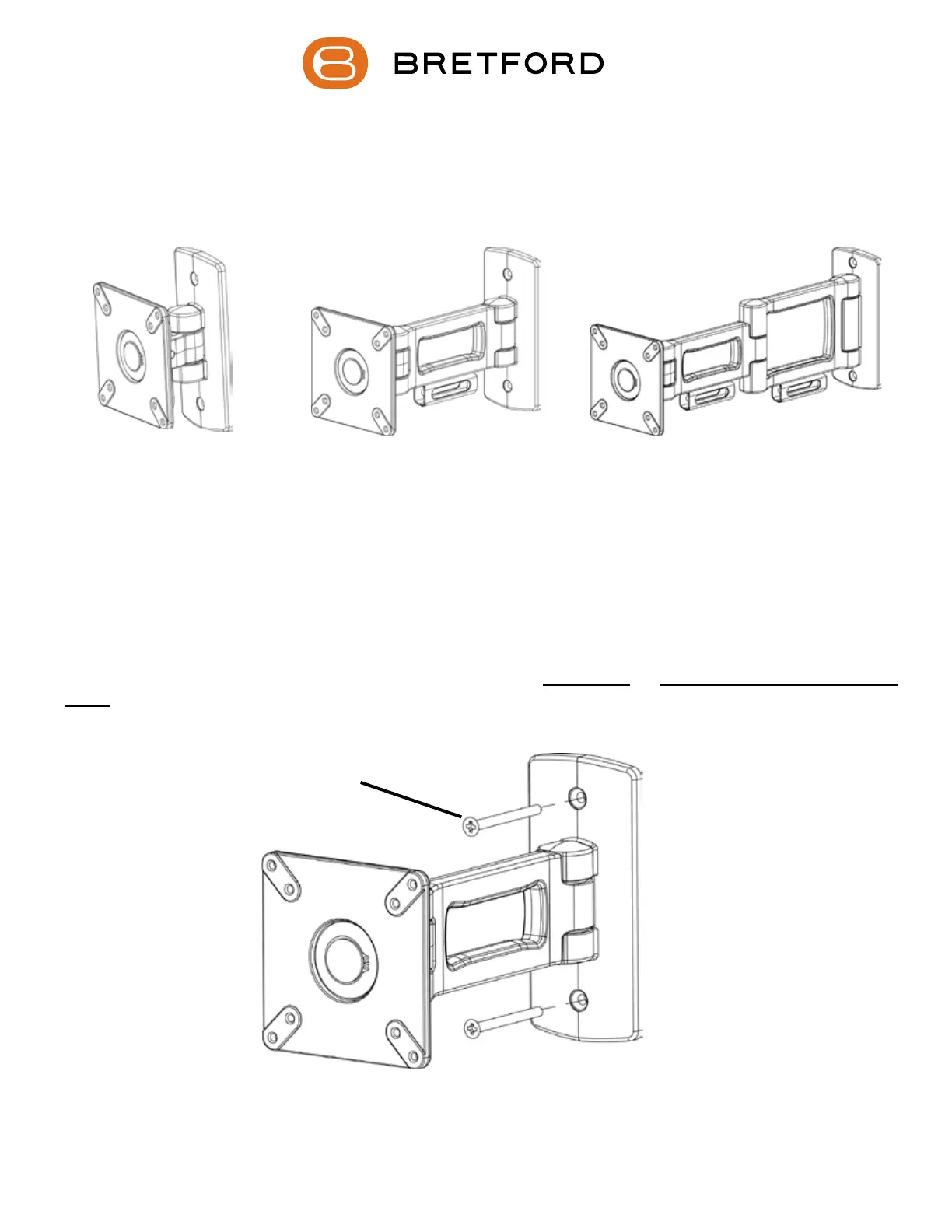

FPSM-W-0-AL FPSM-W-1-AL FPSM-W-2-AL
WALL MOUNTS -
LOW PROFILE, SINGLE ARM AND DUAL ARM
Assembly Instructions
Hardware List
Ref. Qty. Part No. Description
AA 2 030-1177 #12 x 2 1/2” Flat Head Wood Screws
BB 4 030-0845 M4 x 0.7 , 20mm Phillips Pan Head Screws
CC 4 030-1234 M4 x 0.7 , 12mm Phillips Pan Head Screws
DD 1/2* 012-0760 Cable Clips *(1) for FPSM-W-1-AL (2) for FPSM-W-2-AL
1/2* 012-0815 Cable Clips *(1) for FPSM-W-1-AL (2) for FPSM-W-2-AL
1 030-0397 3/16” Allen Wrench
CAUTION: This mount is intended to support a LCD monitor having a diagonal screen size of 22.9” and a
maximum weight of 25 lbs. Use of any larger size monitors may result in instability causing possible injury.
The wall mounting hardware included in your hardware pack is for INTENDED WOOD STUD INSTALLATION
ONLY. For added safety and ease of installation, use a qualiî‚żed professional to properly install the correct
mounting hardware. Bretford will not be liable for the improper use or installation of its products.
STEP 1
Attach the mount to the wall through a wood stud using hardware (AA) as shown.
AA
WALL
STEP 2
Attach your monitor to the vesa plate with either screws (AA) or (BB) as indicated above.
NOTE: The screws that came with your monitor may be sufî‚żcient for mounting to the vesa
plate. As long as they are a M4 type screw and sufî‚żcient in length.
AA - (20mm screws)
These are used on the inner
hole pattern for monitors
with a 75mm pattern.
BB - (12mm screws)
These are used on the outer
hole pattern for monitors
with a 100mm pattern.
2
Part # 031-7242
Rev. 08.28.07 CZ
Fold plastic cable clip closed.
MODELS FPSM-W-1-AL & FPSM-W-2-AL ONLY
Knuckle joints are preset
to correct tension. No
adjustments are needed.
Feed power cord through clip and then
snap clip into arm’s bottom slot. Power cord
These are the main
tension screws. They
control the pitch of the
vesa joint.
NOTE: 2 different sets of plastic clips are
provided for the best possible î‚żt.
