Seite 1/4
Assembly Instructions
EC4
MOBILE COMPUTER WORKSTATION
Qty Part# Description
2 010-1863 Top & Bottom Shelves
1 010-4511 Slide Out Shelf
1 010-4512 Slide Out Shelf w/Cut Out
4 010-4505 Shelf Support Brackets
1 022-1397 Right Front Leg
1 022-1398 Left Front Leg
1 022-1399 Right Rear Leg
1 022-1400 Left Rear leg
2 015-0002 4" Casters w/o Lock
2 015-0003 4" Casters w/ Lock
1 030-1191 14" Full Extension Slide
PARTS LIST HARDWARE LIST

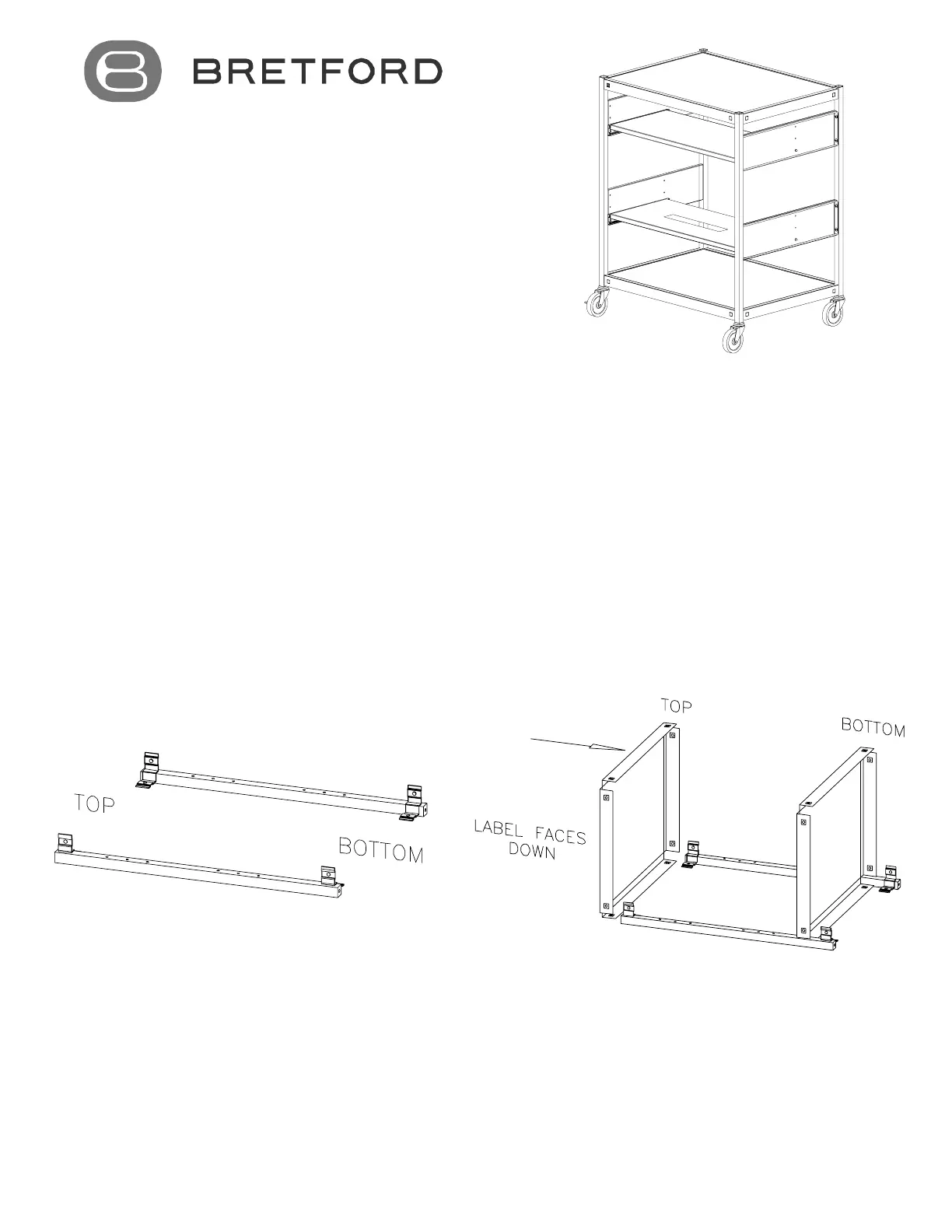

Lay the front legs on a carpeted surface (they are stamped "LF" and "RF") with the holes
facing up and the bracket facing up and in as shown in Figure 1. Slide the top and bottom
shelves onto the legs so that the brackets are inside the shelves (Figure 2).
STEP 1
TOOLS REQUIRED
Hex Wrench (Provided)
Phillips Screwdriver
Rubber Mallet
FIGURE 1
FIGURE 2

Ref Qty Part# Description
AA 16 030-0300-21T 5/8" Square Head Bolts
BB 16 030-0002 5/16-18 Hex Serrated Nuts
CC 16 030-0304 1/4-20 x 5/8" Combo Screws
DD 16 030-1228 8-32 x 1/4" Combo Truss Screws
EE 8 030-1203 #8-32 Acorn Nuts
FF 8 02236 8-32 Flange Whiz Lock Nuts
1 010-1106 Hex Wrench
STEP 2
Slide the rear legs onto the shelves so that the
brackets are inside the shelves.
STEP 3
Secure shelves and legs together with bolts
(AA) and nuts (BB) in each corner as shown.
AA BB
STEP 4
Insert each caster into the bottom of each leg. If
caster does not insert easily, use a rubber mallet to
tap caster in place. Once casters are SECURELY in
place, stand unit upright.
Determine which side you want your shelf to pull out from. Use FIGURE 3 as reference.
Attach the shelf support brackets to both set of holes between the legs with screws (CC) as
shown in FIGURE 4. Then separate each slide and attach the outer section to the inside of
each shelf support bracket with screws (DD) and nuts (EE) as shown in FIGURE 5. NOTE:
Attach rear screw and nut first.
STEP 5
CC
FIGURE 4
FIGURE 5
DD
EE
To access the correct
holes, slide inner piece
out slightly. Attach rear screw
& nut FIRST.
SHELF SUPPORT BRACKET
These holes need to face the edge
you want the shelf to slide out on.
FIGURE 3
CC DD EE
