Installation Instructions

1. Determine where the speaker(s) will be mounted. Ensure power is not connected to speaker wires prior to installation.

Follow all local safety and building codes and route speaker wires to desired wall or ceiling location. Pull approximately

12" of wire through opening in mounting surface.

2. Pull speaker wire through the back of the large opening of the speaker enclosure. Using the supplied mounting hardware,

secure the enclosure to the mounting surface. Note that two toggle bolts (for sheet rock surfaces) and two wood screws

(for securing to solid wood/beams) have been included. Utilize the two washers (supplied) as shown in Figure 1 with either

toggle bolts, wood screws, or other user supplied hardware.

MB8TSL, MB8TSQ, MB8TSLVR, MB8TSQVR

70V/25V Metal Box Speakers

For Surface Mounting to Walls and Ceilings

Specifications subject to change without notice.

54-2135-01C 0809

Use two of the enclosure’s mounting

holes as a template (diagonally

opposed), and mark screw hole

locations. If toggle bolts will be

used, drill two, 1/2" diameter holes

in the mounting surface, otherwise

drill a hole appropriate for hardware

being used.

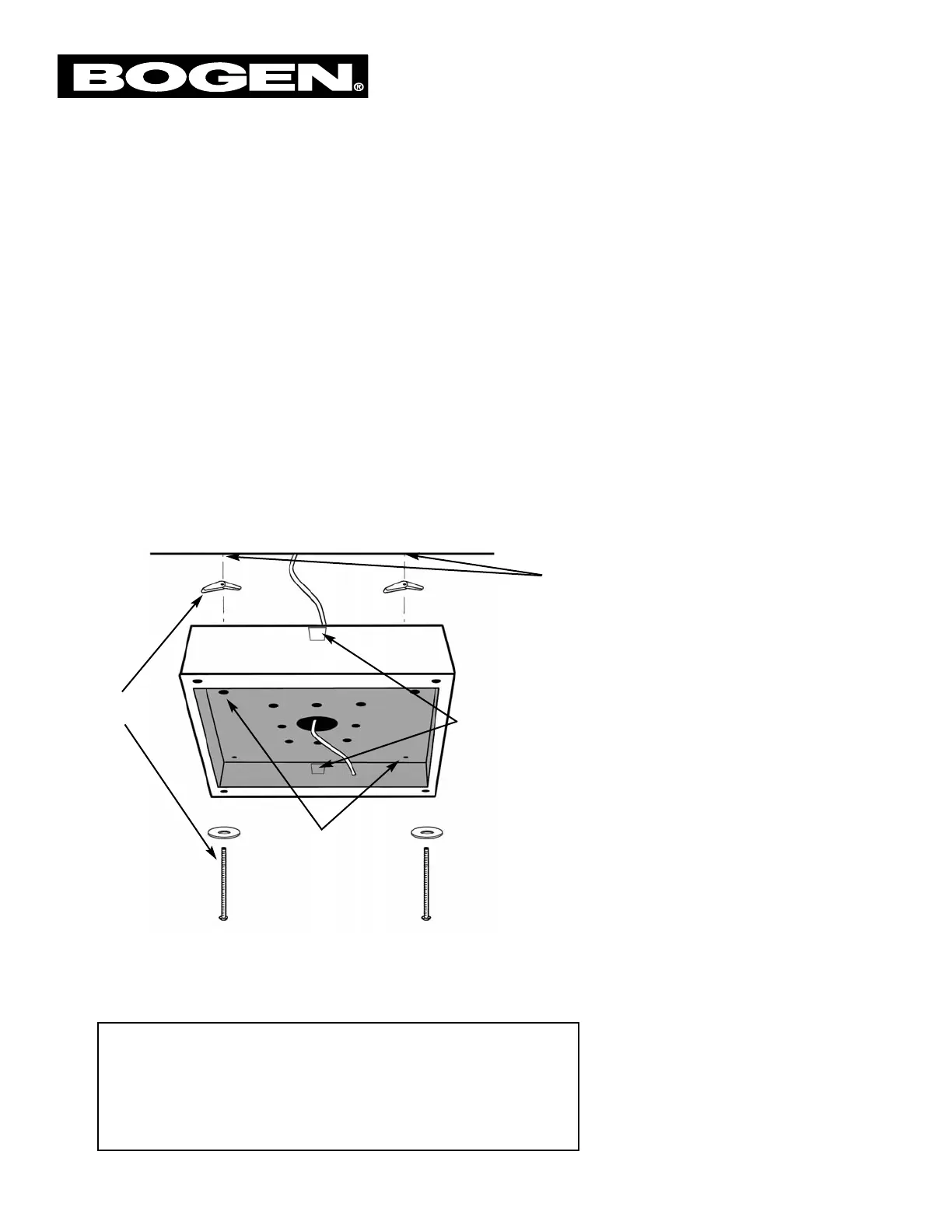

Figure 1 - Sheet rocked ceiling mount example

Package Contents:

• Back box enclosure

• Grille with speaker assembly

• Two crimp-type connectors

• Two toggle bolts

• Two wood screws

• Two washers

• Four 1" screws for attaching

grille assembly

Ceiling

Toggle bolts

(for sheet rock)

Enclosure

mounting holes

Wiremold®

Knockouts

3. Attach the speaker wires to the appropriate transformer tap

wires (See Figure 2 and chart below).

Connect the desired power tap wire (use supplied crimp-

type connector) to the (+) side of the paging system.

Connect the (-) side of the paging system (use supplied

crimp-type connector) to the black common lead.

The speaker will also work perfectly well with these

connections reversed. However, it is important to be consis-

tent in the wiring of the speakers in the system. If adjacent

speakers have reversed wiring connections, they will tend

to cancel each other’s bass response, diminishing the

sound quality.

4. Individually clip each tip of exposed wire on the unused

power taps and place them neatly around the speaker

housing. This will ensure that unused tap leads will not

cause shorting problems.

5. Secure the speaker/faceplate assembly to the mounted

enclosure. Use four 1" screws (included). See Figure 3.

6. Speaker volume can be attenuated via front panel

recessed volume control (VR versions only).

www.bogen.com

The MB8TSL, MB8TSQ, MB8TSLVR, and MB8TSQVR are warranted to be free from defects in material or workmanship for two (2) years from the date of sale to the original

purchaser. Any part of the product covered by this warranty that, with normal installation and use, becomes defective will be repaired or replaced by Bogen, at our option,

provided the product is shipped insured and prepaid to: Bogen Factory Service Department, 50 Spring Street, Ramsey, NJ 07446, USA. The product will be returned to you

freight prepaid. This warranty does not extend to any of our products that have been subjected to abuse, misuse, improper storage, neglect, accident, improper installation or

have been modified or repaired or altered in any manner whatsoever, or where the serial number or date code has been removed or defaced.

THE FOREGOING LIMITED WARRANTY IS BOGEN'S SOLE AND EXCLUSIVE WARRANTY AND THE PURCHASER'S SOLE AND EXCLUSIVE

REMEDY. BOGEN MAKES NO OTHER WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED AND EXCLUDED TO THE MAXIMUM EXTENT

ALLOWABLE BY LAW. Bogen's liability arising out of the manufacture, sale or supplying of products or their use or disposition, whether based upon warranty, contract,

tort or otherwise, shall be limited to the price of the product. IN NO EVENT SHALL BOGEN BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES

(INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, LOSS OF DATA OR LOSS OF USE DAMAGES) ARISING OUT OF THE MANUFACTURE, SALE OR SUPPLY-

ING OF PRODUCTS, EVEN IF BOGEN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSSES. Some States do not allow the exclusion or limitation

of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other

rights which vary from State to State.

Products that are out of warranty will also be repaired by the Bogen Factory Service Department -- same address as above or call 20 -934-8500. The parts and labor involved1

in these repairs are warranted for 90 days when repaired by the Bogen Factory Service Department. All shipping charges in addition to parts and labor charges will be at the

owner's expense. All returns require a Return Authorization number.
