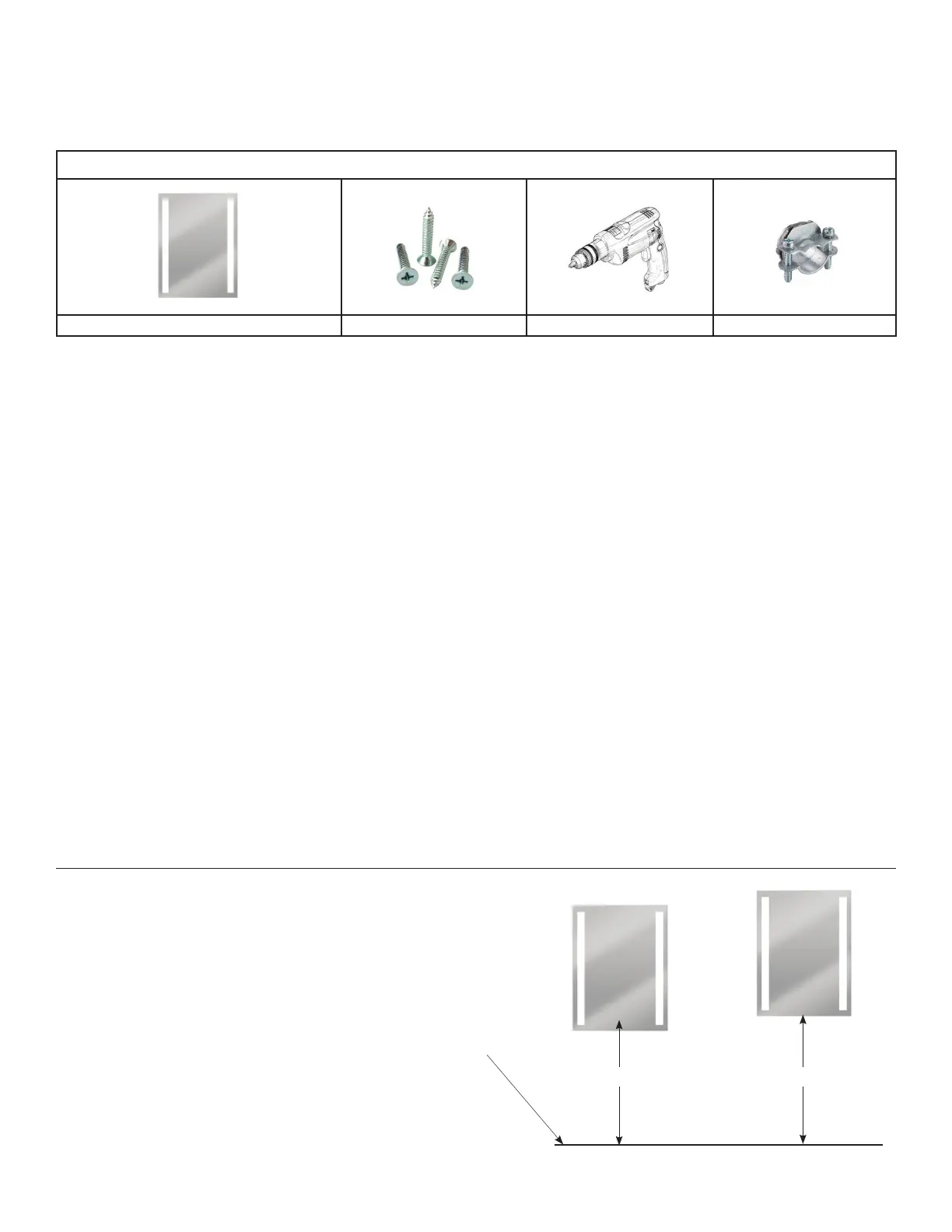

INSTRUCTIONS FOR INSTALLATION

BOBRICK MODEL B-167 OR B-169 BACKLIT MIRROR

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

Read all instructions before using this mirror.

DANGER - To reduce the risk of electric shock; Always unplug this mirror from the electrical outlet before cleaning.

WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:

• Unplug from outlet before putting on or taking off parts.

• Close supervision is neccessary when this mirror is used by, or near children, invalids, or disabled persons.

• Use this mirror only for its intended use as decribed in these instructions. Do not use attachments not recommended by elio (ITC Inc).

• Never operate this mirror if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact elio for a replacement mirror.

• Keep the cord away from heated surfaces.

• Never drop or insert any object into any opening.

• Do not use outdoors.

• Risk of electric shock - Connect this mirror to a properly grounded outlet only. See grounding instructions. WARNING:

Mark the location of the wire exit and mounting holes. See indi-

vidual product specications for mounting hole locations.

Install a duplex receptacle (not provided).

The mirror has a 30” cord with three-prong plug, so the outlet

should be installed a few inches away from the wire exit. Lo-

cating it too close to the wire exit may interfere with the power

supply housing and prevent the mirror from being plugged in

properly.

ADA requires that “Mirrors shall be mounted with the bottom edge of the reecting surface no higher than 40 in (1015mm) above the

nished oor1.” For lit mirrors this means the dimension is to the inner most edge of the lit portion.

40”

Finished oor

40”

YES

GROUNDING INSTRUCTIONS

This mirror is for use on a nominal 120V circuit and has a three prong grounding plug that looks like the plug illustrated in sketch below. Make sure that the mirror is connected to an outlet

having the same configuration as the plug, No adapter should be used with this mirror.

Grounded

Outlet

Grounding

Grounded

Outlet Box

Metal

Screw

Adapter

Tab for

Grounding Screw

1 - 2010 ADA Standards 603.3 https://www.ada.gov
