Seite 1/32

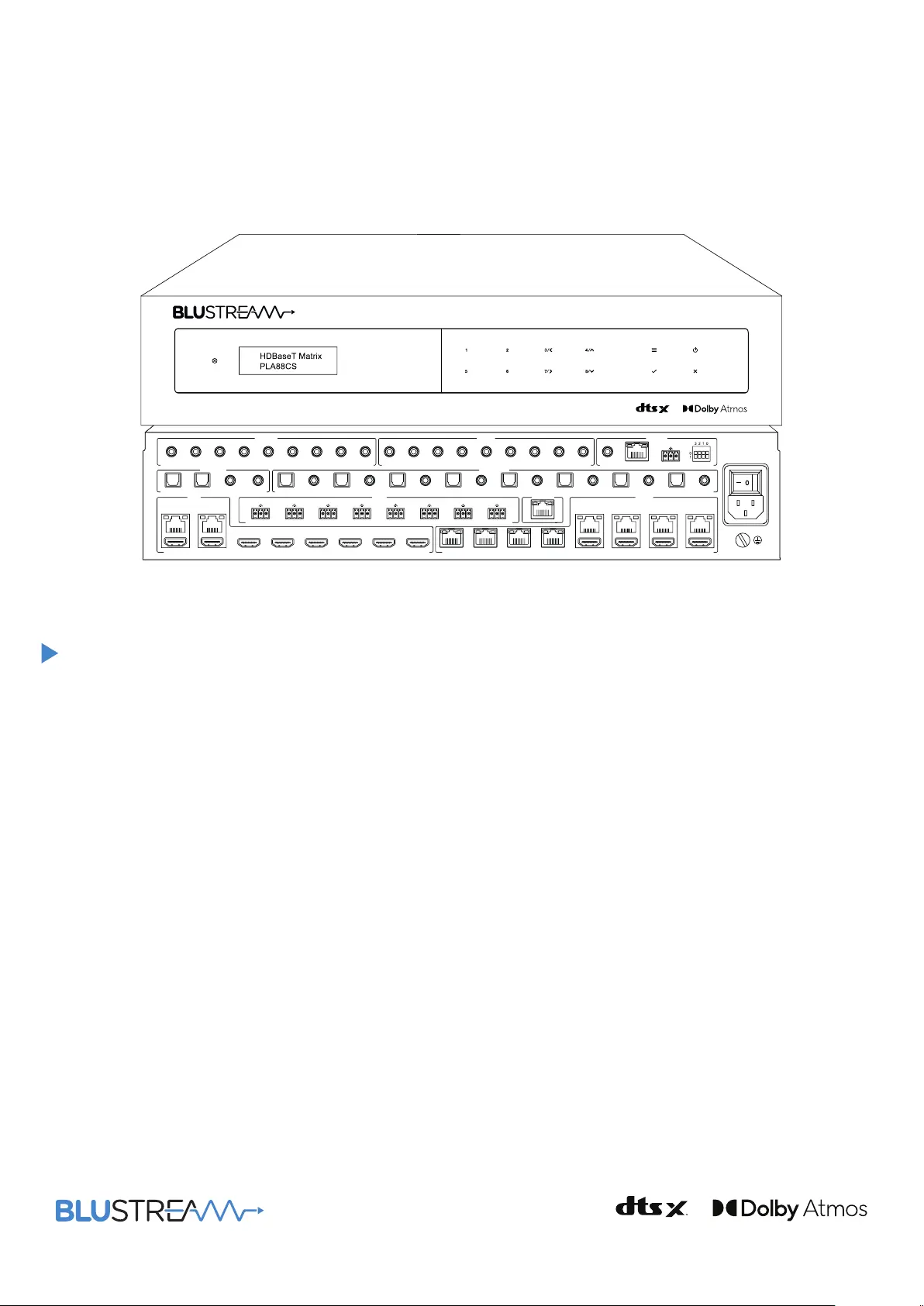

PLA88CS
User Manual
RevA5_PLA88CS_Manual_Working
Platinum 4K HDBaseT Matrix with Audio Downmixing
AC100V - 240V
HDMI 7 HDMI 8HDMI 5 HDMI 6
HDBT 4
(24V PoC)
HDBT 3
(24V PoC)
HDBT 2
(24V PoC)
HDBT 1
(24V PoC)
HDMI 8HDMI 7HDMI 6HDMI 5HDMI 4HDMI 3HDMI 2
OPTICAL 1 OPTICAL 2 L/R 3 L/R 4 OPTICAL 1 OPTICAL 2 L/R 2 OPTICAL 3 L/R 3 OPTICAL 4 L/R 4 OPTICAL 5 L/R 5 OPTICAL 6 L/R 6 OPTICAL 7 L/R 7 OPTICAL 8 L/R 8L/R 1
HDMI 1
HDBT 8
(24V PoC)
HDBT 7
(24V PoC)
HDBT 6
(24V PoC)
HDBT 5
(24V PoC)
HDBT 2
(24V PoC)
HDBT 1
(24V PoC)
ETHERNETRS-232INPUT
EDIDRS-232TCP/IP
CONTROLIR INPUTIR OUTPUT
AUDIO INPUT AUDIO OUTPUT
OUTPUT
IR CTRLGLOBAL876543
87654321
21GLOBAL87654321
PLA88CS
RXT X RXT X RXT X RXT X RXT X RXT X RXT X RXT X
RXT X
PLA88CS USER MANUAL
www.blustream.com.au | www.blustream-us.com www.blustream.co.uk|02
Surge Protection Device
Recommended
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc.
Use of surge protection systems is
highly recommended in order to
protect and extend the life of your
equipment.
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions care-
fully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Introduction 03
Features 03
Front Panel Description 04
Rear Panel Description 04
EDID Management 05
Front Panel Menu System 06
HDBaseT™ Receiver Compatibility 06
Power Over Cable 06
Terminating CAT Cables for use with HDBT 07
Understanding the HDBaseT™ Status LED’s 07
Infrared (IR) Control 08
CEC Control 08
Audio Return Channel 08
Web-GUI Control 08-19
Remote Control Description 20
IR Commands 20-21
Specifications 22
Package Contents 22
Maintenance 22
RS-232 Config & Telnet Commands 23-26
Web-GUI Firmware Update 27-28
Schematic 29
Acknowledgements 30
Certifications 30
PLA88CS USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com support@blustream.co.uk|03
Our Platinum 8x8 HDBaseT™ CSC Matrix delivers a range of industry leading
features. The PLA88CS is a 4K HDMI 2.0 8x8 Matrix, transmitting HDMI, ARC, LAN,
Bi-directional IR and RS-232 and PoC up to lengths of 150m (1080p) over a single
CAT cable. Advanced optional features include dual HDMI and HDBaseT™ outputs
featuring CSC for support of all the latest 4K resolutions including 4K 60 Hz 4:4:4
colour space & HDR with independent down-scaling of 4K video to allow those
displays only capable of supporting lower video resolutions to receive 4K video
while still showing maximum original 4K UHD resolution on the higher-definition
displays. The Matrix also provides advanced features including independent Dolby
Audio & DTS Audio downmixing on HDMI and audio outputs allowing a mixture of
dierent audio output formats for use with dierent audio capable displays and AV
amplifiers. The PLA88CS also includes independent audio routing, Audio Return
Channel (ARC), audio delay for lip sync correction, bi-directional IR and RS-232
pass-through, and web-GUI for control and configuration.
Introduction
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone
• Extends HDMI up to distance of 150m at 1080p, and 4K UHD video up to 100m (up to 4K 60Hz 4:4:4)
• Features 8x HDMI inputs which can be independently routed to 8x HDBaseT™ + HDMI outputs
• Independent video scaling on outputs
• Independent Dolby Audio & DTS Audio downmixing on HDMI and audio outputs
• Up to 24x16 Audio Matrix independently controllable from video:-
- 8x independent analogue L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT™/
HDMI outputs
- HDMI audio breakout to coaxial digital and analogue L/R audio outputs with variable pre-amp line level control
- Supports ARC (Audio Return Channel) via HDMI or optical digital inputs from compatible RX150CS Receivers
- Supports Dolby Audio and DTS Audio breakout and downmixing from HDMI inputs to 2ch audio
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Bi-directional IR & RS-232 from all input and output locations (with compatible Transmitters & Receivers)
• Integrated Ethernet (100Mbps) switch (LAN Serving) when used with Blustream RX150CS Receivers
• Web interface module for control and configuration of Matrix
• Control of Matrix via front panel , IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible RX150CS Receivers
• 3rd party drivers available for all major control brands
• HDCP 2.2 compliant with advanced EDID management
• 2U Design for 19” rack mount integration- mounting kit included
