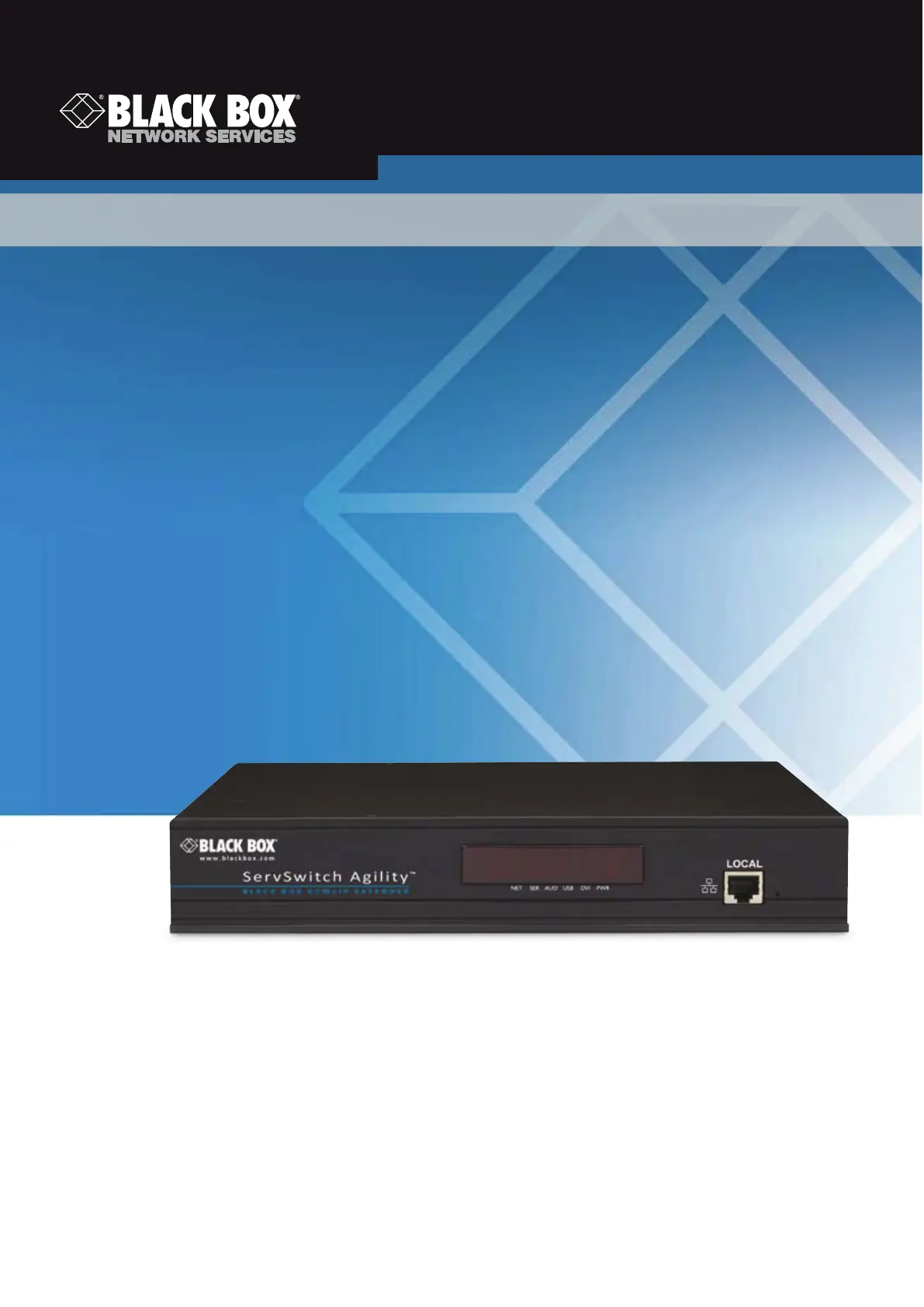

Seite 1/8
Go farther, do more with digital
KVM Extension and Switching over IP.
» Single or Dual Link DVI, Audio, USB and serial.
» Flexible Architecture:
KVM Point-to-Point Extension
Single Target Sharing
Multicasting
KVM Matrix Switching
ServSwitch™ Agility
0118 965 6000 | www.blackbox.co.uk
2 | 0118 965 6000 | www.blackbox.co.uk
• New exible topology for
KVM Extension and KVM
Switching.
• Delivers perfect digital video:
Agility SL: DVI up to 1920 x 1200,
Agility DL: up to 2560 x 1600
• No-loss compression minimises
bandwidth use while maximising
the user experience.
• Optimised extreme fast switching
(< 1 second).
• Congure your network to suit
your needs:
Point-to-Point extension,
KVM Switching,
Single-target sharing, or
multicasting.
• Allows selective switching of the
DVI, USB, audio, and RS-232
channels.
• Features keyboard/mouse
emulation, and virtual
transparency for other standard
Human Interface Devices, such as
touch screens or ash drives.
• Distance is only limited within
your LAN/CAN network.
• Mounting options include
rackmounting, desktop, and
wallmounting.
• Fanless design ensures silent
operation .
ServSwitch Agility™ with DVI, USB,
Audio, and RS-232 over IP enables you to do
more and go farther with perfect digital
video over nearly unlimited distances.
Choose between the ServSwitch Agility
(ACR1000A) with one single link DVI-D
video channel and the Agility DL (ACR1002)
with two single link channels or one dual
link DVI video channel for computers with
two digital video outputs. The ServSwitch
Agility DL features besides the RJ-45 CATx
link connection also a SFP slot that allows
you to establish an inexpensive and fast
point-to-point extension over bre.
The exible topology of the Agility gives
you application options that are brand new
for KVM devices. The Agility can be a KVM
Extender, a KVM switch, or a sharing portal.
It’s up to your application how you decide
to congure it.
Switching Network
Turn your network into a KVM switch
with the Agility. Create a KVM switching
system with as many users as you want —
just keep adding receivers for every user
console. With mixed channels combine
digital video, audio, USB devices and serial
data from dierent computers. When you
change channels on the receiver unit, you
switch DVI, audio, and USB to another
source, while the transmitters not in use
continue to emulate the previously attached
console.
Single Target Sharing & Pooling
In this conguration, multiple users can
share a single remote computer. Users can
connect in three ways:
View-only shows only the video feed.
In Share Mode, an open connection is
available for all users to use the connected
devices at the same time.
In Exclusive Mode, one user locks out the
other users, preventing them from viewing
or sharing the connection, with the exception
of network administrators.
Multicasting
This unique feature enables the Agility to
reect video and audio from a single computer
over an IP network to several receiving
units.
To prevent saturating the network, an
installed network switch should feature
Internet Group Management Protocol
(IGMP) snooping. This prevents an IP switch
from passing on multicast data onto ports
being not part of the Agility system.
Multicast content can be sent to as
many receivers as you want with no dis-
tance limits within the network. This is an
ideal conguration for digital signage
applications.
Point-to-Point
In the most straightforward congura-
tion, use the Agililty as a point-to-point
KVM Extender. Use CAT6 cable to connect
a transmitter and a receiver to deliver
ServSwitch Agility Single Link DVI
Transmitter
(ACR1000A-T)
Overview
ServSwitch Agility
Go farther, do more with digital KVM extension and switching over IP
| 3
FREE, live help in seconds!
ServSwitch Agility Dual Link DVI
Transmitter front and rear view
(ACR1002A-T)
Overview
perfect DVI video, audio in CD quality, and
USB over distances up to 100 metres.
If you need cable runs longer than 100
m (328 feet), add another standard Ethernet
switch every 100 metres. You can add as
many switches as distance is required.
Alternatively larger distances can be realised
over bre optic connections using an addi-
tional Media Converter with the Agility SL or
a MiniGBIC with the Agility DL.
You may even congure this setup to go
to multiple screens at one time or add new
Agility units for additional functionality.
Multihead Graphics and Control
Desk Operation
Control Room setups and similar applica-
tions require multiple graphic heads to be
switched simultaneously. The Agility allows
you to synchronously switch channels that
are consisting of multiple video signals from
either a single source computer or even
multiple computers easily.
The selective channel conguration
oers trading switch capabilities from only
one single keyboard and mouse at a control
desk monitoring various video signals from
many sources.
Connection Reliability
ServSwitch Agility is perfectly designed
for mission critical environments.
In a Point-to-point connection, the link
between transmitter and receiver will auto-
matically re-establish again after a network
ServSwitch Agility Controller
rear view
(ACR1000A-CTL)
disconnect or power shortage.
In a matrix setup with iPath Controller
the function is similar! Even if the iPath
Controller is unavailable the previous link
will be re-established after any kind of link
loss and return.
Management system: iPATH
The ServSwitch Agility Controller Unit oers
a management suite enabling you to remotely
and securely congure all the transmitter and
receiver units. Use the Agility Controller to
dene new content channels, restrict and
enable access privileges, disable specic USB
device classes, and so on whenever you decide
to congure a ServSwitch Agility switching sys -
tem (ACR1000A-CTL is not needed for point to
point extensions).
The iPATH™ system is a single box that
plugs right into your network. Once plugged in,
system administrators can begin conguring
devices, users, and channels using a standard
web browser. The iPATH interface features a
useful on-screen dashboard that gives you a
current overview of the system. It is continually
refreshed so you always have the most up-to-
date system information. The conguration of
the various channels becomes a piece of cake.
Produktspezifikationen
| Marke: | Black Box |
| Kategorie: | AV extender |
| Modell: | ACR1000A-R2 |
