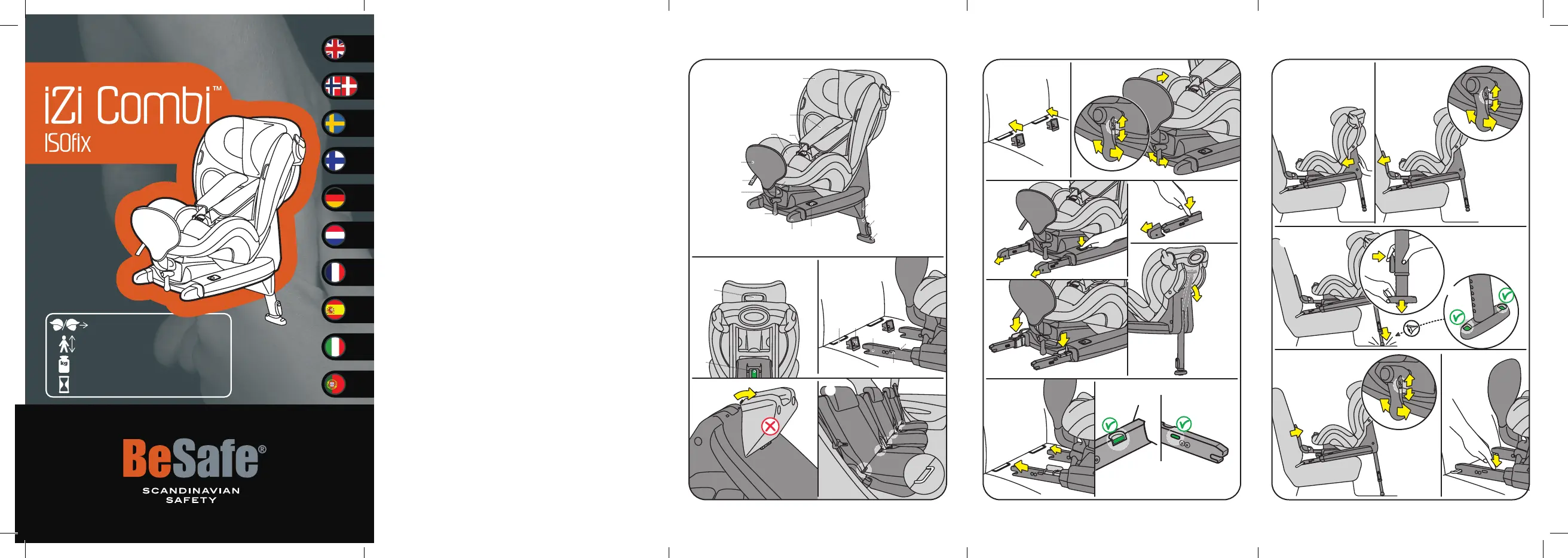

Seite 1/9

19 20

2524

27 3534

38 39

28 29

32 33

USER MANUAL

ECE R44 04

Group 0+ - 1

Rearward- & forward-facing

Weight 0-18 kg

Age 6m - 4y

! Vital information

• It is NOT ALLOWED to mount the seat in a front

passenger seat WITH AN ACTIVATED AIRBAG.

• iZi Combi ISOﬁx can be installed rearfacing

with the ISOﬁx anchorage in a car equipped with ISOﬁx

anchorage points.

• iZi Combi ISOﬁx can be installed forward-facing with a

3-point car belt, approved to UN/ECE Regulation No. 16 or

other equivalent standards.

• iZi Combi ISOﬁx is approved in groups 0+ and 1, rearfacing

from 0-18 kg and group 1, forward-facing from 9-18 kg.

• Read the car list to ﬁnd out whether your car model is

approved to use the seat.

42 43 44

41 52 54

47 49

Thank you for choosing BeSafe iZi Combi ISOﬁx

Contents

BeSafe has developed this seat with great care, to protect your

child during the ﬁrst phase of his or her life.

Vital information

Preparing to install

Rearfacing ISOﬁx installation

Forward-facing belt installation

Positioning the child

Sleeping position

Removing and reﬁtting the cover

Cleaning instructions

Warning: potential misuse

Important advice

Guarantee

Point of sale information

! It is important that you read this user manual BEFORE

installing your seat. Incorrect installation could

endanger your child.

12 13

! It is NOT ALLOWED to mount the seat in a front

passenger seat WITH AN ACTIVATED AIRBAG.

Crucial parts

1. Adjustable head rest

2. Shoulder straps (2x)

3. Harness buckle

4. Body hugger

5. Front brace

6. Central adjuster

7. Reclining lever

8. Belt guiding hook

9. Ratchet for front brace

10. Cap ISOﬁx connector (2x)

11. Switch for ISOﬁx connectors (2x)

12. Wedge

13. Floor support

14. Height adjuster ﬂoor support

15. Floor support height indicator

16. Belt clamp (2x)

17. Release handle head rest

18. Floor support position indicator

19. ISOﬁx car anchorage (2x)

20. ISOﬁx insertion clips (2x) (bottom side)

21. ISOﬁx connectors (2x)

22. ISOﬁx indicators (2x)

23. ISOﬁx release button (2x)

Preparing to install

Rearward-facing: ISOﬁx installation

1. The seat can only be installed rearfacing in

vehicles equipped with ISOﬁx anchorage points.

2. Remove the wedge. (24)

3. When mounting in the back seat of the vehicle, push the front

seat of the vehicle forward as much as possible.

4. When mounting in the front seat of the vehicle, adjust the back

rest into an upright position.

5. Positioned in the front seat of the vehicle, you should position

the seat against the dashboard.

6. If it’s not possible to position the seat against the dashboard,

position the seat as far as possible from the dashboard.

7. Find the ISOﬁx anchorage points in the vehicle. (25)

8. If your vehicle is not equipped with ISOﬁx insertion clips insert

these to make installation easier. (26)

9. You can ﬁnd the ISOﬁx insertion clips under the base of the

seat or delivered separately with the seat.

10. Install the front brace by sliding the two pins into the oval tube

under the front side of the seat. Move the front brace inwards

with the ratchet. The ratchet is used to adjust the front brace in

both directions. Slide the switch on the ratchet up or down to

change direction. (27)

11. Pull both ISOﬁx connectors as far out as possible, by pushing

the grey buttons on top of the base. (28)

12. Remove the caps from the ISOﬁx connectors by pressing down

the ISOﬁx release buttons. (29)

13. Click the installation clips on the ISOﬁx connectors. (30)

14. Fold down the ﬂoor support before you install the seat in your

vehicle. (31)

15. Place the seat sideways into the car with the front brace

towards you.

16. Turn the seat into the right position (with the front brace

against the back rest).

• Make sure you can ﬁt no more than one ﬁnger between the

harness and your baby (1 cm).

• If in doubt, consult either the car seat manufacturer or

the retailer.
