Seite 1/5
bebob factory GmbH Höglwörtherstr. 350 Tel.: +49 89 27818282– – D-81379 München –
www.bebob.de
October 2018
Features
• A-A high capacity battery which is compact and lightweight. Direct fitting to a camera via
Mount (Gold mount compatible)-
• -Five step LED power indicator - - - (100% 80% 60% 40% - . 20%)
Safety instructions
• t Only for professional use! Keep batteries out of reach of children and personnel tha has
not been instructed in the use of high capacity Lithium-ion batteries!
• Use only with recommended charger.
• Keep the battery dry and do not immerse in water.
• Never open the case of the battery.
• Do not expose to temperature over 60°C.
• Do not expose the battery to fire! May explode if thrown into fire!
• Maximum Load 10.0A.
• Do not put the battery on a device when the red charging LED flashes.
• Handle with care! Do not throw! Do not drop!
C harging
• Wait 30 Minutes after discharge before you put the battery on a charger.
• The bebob A98micro battery can be charged with an external bebob charger (or
equivalent) with Lithium-ion (Li ion) charging ability.-
• Approximate charge time may vary depending on charger and temperature.
• bebob A98micro can be charged in ambient temperature for optimum performance at 10°C
- 30°C.
• bebob A98micro batteries can be recharged in any charge condition.

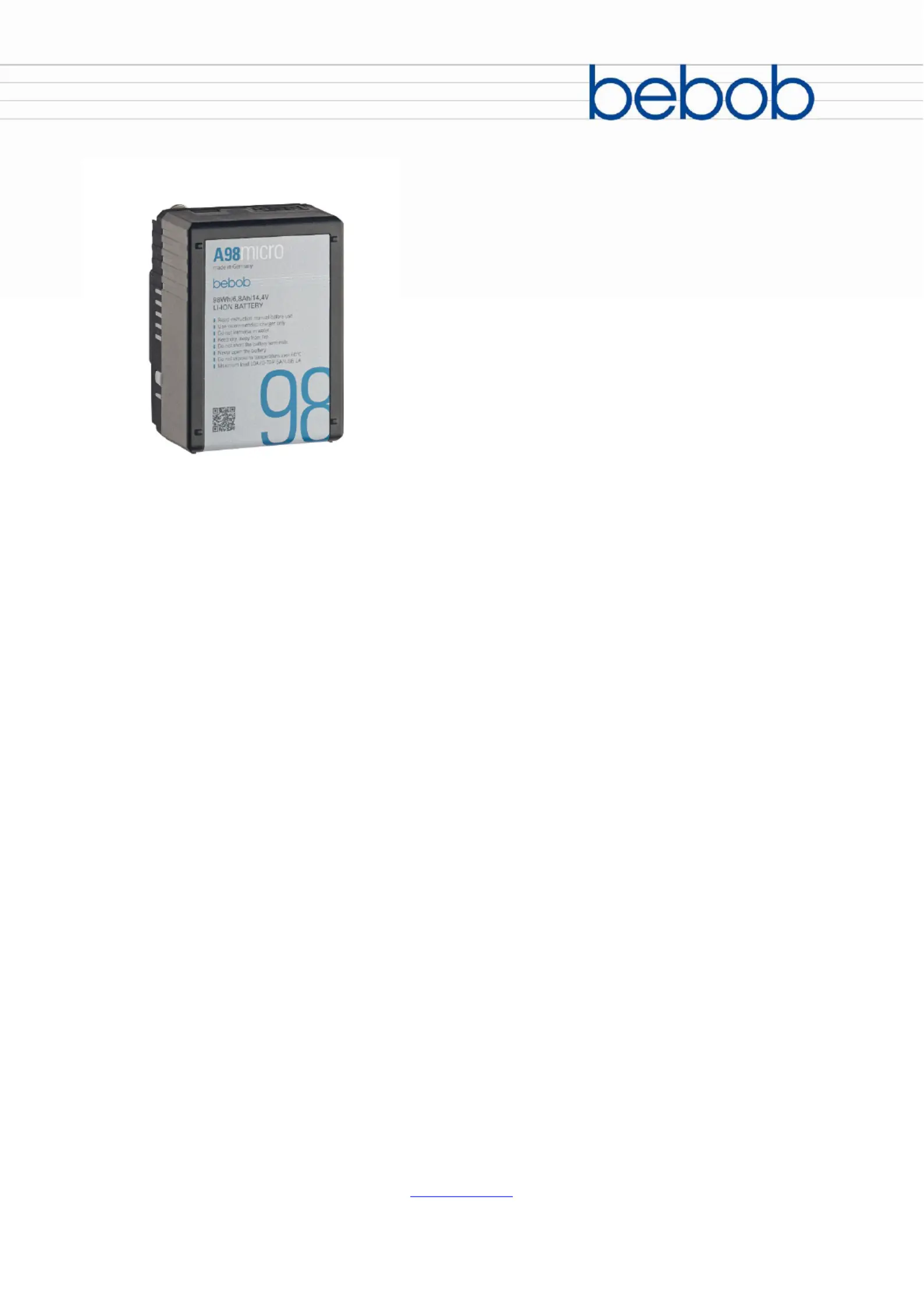

A 98micro rechargeable li- ion Battery
User Manual
WE STRONGLY RECOMMEND THAT YOU
READ THIS INSTRUCTION BEFORE USING
YOUR BEBOB A98MICRO BATTERY! PLEASE
KEEP THIS MANUAL FOR FUTURE
REFERENCE
bebob factory GmbH Höglwörtherstr. 350 Tel.: +49 89 27818282– – D-81379 München –
www.bebob.de
October 2018
D ischarging
• Maximum load is A. When using the battery with video or lighting equipment,10.0 power
consumpti 10.0on of the equipment must be A or below. For the protection of the battery, a
load of A or over may activate the internal protection circuit and stop supply of power. 10.0
In this case the status led will turn red.
• - - The battery can be used in ambient temperature of 20°C + 55°C.
S torage
• - Storage temperature range is 20°C ~ + 35°C (<85% humidity).
• To store the battery for a long period (longer than 4 Weeks), the battery should be charged
between 50 and 75%. % The battery should be recharged every 4 Weeks.
• - - After storage some self discharge will occur. Before re use it is advisable to recharge the
battery fully.
Camera Data Communication
• Blue leds: Arri/Sony Data Protocol
• Red leds: Red Data Protocol
• To switch between both , press the Check button for 5sstatus
Status led
• Status led lighting Green: Full Capacity over 70% of New
• Status led lighting Yellow: Full Capacity between 50% and 70% of New
• Status led lighting : Full Capacity under 50%Red of New
Flash Light
• To switch On/Off press the Check Button Twice
bebob factory GmbH Höglwörtherstr. 350 Tel.: +49 89 27818282– – D-81379 München –
www.bebob.de
October 2018
S pecifications
Model
A98micro
Mount
A- - Mount (Gold mount compatible)
Capacity
6,8Ah; 98Wh
Voltage
14,4V DC
Maximum Output Voltage
16.8 V DC
End Voltage
12.0 V
Cells
Lithium- Ion Trimix made in Japan
Max. Discharge Current
10.0A
Twist D- Tap
14.4V unreg. Max. 5A
USB Port
5V, 1.0A
Fuel Gauge
5- Step LED
Weight
0,55 Kg
Dimensions (WxHxD)
75x101x48mm
Chargers
b ebob, idx, sony, pag
Charging time (bebob AS2/AS4)
2 s Hour
Operating Temp. Range
Charge
Discharge
Storage
+ 10°C ~ + 30°C recommended
- 20°C ~ + 55°C
- 20°C ~ + 35°C (<85% RH )
Warranty
• . The A98micro is covered by a 2 years unconditional warranty on all parts, except the cells
• . The cells are covered by a 1 year warranty, 70% of the original capacity
• For warranty issues or if you have any additional questions, please contact the appropriate
bebob distributor listed at www.bebob.de.
Disposal
• The A98micro battery has to be disposed within a dedicated collection container for used
device batteries. Please be aware that only empty batteries are allowed for disposal in
collection containers. In case the battery is not completely discharged, precautions against
a potential short circuit have to be taken.-
