Placement and Maintenance
Sequel® Home Office Furniture is designed for indoor use on level floors. Clean glass with glass
cleaner, and steel parts and wood veneer with a moist cloth. Your Sequel ® Home Office Furniture
is engineered for easy assembly. Carefully follow this procedure to prevent any damage.
Do not use power tools for assembly of this product.
Step 1
Unpack and identify the parts listed below. The assembly workspace should be a non-marring
surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at
customerservice@bdiusa.com. For all other concerns, please contact your BDI Retailer.
sequel®
6021
executive desk
Designed by Matthew Weatherly.
These distinctive product configurations
are protected by US and international
patents, trade dress, and/or copyright laws.
“Sequel” and BDI are trademarks of Becker
Designed, Inc. All Rights reserved. ©2014
Becker Designed, Inc.
Made in Taiwan. 6021REV012615v7
N - 1/4-20 x 15mm Screw x 4
J - 4mm Hex Wrench x 1
Component List
O -1/4-20 x 58mm Screw x 6
P -1/4-20 x 87mm Screw x 2
K -1/4-20 x 12mm Screw x 3
M -Barrel Nut x 4
Q - Rubber Stem Bumper x 5
R - Center Drawer Liner x 1
S - Side Drawer Liner x 2

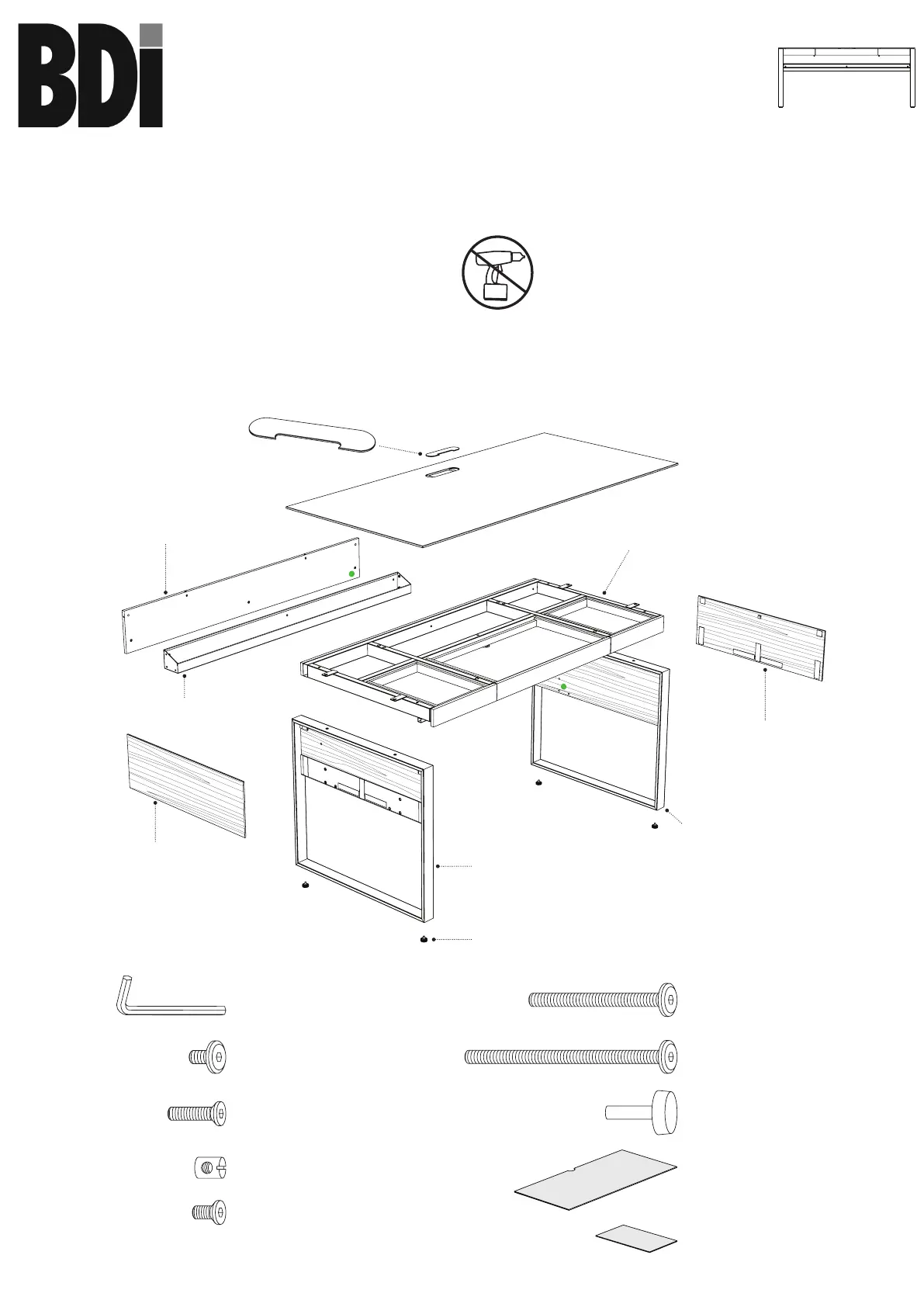

a s s e m b l y i n s t r u c t i o n s
bdiusa.com customerservice@bdiusa.com
L - 1/4-20 x 32mm Screw x 6
B - Top Glass x 1
C - Wire Management Lid x 1
D - Modesty Panel x 1
E - Wire Management Trough x 1
A - Drawer Assembly x 1
H - Removable Side Panel x 2
*Remove for Assembly
H - Removable Side Panel x 2
*Remove for Assembly
G - Right Leg x 1
F - Left Leg x 1
I - Glide x 4
2a s s e m b l y i n s t r u c t i o n s
bdiusa.com customerservice@bdiusa.com
sequel®
6021 executive desk
Step 3
Match Colored Dot Right Leg (G) Colored Dot on with on
Modesty Panel Assembly and attach using and Screws (L) Hex
Wrench (J). Keep screws loose until Step 5. Repeat to attach
Left Leg (F) to Modesty Panel Assembly. Install to the Glides (I)
bottom of Legs (F, G). With the help of another person, turn desk
upright onto its base.
2 Person skTa
Step 2
Aligning the attach Colored Dots on the same side, Wire Management
Trough (E) Modesty Panel (D) Screw (K) Hex Wrench (J) to using and .
Keep screws loose until Step 7.
Colored Dots
D
EK x 3
D
E
I x 4
Colored Dot
L
G
F
L x 6
3a s s e m b l y i n s t r u c t i o n s
bdiusa.com customerservice@bdiusa.com
sequel®
6021 executive desk
Step 4
Insert Barrel Nut (M) Modesty Panel (D) into holes of with the elongated slot
sitting horizontally, and secure with Screw (O) through side of Legs (F, G).
Keep screws loose until Step 5.
Step 5
Secure andDrawer Assembly (A) to Leg Assembly using Screw (N) Hex Wrench
(J). Insert into holes of with the elongated slot sitBarrel Nut (M) Modesty Panel (D) -
ting vertically, and secure with Screw (P) through top of . Fully Drawer Assembly (A)
tighten all that have been installed in previous steps using Screws Hex Wrench (J).
M
P
Elongated slot in
Barrel Nut (M) aligns
with Screw (P)
M
O
O
G
F
M
O
Elongated slot in
Barrel Nut (M) aligns
with Screw (O)
M
O
N x 4 A
P
M
M
P
N
N
M
D
