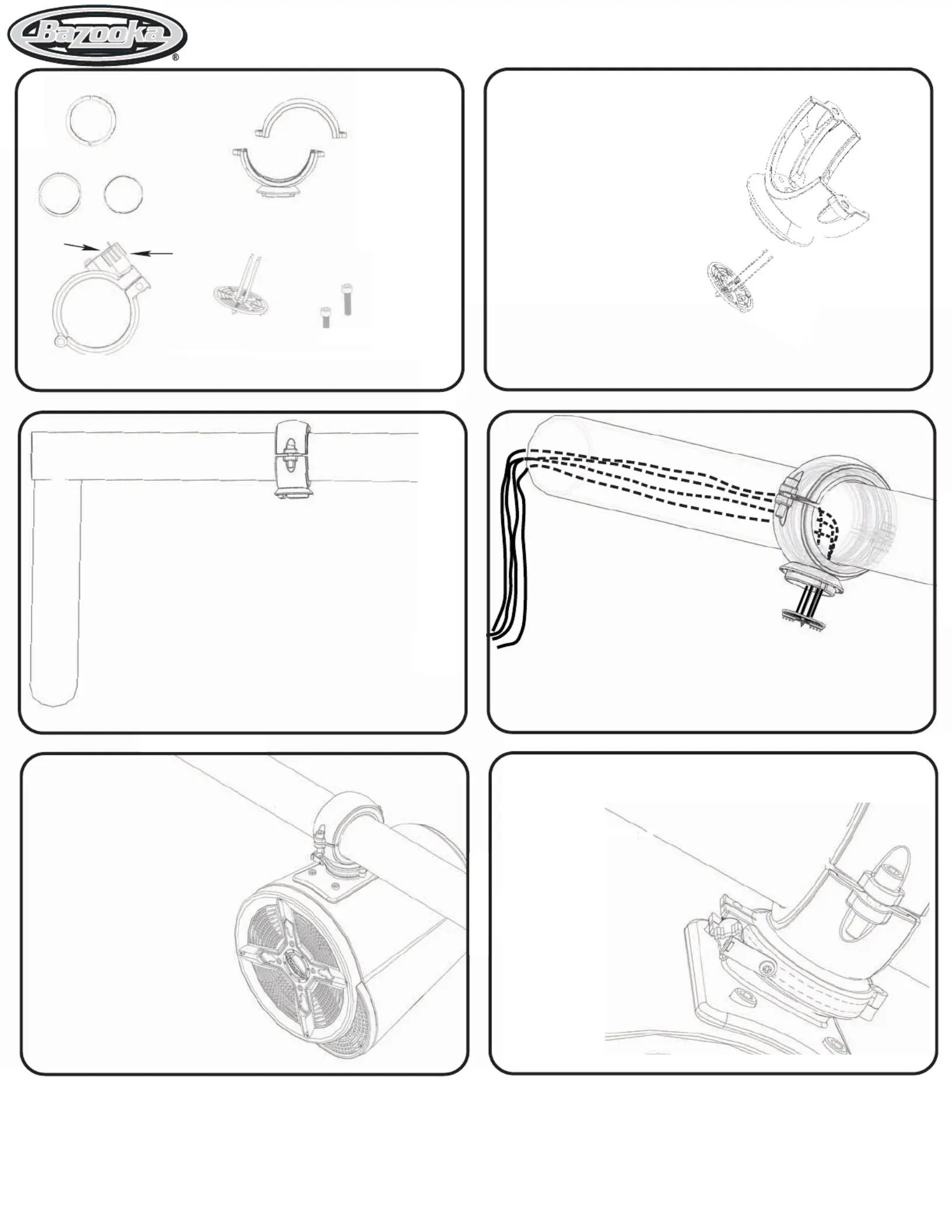

Center top of Tubbie
mounting plate with bottom
of clamp. Loosen saddle
clamp latching bolt until
nut is 1/8” from end of
threaded mounting
stud. Wrap saddle
clamp around bottom
of clamp and top of
Tubbie mounting plate.
Tighten latch bolt.
Place clamp on mounting pipe. Minimum
distance from edge of clamp to nearest
obstruction is 7”(177.8 mm). If clamp is
mounted any closer, the Tubbie will not be
able to rotate 360 degrees. Make sure
clamp is level, then mark pipe so a hole
can be drilled for the wires. Hole should be
between 1/2” (12.7mm) & 3/4” (19.5 mm).
Remove clamp & drill hole.
Extend the length of the PCB
wires so they will be able to
reach your audio source.
Run wires through bottom of clamp and through
your mounting pipe. Reattach clamp to make
sure wires are centered in the mounting hole.
MTCL3-S, MTCL2-S, MTCL2-B
Southern Audio Services 1-800-THE-TUBE or 225-272-7135 www.bazooka.com Canadian customers contact: Trends Electronics International Inc. 604-988-2966 or 877-946-9255
Remove PCB board if already installed
in bottom of clamp.
MT8100B / MT8100W
S ingle ended Tubbies :
Red -Speaker positive
Black - Speaker negative
Gray - NA
White - NA
MT81LKB / MT81LKW
S ingle ended Tubbies w/ light kit
Red -Speaker positive
Black - Speaker negative
Gray - 12vdc positive
White - 12 vdc negative
MT8265B / MT265W
Double ended Tubbies
Dual 4 ohm configuration
Red -Speaker positive
Black - Speaker negative
Gray - Speaker negative
White - Speaker positive
MT8265B / MT265W
Double ended Tubbies
Single 2 ohm configuration
Combine Red and White Speaker positives
Combine Black and Gray Speaker negative
Pipe Clamp
Top
Pipe Clamp
Bottom
2 ea. 6 mm
socket head
cap screws
Clamp PCB
Saddle Clamp
Retaining
clip Latch Bolt
Plastic
Inserts
Latch bolt can be loosened
and tighten by hand to be
able to rotate Tubbie. If you
want a more permanent
mount, tightened with a
10mm wrench or supplied
allen wrench. Ether way
always make sure clamp
is tight and retaing clip
is in place before
boat is in motion.
Parts per Clamp
