Seite 1/18

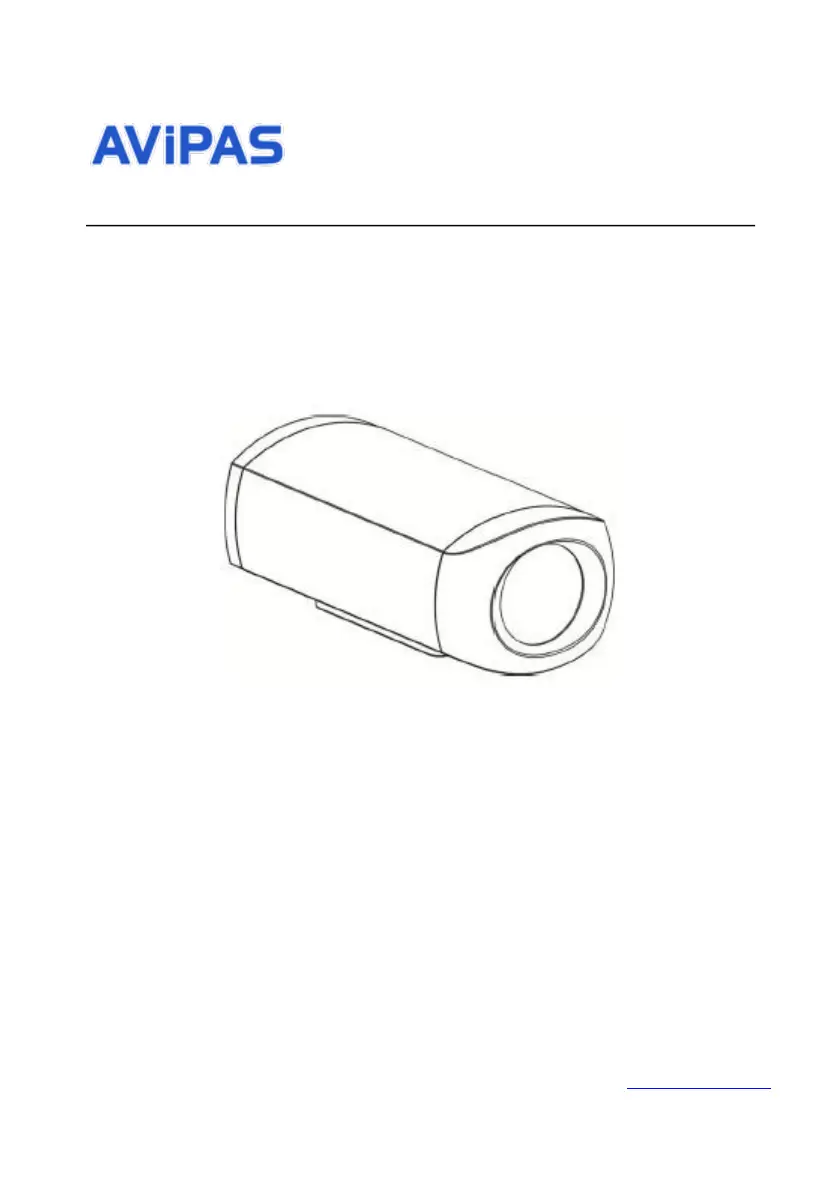

Model: AV-1161
HD-SDI Box IP Camera
User Manual
V1.2
(English)
Please read this user manual
thoroughly before using.
www.avipas.com
Preface
Thank you for using this Video Conferencing Camera.HD
This manual introduces the functions, installation process and operation of the HD
camera. Prior to installation and usage, please read the manual thoroughly.
Precautions
This product should only be used under the specified conditions in order to avoid
any damage to the camera:
â—¼ Do not subject the camera to rain or moisture.
â—¼ Do not remove the cover. Otherwise, you may risk receiving an electric shock.
In case of unintended equipment operation, contact an authorized engineer.
â—¼ Never operate under unspecified temperature, humidity or power supply.
â—¼ Please use soft dry cloth to clean the camera. If the camera is very dirty, clean
it with diluted neuter detergent; do not use any type of solvents, which may
damage the surface.
Note:
This is a class production. Electromagnetic radiation at certain frequencies may A
affect the image quality of TV in home environment.
Catalogue
ABOUT THE PRODUCT -------------------------------------------------------------- 1
FEATURES --------------------------------------------------------------------------------- ------------- 1
LIST OF PARTS ACCESSORIES & -------------------------------------------------- ------------------- 1
MAIN PARTS INTERFACES & ------------------------------------------------------ ------------------- 2
INSTALLATION AND CONNECTION -------------------------------------------- 3
INSTALLATION --------------------------------------------------------------------- ------------------- 3
CONNECTION ---------------------------------------------- -------------------------------------------- 4
OPERATION ----------------------------------------------------------------------------- 5
ZOOM AND FOCUS ------------------------------------------------------------------------------------ 5
MENU --- ------------------------------------------------------------------------------------------------ 5
SPECIAL PRESETS LIST ------------------------------------- ------------------------------------------ 5
MENU CONFIGURATION ------------------------------ -------------------------- --- 6
MENU EXPLANATION --------------------------------------------------------------------------------- 8
VIDEO ------------------------------------------------------------- -------------------------------------- 9
EXPOSURE ------ -------------- ------------------------------------------------ -------------------------- 9
COLOR -------------------------- ----------------------------------------------------------------------- 10
SYSTEM ---------------------------------------------- ------------ ------------------------------------- - 10
RESTORE DEFAULTS --------------------------------------------------------------------------------- 11
NETWORK ------------------------------------------------------------------------------- 11
ANNEX 1 TECHNICAL SPECIFICATIONS ---------------------- 12 ---------------
ANNEX 2 SIZE AND DIMENSION ------------------------------------------------- 13
ANNEX 3 EXTENSION POWER CABLE----------------------------------------- 15
TROUBLE SHOOTING ----------------------------------------------- ---------------- 15
