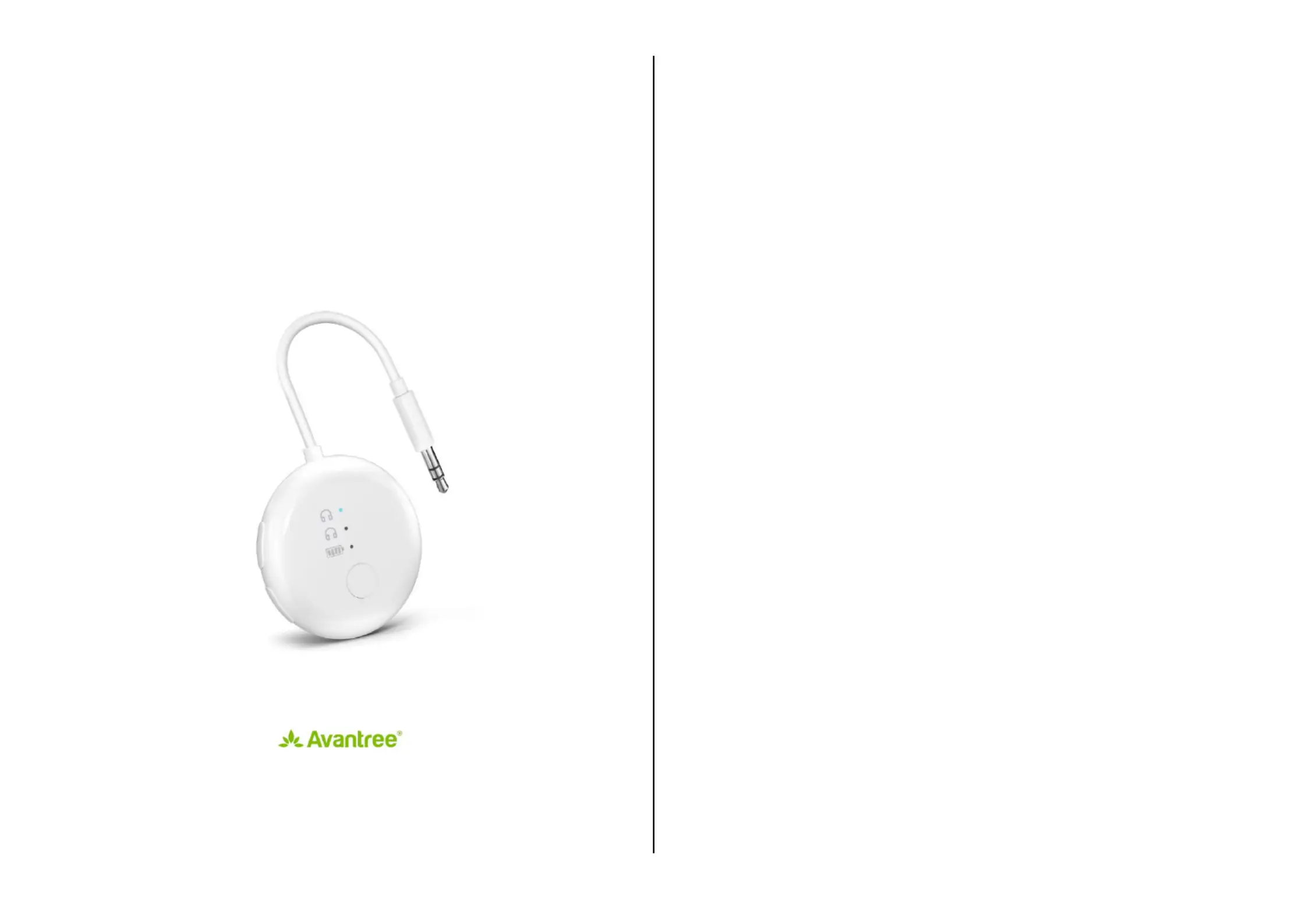

SoundJet R1
User Manual
Model No.: BTTC- 9 21
Table of Contents
PRODUCT INTRODUCTION ................................................................................................ 2
P ORODUCT VERVIEW ........................................................................................................................... 2
B FUTTON UNCTIONS ............................................................................................................................. 2
LED INDICATORS ................................................................................................................................... 2
CONNECTING TO YOUR HEADPHONES ......................................................................... 2
ADDING A SECOND PAIR OF HEADPHONES ................................................................. 3
RECONNECTING YOUR HEADPHONES ........................................................................... 3
CHARGING ............................................................................................................................... 4
SPECIFICATIONS ................................................................................................................... 4
CONTACT US .......................................................................................................................... 4
User Manual SOUNDJET R1
2 / 4
P roduct Introduction
Product Overview
Button Functions
No.
Button
Functions
1 Multifunctional
Button (MFB)
From off, press & hold for 2 seconds to turn the SoundJet R1 on
From on, press & hold for 2 seconds to turn the SoundJet R1
into pairing mode
From on, press & hold for 5 seconds to turn the SoundJet R1 off
Press once to manually -initiate reconnection to last paired
device
2 - Volume + &
Press once or hold to adjust volume
Press & hold both for 6 seconds to clear pairing history
(Reset)
LED Indicators
Indicator
Status
Headphones
LED
Alternate red & blue flashes
Pairing
Solid lueb
Connected
Blue flashes every second Reconnecting to last-used
device
Blue flashes every 5 seconds
Standby
Solid blue & red simultaneously for
3 seconds
Clearing pairing history
Battery &
Charging
led
Solid red
Charging
Turns off
Fully charged
Red flashes
Low battery
Connecting to Your Headphones
STEP 1
Turn on the SoundJet R1 by press the MFB button 2 seconds. For first time use, the SoundJet R1
will enter PAIRING mode automatically. For subsequent use, put your SoundJet R1 into PAIRING
mode by pressing MFB until the LED flashes blue and red alternately.
STEP 2
Put your Bluetooth headphones into PAIRING mode.
* N :OTE Most cases where your device & the transmitter fail to connect happen
because the device is not properly placed into PAIRING mode. Double check that your
device is successfully in PAIRING (typically indicated by an LED indicator's mode
alternate red & blue flashes). For more details, please refer to your device's online user
User Manual SOUNDJET R1
3 / 4
manual. Airpods in particular will always prioritize Apple devices for automatic pairing,
so you'll need to turn your iPhone's Bluetooth OFF when pairing your Airpods with the
SoundJet R1.
STEP 3
Keep the SoundJet R1 & your device close together and wait for 5-10s until they connect.
Once connected, the indicator will turn solid blue.

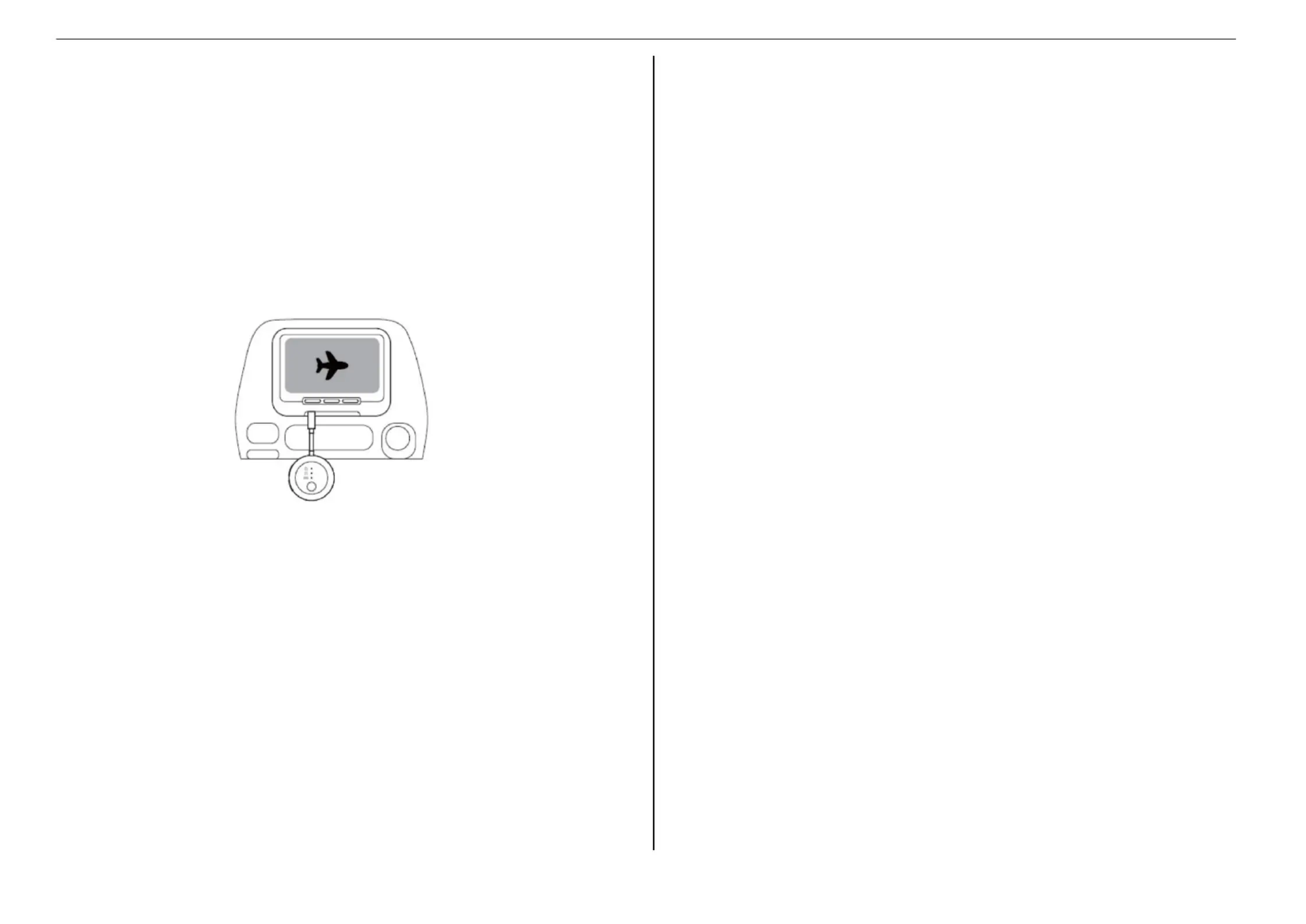

Now Plug the SoundJet R1 into an in-flight entertainment system ( Please contact us if you
need a dual 3.5mm adapter.) or any other audio source with an AUX 3.5mm audio
connector, you can enjoy the audio.
Adding a Second Pair of Headphones
You can connect and simultaneously listen through two pairs of headphones if desired.
STEP 1
Once your first device is successfully connected, put your SoundJet R1 into PAIRING mode
once again by pressing & holding the MFB until another headphone LED flashes blue and
red alternately.
STEP 2
Put your second pair of Bluetooth headphones into PAIRING mode. Please refer to your
headphones’ user manual for more details if necessary.
STEP 3
Keep the Relay & your second device close together and -wait for 5 10s until they connect.
Once connected, both headphone indicators will turn solid blue.
* NOTE: The dual headphones support function works with most headphones but not all.
Certain true wireless earbuds in particular do not work well with Bluetooth transmitters'
dual headphones mode. If you're not getting audio while dual linked, try turning the
affected headphones off and then on again.
In pairing their some cases, dual with Airpods may trigger audio MUTE function. hIf this
appens, put charging case them back in their 2 (with the lid open) for seconds, then ta
ke norma them out again to return them to l. This may help to solve the problem.
Reconnecting Your Headphones
You typically do NOT need to re-pair your Bluetooth headphones with the SoundJet R1 every
time. Once successfully paired, they should automatically reconnect when both devices are
turned on (this may take a few seconds).
If your device does not automatically reconnect after 5-10 seconds, you can manually
initiate reconnection by pressing SoundJet R1 the ’s MFB -once and waiting for 5 10 seconds.
If this still doesn't work, try initiating reconnection on your audio device as well (typically
done by pressing the main Bluetooth PLAY button on your headphones once).
If they still don’t connect, - you may need to re pair your device.
* N :OTE If you paired your headphones with a different Bluetooth device, turn Bluetooth
OFF on said device(s).
