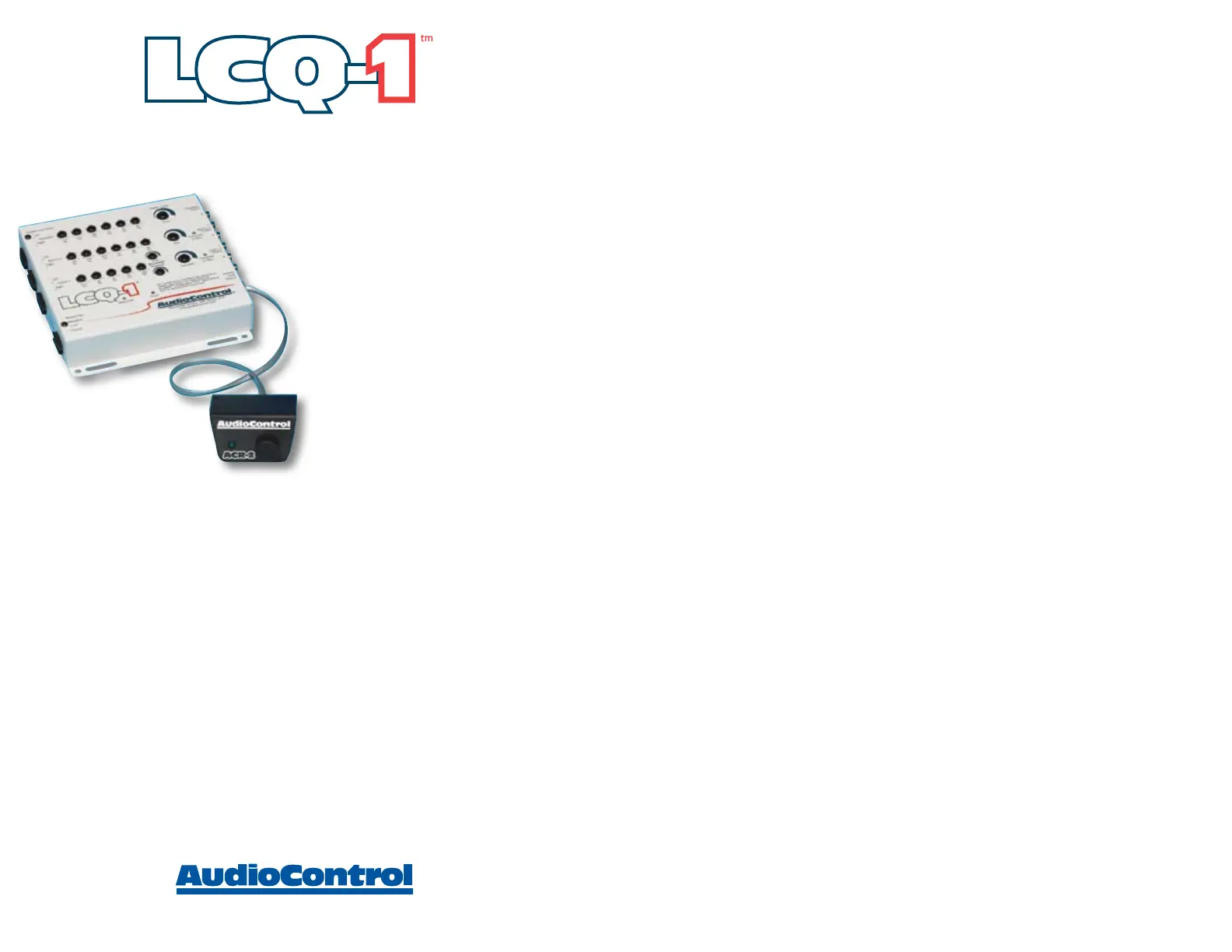

The LCQ-1 is your gateway to amazing sound from a factory head unit. It

is a compact, six-channel, high-performance, OEM

line output converter with independent multi-

channel equalizers to custom tune the system.

AudioControl’s patent pending AccuBASS™

compensation corrects for the factory bass

roll-off present in many of today’s cars.

In short; the LCQ-1 can make every car

sound amazing.

If you want even more, add the

optional dash mounted level control

(ACR-2) which allows control of the

subwoofer output. The ACR-2 will

also operate as an in/out switch for the

EQ section. Very handy addition!

Here are some of the cool things that your LCQ-1 does:

• Independent Front, Rear, and Subwoofer equalizers let you custom tune

your system

• AccuBASS™ bass compensation, so you can correct for the factory bass

roll off, Patent Pending

• GTO™ - signal-sensing inputs to turn the LCQ-1 on automatically

• Channel summing lets you eliminate any factory-installed active

crossovers

• Active speaker-level inputs accept high power factory amplier outputs

• AutoMode Inputs turn 2 inputs into 3 outputs

• Compact size for quick, easy installation

• Input for optional ACR-2 remote mounted bass level control

• Bulletproof 5 year warranty (When installed by an authorized

AudioControl dealer)

Since some of you will want to install your LCQ-1 on your own we offer a

few reminders in the following short section to speed up your installation of

the: You should also refer to diagrams on page 9 and 10 as guidelines.

➊ Physically mount the LCQ-1 in a location that keeps it away from soda

spills, food crumbs, and curious ngers. Select a location that allows you ac-

cess to the top panel equalization controls.

➋ The LCQ-1 needs to be installed in the signal path between your OEM

source unit (or factory amplier) and after-market amplier(s) and/or

processor(s). Do not connect the LCQ-1 between the factory head unit and

the factory amplier. Locate the amplied speaker wires that are coming from

your factory source unit and/or amplier and connect them to the speaker-level

inputs on your LCQ-1. In many cases you can nd factory speaker leads in the

rear of the vehicle or at the factory amplier that are easy to access.

Note: If your source unit has front, rear, and subwoofer speaker-level out-

puts, connect them to the three sets of inputs on your LCQ-1. If the source unit

only has front and rear outputs, the Auto Mode circuitry in your LCQ-1 auto-

matically routes the Channel 2 input channels to the (Channel 3) subwoofer

channels.

➌ Use RCA connecting cables to connect the RCA outputs of the

LCQ-1 to your after market amplier(s). If this is not obvious to you, quickly

pack up your LCQ-1 and run to your nearest authorized AudioControl dealer to

have them perform the installation. You will thank us later.

➍ Connect +12 power, and ground. Note: The LCQ-1 has a 12-volt trigger

input but normally you will just let the GTO turn on circuit take care of that by

itself.

➎ Connect your amplier trigger input to the 12-volt trigger output of the LCQ-1.

➏ Turn your amp gains fully down before turning on the system.

➐ Turn on the system and level match your LCQ-1 to your source unit, signal

processor and ampliers. For more help see our technical videos at

http://www.audiocontrol.com/t34/Mobile-Audio.html

➑ Set your equalization controls so the system sounds amazing. See page 9

for more details.

If you have your authorized AudioControl dealer install your LCQ-1, we

will extend the normal one-year warranty to a full . AudioControl ve years

products are, by nature, more technical than many others and we spend a good

deal of time training our dealers and installers so we know our products will

be installed correctly. We do this so you will get the best possible results from

your AudioControl purchases. For the best results this tuning should be done by

®Making Good Sound Better®

Want to know more? See the “Awesome Information” section, page 8

…it’s all there!

page 2

➊ Speaker-level Inputs: The LCQ-1 has six speaker-level inputs. These

inputs get their signals from the speaker-level outputs of your factory-

installed source unit or amplier. If your source unit has front, rear, and

subwoofer speaker-level outputs, connect them to the three sets of inputs

on your LCQ-1. If the source unit only has front and rear outputs, the Auto

Mode circuitry in your LCQ-1 automatically routes the Channel 2 input

channels to the (Channel 3) subwoofer channels.

➋ Equalizer Controls: To custom tune your system, the LCQ-1 gives you

dedicated equalization controls for the Front, Rear, and Subwoofer outputs.

➌ AccuBASS™: The Threshold and level controls let you determine when

the AccuBASS™ circuit starts bass correction and the level of correction

applied. (See page 8.)

➍ Ground: Connect to a good, veried chassis ground (the battery comes to

mind.) Warning: Factory ground wires already have multiple devices con-

nected to them and are not recommended.

➎ +12V Power: Connect to a good source of 12-volt power (the battery

comes to mind again).

➏ Remote In: In some unusual installations, you may not want to use the

GTO™ to turn on your system. For these cases the LCQ-1 can be turned

on remotely with a +12-volt trigger. When you use the +12-volt remote in,

you can set the internal GTO™ jumper (see “Under the Covers” below) to

“Defeat”. This will prevent the car’s computer from turning the system on

unexpectedly.

➐ Outputs 12 volts when the LCQ-1 is powered up, so you Remote Out:

can turn on external devices like signal processors and ampliers.

➑ This brightly colored LED indicates when the Maximized Indicator:

signal level is just below clipping your LCQ-1. When properly level

matched, this LED should icker occasionally when your system is play-

ing at its maximum volume level.

➒ If you have connected all of your power wires correctly, this light Power:

should be bright red when your system turns on.

➓ You can add a multi-func-Optional (ACR-2) Dash Mounted Control:

tion dash control that allows you to set the level of the subwoofer. It also

has an in/out switch for the equalizer function so you can hear the system

before and after your tuning changes. Simply tap in the remote knob to

compare the sounds.

one of two people, someone with perfect

pitch, “golden ears” (these are very rare) or a

person with a great deal of tuning experience.

A Real Time Analyzer (RTA) is a great tool to

have at this point as well. An RTA reads the

audio response in your car and displays it visu-

ally so your AudioControl dealer can quickly

and accurately tune your LCQ-1 to give you

the best possible sound in your car.

Figure 1. Basic system using Factory Radio. (If the factory stereo does

not have a sub out, the LCQ-1’s AutoMode circuit will give you one) front rear need to be

full range.

Figure 2: Factory Radio with remote mounted factory amplier. Signals are summed

inside the LCQ-1.

AudioControl Real Time Analyzer

page 3

➊

➋

➌

➐

➏

➎

➍➑

➒

➓

These are the RCA plugs on the output side and Pre-Amp Outputs:

should be connected to the next component after the LCQ-1, such as a

crossover or amplier. Do not connect any speakers directly to your LCQ-

These knobs allow you to adjust the signal level from Output Levels:

your source unit to match the input of your after-market ampliers. Most

factory-installed source units have relatively high signal voltage output,

which will require you to decrease the signal level.

Under the cover of your LCQ-1 are Channel Summed Indicators:

jumpers that will allow you to sum selected channels into the main (#1)

channels. This is especially useful for factory-installed systems with

actively crossed over speaker systems. These indicator LED’s let you

know which channels are being summed into the main inputs.
