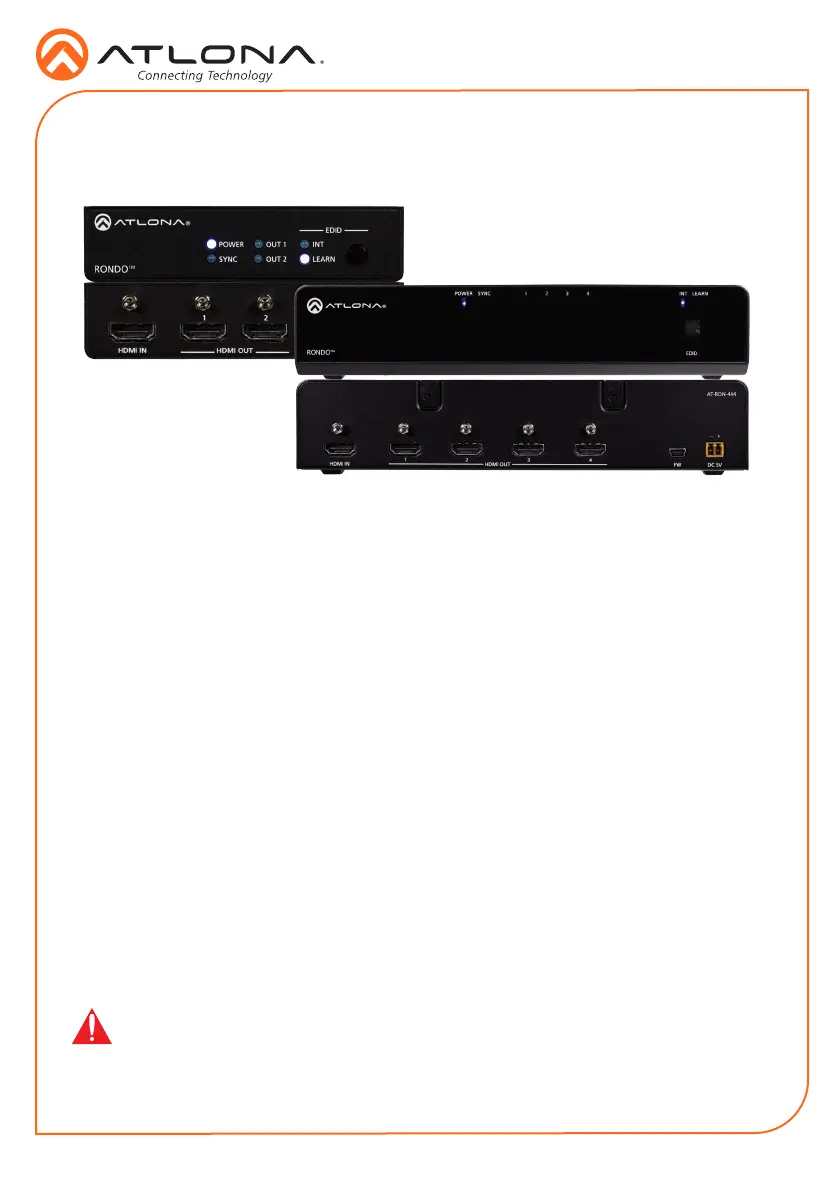

Installation Guide
1
AT-RON-442 / AT-RON-444
4K HDR Two / Four-Output HDMI Distribution Amplier
AT-RON-442 / AT-RON-444
The Atlona Rondo™ series are HDMI distribution ampliers for high dynamic range (HDR)
formats. They are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma
sampling, as well as HDMI data rates up to 18 Gbps. The Rondo series are ideal for applications
requiring the latest as well as emerging 4K/UHD and HDR sources and displays. They are
compatible with all video resolutions, audio formats, and color space formats supported in the
HDMI 2.0a specication, plus the ability to pass metadata for HDR content. The Rondo Series
HDMI distribution ampliers include EDID management features, front panel LED indicators
for power and signal status, and the capability to cascade several units without compromising
performance.
Package Contents
AT-RON-442
1 x AT-RON-442
1 x 5V DC power supply
1 x Phoenix terminal block, 2-pin
2 x Rack ears
4 x Rubber feet
4 x Screws
1 x Installation guide
AT-RON-444
1 x AT-RON-444
1 x 5V DC power supply
1 x Phoenix terminal block, 2-pin
2 x Mounting plates
1 x Long rack ear
1 x Short rack ear
4 x Rubber feet
4 x Screws
1 x Installation guide
IMPORTANT: Visit http://www.atlona.com/product/AT-RON-442 and http://www.atlona.
com/product/AT-RON-444 for the latest rmware updates.
Installation Guide
2
AT-RON-442 / AT-RON-444
HDMI IN
1 2
HDMI OUT FW DC 5V
AT-RON-442
+
POWER
RONDO
SYNC
OUT 1
OUT 2
INT
EDID
LEARN
TM
1 POWER
This LED indicator will glow solid blue
when the unit is powered.
2 SYNC
This LED indicator will glow solid blue
when an active source is detected on the
HDMI IN port.
3 OUT 1
This LED indicator will glow solid blue
when a display or other sink device is
connected to the port.HDMI OUT 1
4 OUT 2
This LED indicator will glow solid blue
when a display or other sink device is
connected to the port.HDMI OUT 2
5 LEARN
This LED indicator glows solid blue when
the unit is in LEARN mode.
6 INT
This LED indicator glows solid blue when
the unit is using the built-in EDID.
7 EDID button
Press this button to switch between INT
and LEARN modes.
8 HDMI IN
Connect an HDMI cable from this port to a
UHD/HD source.
9 HDMI OUT 1/2
Connect an HDMI cable from each of
these ports to a display or other sink
device.
10 FW
Connect a mini USB cable to this port to
update the rmware.
11 DC 5V
Connect the included 5V DC power
supply to this port.
Panel Descriptions
2 743 61 5
8910 11
AT-RON-442
Installation Guide
3
AT-RON-442 / AT-RON-444
RONDO
POWER SYNC
INT1 2 3 4
LEARN
EDID
T M
FW
AT-RON-444
HDMI OUTHDMI IN
4321
DC 5V
+
1 POWER
This LED indicator will glow solid blue
when the unit is powered.
2 SYNC
This LED indicator will glow solid blue
when an active source is detected on the
HDMI IN port.
3 Output Indicators
These LED indicator will glow solid blue
when a display or other sink device is
connected to the ports.HDMI OUT
4 INT
This LED indicator glows solid blue when
the unit is using the built-in EDID.
5 LEARN
This LED indicator glows solid blue when
the unit is in “EDID learn” mode.
6 EDID button
Press this button to switch between
“internal” and “learn” modes.
7 HDMI IN
Connect an HDMI cable from this port to a
UHD/HD source.
8 HDMI OUT 1/2/3/4
Connect an HDMI cable from each of
these ports to a display or other sink
device.
9 FW
Connect a mini USB cable to this port to
update the rmware.
10 DC 5V
Connect the included 5V DC power
supply to this port.
25 63 41
78910
AT-RON-444
