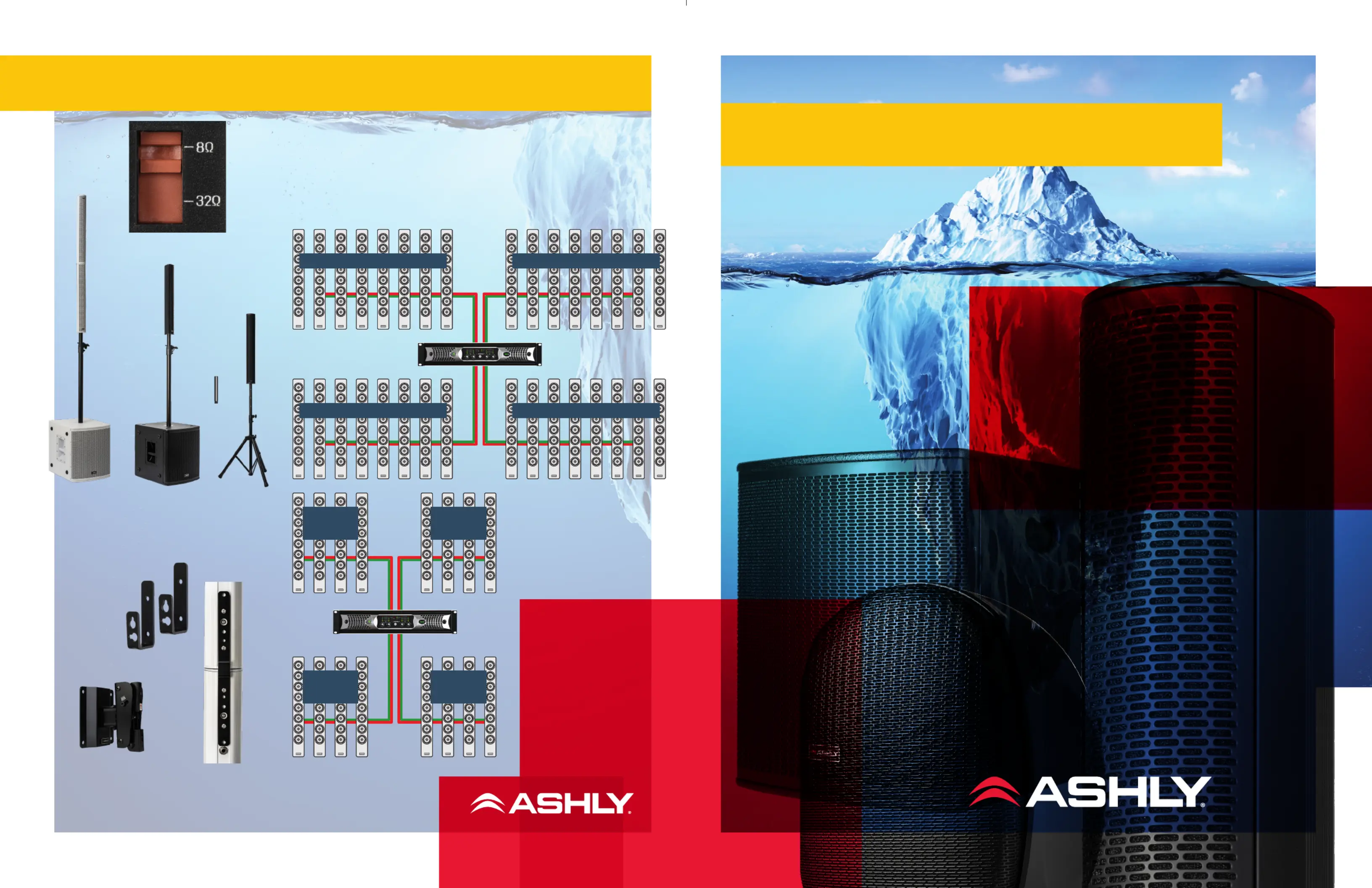

Seite 1/20
IS 2.8P
8 x 2-inch
column speakers
IS 3.8P
8 x 3-inch
column speakers
SP 12.1P
Twelve-inch subwoofer
SP 8.1P
Eight-inch subwoofer
IS-TR7B
Tripod mount for IS 2.8P or IS 3.8P
IS-PM1B
1 foot pole mount for SP subs
IS-PM6B
Pole mount for IS 2.8P or IS 3.8P + SP 12.1P
IS-TWM
Tilt wall mount for IS 2.8P or IS 3.8P
IS-FWM
Flush wall mount for IS 2.8P or IS 3.8P
IS-JP2
Joining bracket for two IS 2.8Ps or IS 3.8Ps
M10-SP
Fly bolts for SP 1.8P
Operating and
Installation Manual
IS-TWM IS-FWMIS-JP2
2
IS Series + SP Series Operating Manual
1. Heed all warnings; follow all instructions.
2. Refer all servicing to qualified personnel.
Servicing is required when the apparatus has
been damaged in any way.
Installation and Mounting
3. To prevent inductive effects from causing
hum and/or noise, loudspeaker lines should
not be laid together with other electric
cables, microphone or line level signal
cables connected to amplifier inputs.
4. To ensure proper sound reproduction,
correct loudspeaker polarity is necessary.
Check “ ” and “ ” polarity at both the + −
amplifiers and the IS Series speakers.
5. Make sure loudspeaker lines are not shorted
before turning the amplifier on.
6. The entire audio system must comply with
the current local standards and regulations
regarding electrical systems.
7. Ashly recommends this product only
be permanently installed by licensed,
professional installers (or specialized firms)
who can ensure a correct installation and
certified by a local inspector.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
9. Use only with mounts or brackets specified
by Ashly Audio.
10. Check the suitability of the support surface
to which the product is anchored (wall,
ceiling, structure, etc.) and the attachment
components (wall plugs, screws, brackets
etc.) to confirm that they are in compliance
with requirements set forth by local building,
safety and electrical codes.
11. Make sure all connections have been made
correctly and the loudspeaker input voltage
is suitable for the amplifier output.
12. Protect loudspeaker lines from damage.
Make sure they are positioned in a way that
they cannot be stepped on or crushed by
objects.
13. Make sure that no objects or liquids can get
into this product, as this may cause a short
circuit.
14. Place the SP 8.P/SP 12.1P subwoofer on a
flat, rigid and anti-skid surface.
Pole, Tripod Mount, Joining Plate
15. Please use Ashly IS-TR7B tripod mount for
IS 2.8P and IS 3.8P speakers. If mounting
the speakers on top of the SP 8.1P or
SP12.1P subwoofer, use only the or IS PM1B
IS PM6B speaker poles.
16. When pole or tripod mounting IS column
speakers, make certain units are placed in a
safe and secure area which is free from foot
traffic or other activities which could cause
accidental tripping or stand collapse.
17. Open the mount’s three “legs” as wide as
possible to ensure its stability.
18. Tighten the height-adjustment bolt firmly.
19. Insert the safety pins on both the fixed and
extendable parts of the tripod or pole.
20. Make sure the the Ashly IS-JP2 accessory
joining plate used to connect to IS speakers
is securely attached.
21. When using two IS speakers joined by an IS-
JP2 vertical mounting plate, pay particular
attention to tripod placement. Confirm
that the tripod mounts’ three legs are fully
extended. Remember that the center
of gravity is higher than with a single IS
speaker.
22. For flying the SP8.1P: Use only the M10-
SP eye bolts. You should consult with a
licensed contractor prior to flying the
SP8.1P to ensure compliance with local
safety regulations. Also, do not hang other
speakers from a suspended SP8.1P. That will
exceed the load capacity.
Safety and Operation Precautions.
Operation
23. IS column line arrays can deliver high sound
pressure that can surpass 90 dB. Exposure
to high sound levels can cause permanent
hearing loss. Monitor and control the volume
at all times.
24. If amplifiers or other connected equipped
displays “clipping”, “peak”, or other overload
conditions, adjust to assure these are
operating below that threshold to prevent a
distorted signal, which may cause damage
to the speakers.
25. To avoid clipping, always use a clip limiter
if available. Always observe specified high
pass filtering recommendations; failure to
do so may result in damage to drivers.
26. Contact your authorized service center
or qualified personnel should any of the
following occur:
The loudspeaker does not function
normally
The cable has been damaged
Objects or liquids have gotten into the unit
The loudspeaker has been damaged due to
heavy impacts
27. Clean only with a dry cloth. Do not use
solvents, alcohol, benzene, or other volatile
substances for cleaning the external parts of
this product.
28. Don’t unplug signal cables when the amp
connected to your IS Series speakers is still
on.
29. Don’t remove the metal grille of the speaker,
which can cause damage to the speaker
cones.
30. Depending on the impedance switch setting
on the back of the IS speakers (8/32 ohms),
make sure to limit the number of connected
speakers to match the amplifier’s minimum
safe operating impedance. Please refer to
the Ashly amplifiers operations manual for
the correct settings and speaker count.
Contents
Back Panel Connections 3 ......................
System Configurations
with Dual -impedance IS Series...........4
Other Typical Configurations 5 ..............
Ashly AquaControl (via AquaControl™)
and Protēa™ Presets for IS Speakers 7 ...
Basic Loudspeaker Processing 7 ............
IS 2.8P Specifications ....................... 11
IS 3.8P Specifications
SP 8.1P Specifications ......................16
SP 12.1P Specifications ....................17
IS-FW Joining Bracket Install .............18
IS-TWM Tilt Bracket Install ................ 19
IS-PM6B Tripod ................................. 19
Other IS Accessories ........................ 19
3
IS Series + SP Series Operating Manual
IS 2.8P & IS 3.8P
8 x 2-inch (IS 2.8P) and 8 x 3-inch (IS 3.8P) matched,
high power handling transducers with Neodymium
magnet structures and heat-resistant voice coils
Switchable 8 Ω / 32 Ω impedance allows up to eight
loudspeakers to be driven by a single amplifier
channel.
AquaControl™ and Protēa DSP presets for selected
Ashly power amplifiers and DSP processors (see page
6 for listing)
2-pole Euroblock connector, plus 2 x ¼-inch phone
jacks (IS 2.8P)
4-pole Euroblock connector, plus 2 x SpeakOn®
Connectors (IS-3.8P)
High-strength and light aluminum enclosure
Durable, chip-resistant polymer coating
Optional pole, tripod, and tilt or flush wall mounts
SP 12.1P
12-inch, high power handling (350 W) low-frequency
transducer with ferrite magnet structure
4-pole Euroblock terminal inputs
Neutrik® SpeakOn x 2 inputs
Internally-braced birch ply enclosure
Pole sockets on top and side
SP 8.1P
8-inch, high power handling (150 W)low-frequency
transducer with ferrite magnet structure
4-pole Euroblock terminal inputs
Neutrik SpeakOn x 2 inputs
Internally-braced birch ply enclosure
Pole sockets on top and side
10mm bolt holes for use with optional flying hardware
Thank you for choosing Ashly IS Series line
array column speakers (and hopefully our
matching subwoofer). We know that there are
many choices on the market today; so we have
worked hard to create column speakers that set
themselves apart from the rest.
Elevate or wall-mount a pair of IS 3.8P or IS
2.8P speakers on stands, add one or more
SP 8.1 P or SP 12.1P subwoofers and you have a
high-fidelity, high-output system that’s perfect
for reception halls, small churches, mobile
discos, bars, coffee shops, and many other
applications.
Before installation, check for any possible
shipping damage. Also, please read all of the
Safety and Operation Precautions on the
previous page.
Note that this Guide also covers IS-TWM Tilt
Wall Mount Bracket, IS-JP Joining Bracket, and
IS-FWM Flush Wall Mount Bracket.
Back Panel Connections
IS Series columns are designed for both
permanent and mobile applications. Both
models have Neutrik® connections. The IS
3.8P adds Neutric SpeakOn connectors; the IS
2.8P has ¼-inch TS jacks.
IS 2.8P
*WARNING: When connecting the IS speaker,
do not under any circumstances plug outputs
from different amplifiers or amp channels into
more than one jack (any type on the speaker) at
the same time.
¼-inch TS jack can be
used as the IS 2.8P
input or a pass-through
to another IS 2.8P
*
8 Ω / 32 Ω
impedance
switch
¼-inch TS jack can be
used as the IS 2.8P
input or a pass-through
to another IS 2.8P
*
2-conductor
Euroblock terminal
connector
