!Safety Precautions
Follow all manufacturer safety guidelines for operating your device.
Failure to practice safe usage of GPS device while driving may result
in damage, injury, or death.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2010 Arkon Resources, Inc.
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
The Mobile Mounting Specialists™
®
TT129-SBH | Removable Air Vent Mount for TomTom GPS
GN047-SBH
Air Vent Mount with
Swivel Ball Head
Do not place mount in or near an air bag deployment zone
or where it will obstruct view of the road.
!
Continued on next page...
TomTom, ONE, GO, and EasyPort, Start and Ease are product names, trademarks, or registered trademarks
of TomTom International NV. Arkon Resources, Inc. is not affi liated with TomTom International b.v.

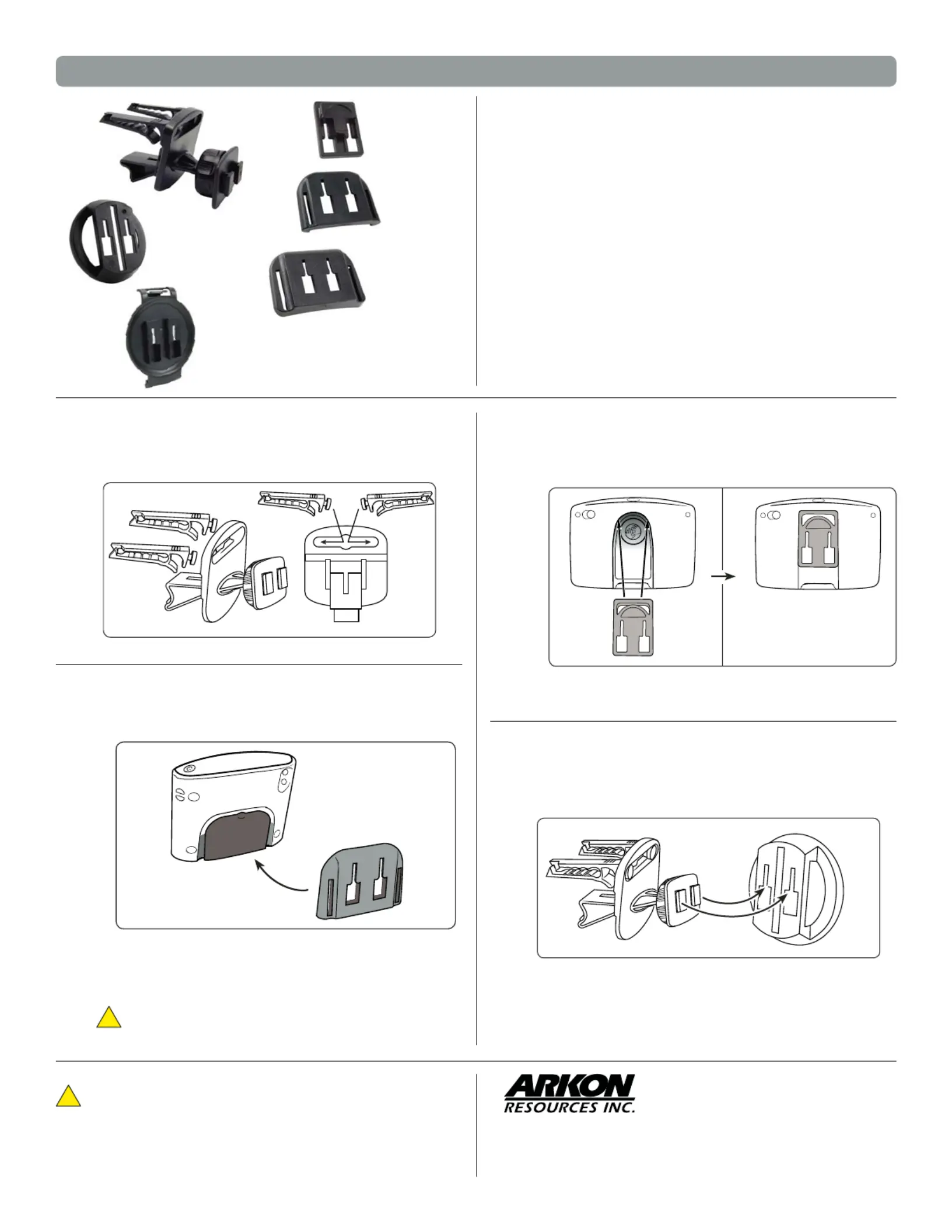

Attach the vent mounting clips (A) to the back of the pedestal
(B) with the vent clips positioned with the fl at sides facing up.
Step 1.
Step 1.
Air Vent Mount Assembly
A
A
B
APTTEP
Adapter Plate
for EasyPort™
Check Compatibility
Check Compatibility
Check Compatibility
APTTO
Adapter plate for
TomTom ONE
Check Compatibility
APTTOXL
Adapter plate for
TomTom ONE XL
and XL • S
APTTGO520
Adapter plate for
TomTom GO x20, x30
Package Contents:
(1) GN047-SBH Air Vent Mount with Swivel Ball Head
(1) APTTO - Adapter plate for TomTom ONE™ Series
(1) APTTOXL - Adapter plate for TomTom ONE XL™ and XL • S™ Series
(1) APTTGO520 - Adapter plate for TomTom GO™ Series
(1) APTTEP - Adapter plate for TomTom EasyPort™ pattern
(1) APTTSE - Adapter plate for TomTom Start™ and Ease™
TomTom Device Compatibility:
TomTom ONE 125 125-SE (TomTom EasyPort Mount)
TomTom ONE 130, ONE 130-S (TomTom EasyPort Mount)
TomTom ONE 140, ONE 140-S (TomTom EasyPort Mount)
TomTom XL 325, XL 325-S, XL 325-SE (TomTom EasyPort Mount)
TomTom XL 330, XL 330-S (TomTom EasyPort Mount)
TomTom XL 335 Series (TomTom EasyPort Mount)
TomTom XL 340, XL 340-S, XL 340 LIVE Series (TomTom EasyPort Mount)
TomTom XL 350 Series (TomTom EasyPort Mount)
TomTom XXL 530-S, XXL 535-T, XXL 540-S/WTE, XXL 550 Series (TomTom EasyPort Mount)
TomTom ONE (US Edition, US 3rd Edition)
TomTom ONE XL (1st Edition) - TomTom ONE XL-S (1st Edition)
TomTom ONE 22, ONE 22 Regional, ONE 22 Regional Traffi c
TomTom XL 22, XL 22 Regional (TomTom EasyPort Mount)
TomTom ONE UK / EUROPE (NEW Edition aka 2nd Edition, 3rd Edition)
TomTom GO 520 / 530 / 630 / 720 / 730 / 920 / 920T / 930
TomTom Start and Ease
Check Compatibility
APTTSE
Adapter Plate for
TomTom Start™ & Ease™
Continued on next column...
Step 1. Slide the adapter plate up into the grooves on the back of the
TomTom ONE, ONE XL, or ONE XL • S.
TomTom ONE, ONE XL, and ONE XL • S Plate Installation
Step 1.
Step 2.
Attach the adapter plate by sliding it up into the slot on the
back of the TomTom GO 520, 530, 630, 720, 730, 920, 920T, and
930 models device as shown below.
Attach the device with adapter plate to the mount as shown in
the diagram above.
TomTom GO Adapter Plate Installation
Connect the dual T-slots (A) on adapter plate to the dual T-tabs
(B) on the pedestal head. Adjust the angle of the head by
tightening the head adjustment knob (C).
TomTom EasyPort Adapter Plate Installation
A
B
C
B
!Safety Precautions
Follow all manufacturer safety guidelines for operating your device.
Failure to practice safe usage of GPS device while driving may result
in damage, injury, or death.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2010 Arkon Resources, Inc.
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
The Mobile Mounting Specialists™
®
G
F

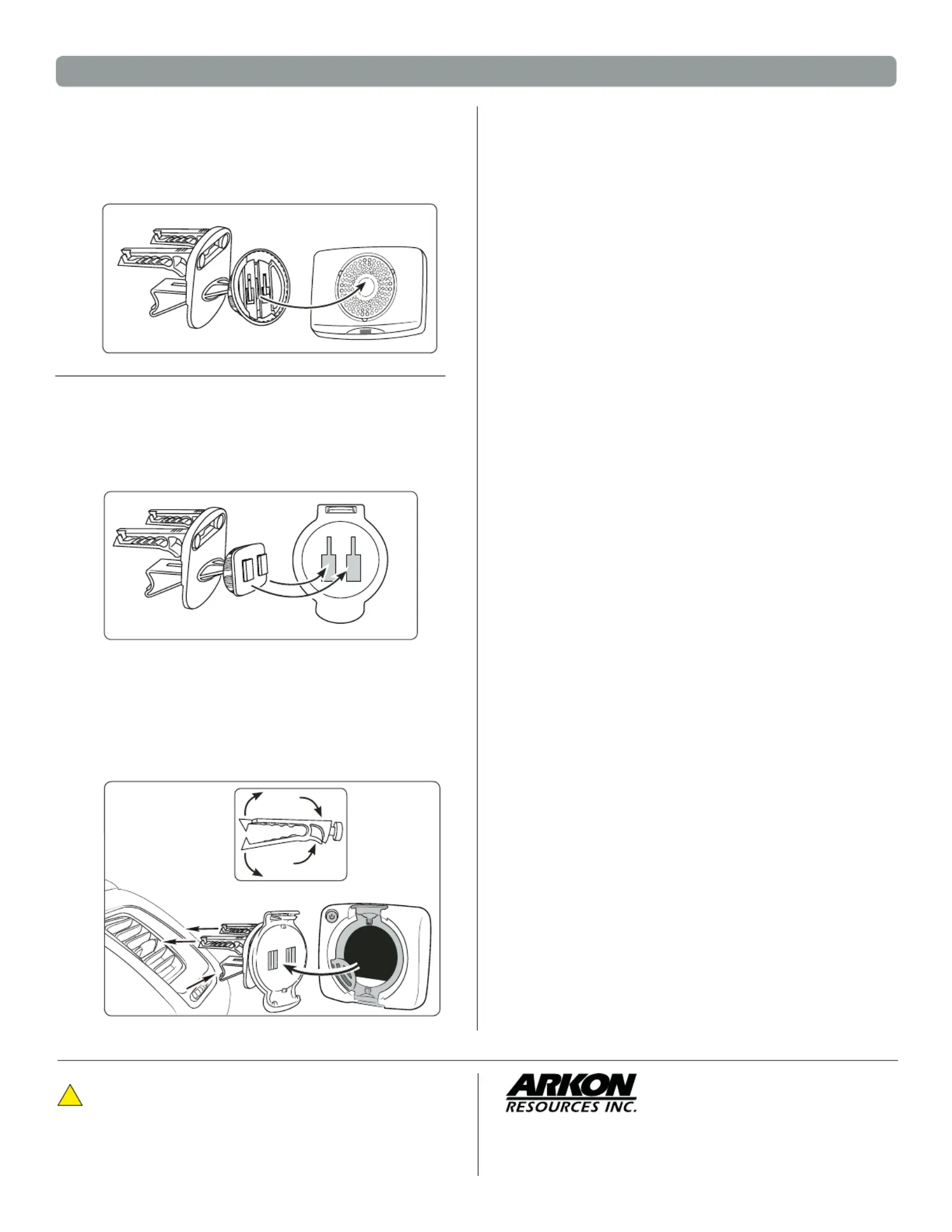

Pinch the vent mounting clips (H) so that the teeth open
and gently insert vent pedestal into vent louvres until the
mounting clips are attached to the fi n/blade of the vent.
Adjust the support leg (I) vertically until it rests fi rmly along
the bottom of the vent or dash surface below the vent.
Step 2.
Insertion of Mount Assembly into Air Vent
Attach your cradle or device (not included, sold
separately) to the dual-T head by inserting the dual-T
tabs (F) into the dual-T slots (G) on the back of the cradle
or device.
Step 1.
Attach Device or Cradle to Air Vent Mount
H
I
Step 2. While holding the mounted adapter plate, gently insert the
device (not included, sold separately) into the adapter plate
until an audible click is heard. The device can then be rotated
into the desired viewing angle.
TomTom EasyPort Device Insertion
TT129-SBH | Removable Air Vent Mount for TomTom GPS
While holding the mounted TomTom adapter plate, gently
insert the TomTom device (not included, sold separately) into
the adapter plate until an audible click is heard.
Step 3.
Attaching a TomTom Device to Pedestal
Continued on next column...
