Seite 1/2
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialistsâ„¢
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2010 Arkon Resources, Inc.
APTTO
Adapter plate for
TomTom ONE
APTTOXL
Adapter plate for
TomTom ONE XL
and XL • S
APTTGO520
Adapter plate for
TomTom GO x20, x30
Check Compatibility
Check Compatibility
Check Compatibility
Check Compatibility
APTTEP
Adapter Plate for
TomTom EasyPortâ„¢
APTTSE
Adapter Plate for
TomTom Startâ„¢ & Easeâ„¢
â„¢
Patented & Patents Pending

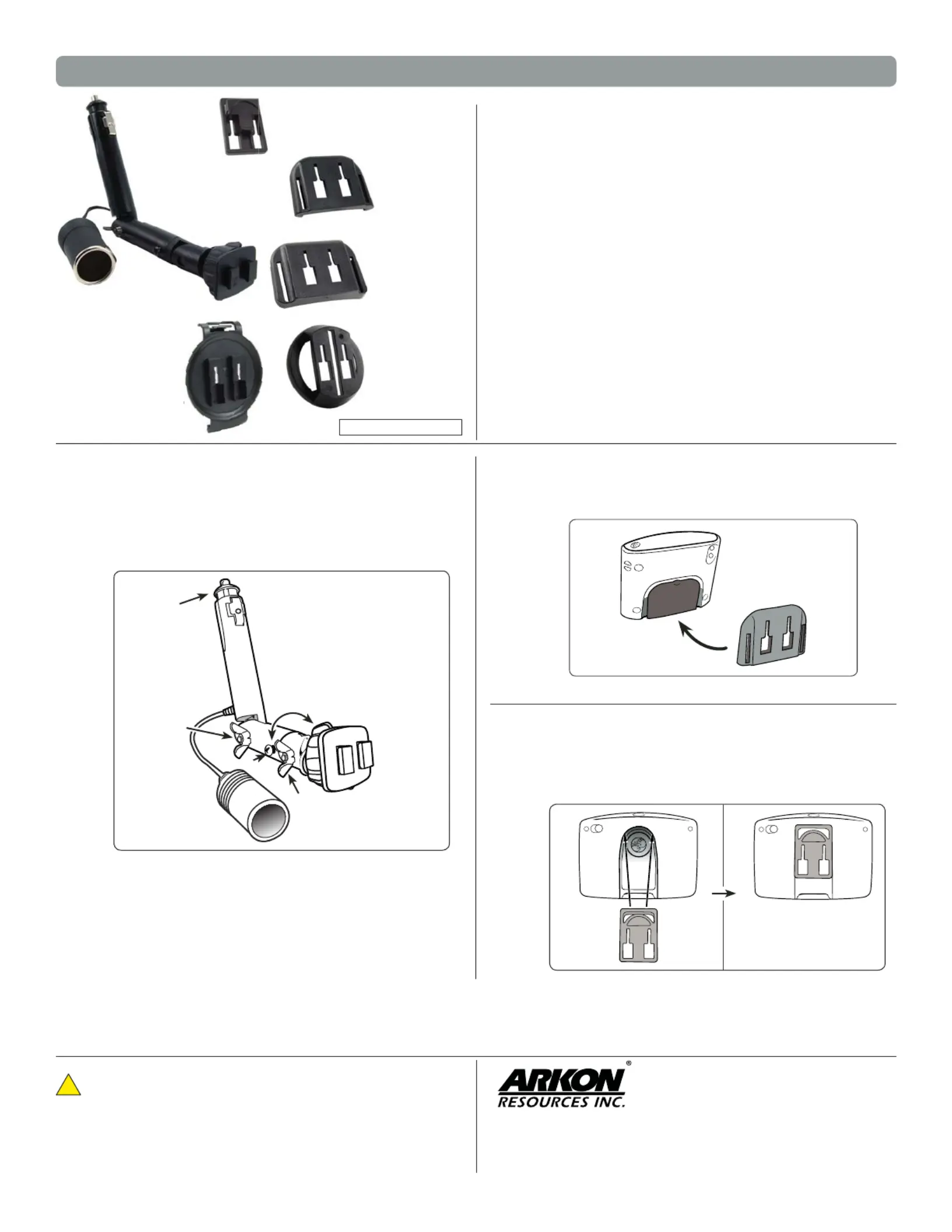

Package Contents:
(1) GN097-SBH - 12V - 24V / Lighter socket mount with power outlet
(1) APTTO - Adapter plate for TomTom ONEâ„¢ Series
(1) APTTOXL - Adapter plate for TomTom ONE XL / XL • S™ Series
(1) APTTGO520 - Adapter plate for TomTom GOâ„¢ Series
(1) APTTEP - Adapter plate for TomTom EasyPortâ„¢ Series
(1) APTTSE - Adapter plate for TomTom Startâ„¢ and Easeâ„¢
TomTom, ONE, GO, and EasyPort, Start and Ease are product names, trademarks, or registered trademarks
of TomTom International b.v. Arkon Resources, Inc. is not affi liated with TomTom International b.v.
TomTom Device Compatibility:
TomTom ONE 125 125-SE (TomTom EasyPort Mount)
TomTom ONE 130, ONE 130-S (TomTom EasyPort Mount)
TomTom ONE 140, ONE 140-S (TomTom EasyPort Mount)
TomTom XL 325, XL 325-S, XL 325-SE (TomTom EasyPort Mount)
TomTom XL 330, XL 330-S (TomTom EasyPort Mount)
TomTom XL 335 Series (TomTom EasyPort Mount)
TomTom XL 340, XL 340-S, XL 340 LIVE Series (TomTom EasyPort Mount)
TomTom XL 350 Series (TomTom EasyPort Mount)
TomTom XXL 530-S, XXL 535-T, XXL 540-S/WTE, XXL 550 Series (TomTom EasyPort Mount)
TomTom ONE (US Edition, US 3rd Edition)
TomTom ONE XL (1st Edition) - TomTom ONE XL-S (1st Edition)
TomTom ONE 22, ONE 22 Regional, ONE 22 Regional Traffi c
TomTom XL 22, XL 22 Regional (TomTom EasyPort Mount)
TomTom ONE UK / EUROPE (NEW Edition aka 2nd Edition, 3rd Edition)
TomTom GO 520 / 530 / 630 / 720 / 730 / 920 / 920T / 930
TomTom Start and Ease
Slide the adapter plate up into the grooves on the back of the
TomTom ONE, ONE XL, or ONE XL • S device.
TomTom ONE, ONE XL, and ONE XL • S Plate Installation
Step 1.
GN097-SBH
Lighter Socket Mount
with Power Dongle
TT121
| Lighter Socket Mount with Power Dongle for TomTom GPS
Insert the DC Power plug completely into the vehicle’s (A)
12V-24V / lighter socket.
Adjust the angle of the pedestal arm by tightening the
wing nut (B) to the desired placement angle.
If necessary, adjust the rotation of the mounting head by
tightening the screw (C) with a screwdriver.
Adjust the angle of the pedestal head by tightening the
wing nut (D) to the desired angle.
Adjust the angle of the pedestal head by tightening the
adjustment ring (E).
Insert the car charger that came with your TomTom into the
power dongle outlet on the mount.
Mount Installation Instructions
Step 1.
Step 2.
Step 3.
Step 4.
Step 5.
Step 6.
A
B
C
D
E
12 V Powering
Outlet Socket
TomTom GO Adapter Plate Installation
Step 1. Attach the adapter plate by sliding it up into the slot on the
back of the TomTom GO 520, 530, 630, 720, 730, 920, 920T or
930 device as shown. Attach the device as shown below.
Continued on other side...
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialistsâ„¢
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China and Taiwan
© Copyright 2010 Arkon Resources, Inc.

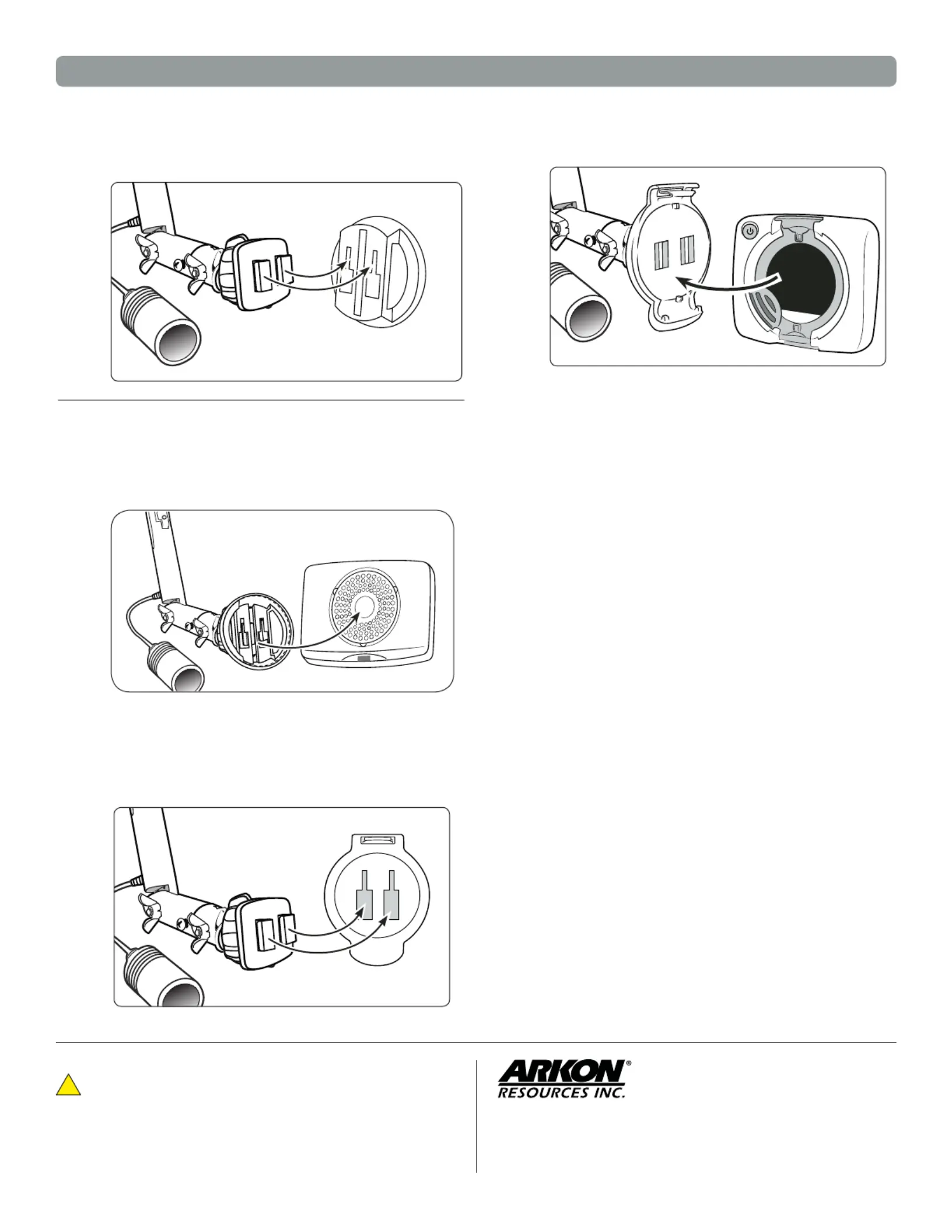

Connect the dual T-slots (A) on adapter plate to the dual T-tabs
(B) on the pedestal head. Adjust the angle of the head by
tightening the head adjustment knob (C).
Step 1.
B
C
TomTom EasyPort Adapter Plate Installation
Step 1. While holding the mounted adapter plate, gently insert the
device (not included, sold separately) into the adapter plate
until an audible click is heard. The device can then be rotated
into the desired viewing angle.
TomTom EasyPort Device Insertion
Attach the TomTom dual-T adapter plate to the mount by
inserting the dual-T tabs of the mount (A) into the dual-T
slots on the adapter plate (B).
TomTom Adapter Plate Attachment
Step 1.
(Device sold
separately)
AB
A
While holding the mounted TomTom adapter plate, gently
insert the TomTom device (not included, sold separately)
into the adapter plate until an audible click is heard.
Step 2.
TT121
| Lighter Socket Mount with Power Dongle for TomTom GPS
