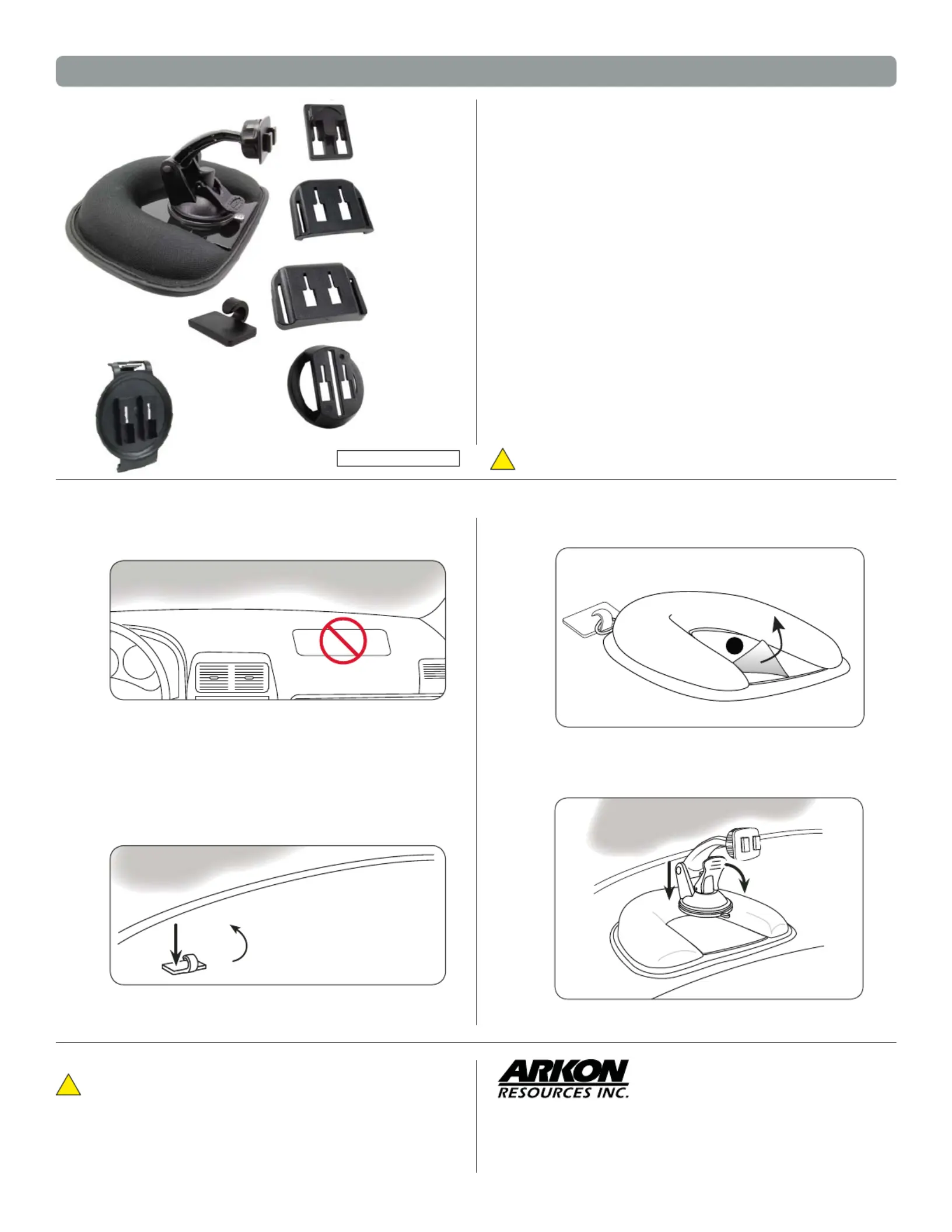

Lower the pedestal onto the fl at plastic surface of the
dashboard mount and press down fi rmly. Flip the locking lever
down to secure the pedestal to the dashboard mount.
Place the loop on the back of the dash mount around the safety
hook and place on the dash in front of the hook. Remove the
protective lm from the pedestal mounting surface (A).
A
Package Contents:
(1) CM012 - Weighted friction dashboard mount
(1) GN014-SBH Travelmount® mini windshield suction pedestal
(1) Optional adhesive safety hook (recommended but not required)
(1) Alcohol cleaning pad
(1) APTTO - Adapter plate for TomTom ONE™ Series
(1) APTTOXL - Adapter plate for TomTom ONE XL / XL S™ Series
(1) APTTGO520 - Adapter plate for TomTom GO™ Series
(1) APTTEP - Adapter plate for TomTom EasyPort™ Series
(1) APTTSE - Adapter plate for TomTom Start™ and Ease™
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
Do not place mount in or near an air bag deployment zone or where it will
obstruct view of the road.
!
Dashboard Mount Installation
Find a safe location on the vehicle dashboard that is not in
an airbag deployment zone.
Optional Safety hook installation will add extra stability.
Clean the area with the included alcohol pad and let dry.
Remove the adhesive backing on the safety hook base.
The hook curve must point towards the windshield. Press
and hold the hook down on the dashboard surface for
about a minute. Allow 24 hrs. to cure to the dashboard
surface at room temperature (72° F).
Step 1.
Step 2.
Step 4.
Step 3.
APTTO
Adapter plate for
TomTom ONE
APTTOXL
Adapter plate for
TomTom ONE XL
and XL S
APTTGO520
Adapter plate for
TomTom GO x20, x30
W
I
N
D
S
H
I
E
L
D
Hook towards windshield
TT112
| Friction Dashboard Mount for TomTom® GPS
CM012 with GN014-SBH
Friction Dashboard Mount
with Pedestal
Adhesive
Safety Hook
Patented & Patents Pending
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2010 Arkon Resources, Inc.
TomTom, ONE, GO, and EasyPort, Start and Ease are product names, trademarks, or registered
trademarks of TomTom International NV. Arkon Resources, Inc. is not affi liated with TomTom
International NV.
Check Compatibility
Check Compatibility
Check Compatibility
Check Compatibility
Check Compatibility
TomTom Device Compatibility:
TomTom ONE 125 125-SE (TomTom EasyPort Mount)
TomTom ONE 130, ONE 130-S (TomTom EasyPort Mount)
TomTom ONE 140, ONE 140-S (TomTom EasyPort Mount)
TomTom XL 325, XL 325-S, XL 325-SE (TomTom EasyPort Mount)
TomTom XL 330, XL 330-S (TomTom EasyPort Mount)
TomTom XL 335 Series (TomTom EasyPort Mount)
TomTom XL 340, XL 340-S, XL 340 LIVE Series (TomTom EasyPort Mount)
TomTom XL 350 Series (TomTom EasyPort Mount)
TomTom XXL 530-S, XXL 535-T, XXL 540-S/WTE, XXL 550 Series (TomTom EasyPort Mount)
TomTom ONE (US Edition, US 3rd Edition)
TomTom ONE XL (1st Edition) - TomTom ONE XL-S (1st Edition)
TomTom ONE 22, ONE 22 Regional, ONE 22 Regional Tra c
TomTom XL 22, XL 22 Regional (TomTom EasyPort Mount)
TomTom ONE UK / EUROPE (NEW Edition aka 2nd Edition, 3rd Edition)
TomTom GO 520 / 530 / 630 / 720 / 730 / 920 / 920T / 930
TomTom Start and Ease
APTTEP
Adapter Plate for
TomTom EasyPort
APTTSE
Adapter Plate for
TomTom Start & Ease
Continued on other side...Continued on other side...
Adjust the angle of the pedestal arm by tightening the
rotation knob as needed.
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST

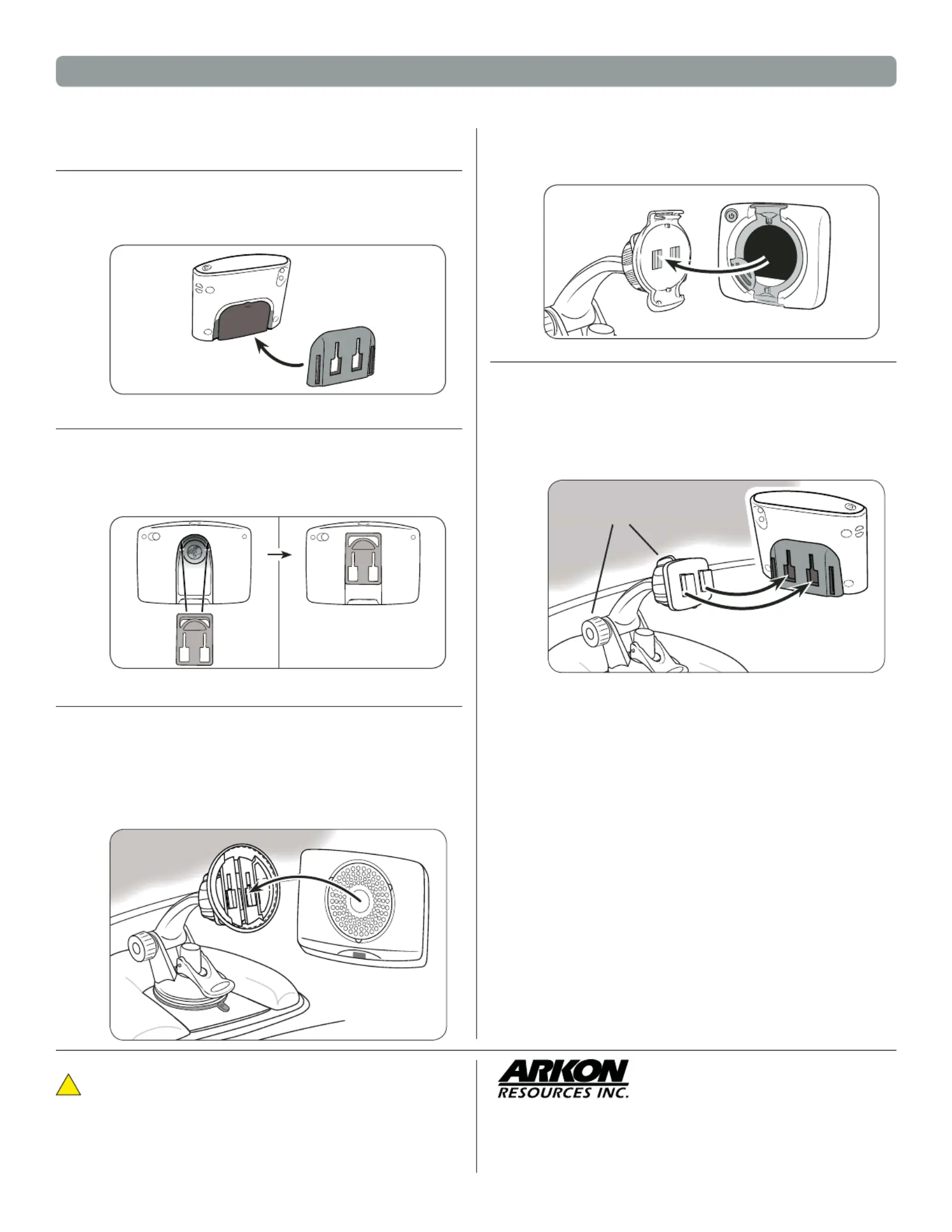

Dashboard Mount Installation - Continued
Step 5.
TomTom Device Installation - Pedestal Attachment
TomTom Start & Ease Device Installation - Pedestal Attachment
Attach the device holder to the pedestal by inserting the
dual T-Tabs of the pedestal into the T-slots of the TomTom
adapter plate. Readjust angle knob if necessary.
Step 1.
Step 1.
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in China
© Copyright 2010 Arkon Resources, Inc.
TomTom GO Series Plate Installation
Attach the adapter plate by sliding it up into the slot on the
back of the TomTom GO 520, 530, 630, 720, 730, 920, 920T,
and 930 models as shown below.
Step 1.
TomTom EasyPort Device Insertion
While holding the mounted adapter plate, gently insert
the device (not included, sold separately) into the adapter
plate until an audible click is heard. The device can then
be rotated into the desired viewing angle.
Step 1.
TT112
| Friction Dashboard Mount for TomTom® GPS - Continued
TomTom ONE, ONE XL, and ONE XL S Plate Installation
Slide the adapter plate up into the grooves on the
back of the TomTom ONE, ONE XL, or ONE XL S device.
Step 1.
While holding the mounted TomTom adapter plate, gently
insert the TomTom device (not included, sold separately)
into the adapter plate until an audible click is heard.
Angle Knob
Angle Knob
Angle Knob
Angle Knob
Angle Knob
