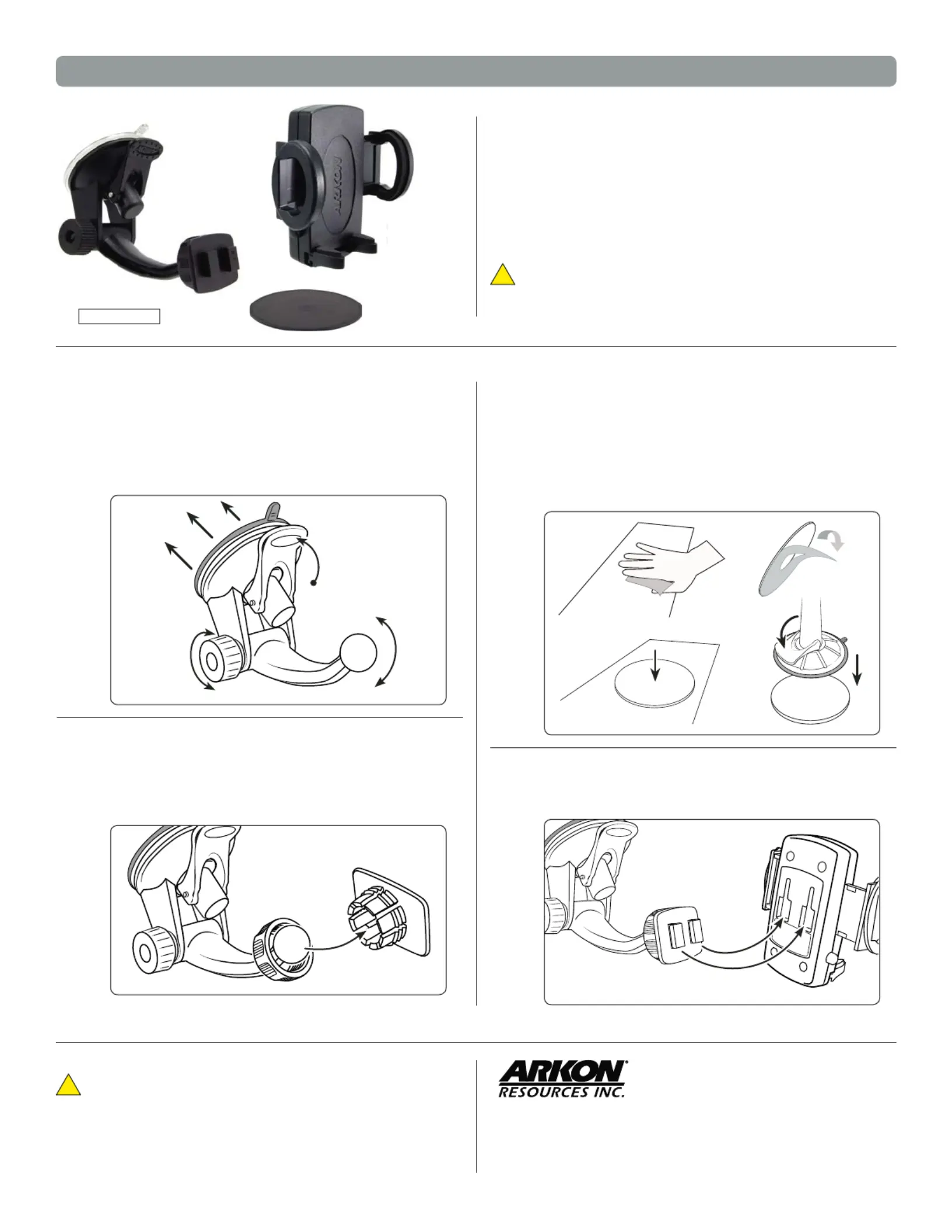

Package Contents:
(1) (1) GN014-SBH - Mini windshield swivel mount
(1) SM015-2 - Universal phone cradle
(1) AP013 - Optional adhesive circular disc for dash / console
(1) Alcohol cleaning pad
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialistsâ„¢
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
Do not place mount in or near an air bag deployment zone
or where it will obstruct view of the road.
!
SM315
| Mini Windshield Suction Swivel Mount with Universal Cradle
Patent Pending
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in Taiwan
© Copyright 2009 Arkon Resources, Inc.
AP013
Adhesive Disc
SM015-2
Universal
Phone Cradle
S
M0
15
U
ni
ver
Pho
ne
GN014-SBH
Windshield Mount
with Swivel Ball
Head Assembly
...continued on other side
Dash or Console Mounting (Optional)
Step 1.
Step 2.
Find a safe location on the dash or console. Use the inclu-
ded alcohol pad to clean the mounting surface if necessary.
Remove the paper backing on the adhesive disc and  rmly
press in place.
Place the pedestal’s suction base (A) over the center of the
circular disc. While  rmly holding the pedestal on top of
the disc,  ip the base lever down to the locked position. (B)
B
A
Windshield Mounting
Step 1.
Step 2.
Step 1.
Swivel Ball Head Assembly Attachment
Find a safe location on the interior of the vehicle’s wind-
shield to mount the pedestal. Firmly push the suction base
(A) against the windshield and  ip the base lever down (B)
to the locked position. See diagram below.
Adjust the angle of the pedestal arm by tightening the
angle adjustment knob (C) at the base to the desired angle.
Slip the tightening ring (D) over the pedestal ball. Snap
the dual-T head adapter plate (E) on to the pedestal ball
(F). Screw the tightening ring over the adapter plate until
securely holding the plate. Adjust the angle as needed.
AB
C
D
E
F
Step 1.
Attach Cradle to Pedestal and Device Insertion
Attach the cradle to the dual T-head by inserting the dual
T-tabs (G) into the dual T-slots (H) on the back of the cradle.
H
G
!Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialistsâ„¢
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
SM315
| Mini Windshield Suction Swivel Mount with Universal Cradle - Cont.
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in Taiwan
© Copyright 2009 Arkon Resources, Inc.
Step 2. Place the phone or device into the cradle with the device
sitting on the adjustable support legs (I). Clamp the grip
arms (J) inward to  rmly grasp the device. Press the release
button (K) to open the arms.
...continued from previous side
K
J
I
