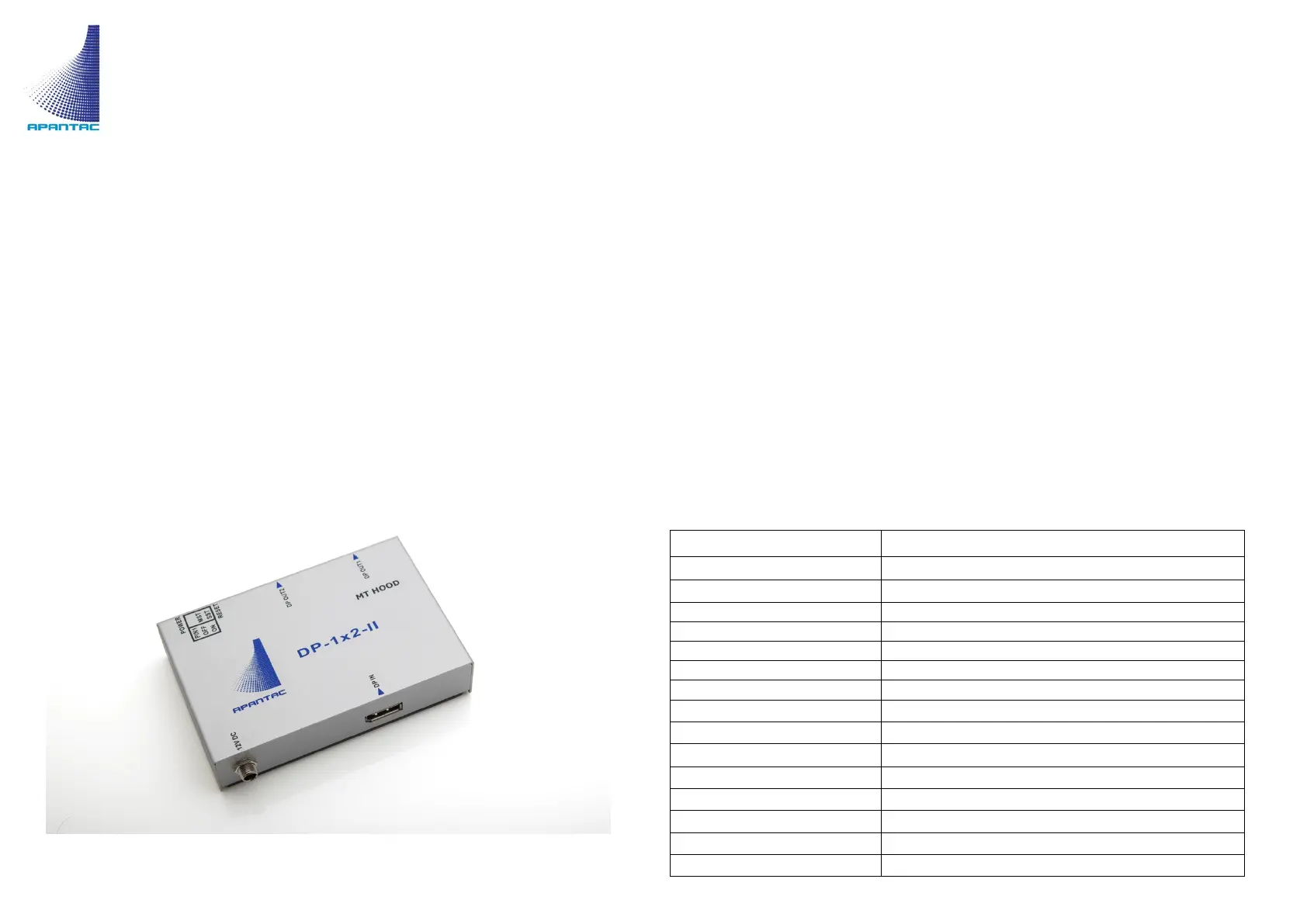

2 Port DisplayPort
SST DA/ MST Hub
USER MANUAL
DP II- -1x2
USER MANUAL v.1.3
Overview
DP layPort splitter- - 1x2 II is a high-speed 2 port Disp /distribution amplifier targeted for
audio/video de multiplexing and in distribution for applications such - as notebook
computers, docking stations, TV/displays, daisy video hub, 4K2K chainable monitors,
digital signages and more. It consists of and two dual mode one isplayPortD input
output ports, that are configurable as either DisplayPort or HDMI.
Package Contents
1 x DP- - 1x2 II
1 x User manual
1 x Power adapter DC12V with lock
4 x Foot pads
Features
Support D P isplay ort 1.2a
Support HDCP1.3 DisplayPort
Support . Link rate HBR2/HBR/RBR
Support SST MST . and mode
Compliant with DisplayPort 1, 2, or 4 lanes.
Specifications
Function DP- - 1x2 II
DisplayPort Input
1
DisplayPort Output
2
Compliance
DisplayPort 1.2a / HDCP 1.3
Max. Resolution
4Kx2K@60
Max. Data Rate
21.6Gbps
Link Rate
HBR2/HBR/RBR
DIP SWITCH
2 pin: SST/MST Selection
RESET Key
TACT SW x 1
POWER Display
Green LED x 1
Operating Temperature
0° to 40°C
Storage Temperature
- C 20° to 60°
Humidity
0 - 80% RH, Non-Condensing
Power Supply
12V/1A DC
Weight
3 10g
Dimensions (LxWxH)
156x83x25mm
FRONT VIEW
1. POWER JACK 12V DC
2. DisplayPort IN
REAR VIEW
1. DisplayPort OUT
2. Reset Key
3. MODE Key
4. POWER LED
DIP Switch Setting
PIN1
MODE
OFF
MST
ON
SST
SST: All the output screen is the same single.
MST : Extend the single video source to all outputs.
※At MST mode the highest output resolution will decrease because the total bandwidth
of 21.6 Gbps is shared among all monitors.
※When the mode select is ready, please restart the power or pressing Reset Key
Installation
1. Connect the DP cable with the PC and the <IN> port
2. Connect the DP cable with the monitor and the <OUT> ports
3. 1x2 Connect the power cord and turn on the -DP - II
4. Turn on the PC and monitor
EDID
DisplayPort splitters do not have capability of storing the EDID, so EDID is
passed from the display to the source. When there are two displays, it
will use whichever the EDID is sent first, it will use that EDID. If you
remove the displays from the splitter, the splitter will keep the last EDID
until power cycle.
Compatibility Tests
Due to the different interpretations of DisplayPort modes by different major graphics
accelerator companies, it is important to provide detail compatibility test data as follows,
Test Equipment
Graphics Card 1
GTX 1050Ti (NVIDIA, O S: WIN 10)
Graphics Card 2
Radeon RX560 (AMD: OS: WIN 7)
Display 1
Dell P2415Q
Display 2
ASUS PB287
Display 3
AOC U2849VF
Display 4
SAMSUNG LU28D590S
DisplayPort cable
LPC- 1603 2m
1. diagram SST connection
2. SST tests
DP-1x2- II (SST MODE)
Resolutions/GFX card OUTPUT1 OUTPUT2 OUTPUT1 OUTPUT2
GTX1050Ti
P2415Q
PB287
PB287
P2415Q
4K@60Hz
Pass
Pass
Pass
Pass
4K@30Hz
Pass
Pass
Pass
Pass
1920x1080P@60Hz
Pass
Pass
Pass
Pass
Ra deon RX560
LU28D590S
U2849VF
U2849VF
LU28D590S
4K@60Hz
Pass
Pass
Pass
Pass
4K@30Hz
Pass
Pass
Pass
Pass
1920x1080P@60Hz
Pass
Pass
Pass
Pass
3. MST connection diagram
4. MST testing
DP-1x2- II (MST MODE)
Resolutions/GFX card
OUTPUT1
OUTPUT2
OUTPUT1
OUTPUT2
GTX1050Ti
P2415Q
PB287
U2849VF
LU28D590S
4K@30Hz
4K@30Hz
4K@30Hz
4K@30Hz
LU28D590S
P2415Q
PB287
U2849VF
4K@30Hz
4K@30Hz
4K@30Hz
4K@30Hz
Ra deon RX560
P2415Q
PB287
U2849VF
LU28D590S
No out put
No output
No output
N o output
Note: When Radeon RX560 in MST mode, there is no output
5. DP++ testing
INPUT
Not supported
Output
Not supported
© 2019 . A APANTAC LLC ll rights reserved
10200 SW Allen Blvd, Suite C
Beaverton, OR 97005, USA
PHONE +1 503 968 3000, FAX +1 503 389 7921
The content of this document provided in connection with Apantac LLC (“Apantac”) is
products. Apantac makes no representation or warranties with respect to the accuracy or completeness of
the contents of this publication and reserves the right to make changes to specification and product
descriptions at any time without notice
