QR-SDH
Installation Instructions

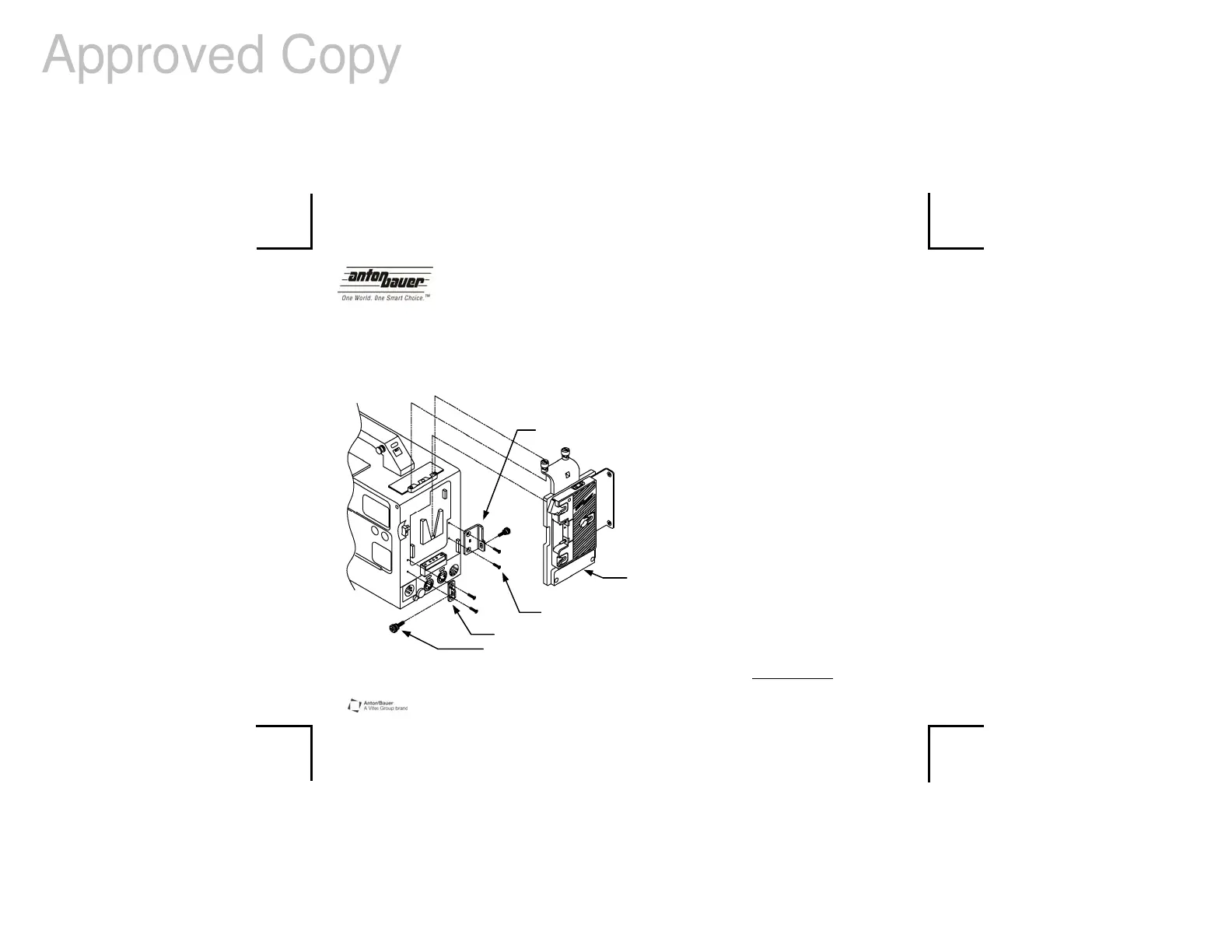

1. Using supplied screws, install mounting plates A and B
to rear of camera.
2. Install QR SDH bracket.
3. Secure QR SDH bracket to mounting plates via
thumb screws. Use spacers if required. Note:
Depending on space between bracket and
plates A and B (mounted to camera in step “1”), it
maybe necessary to use either side one (1) or two (2),
as noted on the spacer, for proper fit.
Camera / Camcorder
Q
R
-SDH Gold Mount
®
M2.6 x 5mm
Thumb screw
A
B
Approved Copy
Use of unauthorized equipment in conjunction with Anton/Bauer products constitutes misuse under our warranties and may limit or void those
warranties. Anton/Bauer does not authorize, condone, recommend, or otherwise assume any liability or responsibility resulting from the use of
any battery, charger or accessory made by Anton/Bauer manufacture with any battery, charger or accessory not manufactured, produced or sold
by Anton/Bauer. Anton/Bauer only authorizes the use of original Anton/Bauer product with this product. Use only original Anton/Bauer
equipment with this product.
Available Separately
WRB-185/WRB-200/WRB-201
For Lectrosonics Style Receivers
ABWMK-KIT
Universal Mounting Plate for Wireless Receivers
• Allows user to use the same Wireless Receiver Plate for ALL Anton/Bauer
®
Batteries.
• Allows a Receiver to be mounted on either the side of the Battery, behind the
Battery, or both.
• Will accomodate WRB-185/WRB-200/WRB-201 Wireless Receiver
Compartments.
• Attaches directly to any Anton/Bauer Wireless
Receiver Plate.
• Able to “Piggy-Back” multiple Compartments.
WRB-185: Fits CR-175, CR-185, CR-187 and
UCR-190 style Receivers
WRB-200: Fits UCR-195, UCR-195D, UCR-200D,
UCR-205D, UCR-210D, UCR-211,
UCR-411 and AJA Model HD10A and
HD-10MD3 style Receivers
WRB-201: Fits UCR-201/401 style receivers
Approved Copy
