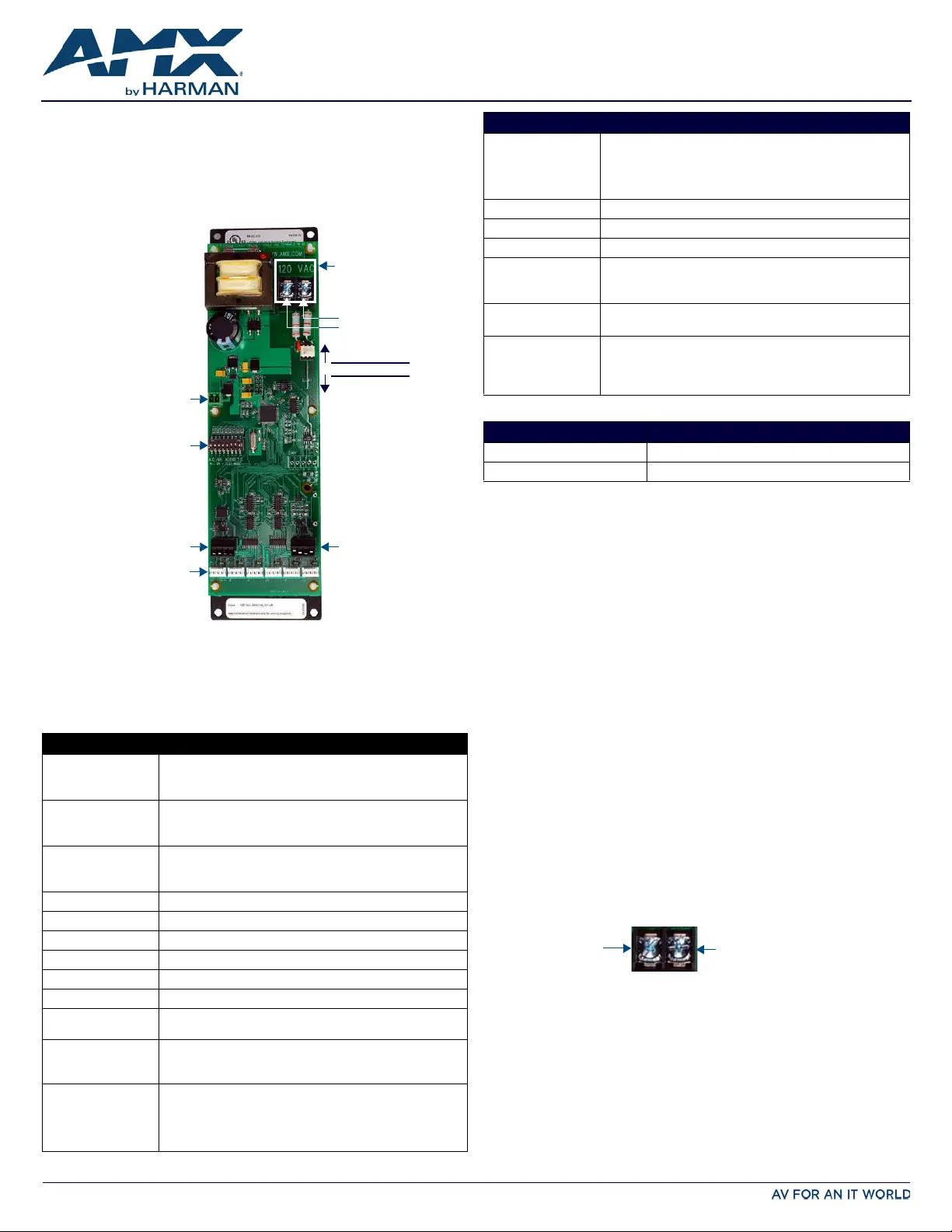

QUICK START GUIDE
RE-DC Radia Eclipse 6-Channel Dimmer Module (120 VAC/240 VAC/277 VAC)
Overview
The RE-DC RADIA Eclipse 6-Channel Control Card Module controls up to 6 dimmable
channels with 6 satellite connectors for communication with RDM series dimmer or
switch modules. One Control Card Module is required for every 6 zones of dimming or
switching provided by the RDM modules.
The RE-DC is designed for use with the RDA series of enclosures in an AMX Lighting
modular digital dimming system. The RE-DC is controlled by AxLink or by dry contact
closures.
Common Application
Ideal for supporting homes or businesses that require a variety of traditional and
specialty dimmers and switchers - including incandescent and fluorescent dimmers,
energy management switches and low power DC switching.
Specif ications
Suggested Loads
Caution: Pre-Installation Notes
WARNING: This unit should be installed only by qualified electrical personnel, and in
compliance with all national electrical codes, local codes and ordinances.To prevent
possible personal injury or death, disconnect power to the enclosure at the breaker box
before attempting to work with any AMX Lighting modules.
• All Class 1 and 2 wiring must be connected to their dedicated terminals.
• Class 1 wiring should be connected through the top of the enclosure, and Class 2
wiring through the bottom.
• Load conductors must be same size as line conductors, regardless of connected
load.
• Disconnect power while installing or connecting the unit.
• Keep top and bottom air vents clear at all times, and maintain 12” (30.48 cm)
clearance around the top and bottom.
• Test loads for shorts before connecting.
• Class 2 wiring must be rated 300V or higher.
• For indoor use only.
• AC lighting loads only.
• This module may require extra power from the AxLink connection or an external
power supply connected to the control card.
• For more information, refer to the RE-DC Operation Reference manual, available at
www.amx.com.
Radia Lighting System Conf iguration Pages
The AMX Radia Web pages provide a simple interface for users of the Radia Duet
module. The web pages reside on the AMX master when running the Radia Duet module
and may be accessed through Internet Explorer or Mozilla Firefox. The RE-DC may also
be configured using NetLinx code or a terminal.
High-Voltage Connections
Each AMX Lighting module has its high-voltage connectors marked on its circuit board.
Low-Voltage Connections
The low-voltage area in the AMX Lighting controllers contain connections and DIP
switches for AxLink, dry closures, and RDM module connectors (FIG. 1). On the
controller cards, low-voltage power for the board is supplied either by line power,
optional auxiliary power supply (RDA-PSM), or the +12 VDC pin on the AxLink
connector.
WARNING: Disconnect the main power to the AMX Lighting controller at the breaker box if
rewiring the low voltage connections.
FIG. 1 RE-DC
RE-DC SPECIFICATIONS
Models Available: • 120 VAC: FG706-05
• 240 VAC: FG706-06
• 277 VAC: FG706-07
Line Input: • 120 VAC, single phase, 2W+G, 50/60 Hz
• 240 VAC, single phase, 2W+G, 50/60 Hz
• 277 VAC, single phase, 2W+G, 50/60 Hz
Idle Current Draw: • 75 mA @ 120 VAC
• 50 mA @ 240 VAC
• 44 mA @ 277 VAC
RDM Control Current: 2 at 200 mA @ 12 VDC with no additional power supply
Controlled Output: 6 control channels
Wire Rating: Use only copper wires rated at 75°C (167°F) min.
Torque Terminals: To 20 in-lbs (2.3 N/M)
Maximum Wire Size: 10 AWG (4 mm²)
Wire Stripping Length: 0.5" (13 mm)
AxLink Port: 4-pin 3.5mm black captive wire connector. AxLink communication
signaling with 12VDC power in.
Aux Power: 2-pin 3.5mm green captive wire connector.
This is a 12VDC power input that supplies additional power to the
Radia PCB and connected Radia modules.
Dry Contacts: Emergency fire alarm relay connection - Closed relay activates
preset 126. Other control is locked out until relay opens.
Supports daisy chaining of up to 20 dimmers for this connection,
with a maximum current requirement of 200mA when daisy-
chained.
Neutral
High Voltage Connections
External +12V Aux Power
Dry Closures
AxLink Connector
RDM Module Connectors
Line In
AxLink Address DIP Switch
CLASS 1 WIRING
CLASS 2 WIRING
RE-DC SPECIFICATIONS (CONT.)
Dry Contacts (Cont.): Failsafe connection - Works with a toggle switch - opening the
switch triggers preset 128, closing the switch triggers preset 127.
Supports daisy chaining of up to 20 dimmers for this connection
with a maximum current requirement of 200mA when daisy-
chained.
Dimensions (HW): • 2.25" x 10.0" x 2.75” (57.15mm x 254.00mm x 69.85mm)
Weight: • 1.05 lbs (0.48 kg)
Operating Temp Range: • 32° to 104°F (0° to 40°C)
Certifications: • FCC
• CE
• UL/CUL Listed
Included Accessories: • 2 4-pin 3.5mm captive wire connector (41-5047)
• 4 #8-32x1/2” F-point mounting screws
Required Enclosures: • RDA-ENC2 (FG606-10)
• RDA-ENC4 (FG606-11)
• RDA-ENC6/6B (FG606-12/13/15)
• RDA-ENC12B (FG606-14/16)
DIMMED SWITCHED
Incandescent Motors
Neon, cold-cathode Fans
FIG. 2 HIGH-VOLTAGE CONNECTIONS
Line In Neutral
© 2015 Harman. All rights reserved. Radia Eclipse, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of
HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
93-0706-03 REV: D
Last Revised: 11/09/2015
Dry Closure Connections
Dry contact closures from other equipment can be connected to the Radia Eclipse
dimmer module to provide direct manual control of lighting loads (FIG. 3).
Each dry contact closure has two pins: ground and contact. To activate each dry
closure, connect the ground and contact.
Setting AxLink Address Numbers
Set the AxLink address number (1-255) for the RE-DC. This number must match the
device number in your NetLinx program.
Note: By turning all switches off, all circuits will go to 100 percent so that the installer
can test the high-voltage connections without having connections to a control system.
Connecting AxLink
Connect the 4-pin captive-wire AxLink from the RE-DC to the Central Controller for
AxLink control of the dimming system.
RE-DC 4-Pin Module Connector (Male)
Connect the 4-pin module connectors for extension modules such as switches.
FIG. 3 DRY CLOSURE CONNECTIONS
RE-DC
FAILSAFE
GND
EMERGENCY
GND
Failsafe switch
Alarm system
FIG. 4 CONNECTING AXLINK
FIG. 5 RE-DC MODULE CONNECTOR
Central
RE-DC Controller
PWR
AXP
AXM
GND
PWR
AXP
AXM
GND
Pin 4 (GND)
Pin 3 (RLY)
Pin 2 (DIM)
Pin 1 (+12 V)
FIG. 6 WIRING EXAMPLE
Return to Neutral
From
Panel
Indicates module number
to control port through
separate low voltage
connection
One phase
3 dimmers
3 switches
120/240/277 VAC
1 2 3 4 5 6
Channel 1 Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Lighting Application Drawing
