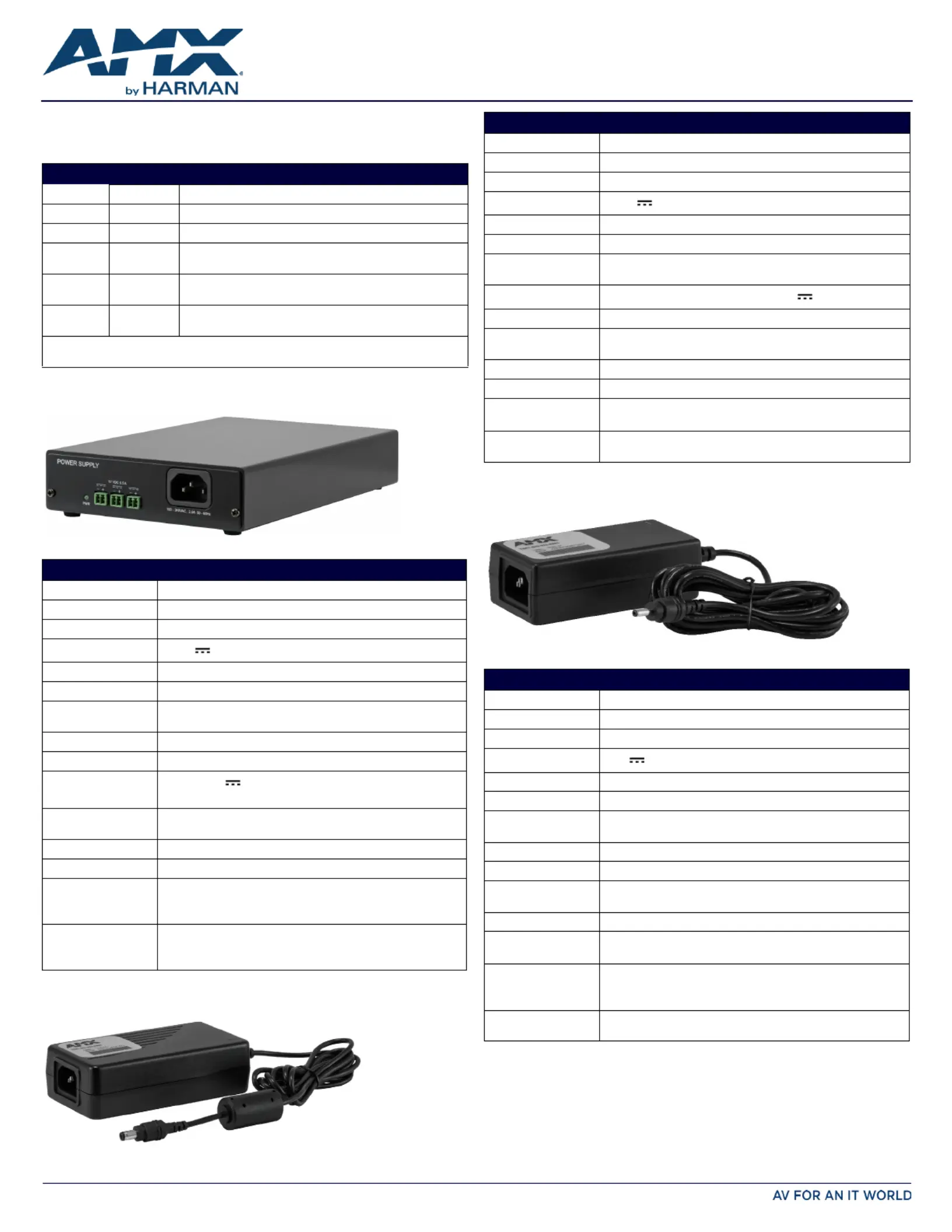

QUICK START GUIDE
PS/N/R Power Supplies
Power Supply Models
AMX offers 6 variations of our Class I, CSA/CE approved, and UL listed system
power supplies:
PSN6.5 Specifications
FIG. 1 displays the rear panel of the PSN6.5.
PS4.4 Specifications
FIG. 2 displays the PS4.4.
PS3.0 Specifications
FIG. 3 displays the PS3.0. The PS3.0 is a Class I power supply which is CE approved
and UL listed. The PS3.0 uses a barrel-plug connector.
PS/N/R POWER SUPPLIES
PSN6.5 (FG423-41) With US power cord
PS4.4 (FG423-44) Includes US power cord and barrel plug
PS3.0 (FG423-30) Includes US power cord and barrel plug
PSR2.5 (FG423-47) Includes 3-pin retained captive-wire connector and US
power cord
PSR5.4 (FG423-48) Includes 2-pin retained captive-wire connector and US
power cord
PSR7-V (FG423-49) IEC power cord provided as a separate part, dependent
on country requirements.
Note: All models use an input connector sanctioned by the IEC (International
Electrotechnical Commission).
FIG. 1 PSN6.5 POWER SUPPLY
PSN6.5 SPECIFICATIONS
Dimensions (HWD): 1 1/2" x 5 9/16" x 9 1/4" (3.81 cm x 14.10 cm x 23.50 cm)
Weight: 2.76 lbs. (1.25 kg) (without power cord)
Input: ~100-240 V, 2.6A MAX (1.3A MAX @ 230), 50/60 Hz
Output Voltage: 13.5 V
Output Current: 6.5 A (continuous power output is 90 W max)
Ripple and Noise: 350 mV peak-to-peak @ 70% load
Protection: Over-voltage, over-current, short-circuit, transient and
thermal switching regulated, overload protected
Power Indicator: Green LED indicates presence of DC on the output.
Connectors: Three removable 2-pin 3.5 mm mini-Phoenix connectors
Rear Panel
Components: Three 12 V power supply connectors
Standard IEC (male) jack for the power cord
Input Power Cord: 6-foot (1.83 m) IEC cord with a grounded Edison plug for AC
input (US only)
Enclosure: Metal with black matte finish
Temp Range: 32°F - 122°F (0°C - 50°C)
Certification: UL: US listed - Class I Power Supply
CSA approved
CE approved
PSE approved
CCC approved
Accessories: US power cord
3 removable 2-pin 3.5 mm mini-Phoenix connectors
(Optional) AC-RK Accessory Rack Kit (FG515)
FIG. 2 PS4.4 POWER SUPPLY
PS4.4 SPECIFICATIONS
Dimensions: 4 5/8" x 2 1/4" x 1 1/2" (11.7 cm x 5.8 cm x 3.5 cm)
Weight: 1.1 lb. (499 g)
Input: ~100-240 V, 1.5A MAX (0.6A MAX @ 230), 50/60 Hz
Output Voltage: 13.5 V
Output Current: 4.5A MAX
Ripple and Noise: 150 mV peak-to-peak @ full load
Protection: Over-voltage, over-current, short-circuit, transient and
thermal. Switching regulated, overload protected.
Power Indicator: Green LED indicates the presence of V on the output.
Connector: Barrel plug (2.1mm ID, 5.5mm OD, 9.5mm length)
Input Power Cord: 6-foot (1.83 m) IEC cord with a grounded Edison plug for AC
input (US only)
Enclosure: Molded black matte plastic
Temp Range: 32°F - 104°F (0°C - 40°C)
Certification: • UL: US listed - Class I Power Supply
CSA approved
CE approved
PSE approved
Included
Accessories:
US power cord
FIG. 3 PS3.0 POWER SUPPLY
PS3.0 SPECIFICATIONS
Dimensions (HWD): 3 7/8" x 1 3/4" x 1 1/4" (9.8 cm x 4.5 cm x 3.05 cm)
Weight: 5.6 oz (150 g) (without power cord)
Input: ~100-240 V, 3A MAX, 50/60 Hz
Output Voltage: 12 V
Output Current: 3.0 A
Ripple and Noise: 200 mV (60Hz Ripple + Switching ripple and noise)
Protection: Over-voltage, over-current, short-circuit, transient and
thermal switching regulated, overload protected
Power Indicator: Green LED indicates presence of DC on the output.
Connectors: 1.3mm barrel plug, 11mm long
Input Power Cord: 6-foot (1.83 m) IEC power cord terminated with a grounded
Edison plug for AC input (US only).
Enclosure: Molded black matte plastic
Temp Range: Operating temperature: 32°F - 122°F (0°C - 50°C)
Storage temperature: -4°F - 185°F (-20°C - 85°C)
Certification: • UL: US listed - Class I Power Supply
CUL approved
TUV approved
FCC approved
CE approved
PSE approved
Included
Accessories:
US power cord
© 2017 Harman. All rights reserved. AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of HARMAN.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom ? +44 1904-343-100 ? www.amx.com/eu/
93-0423-41 REV: R
Last Revised: 11/30/2017
PSR2.5 Specifications
FIG. 4 displays the PSR2.5.
PSR5.4 Specifications
FIG. 5 displays the PSR5.4.
PSR7-V Specifications
FIG. 6 displays the PSR7-V. This accessory power supply should be used only with
Listed AMX products.
Note: The power light on the front panel should remain solid when power is
provided to the unit. A blinking power light indicates overcurrent. If this occurs,
unplug the main power connector from the unit for 30 seconds then reconnect
the power to reset the unit. If the main power is connected and the power light is
not on, the unit has overheated. If this occurs, unplug the main power connector
from the unit for 30 seconds then reconnect the power to the unit.
FIG. 4 PSR2.5 POWER SUPPLY
PSR2.5 SPECIFICATIONS
Dimensions (HWD): 4 3/4" x 2 3/8" x 1 1/4" (12 cm x 6 cm x 3.05 cm)
Weight: 1.1 lb. (499 g)
Input: ~100-240 V, 1.5A MAX, 47/63 Hz
Output Voltage: 24 V
Output Current: 2.5 A
Ripple and Noise: 300 mV peak-to-peak @ full load
Protection: Over-voltage, over-current, short-circuit, over temperature,
overload protected
Power Indicator: Green LED indicates presence of DC on the output.
Connectors: 3-pin retained captive wire connector (3.5mm)
Input Power Cord: 4-foot (1.2 m) IEC power cord terminated with a grounded
Edison plug for AC input (US only).
Enclosure: Molded black matte plastic
Temp Range: • Operating temperature: 32°F - 104°F (0°C - 40°C)
• Storage temperature: -4°F - 176°F (-20°C - 80°C)
Certifications: • UL: US listed - Class I Power Supply
CUL approved
TUV-GS approved
• FCC approved
CE approved
• PSE approved
CCC approved
BSMI approved
• RCM approved
Included
Accessories:
US power cord
FIG. 5 PSR5.4 POWER SUPPLY
PSR5.4 SPECIFICATIONS
Dimensions (HWD): 4 1/2" x 2" x 1 1/4" (11.5 cm x 5.15 cm x 3.05 cm)
Weight: 0.48 lb (221 g)
Input: 100-240 +10% VAC, 47-63 Hz
Input Currency: • <2A MAX at 100 VAC + full load
• <1A MAX at 230 VAC + full load
Output Voltage: 12 V
Output Current: 5.4A MAX
Ripple and Noise: 200 mV peak-to-peak @ full load
PSR5.4 SPECIFICATIONS (CONT.)
Protection: Over-voltage, over-current, short-circuit, transient and
thermal. Switching regulated, overload protected
Power Indicator: Green LED indicates the presence of DC on the output
Connectors: Mini 2-pin captive wire connector (3.5 mm)
Input Power Cord: 50 mm IEC power cord terminated with a grounded Edison
plug for AC input
Enclosure: Molded black matte plastic
Environmental: • Operating temperature: 32°F to 104°F (0°C to 40°C)
• Storage temperature: -4°F - 176°F (-20°C - 80°C)
Certifications: UL: US listed - Class I Power Supply,
CSA approved, CE approved
• AS/NZS 60950-1 - Australia, New
Zealand
BSMI - Taiwan
• CCC - China
• CU - Russia
UL Energy Verified
• KC - Korea
• TUV GS - Germany
Included
Accessories:
US power cord
FIG. 6 PSR7-V POWER SUPPLY
PSR7-V SPECIFICATIONS
Dimensions (HWD): 1 5/8” x 5 3/4” x 5 1/8” (4.13 cm x 14.6 cm x 13.02 cm)
Weight: 1.45 lb. (657 g)
Input: ~100-240 V, 1.9A MAX, 47/63 Hz
Output Voltage: 12 V +/-.6V
Output Current: 5.5 A
Ripple and Noise: 160mV peak-to-peak @ full load
Protection: Over-voltage, over-current, short-circuit, over temperature,
overload protected
Power Indicator: Green LED indicates the presence of DC on the output
Connectors: Three removable 2-pin 3.5 mm mini-Phoenix connectors
Input Power Cord: Dependent on regional model number. Please see the
product catalog for available country-specific products.
Output Power
Connectors: • Three 12 V power supply connectors
• The connecting cable must be DP-2 or DP-2P and proper
AWG.
Enclosure: Metal with black matte finish
Environmental: • Operating temperature: 32°F to 122°F (0°C to 50°C)
• Storage temperature: -4°F - 176°F (-20°C - 80°C)
Note: If mounting the power supply on a rack, you must keep
1 RU clear between items to ensure a proper temperature
environment.
Certifications: • UL/cUL/CB
• UL AR
• UL, RCM -Australia, New Zealand
• UL - Morocco
NOM - Mexico
• FCC Part 15 Subpart B
• CCC - China
